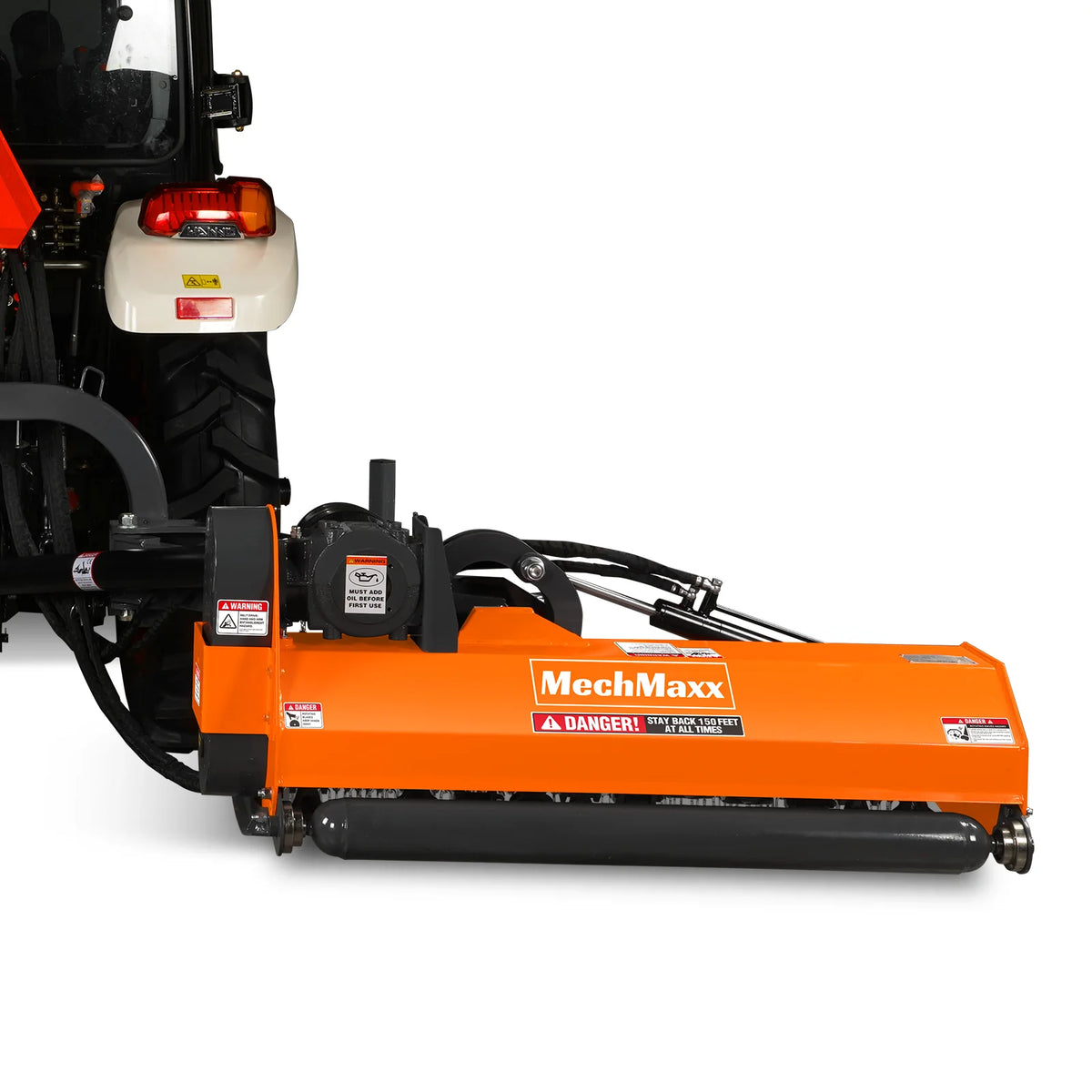

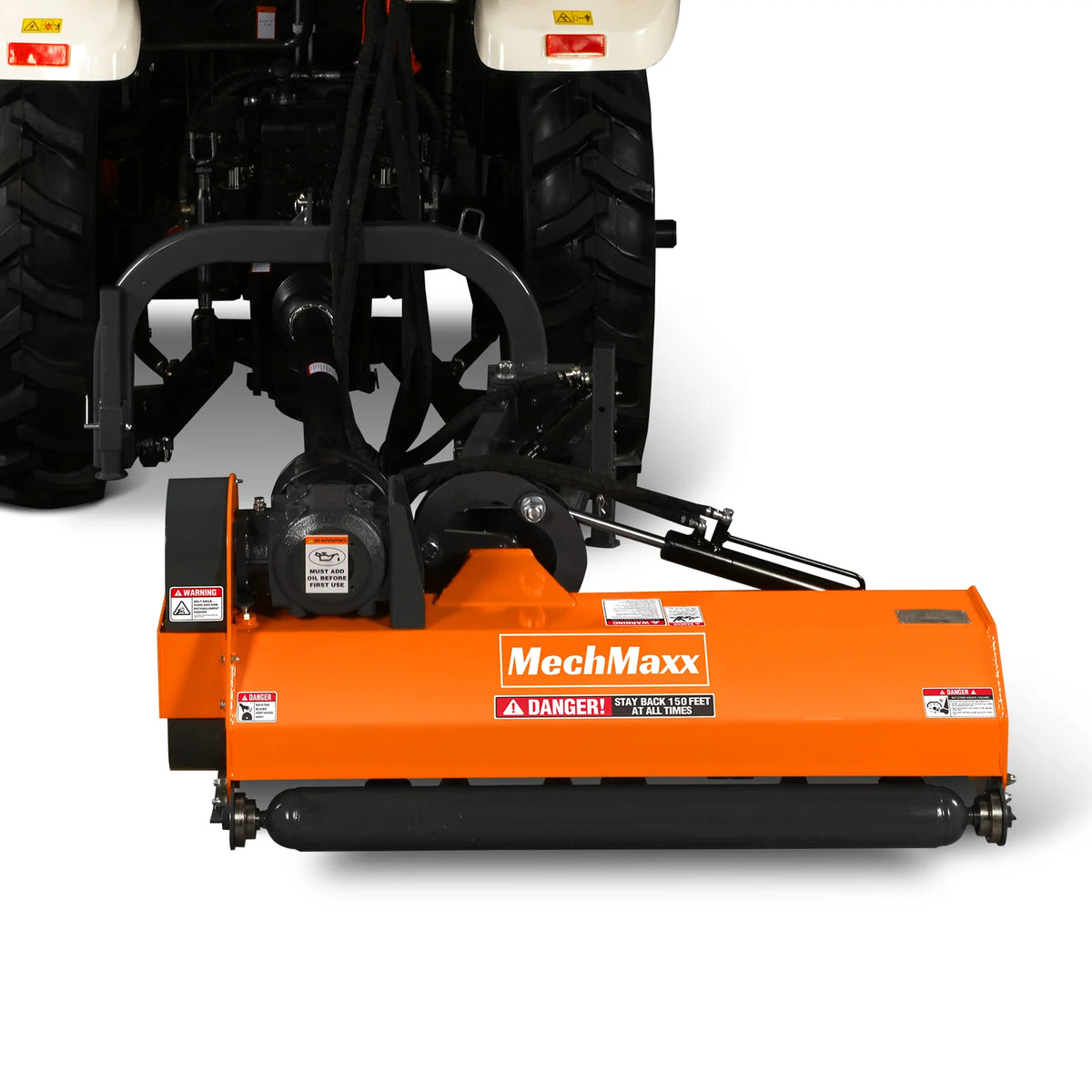

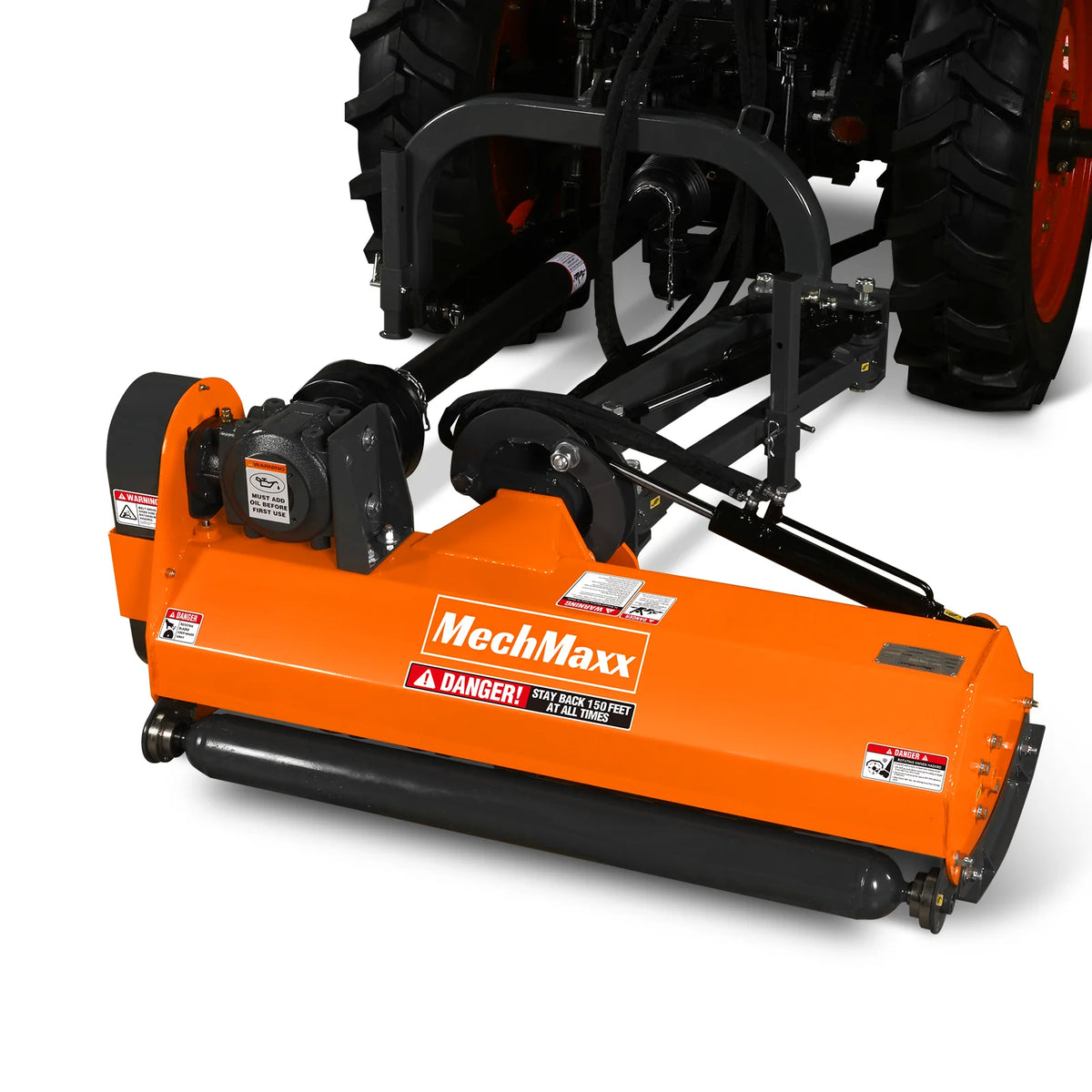

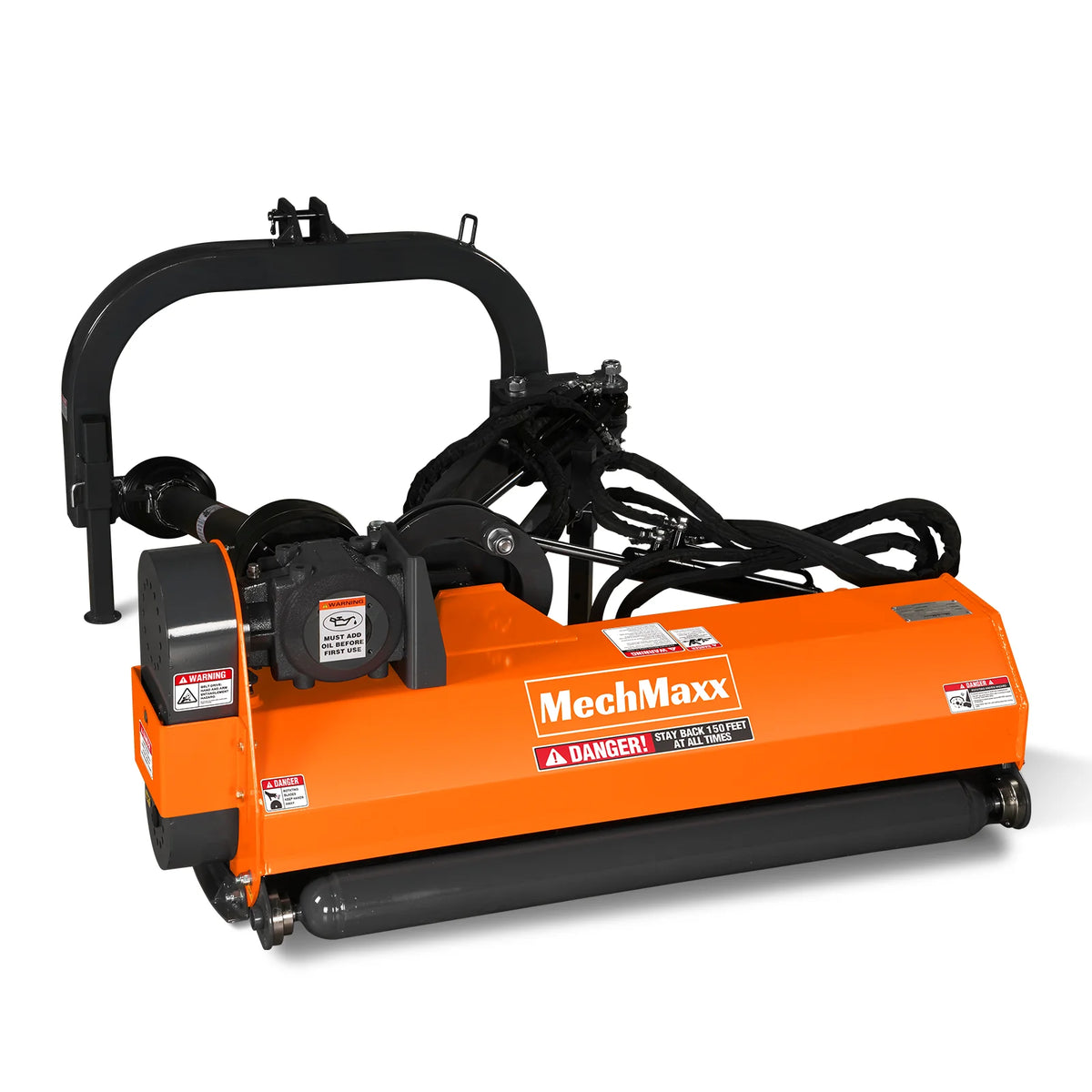

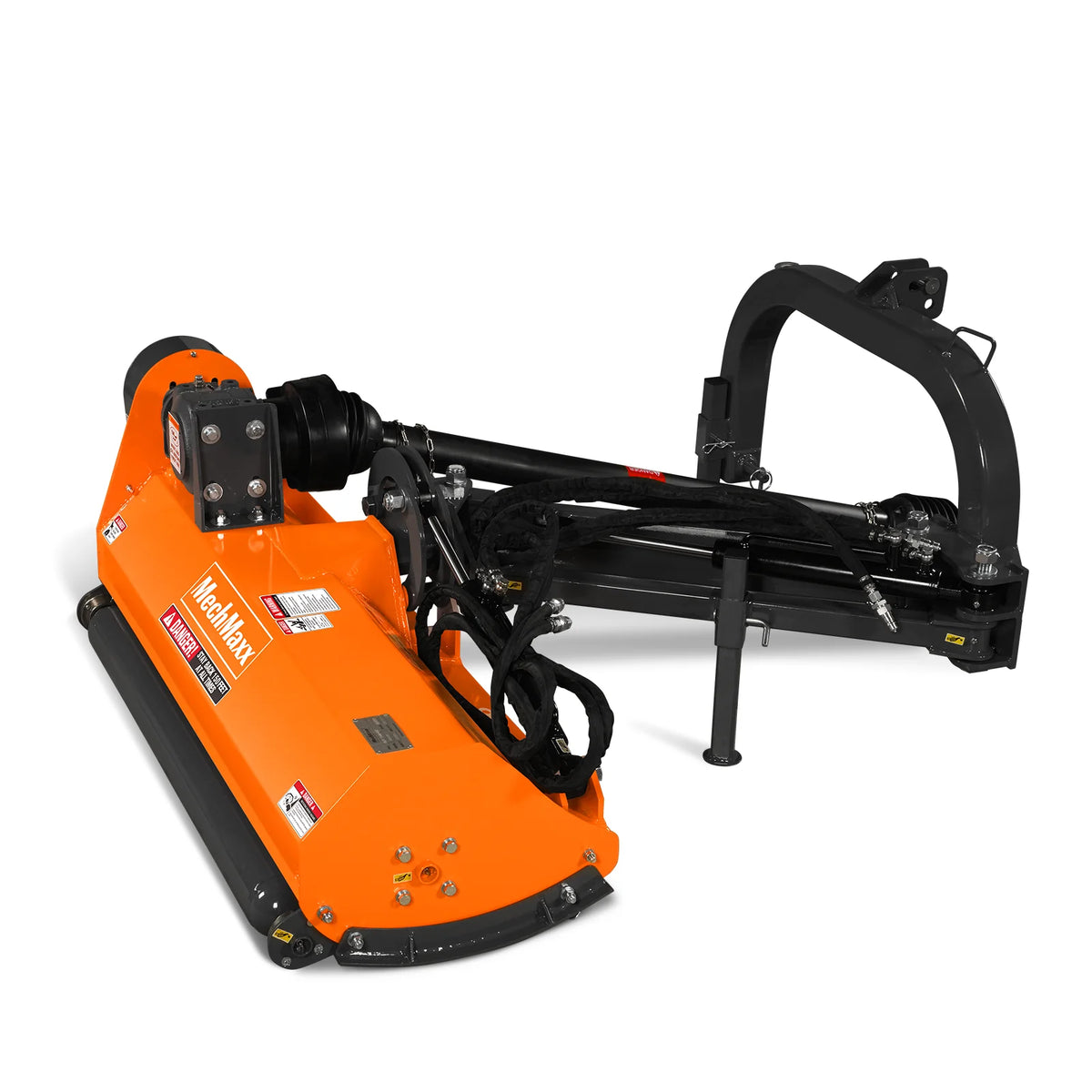

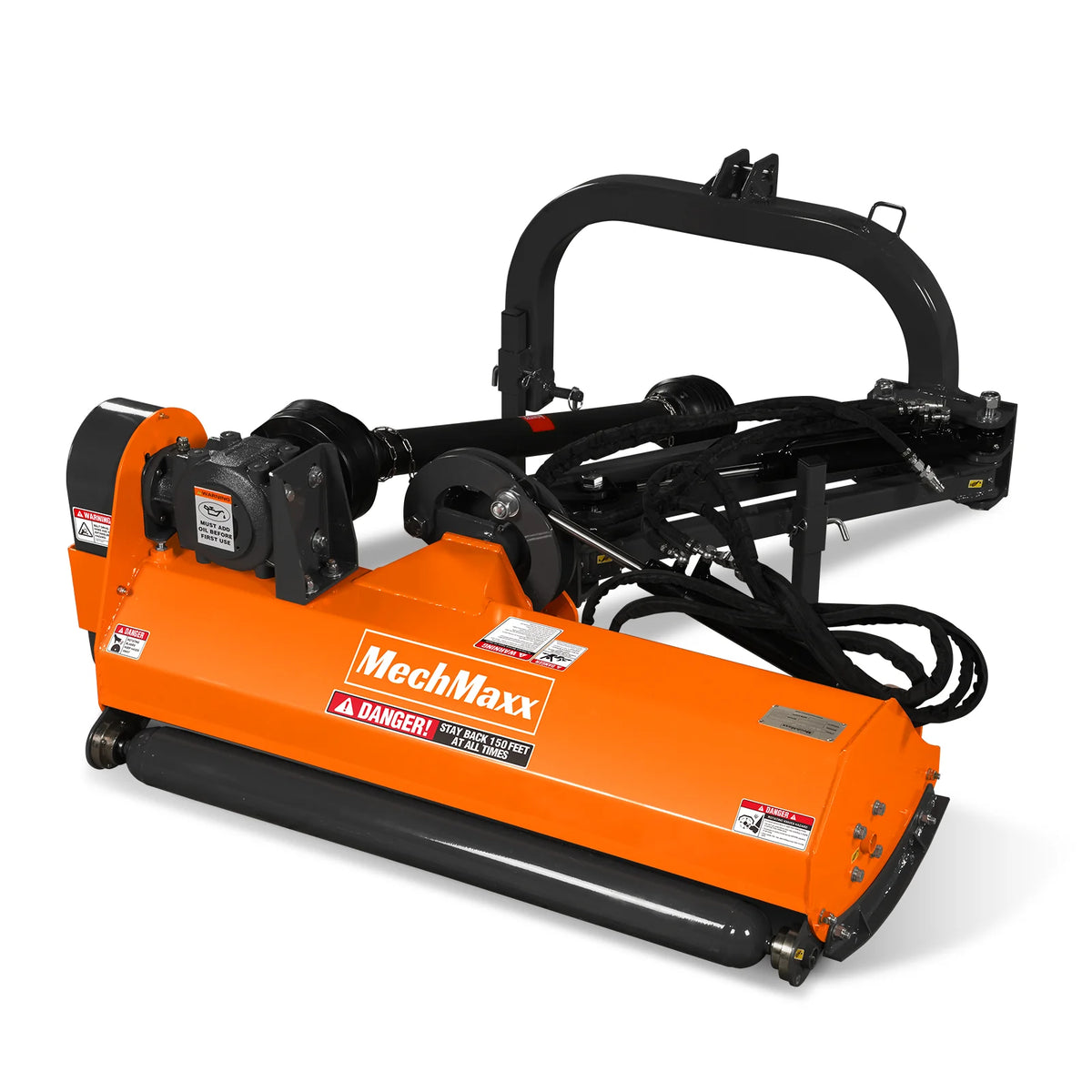

MechMaxx 48" Standard 3 Point Offset Flail Ditch Bank Mower, 25-50HP, VAM48
Regular price
$3,399.00
Couldn't load pickup availability
Free shipping
100% secure payments
Industry leading quality
Ask an expert!

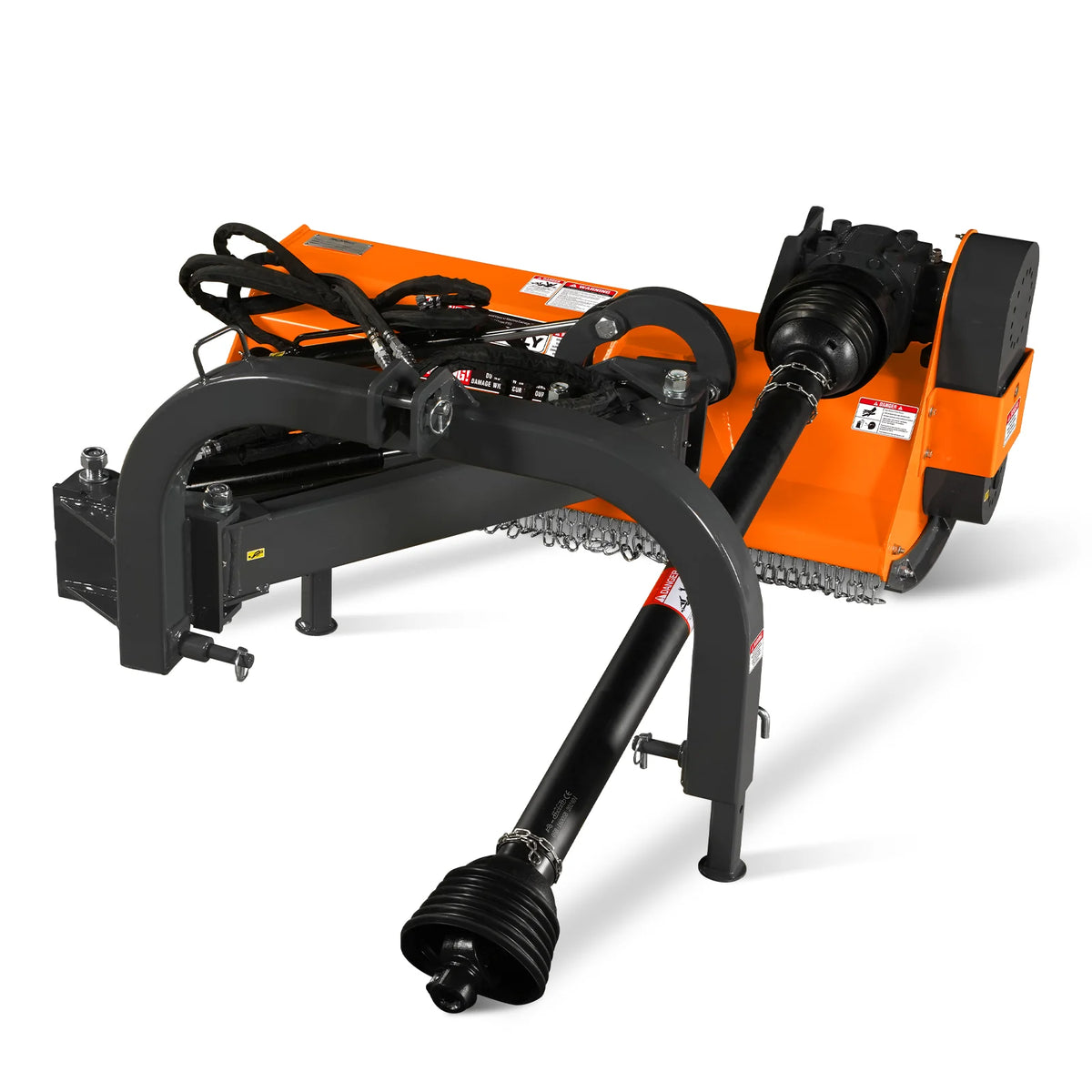

- 48" working width for time-saving, economical mowing of fields, long ditches, building perimeters, and large yards 20 hammer-type blades keep your mowing area cut consistently short Compatible with 25-50 HP tractors, operating at 540 RPM Hydraulically controlled rotation with 90° tilt-up and 60° tilt-down angles for versatile cutting Hydraulically controlled side-to-side movement and right side offset for reaching distant overgrown areas Includes PTO shaft (1-3/8" Z6) for Category 1 hookups, compatible with most tractor makes and models Front safety chains keep out debris; sealed tapered roller bearings for durability Storage brackets for easy storage when not in use

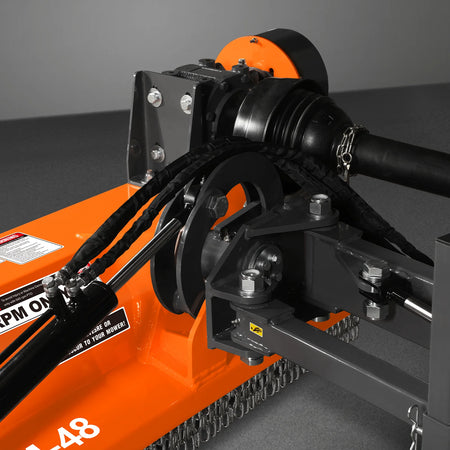

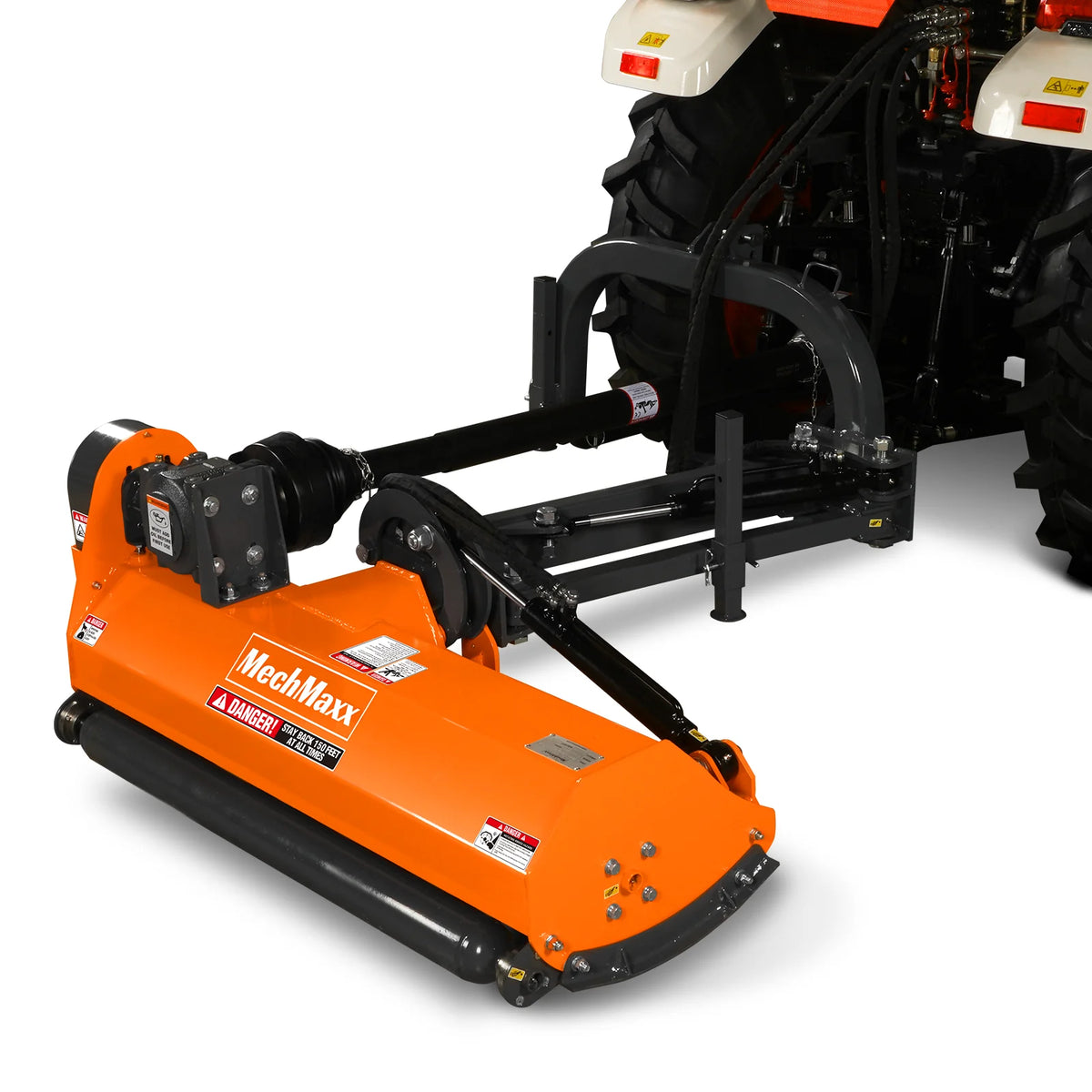

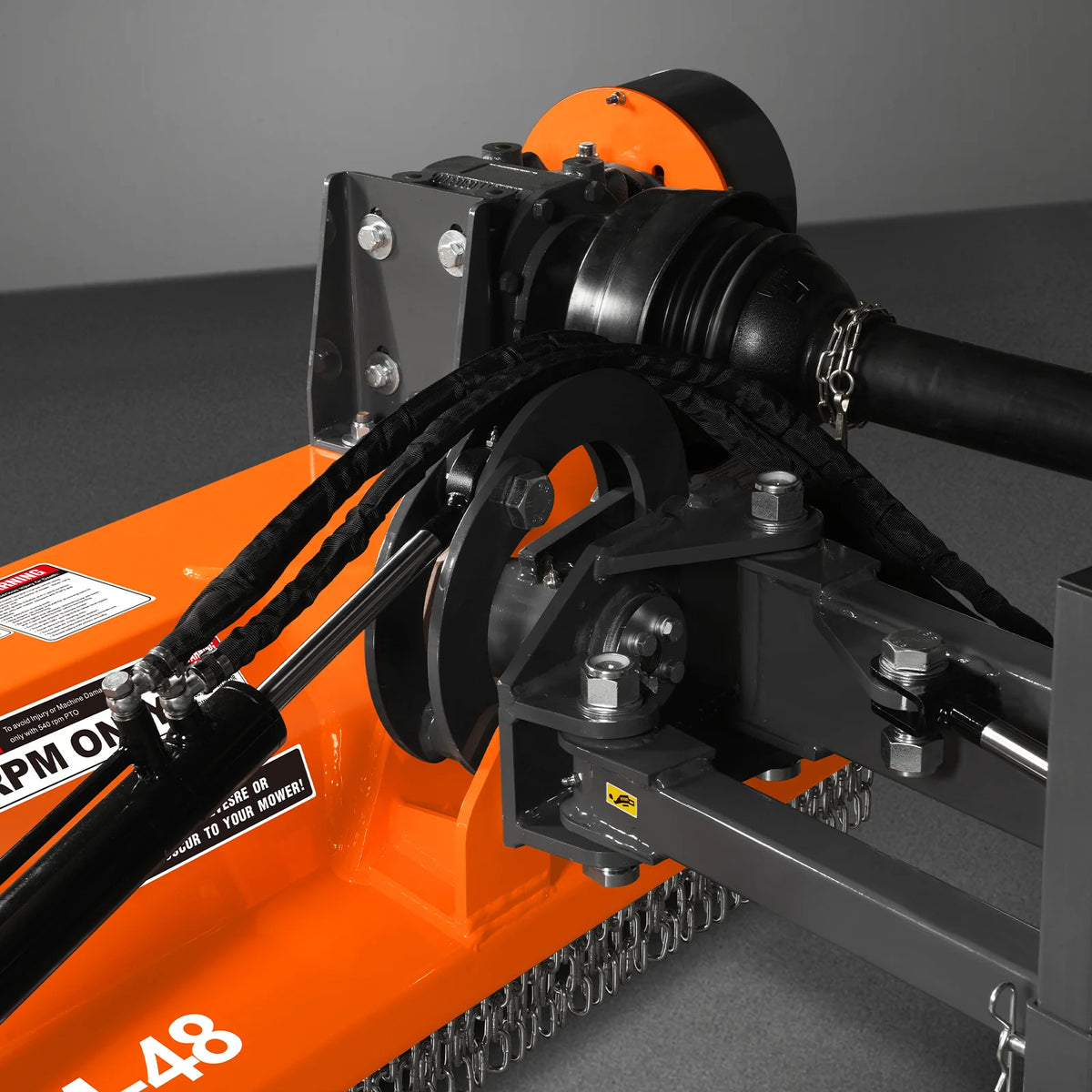

This mower saves time and economically cuts plants in larger areas. The attachment has a flail hammer to help the mower push through dense debris. The included PTO drive shaft easily connects to your tractor, and the belt drive allows for efficient power transfer. It uses an offset Category 1, 3-point hookup and is recommended for 25-50 HP tractors. Front safety chains keep out debris, and sealed tapered roller bearings and storage brackets make it easy to maintain and store when not in use. Note: this model can only cut green or tender grass — it cannot cut tall grass, shrubs, vines, or thorny brambles, and requires a tractor with rear hydraulic connections.
| Engine Power Required | 25-50 HP | Rotor Shaft Speed | 2356 rpm | ||||
| Working Width | 48 in | Hydraulic Fittings Size | G1/2 in | ||||
| Overall Width | 56 in | Hydraulic Hoses Quantity | 4 | ||||
| Ground Clearance (Two Gears) | 0.5-0.6 in | Drive Type | Belt Drive | ||||
| Max. Cutting Diameter | Depends on the type of grass | Spline End | 1.375 in Z6 | ||||
| Offset Distance from Center (Maximum) | 69 in | Driveline Shaft Length | T6-LF-63 with shear bolt; 63-77in [05B-1600] | ||||
| Tilt-Up Angle | 90° | PTO Shaft Speed | 540 rpm | ||||
| Tilt-Down Angle | 60° | Deck Thickness | 0.16 in | ||||
| Number of Blades | 20 | Side Plate Thickness | 0.25 in | ||||
| Blade Type | Hammer | 3-Point Hitch | CAT 1 | ||||

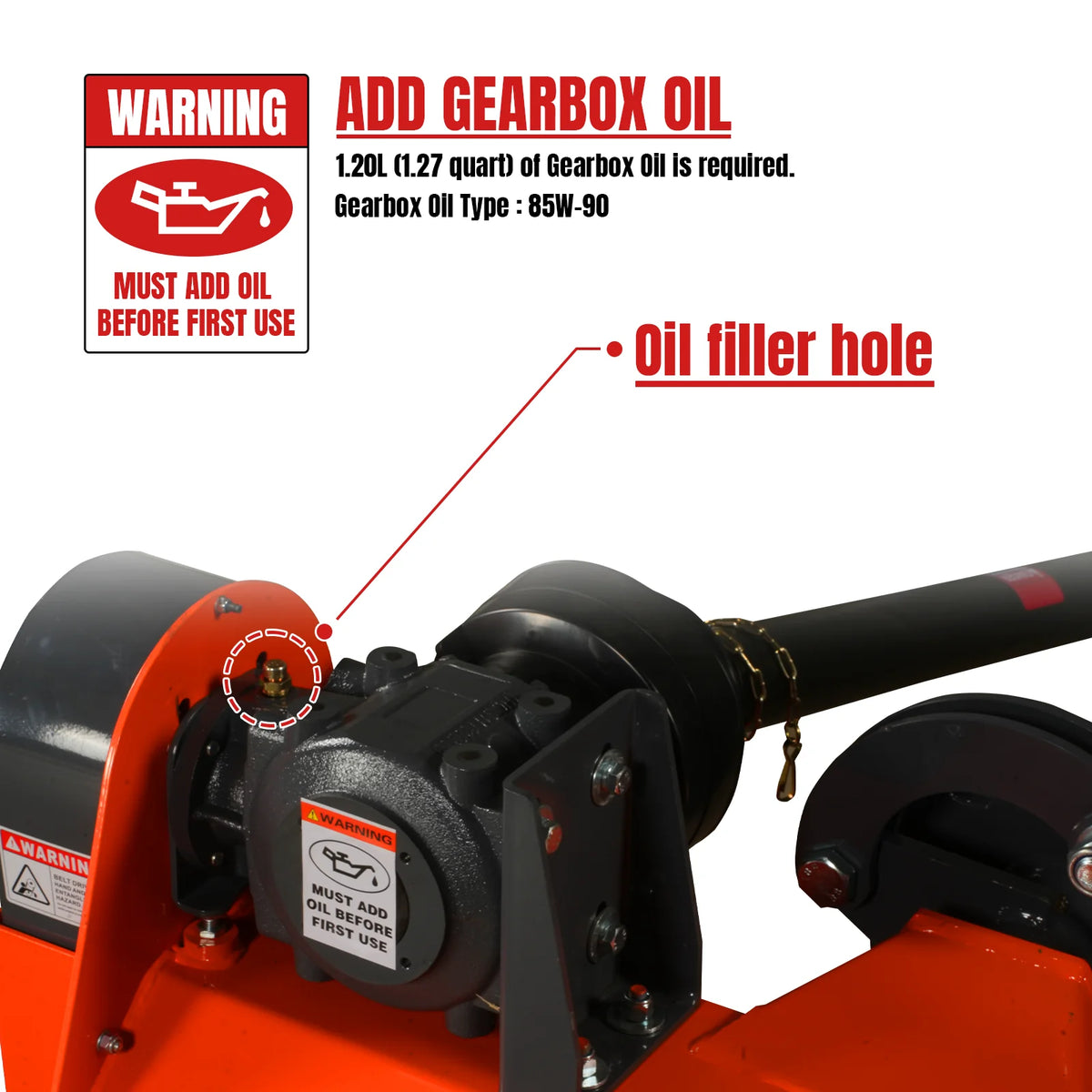

| Size of Blades | 3.5 x 3.2 x 1.6 in | Gearbox Oil Type | 85W-90 | ||||
| Blade Weight | 0.9 lbs | Number of Belts | 3 | ||||
| Blade Material | Cast Steel | Belt Size | V Belt 17x991 | ||||
| Rotor Bearing | SKF Bearing | Finish | Powder Coating | ||||
| Rotor Diameter | 4.3 in | Warranty | 1 Year | ||||
| Blade Swing Diameter | 14 in | Dimensions (L x W x H) | 56 x 27.5 x 28 in | ||||
| Rotor Thickness | 0.3 in | Weight (N.W./G.W.) | 613/723 lbs |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Flail Mower (SKU: 150143) stands up to extreme testing and comes with a one-year warranty for the machine.
Frequently Asked Questions
What can this mower cut?
It's designed for green or tender grass — it cannot cut tall grass, shrubs, vines, or thorny brambles.
What tractors is this compatible with?
It's compatible with 25-50 HP tractors and requires rear hydraulic connections.
How does the cutting angle adjust?

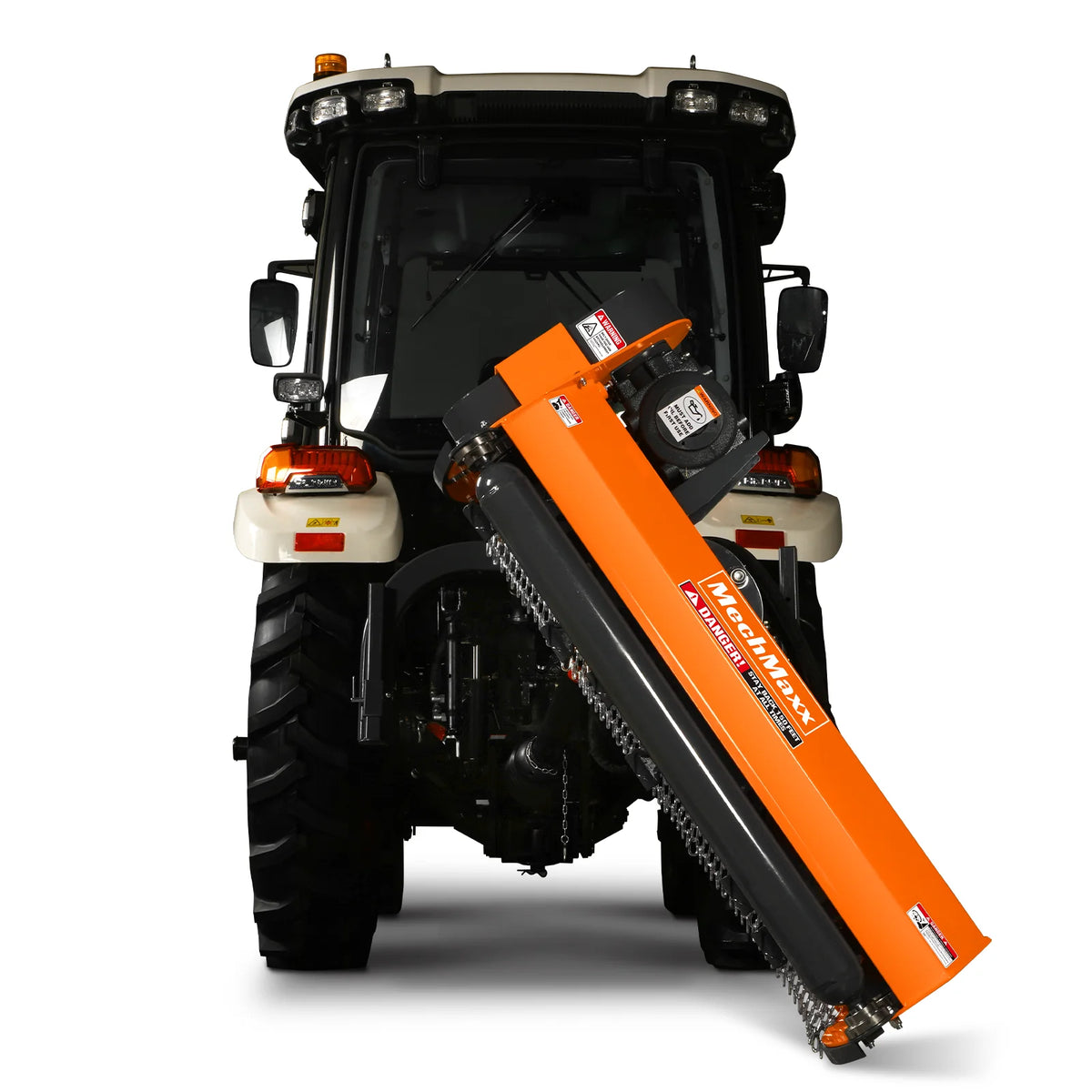

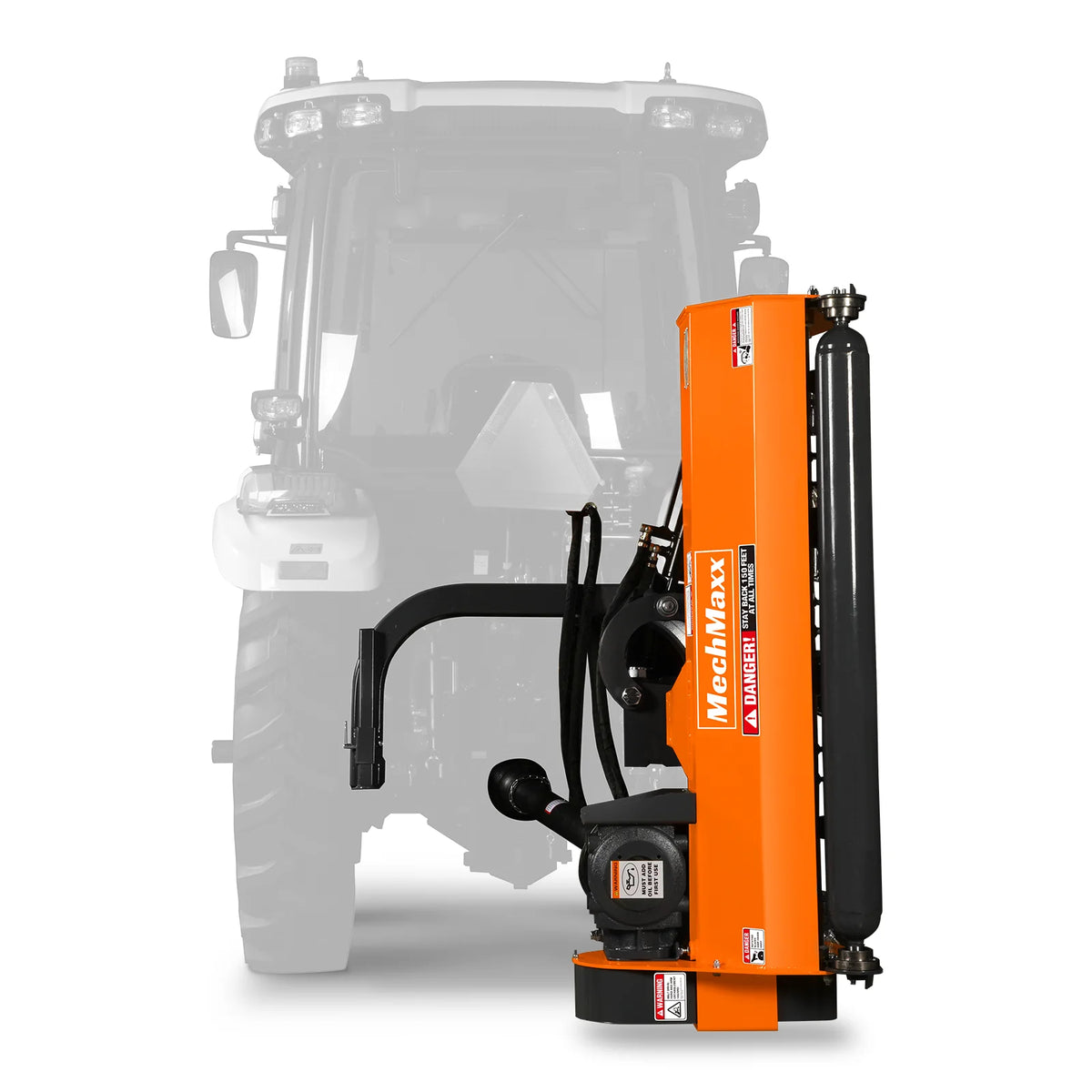

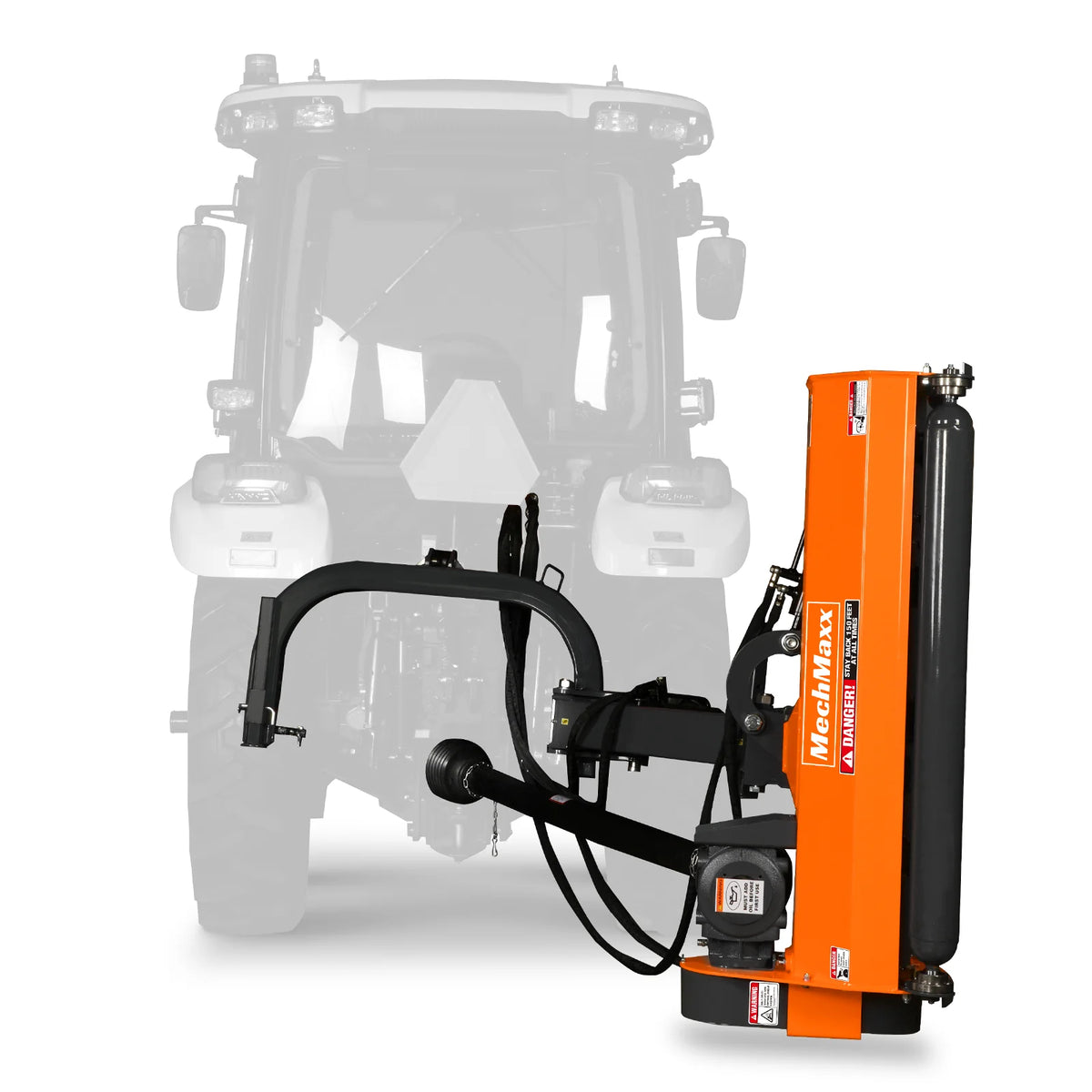

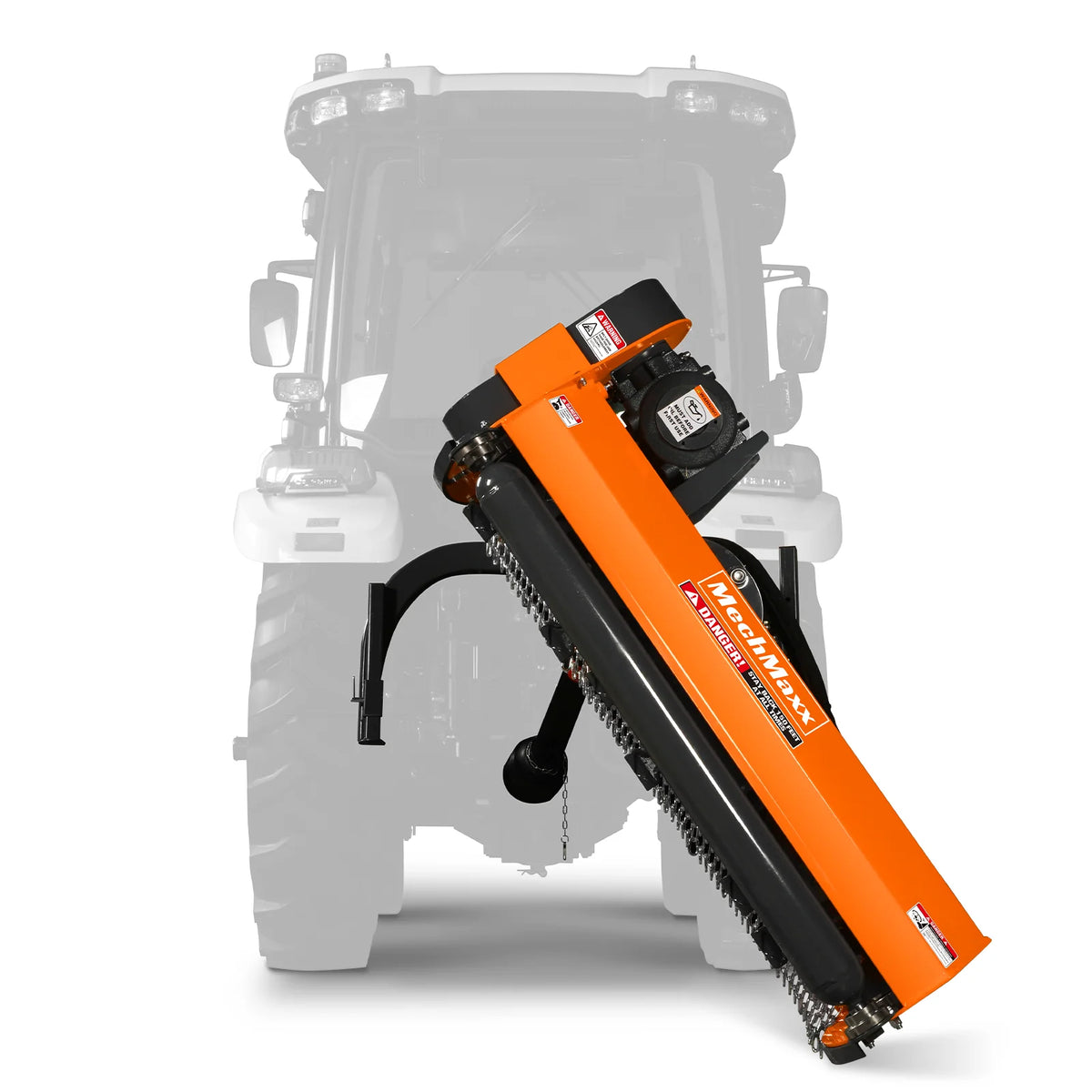

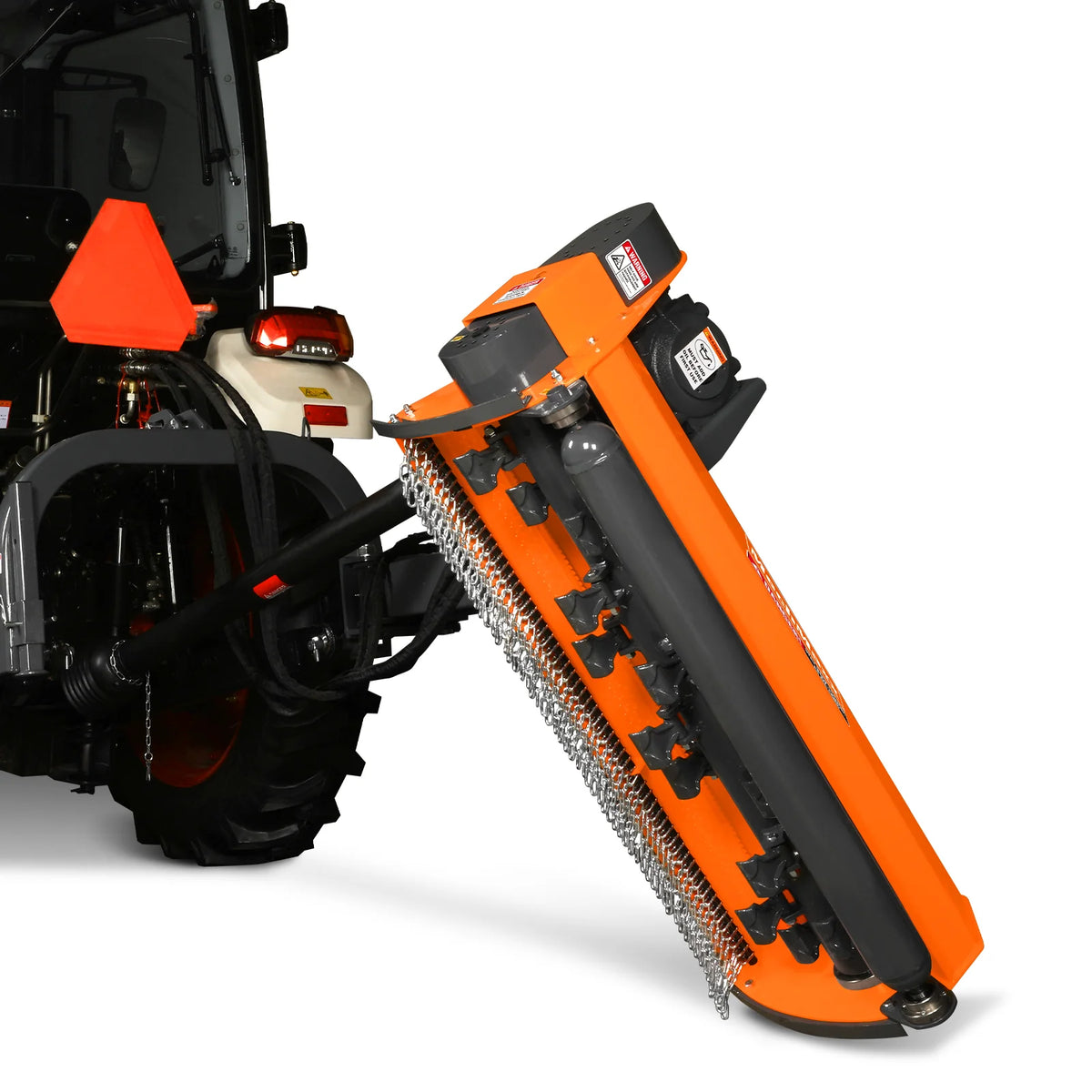

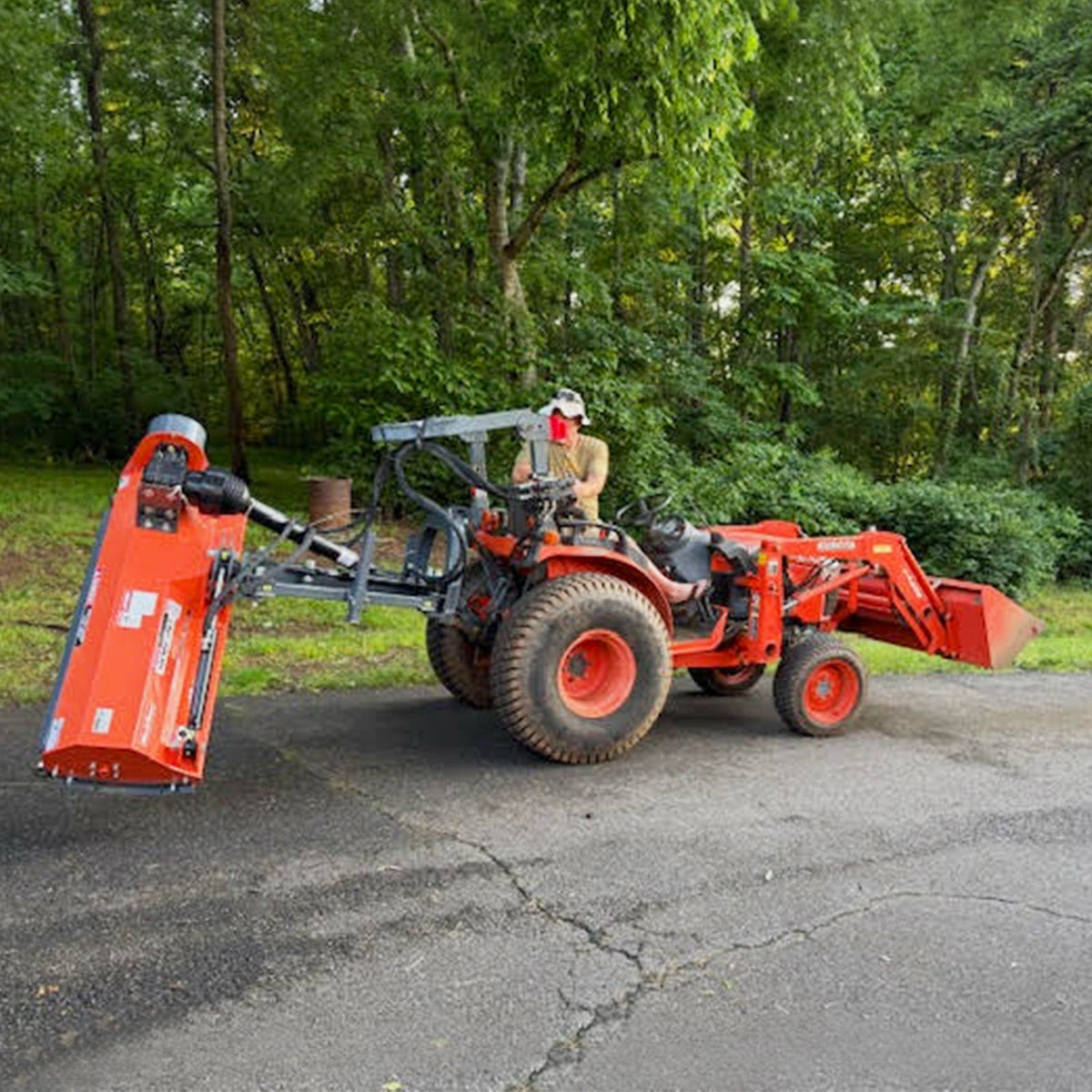

It's hydraulically controlled, with a 90° tilt-up angle and 60° tilt-down angle.
Can it reach distant overgrown areas?

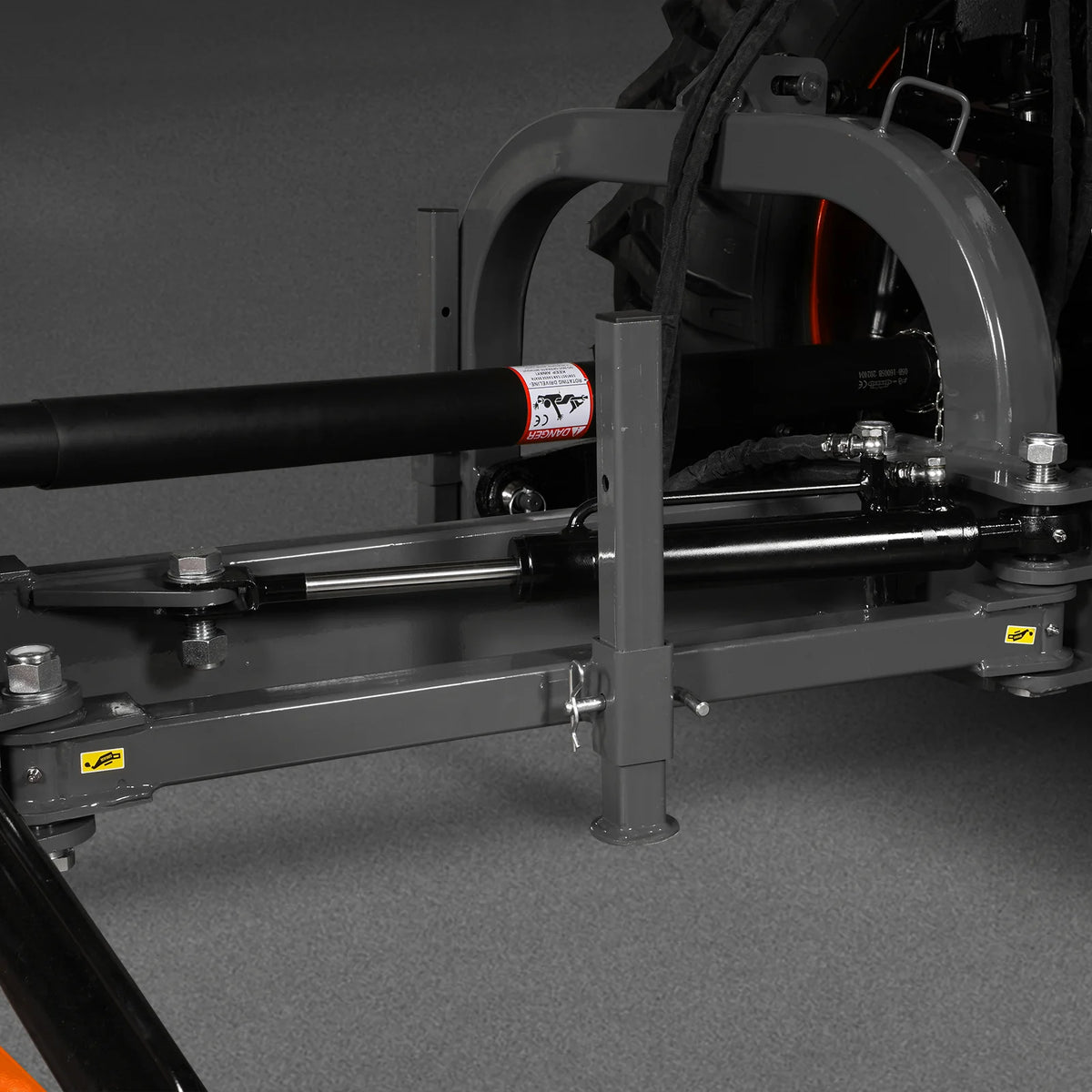

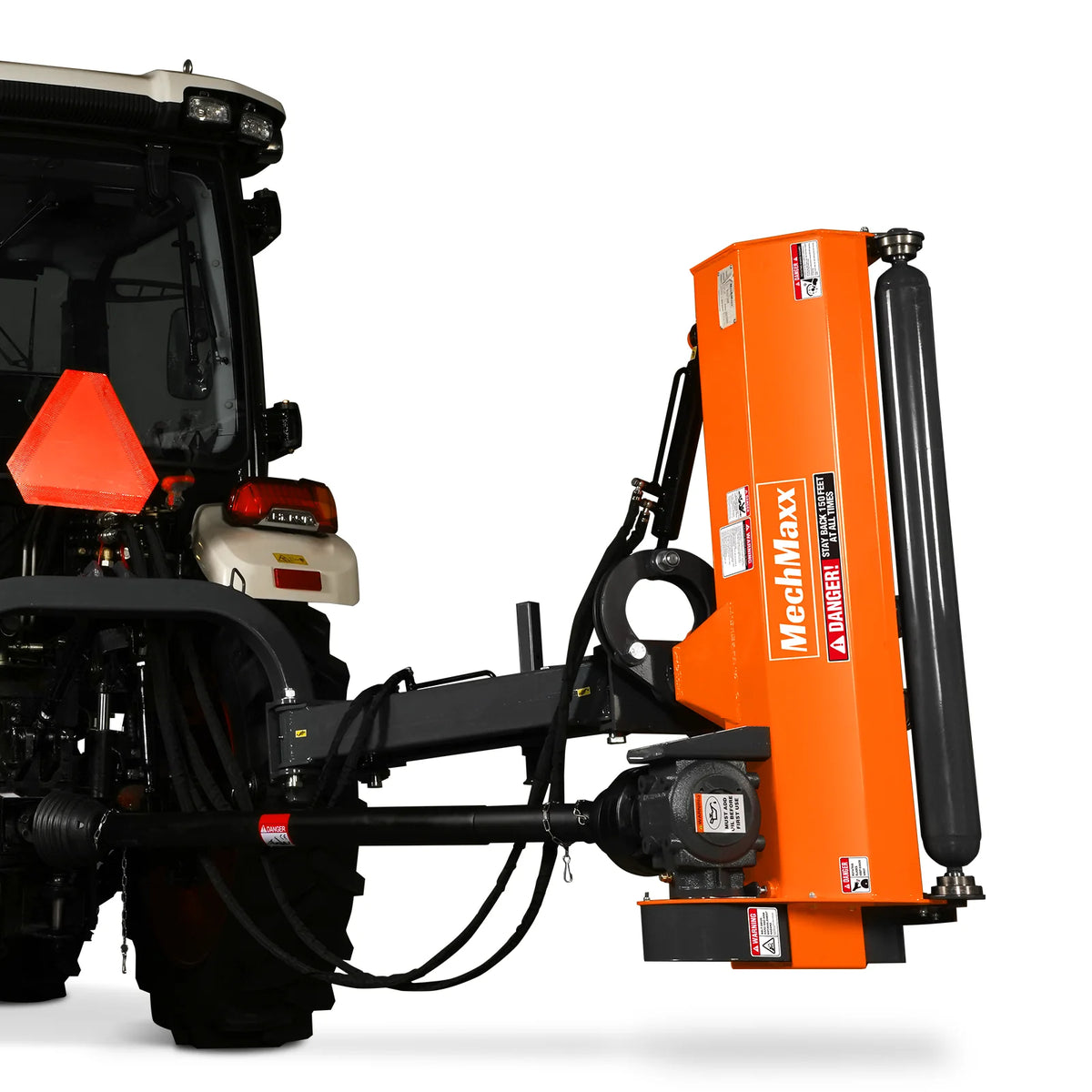

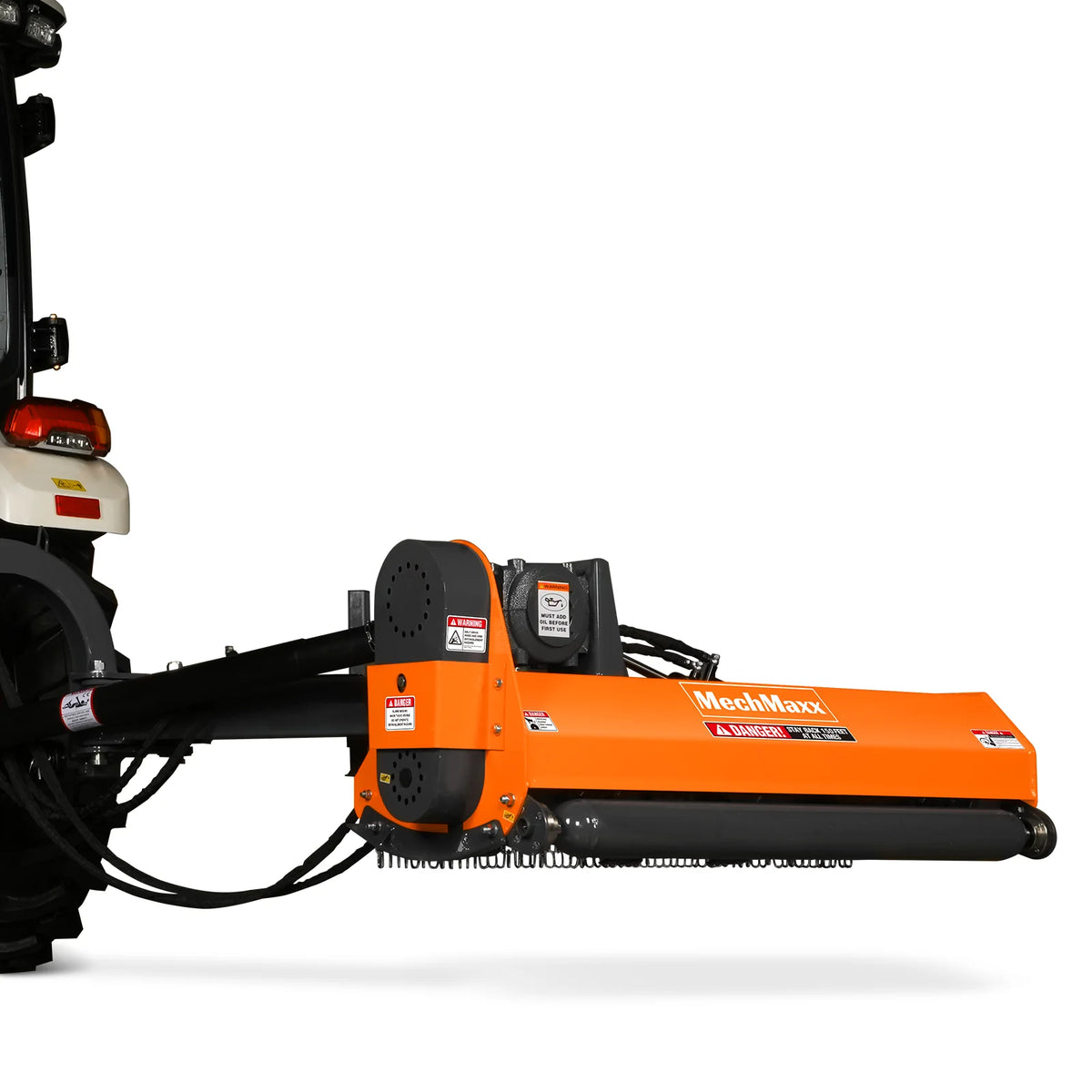

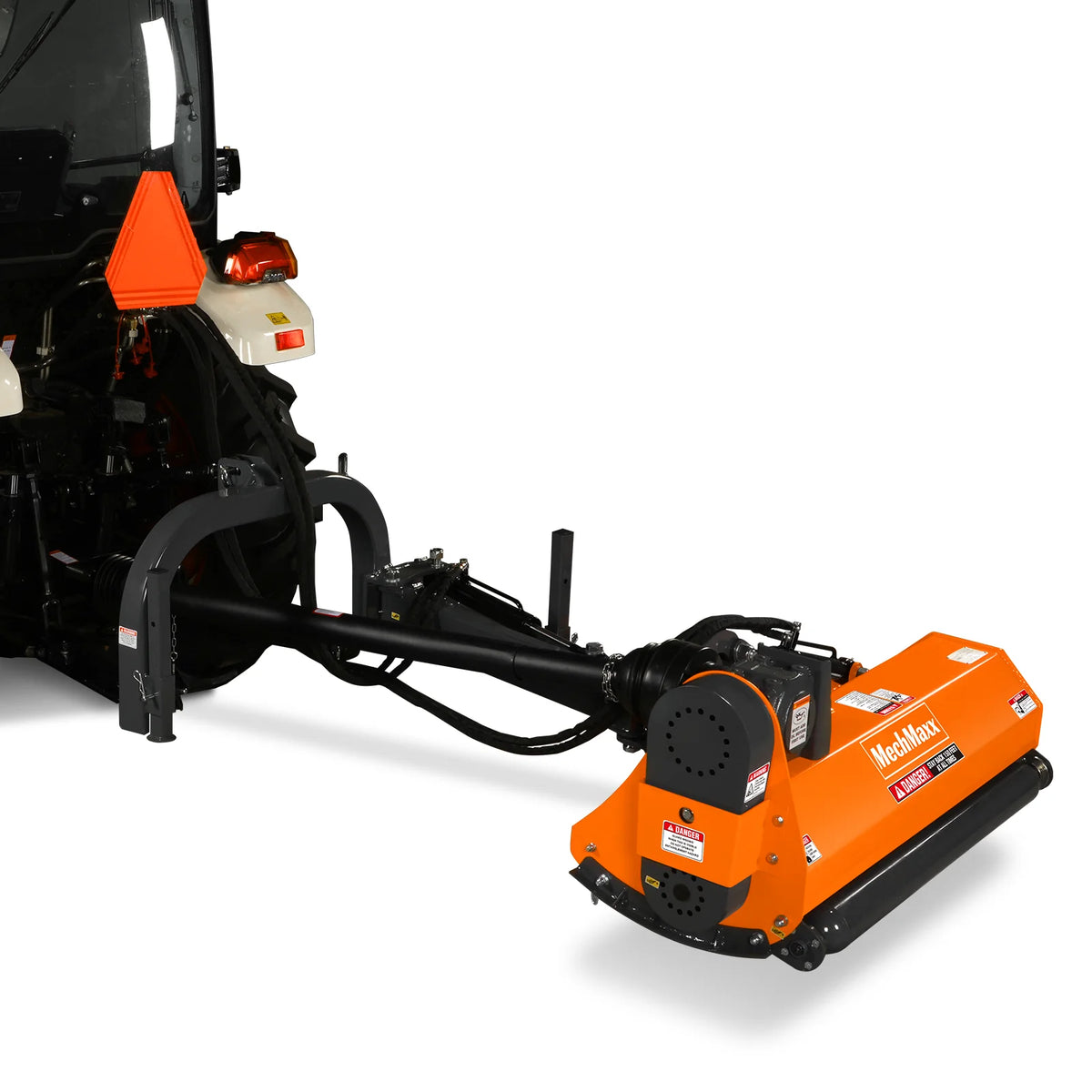

Yes, hydraulically controlled side-to-side movement and right side offset allow it to cut distant areas.
How many blades does it have?
It has 20 hammer-type blades.
What hitch category does it use?
It uses a CAT 1 3-point hitch.
Does it come with a warranty?
Yes, it comes with a 1-year warranty on the machine.
How much does it weigh?
It has a net weight of 613 lbs and a gross weight of 723 lbs.
