Iron and Oak 30 Ton Vertical Horizontal Log Splitter (BHVH3018GX)
Regular price
$4,499.99
Couldn't load pickup availability
Free shipping
100% secure payments
Industry leading quality
Ask an expert!
- 30 tons of splitting force with a fast 12-second cycle time, handles even green logs Operates in both horizontal and vertical positions with a reinforced handle for smooth transitions Powered by a Honda GX270 engine paired with a 16 GPM hi-lo 2-stage pump 4-stage hydraulic filtration system protects against metal particles and micro-contaminants Auto latch system locks the beam in horizontal position for safe towing Standard log cradle, log dislodger, fenders, and offset valve for better operator positioning Heavy-duty wedge with five bolts per side and Halite commercial cylinder seals Larger jack wheel for easier moving, plus highway-rated tires and tow cables

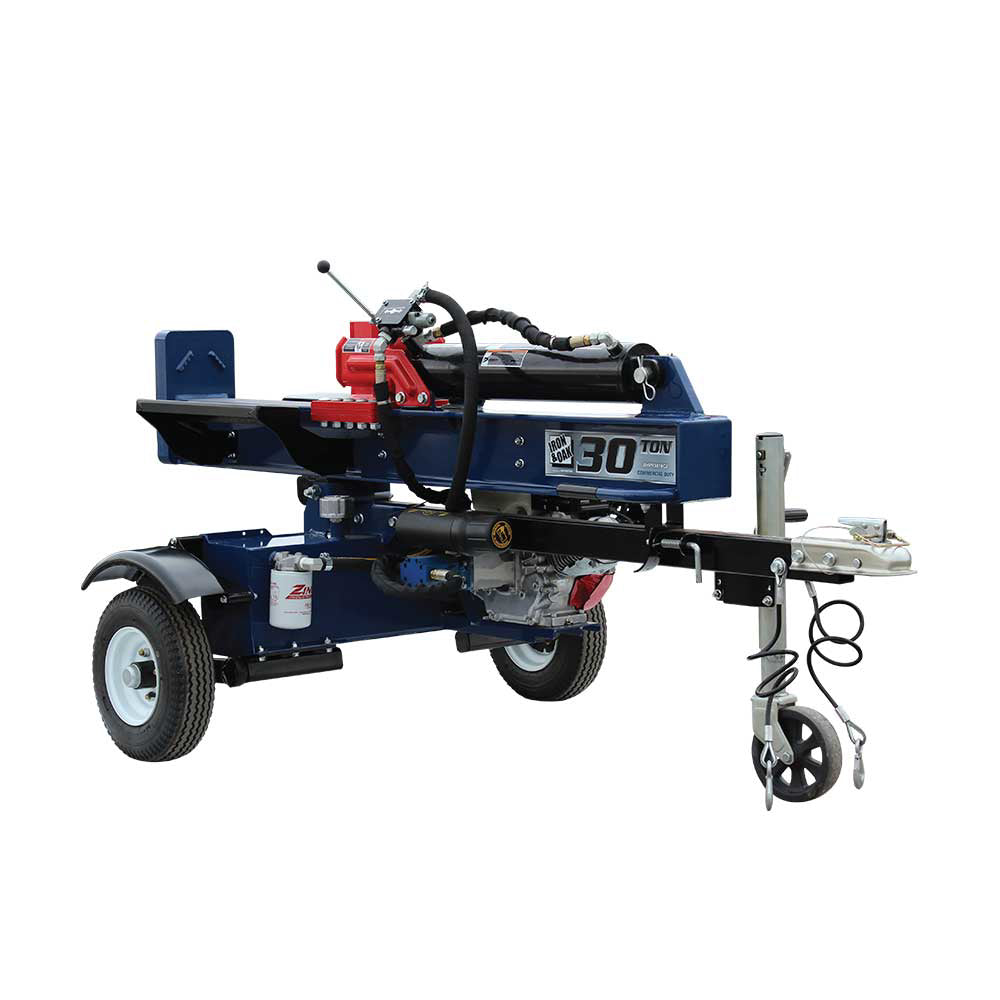

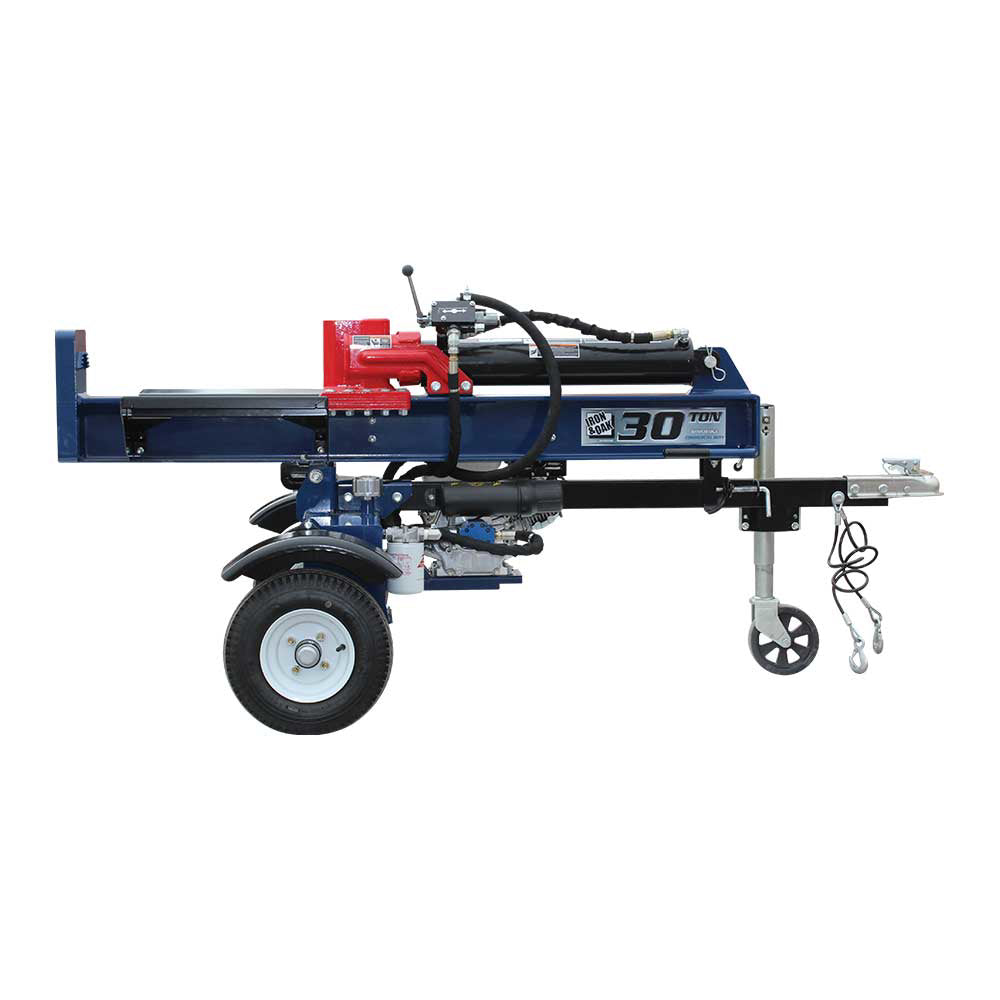

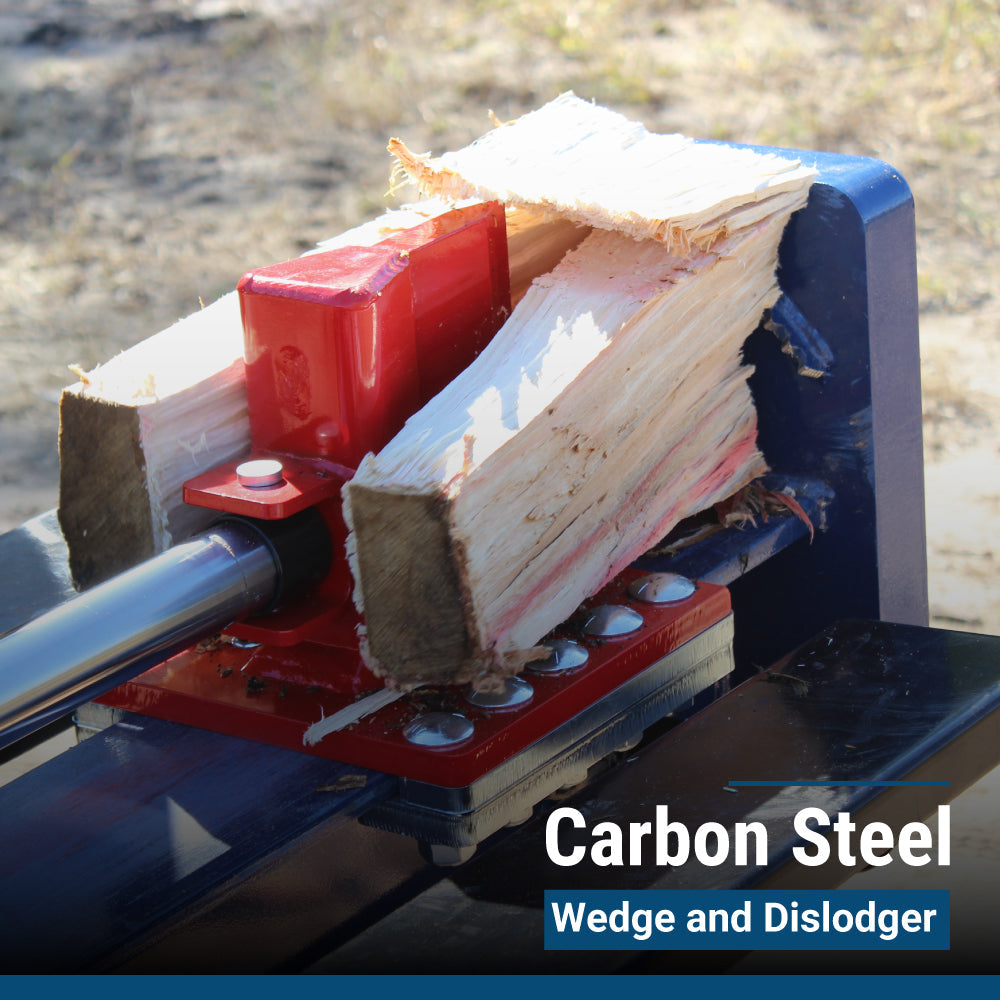

Split with serious power using the Iron & Oak 30-Ton Log Splitter, a commercial-grade tow-behind unit that operates both horizontally and vertically. Powered by a Honda GX270 270cc engine paired with a 16 GPM hi-lo 2-stage pump, it delivers 30 tons of splitting force with a fast 12-second cycle time, making it capable of handling even green logs with ease. Built for heavy use by serious DIYers, professional tree care specialists, and rental fleets, it features a 4.5" x 24" clevis-type cylinder with a 1.75" rod and a heavy-duty wedge with a five-bolt-per-side mounting design, backed by a 4-stage hydraulic filtration system that protects against metal particles and micro-contaminants. An auto latch system locks the beam into horizontal position for safe towing, while an enhanced handle simplifies transitions between operating positions. Standard equipment includes a log cradle, log dislodger, fenders, offset valve for better operator positioning, a larger jack wheel for easier moving, and highway-rated 4.8 x 8.0 tires with included tow cables.
| Equipment Type | Log Splitter (Tow-Behind) | Pump Type | 16 GPM Hi-Lo 2-Stage |
| Country of Origin | Made in the USA (with US and imported components) | SKU | BHVH3018GX |
| Cycle Time | 12 Seconds | Splitting Force | 30 Tons |
| Cylinder Size | 4.5 in. x 24 in. Clevis Type, 1.75 in. Rod | Splitting Height | 32 in. |
| Displacement | 270cc | Tires | 4.8 in. x 8.0 in. Highway Rated |

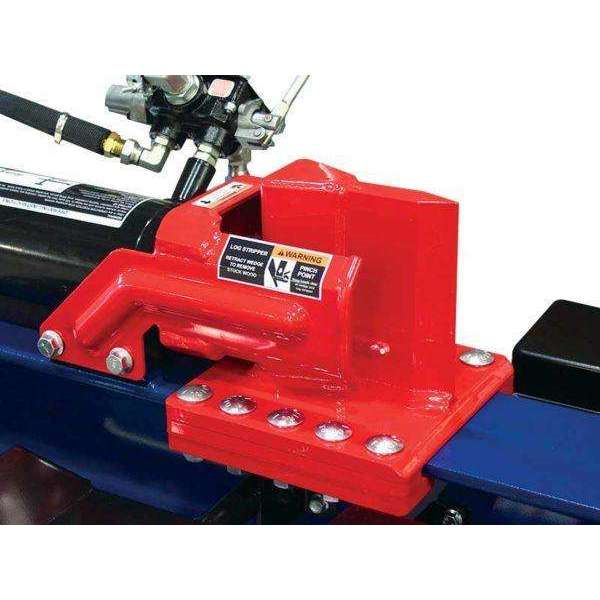

| Dry Weight | 705 lbs | Wedge | Heavy-Duty, 5 Bolts Per Side |
| Engine | Honda GX270 | Hitch | 2 in. |
| Hydraulic Capacity | 10.5 Gal. System Total (9 Gal. Tank) | Log Length | 25 in. Max |
| Operation | Horizontal and Vertical |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Backed by Iron & Oak's manufacturer warranty, with robust warranty and technical support available through Great Northern Equipment.
Frequently Asked Questions
How much splitting force does this log splitter produce?
It produces 30 tons of splitting force with a fast 12-second cycle time, capable of handling even green logs.
Can this log splitter be used both vertically and horizontally?

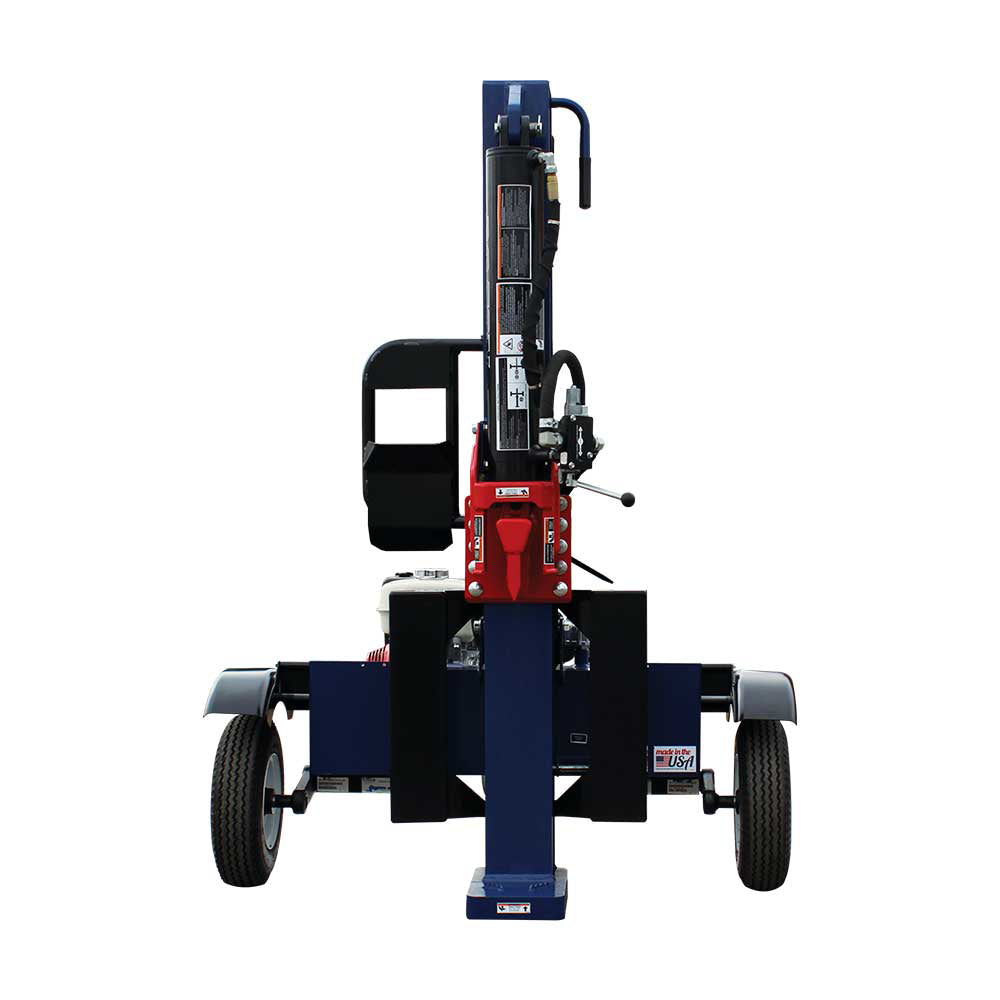

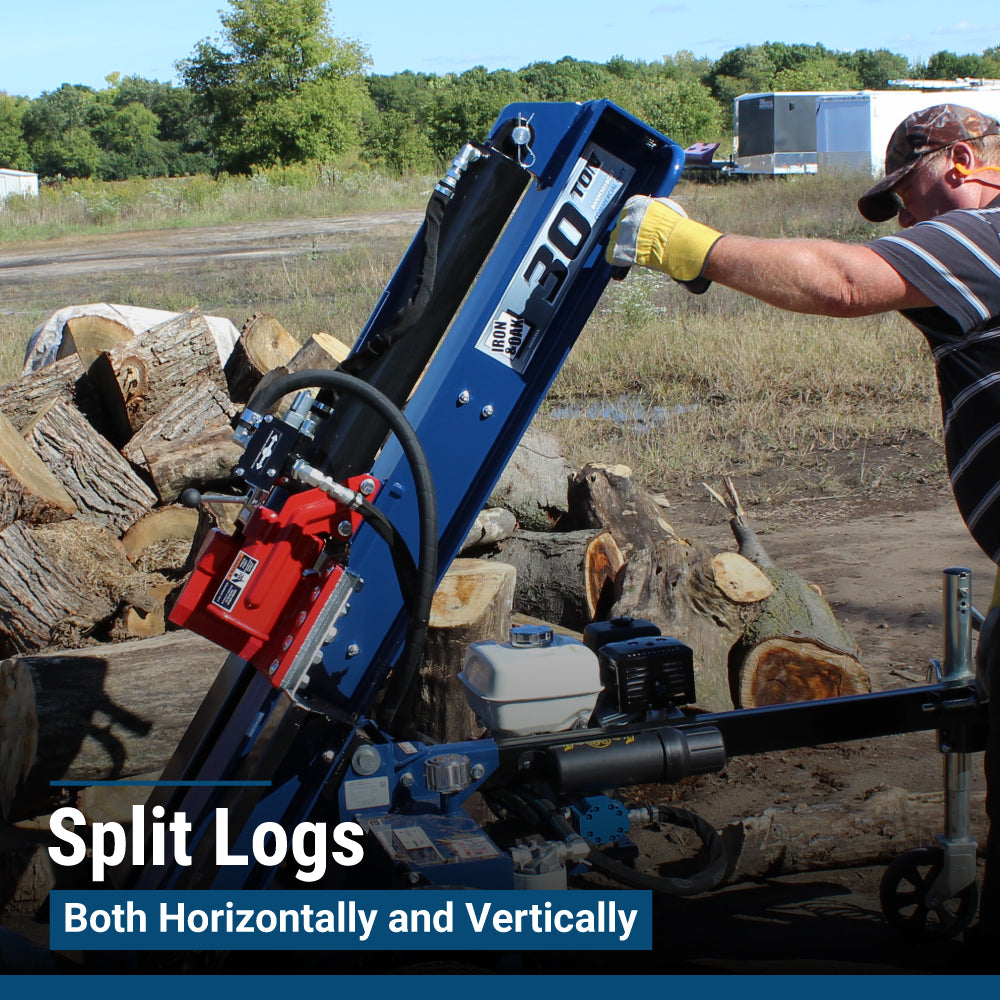

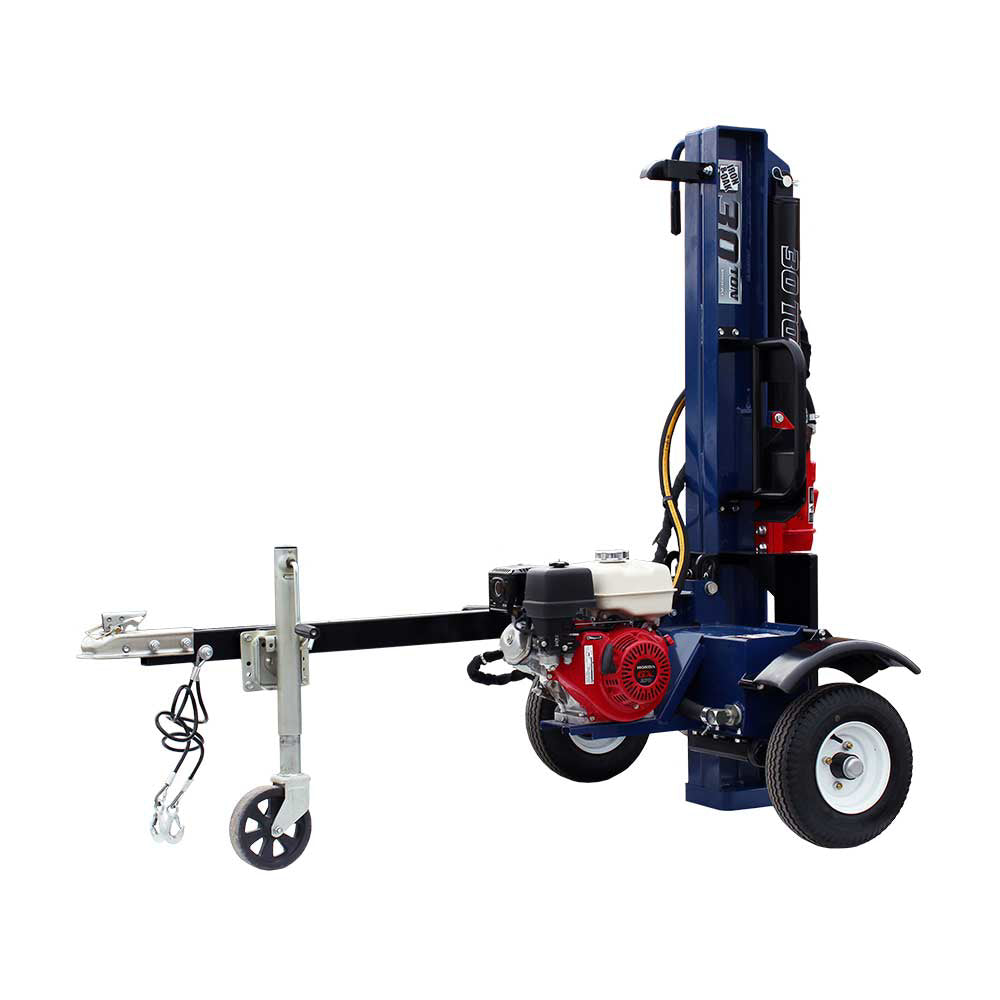

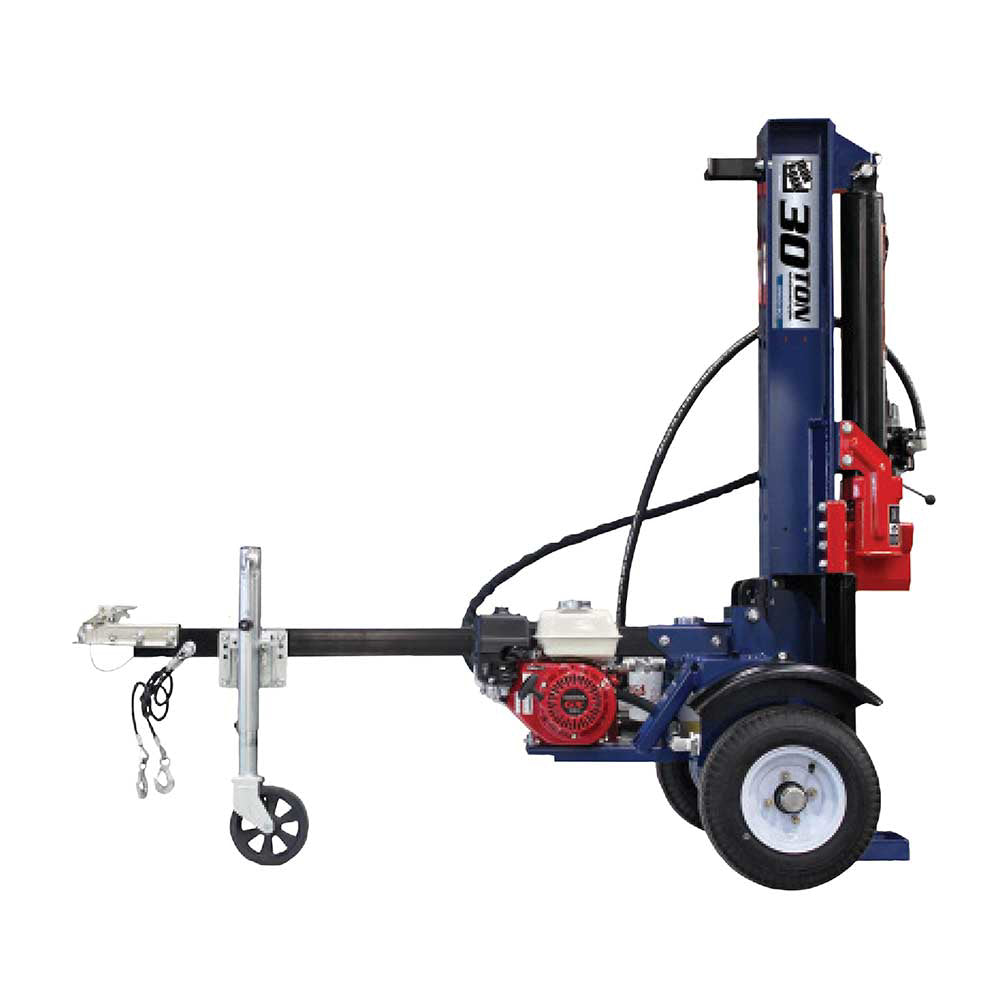

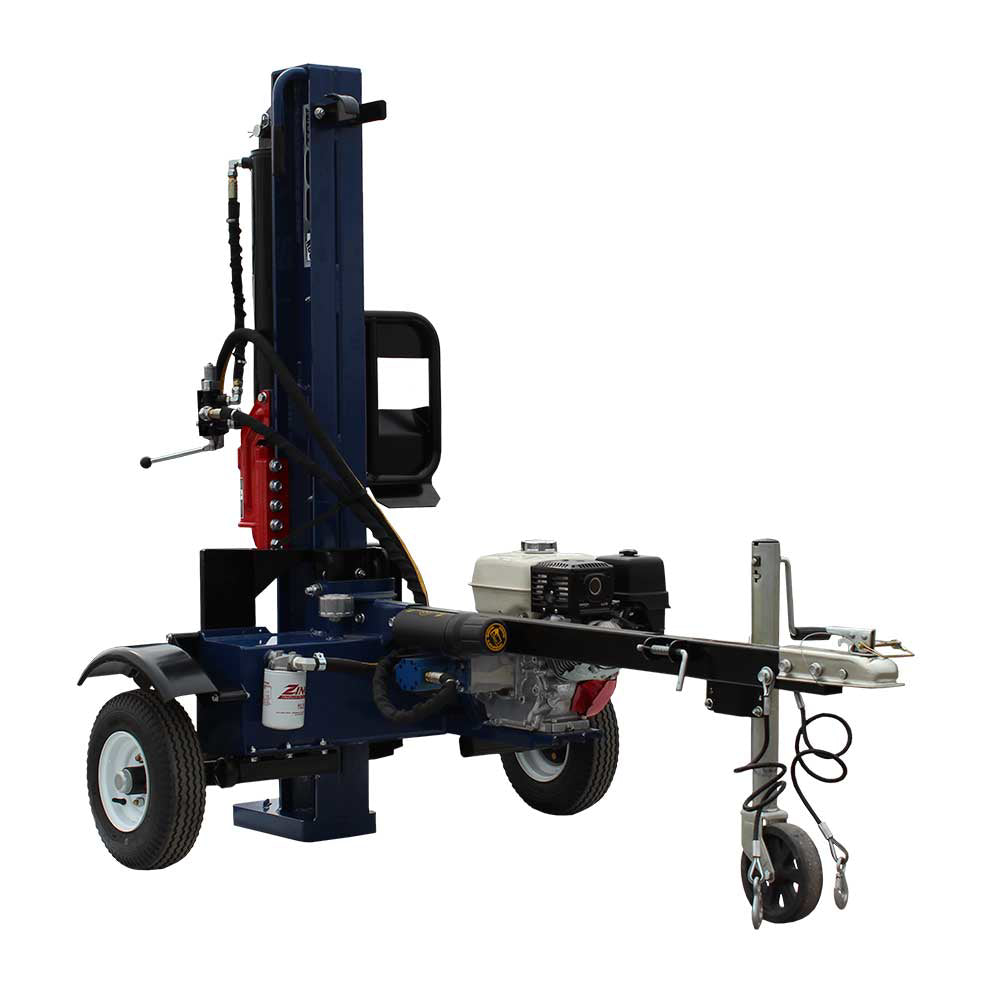

Yes, it operates in both horizontal and vertical positions, with a reinforced handle to make transitions between the two smoother and safer.
What size logs can this splitter handle?
It splits logs up to 25 inches in length with a maximum splitting height of 32 inches.
What engine powers this log splitter?
It's powered by a Honda GX270 270cc engine paired with a 16 GPM hi-lo 2-stage pump.
Is this log splitter safe to tow?

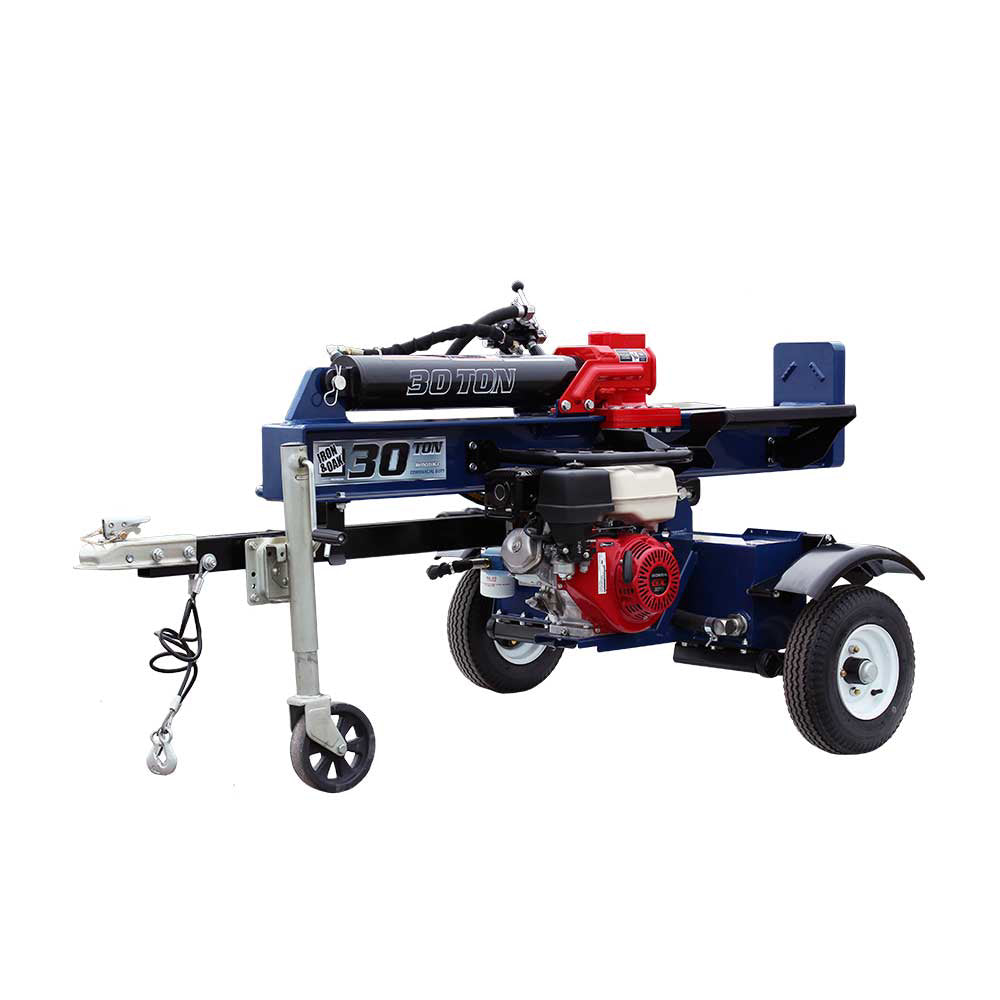

Yes, it includes an auto latch system that locks the beam into the horizontal position for safe towing, along with highway-rated tires and tow cables.
Does this come with hydraulic system protection?

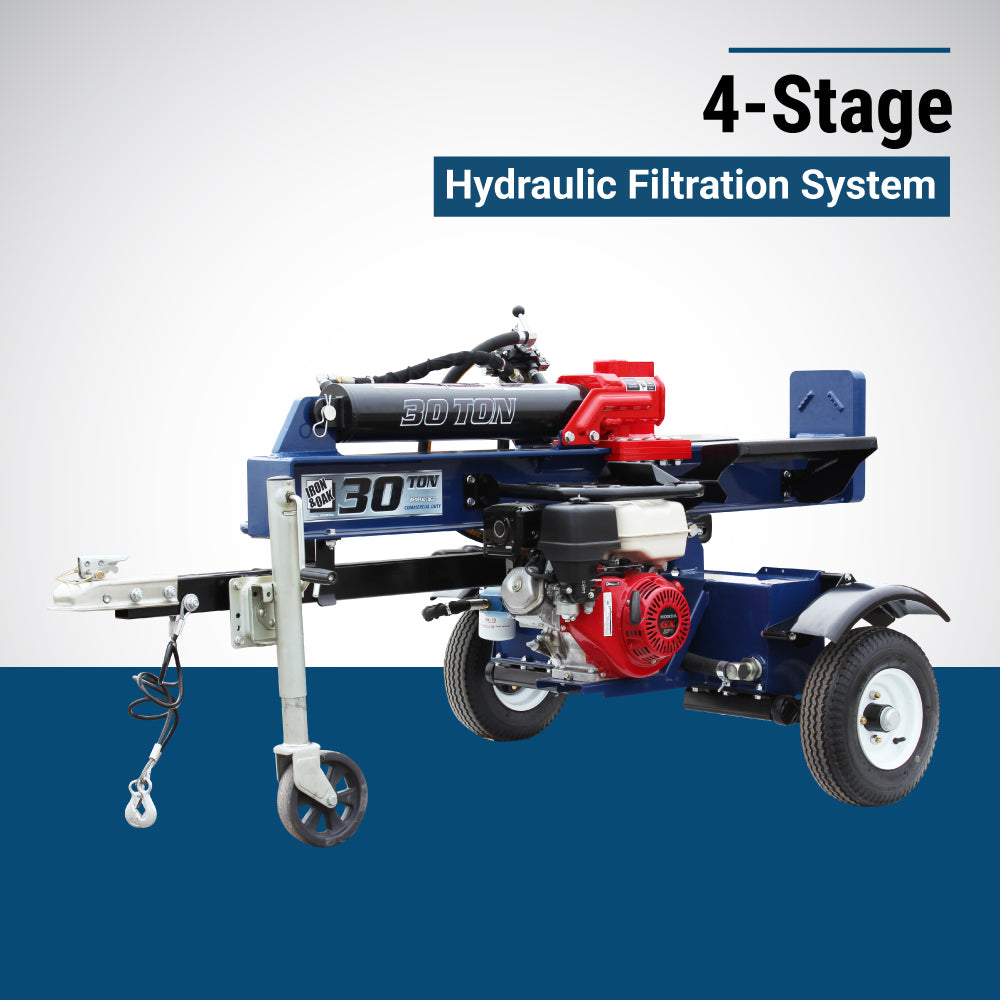

Yes, it features a 4-stage hydraulic filtration system with a suction strainer, return line filter, breather cap air filter, and magnetic drain plug to protect against contamination.
How much does this log splitter weigh?
It has a dry weight of 705 lbs.
What comes standard with this unit?
It includes a log cradle, log dislodger, fenders, offset valve, a larger jack wheel, and tow cables as standard equipment.
