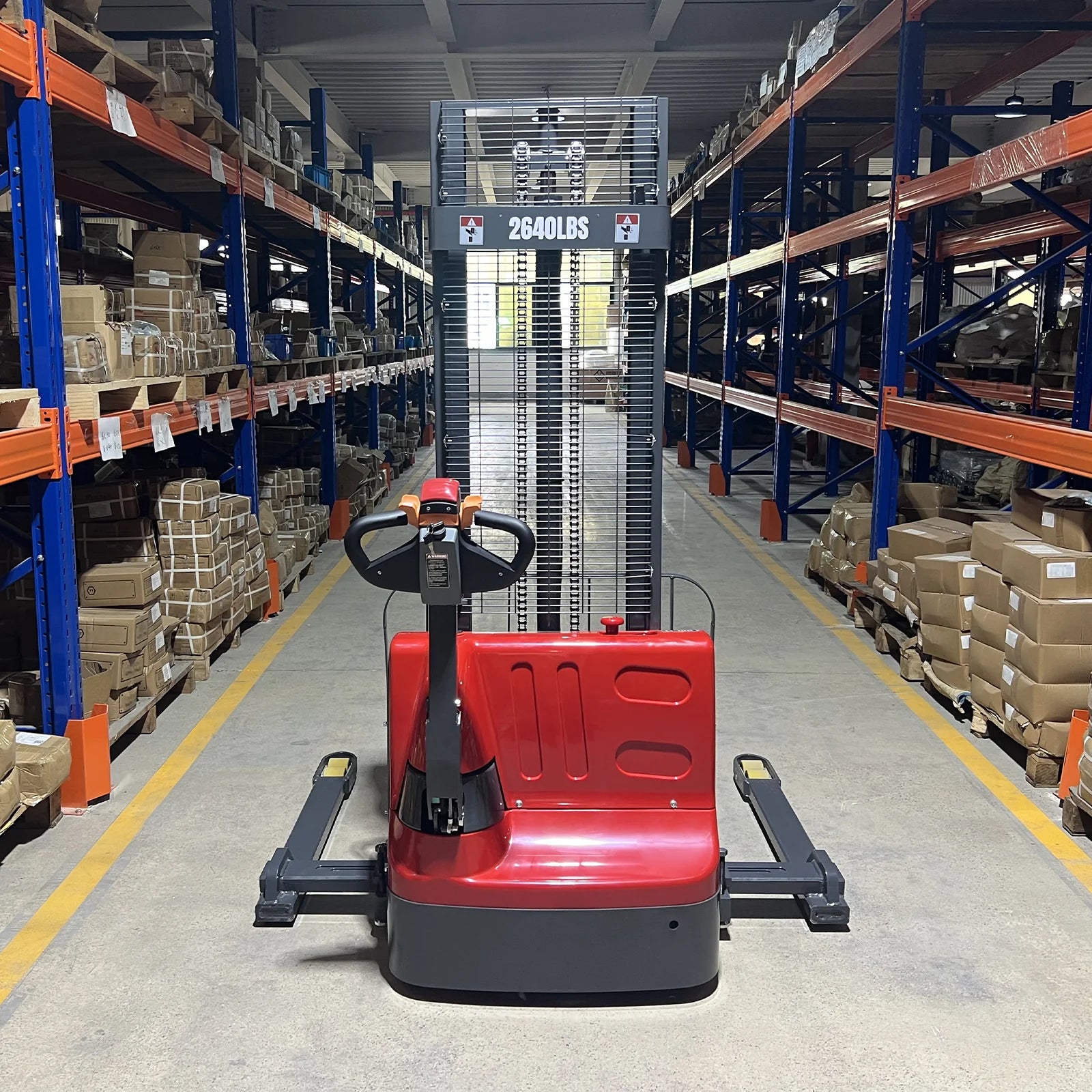

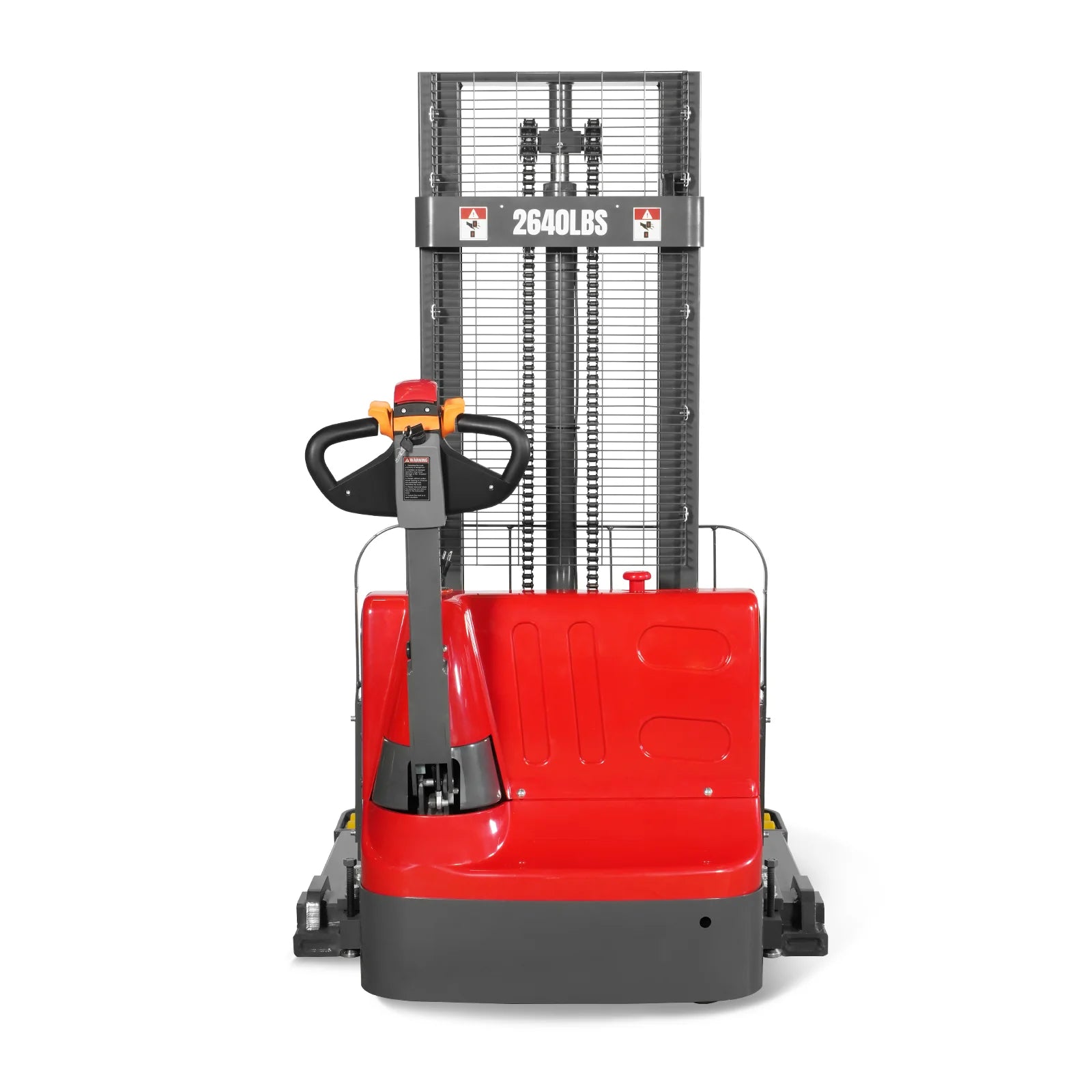

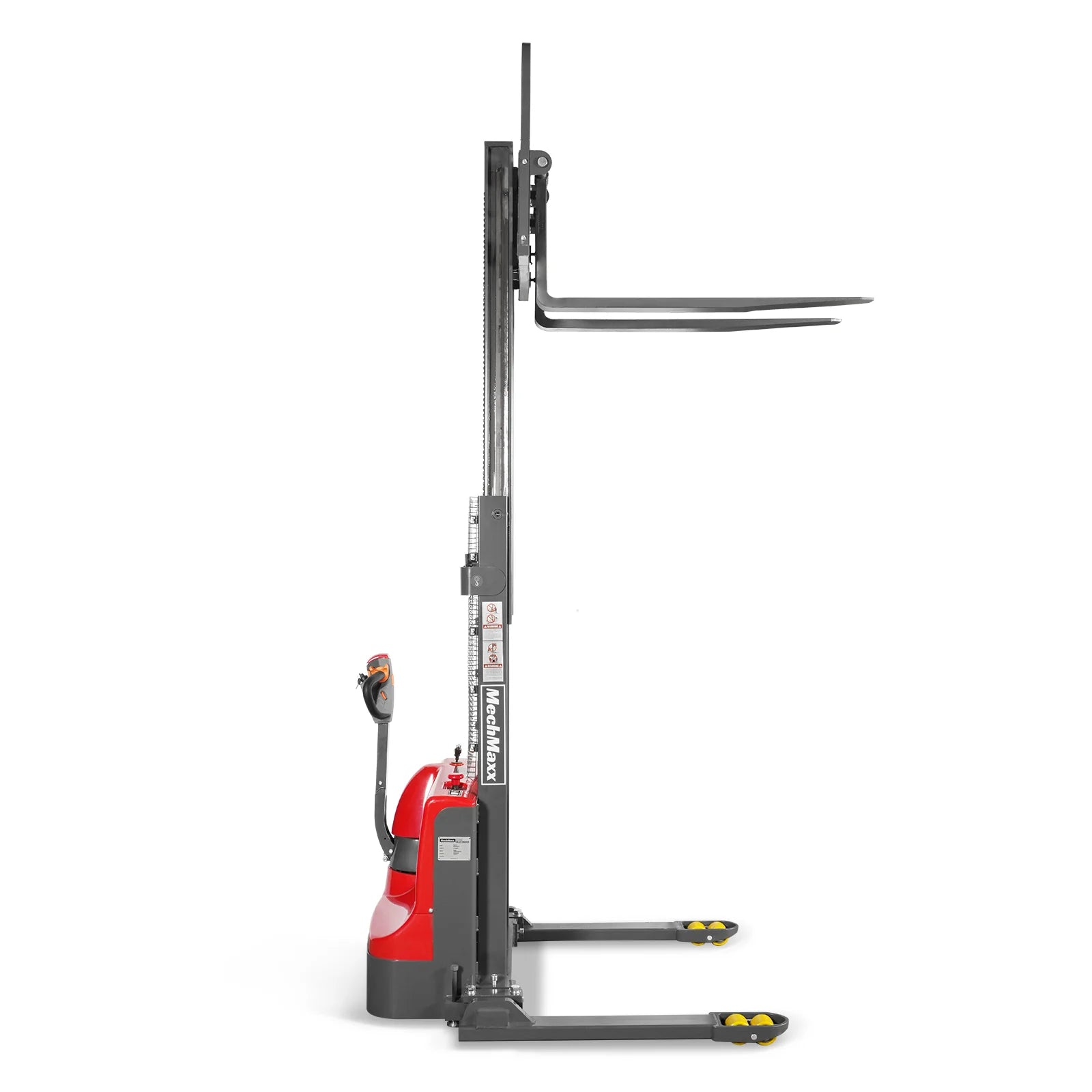

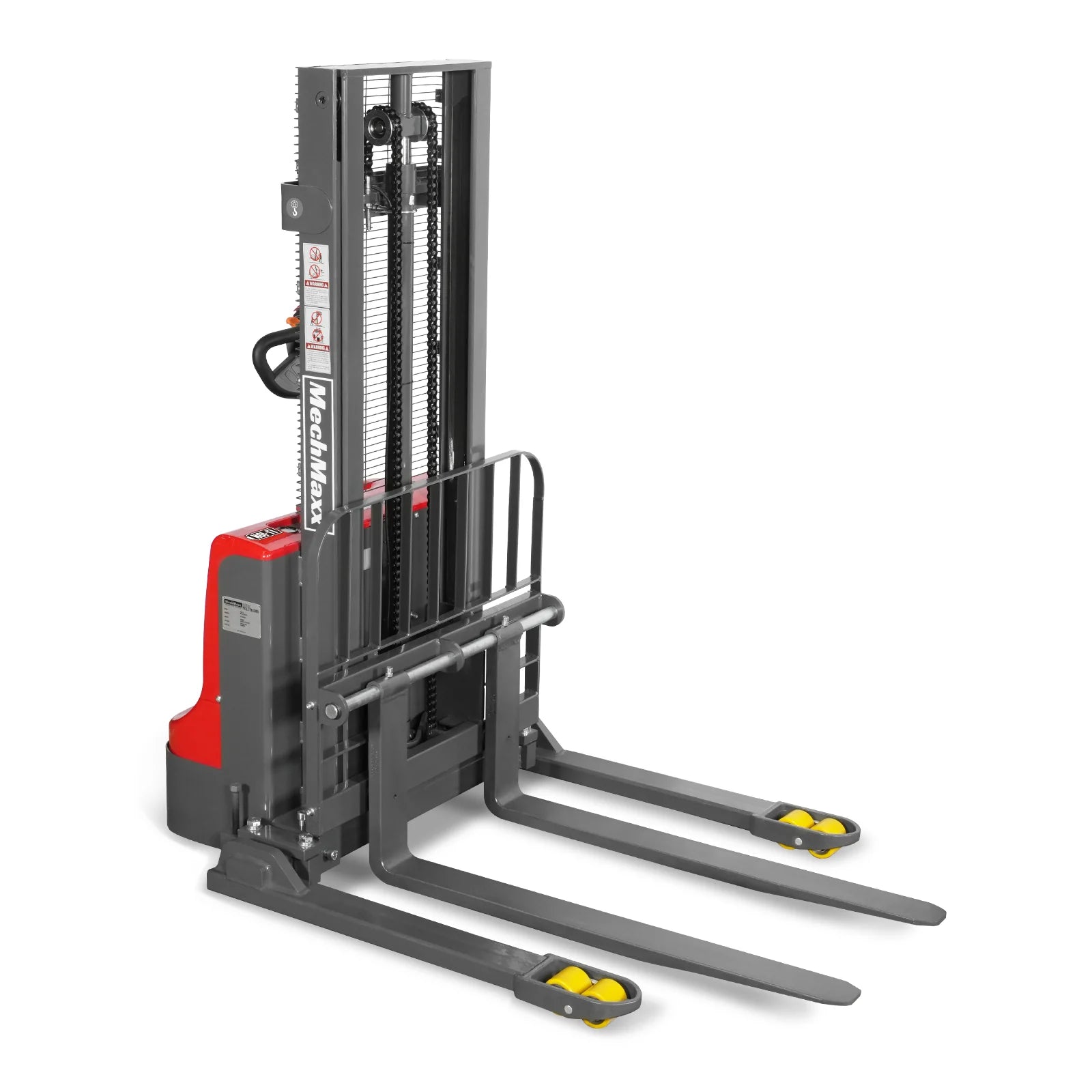

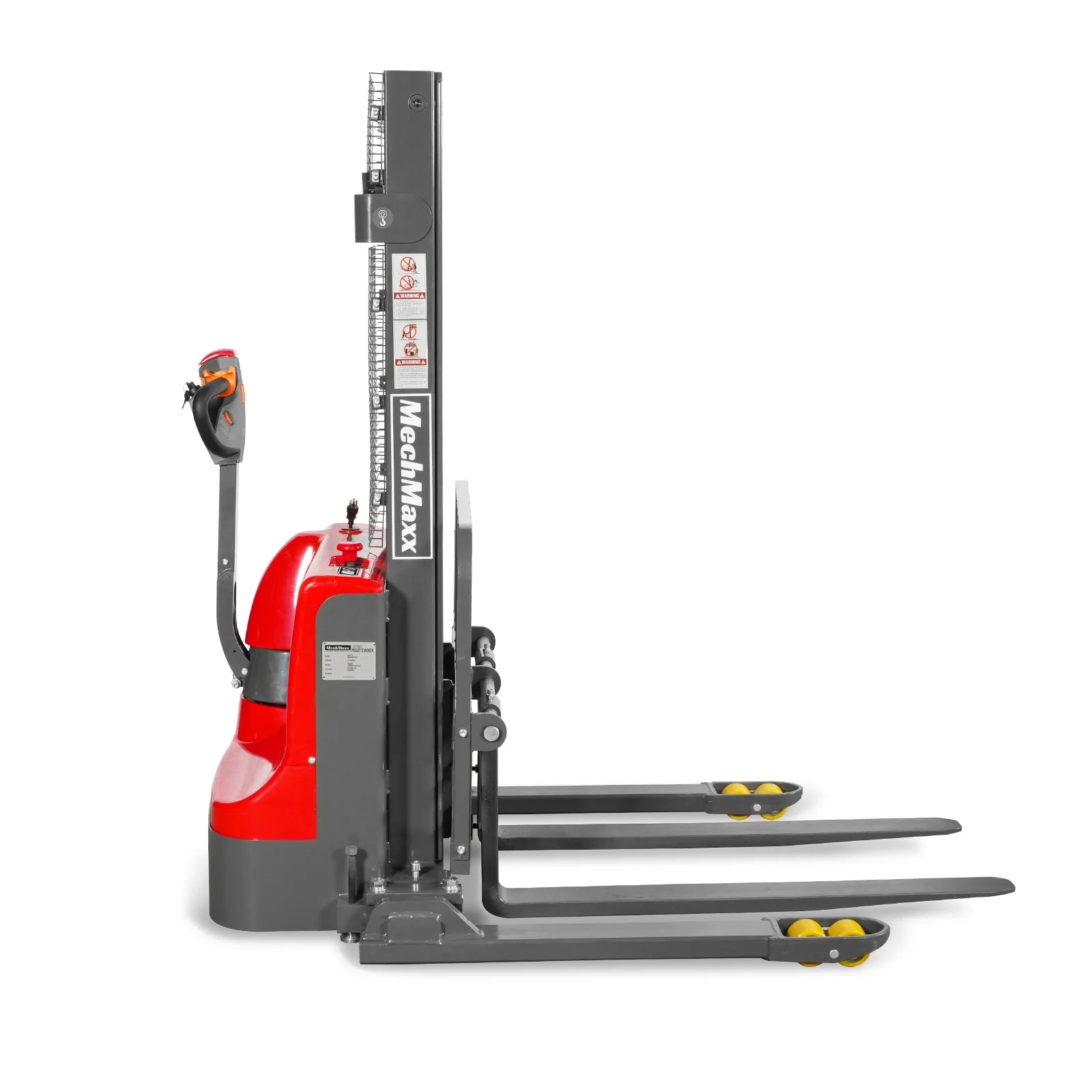

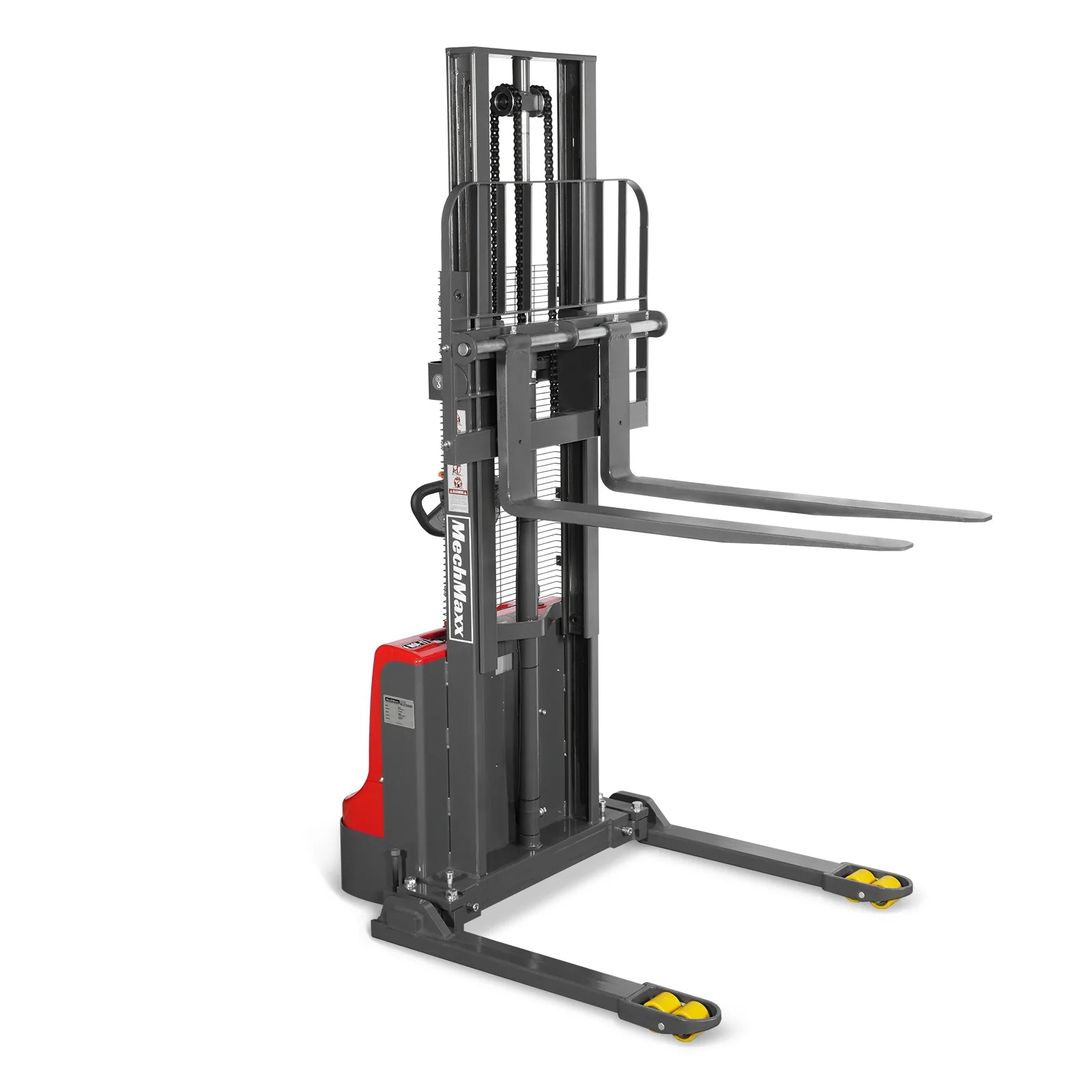

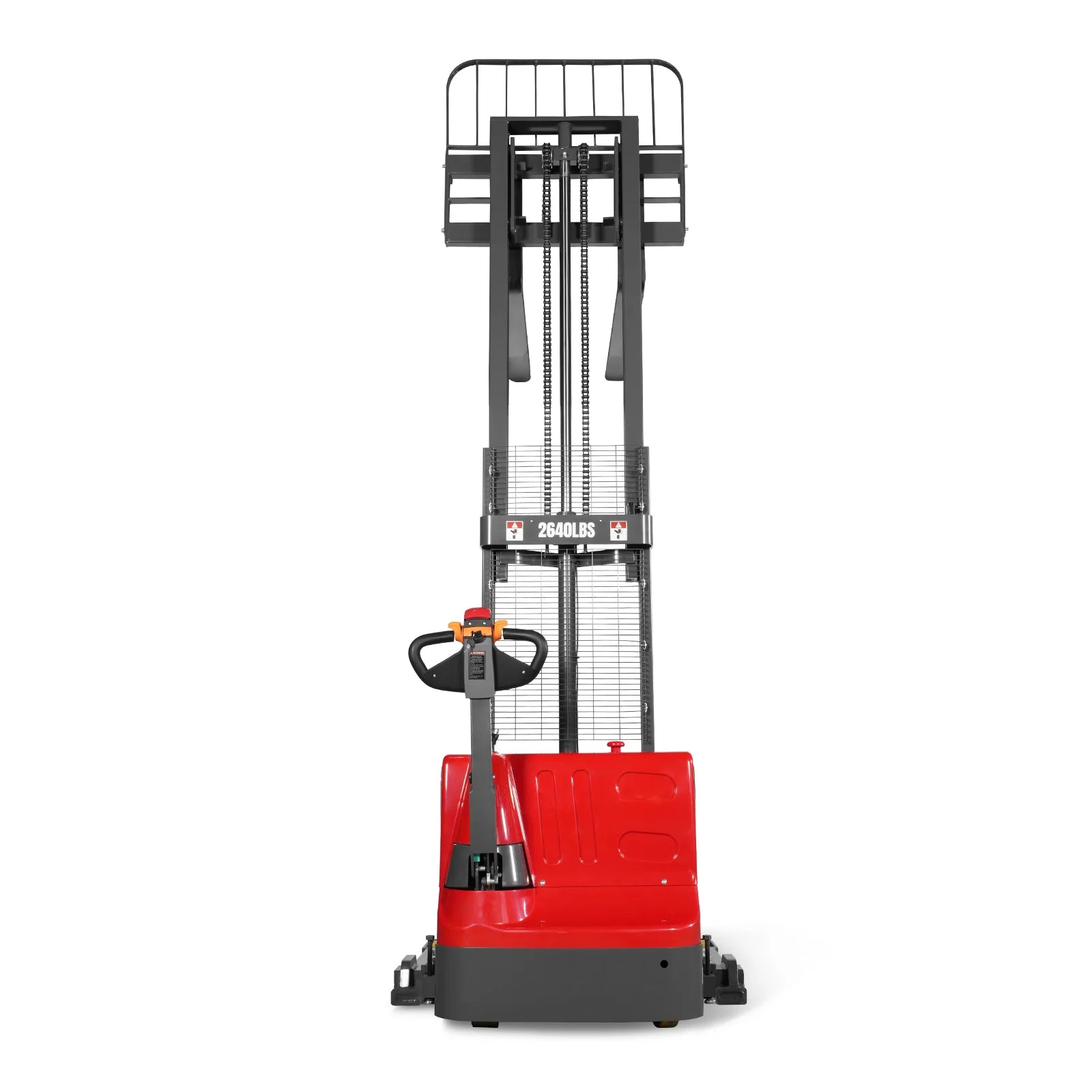

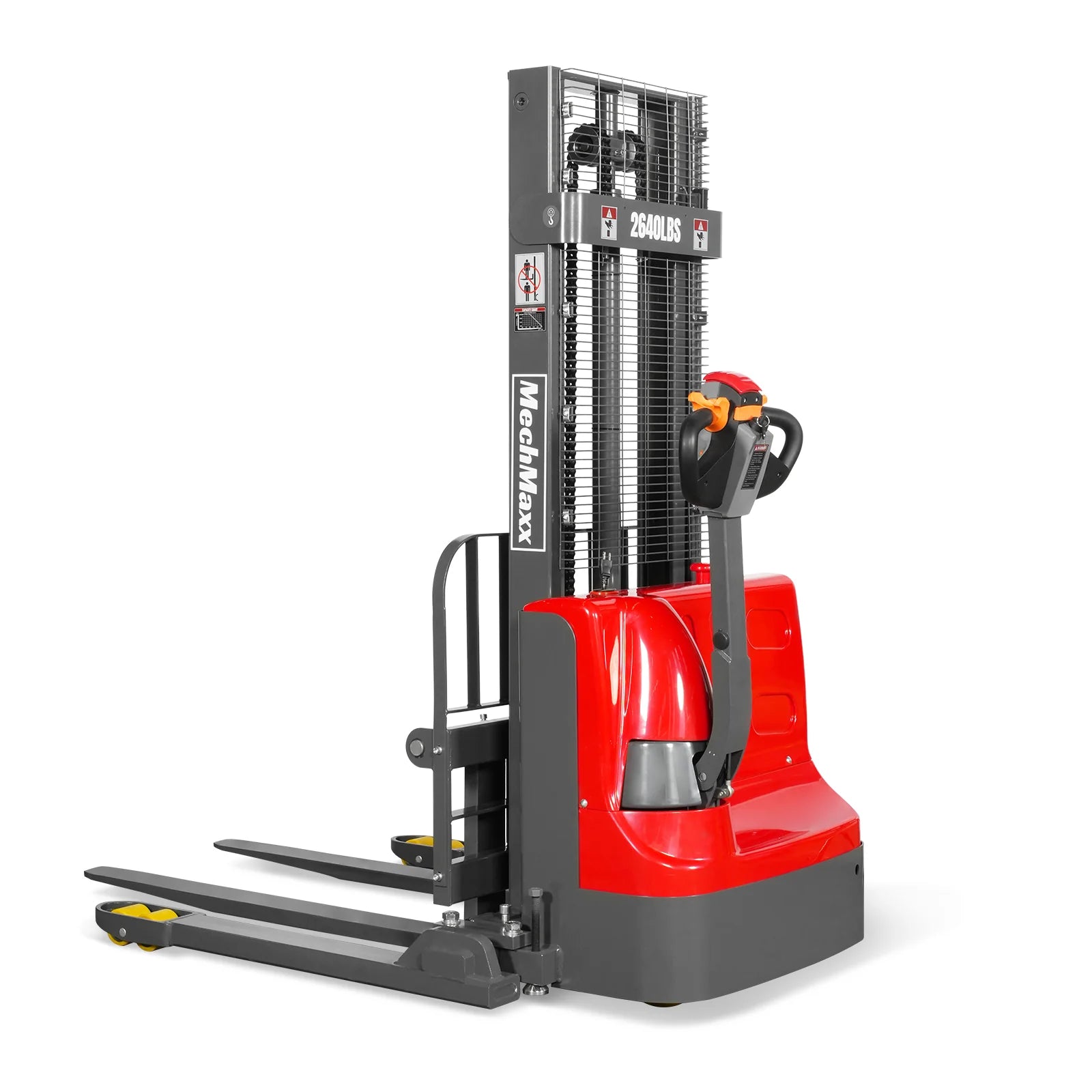

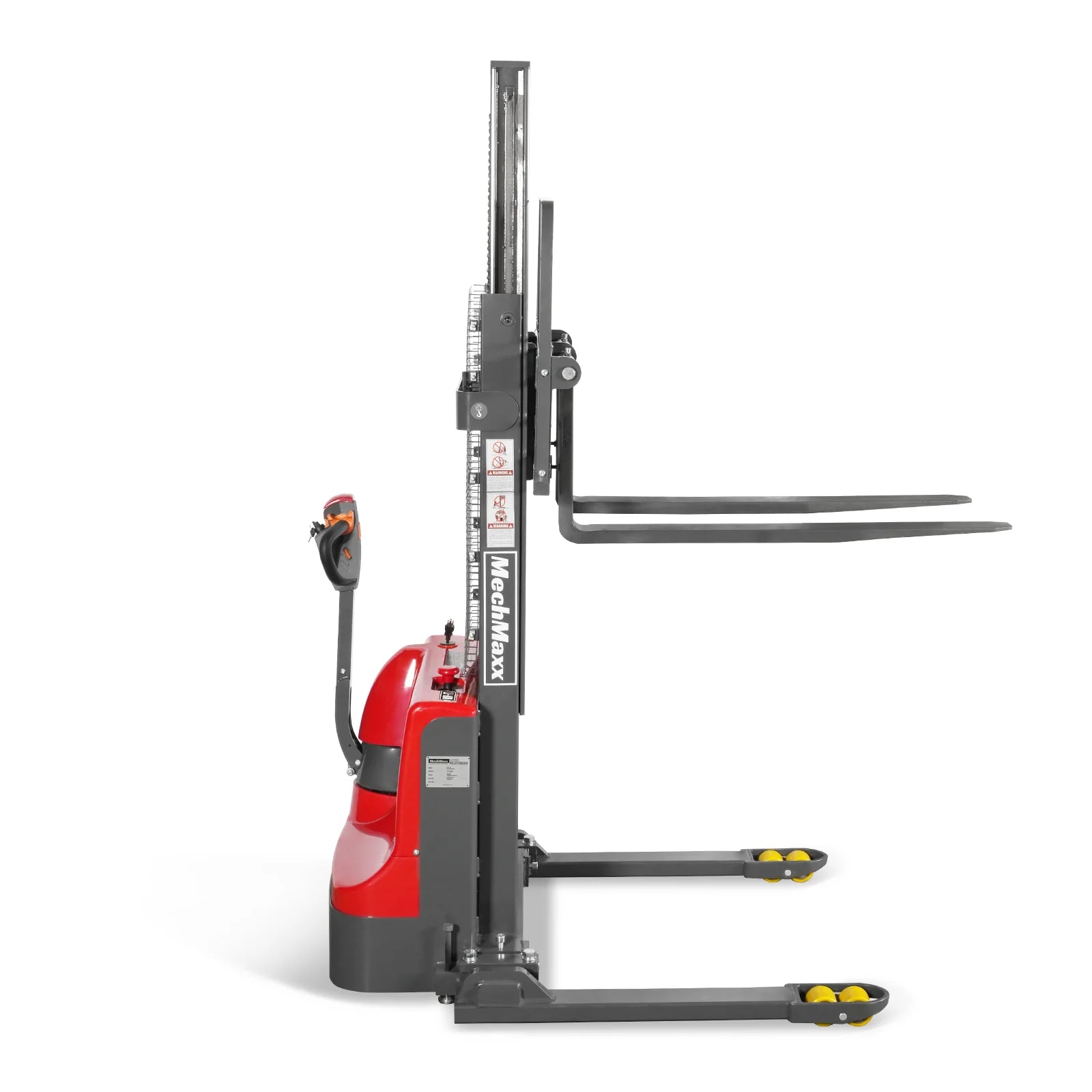

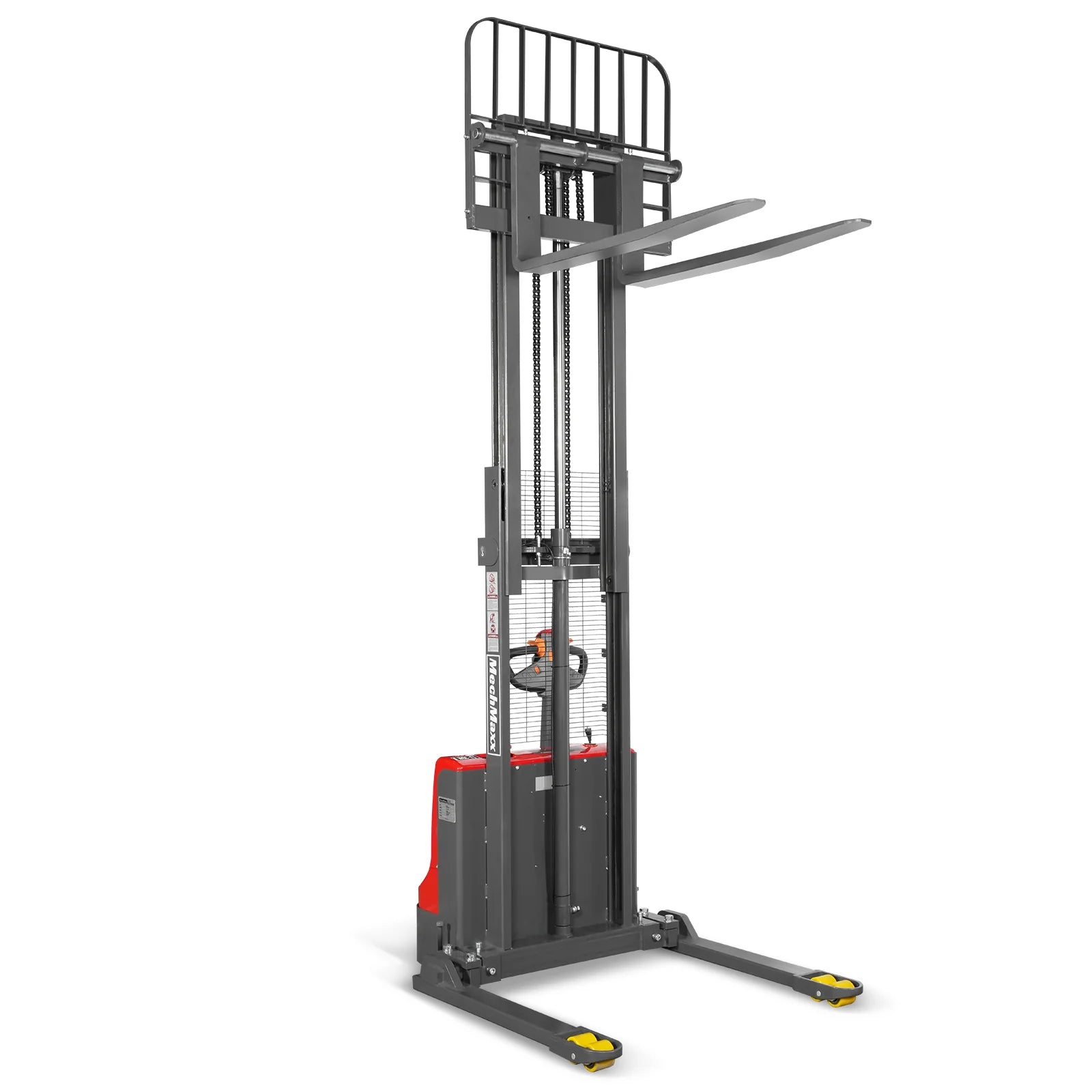

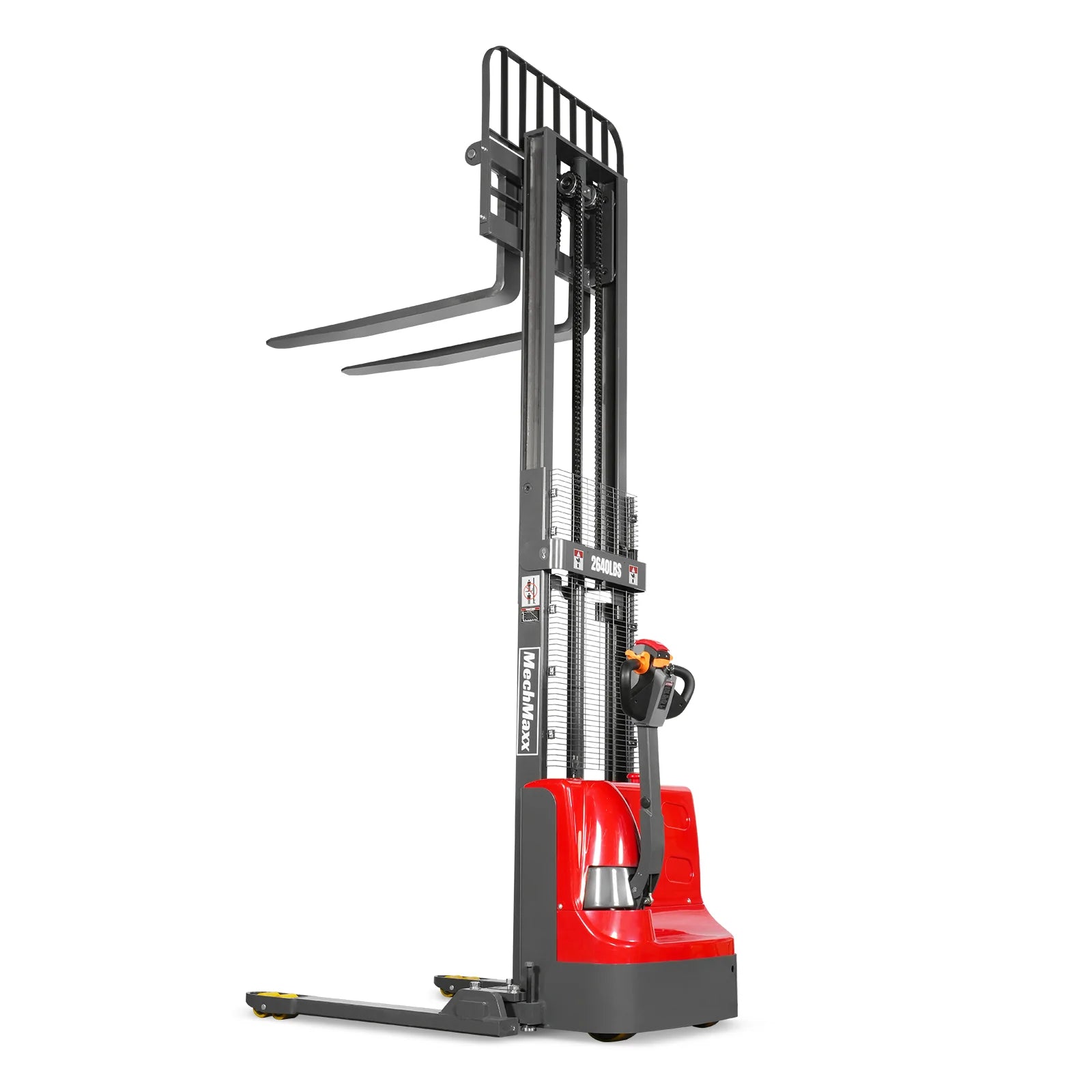

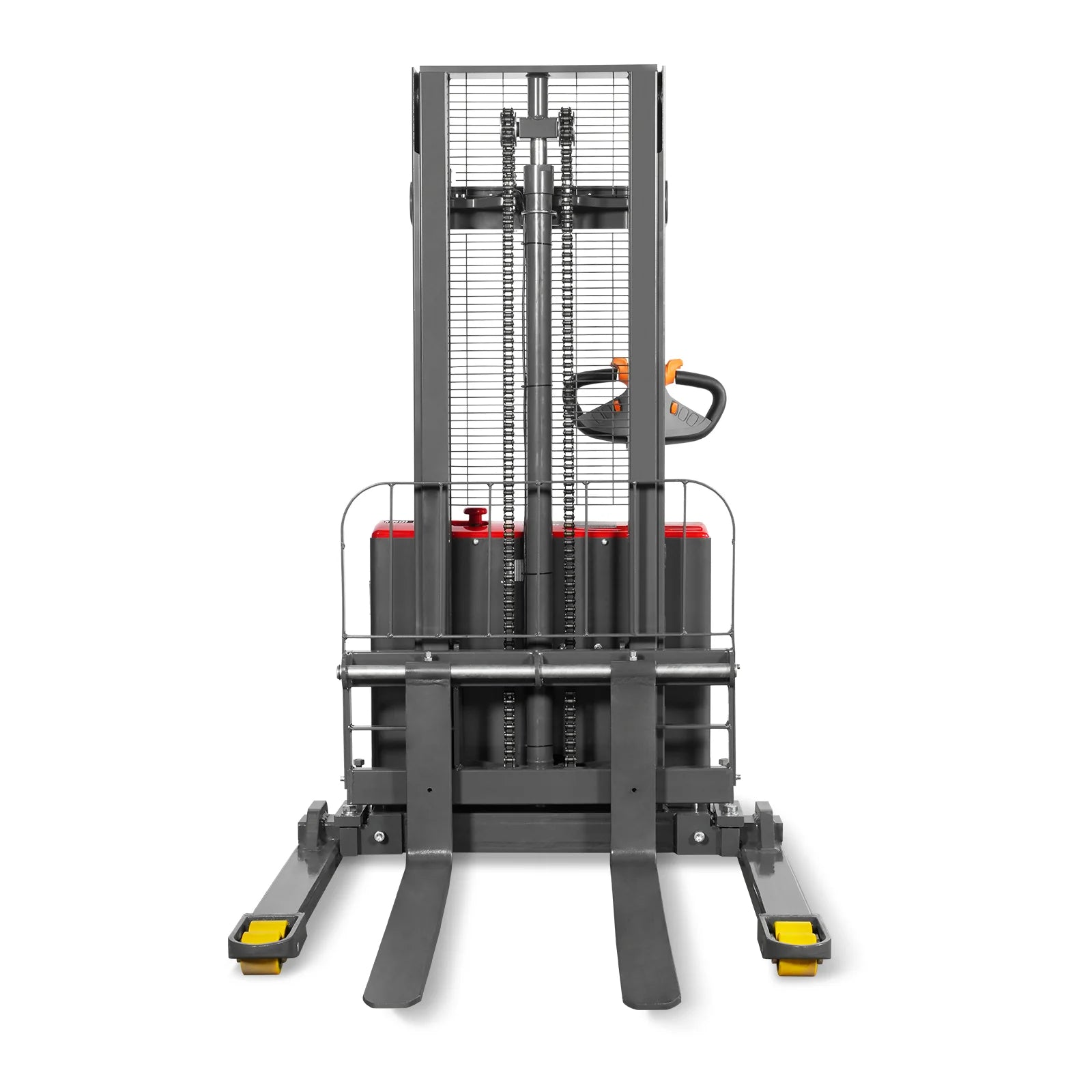

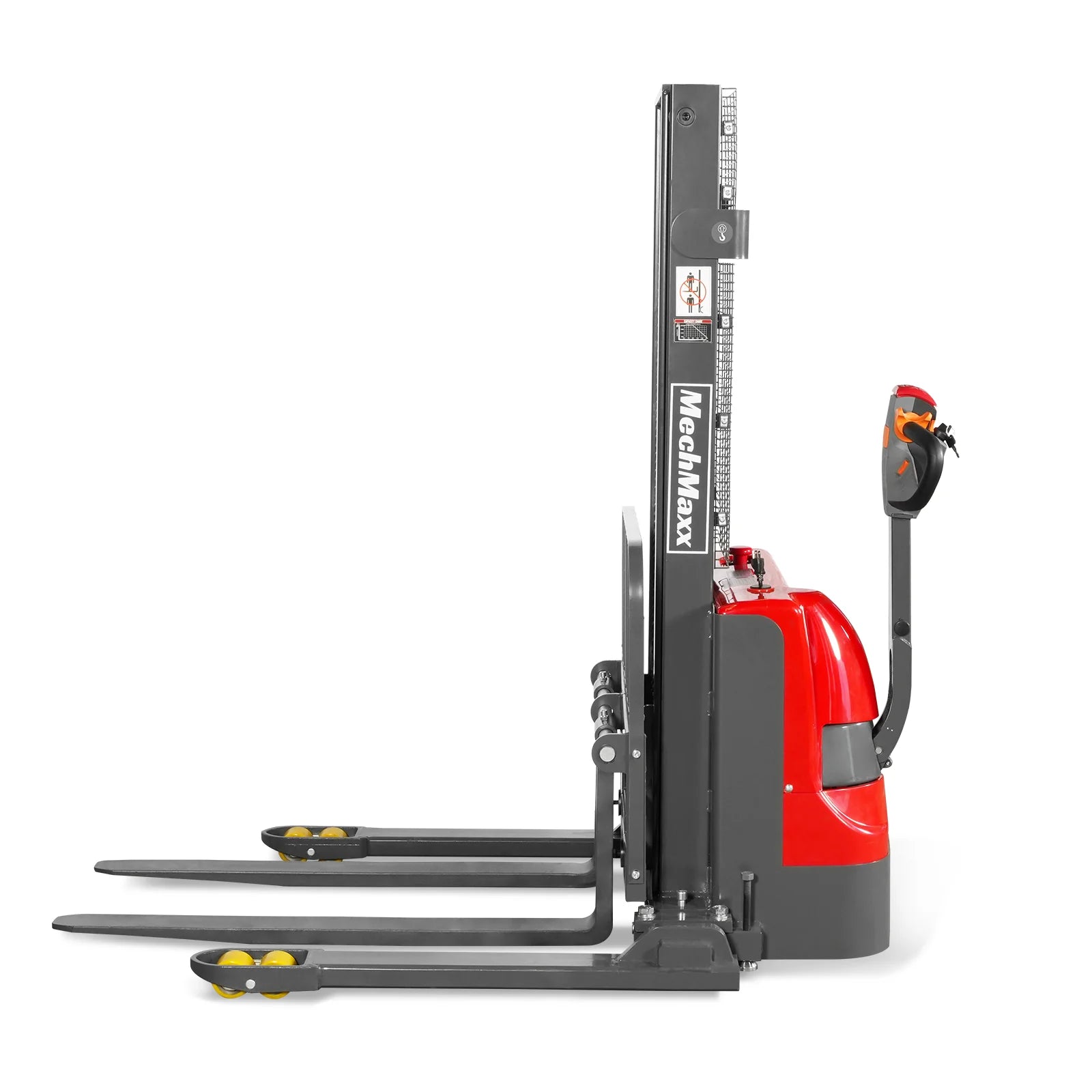

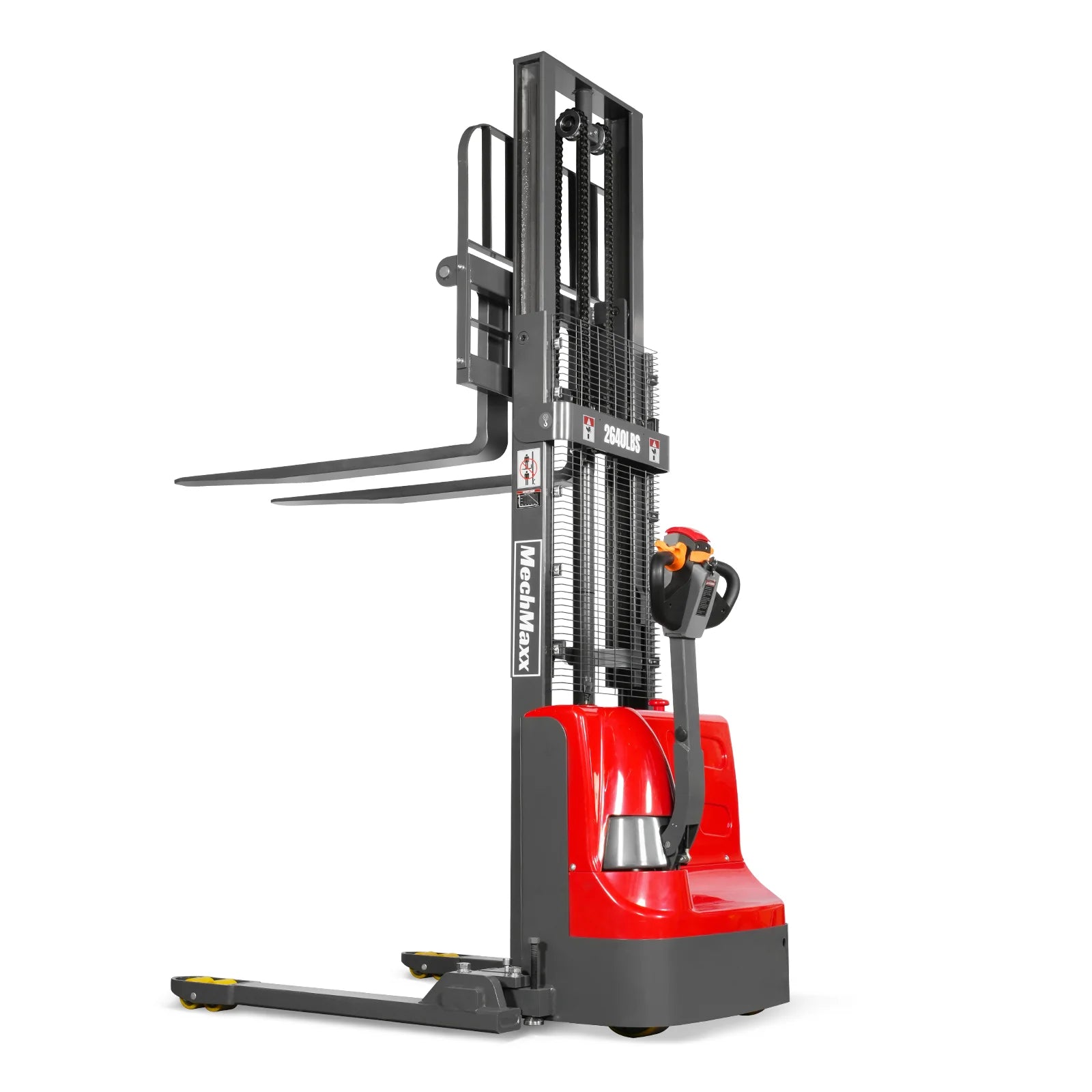

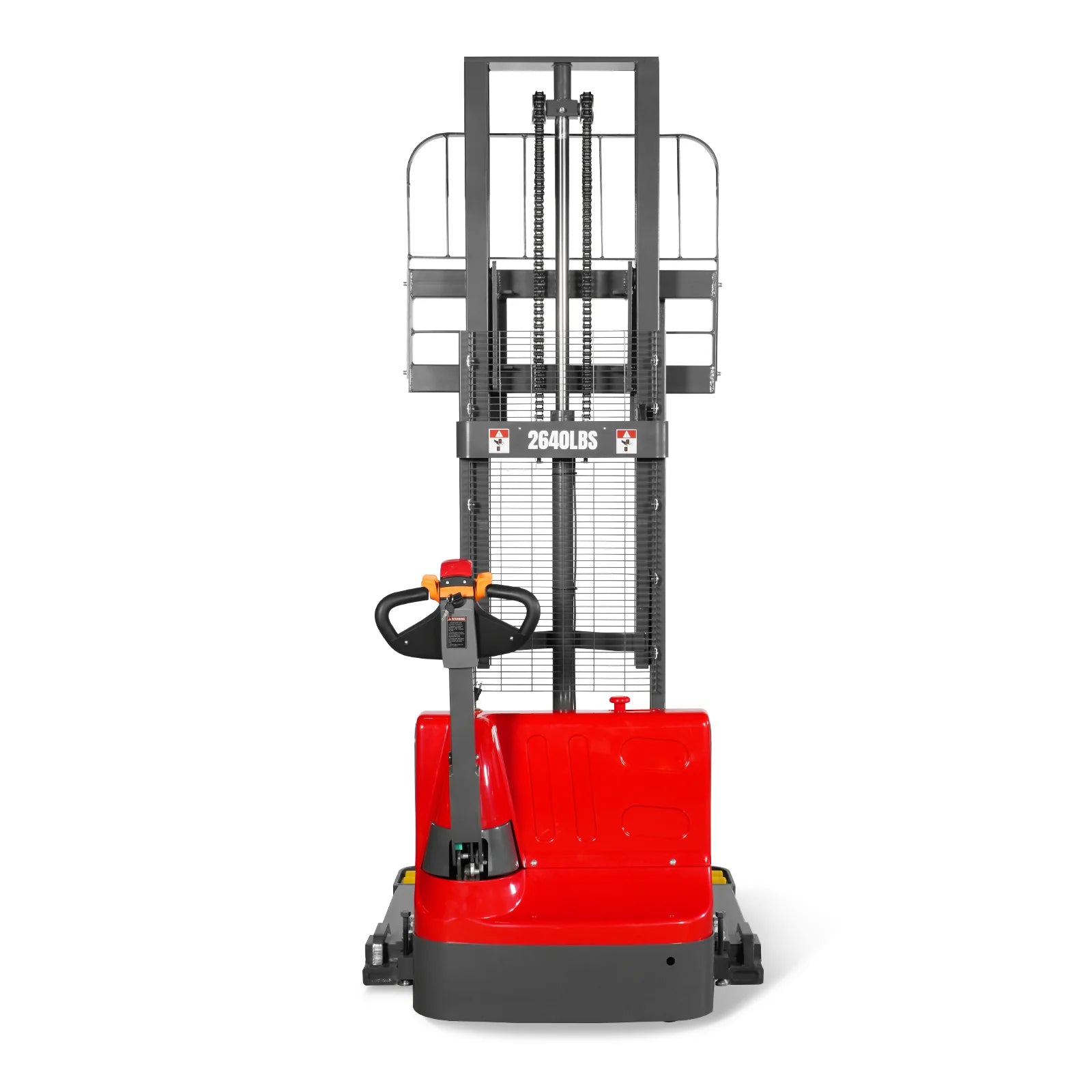

MechMaxx 2640lbs Lithium-ion Electric Straddle Stacker, 98" Lift, Adjustable Legs & Forks, F26-98S

SKU: 202013
(0)
$5,799.00
Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Chat Email +1 (844) 969-2952

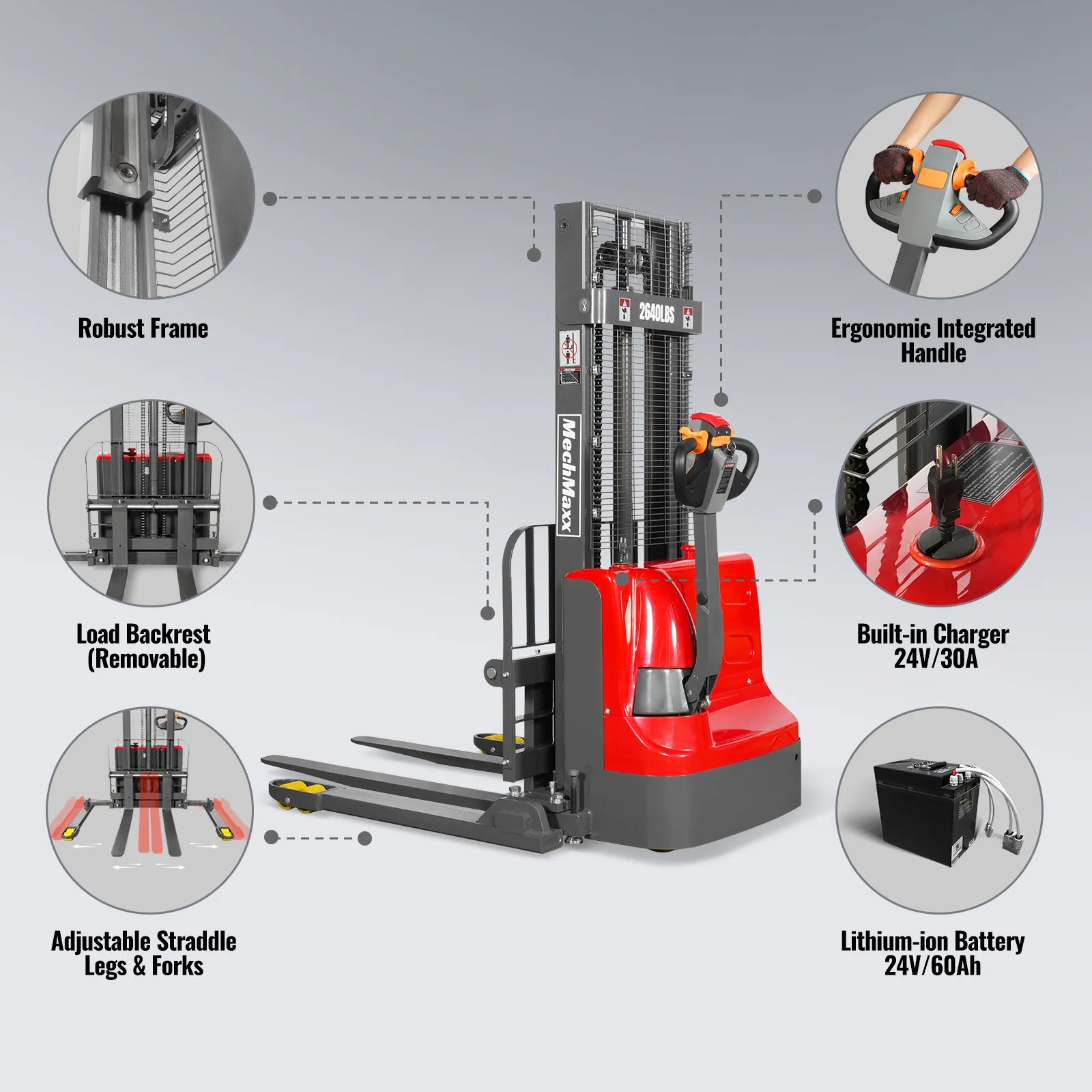

  • 2,640 lb load capacity with 98" maximum lift height Maintenance-free 24V/60Ah lithium-ion battery with built-in fast charger American Curtis travel controller for smooth, precise, energy-efficient control Adjustable forks and straddle legs fit a range of pallet widths Comprehensive safety features: electromagnetic brake, explosion-proof valve, and electronic lift limit switch Polyurethane wheels protect warehouse floors from scratches

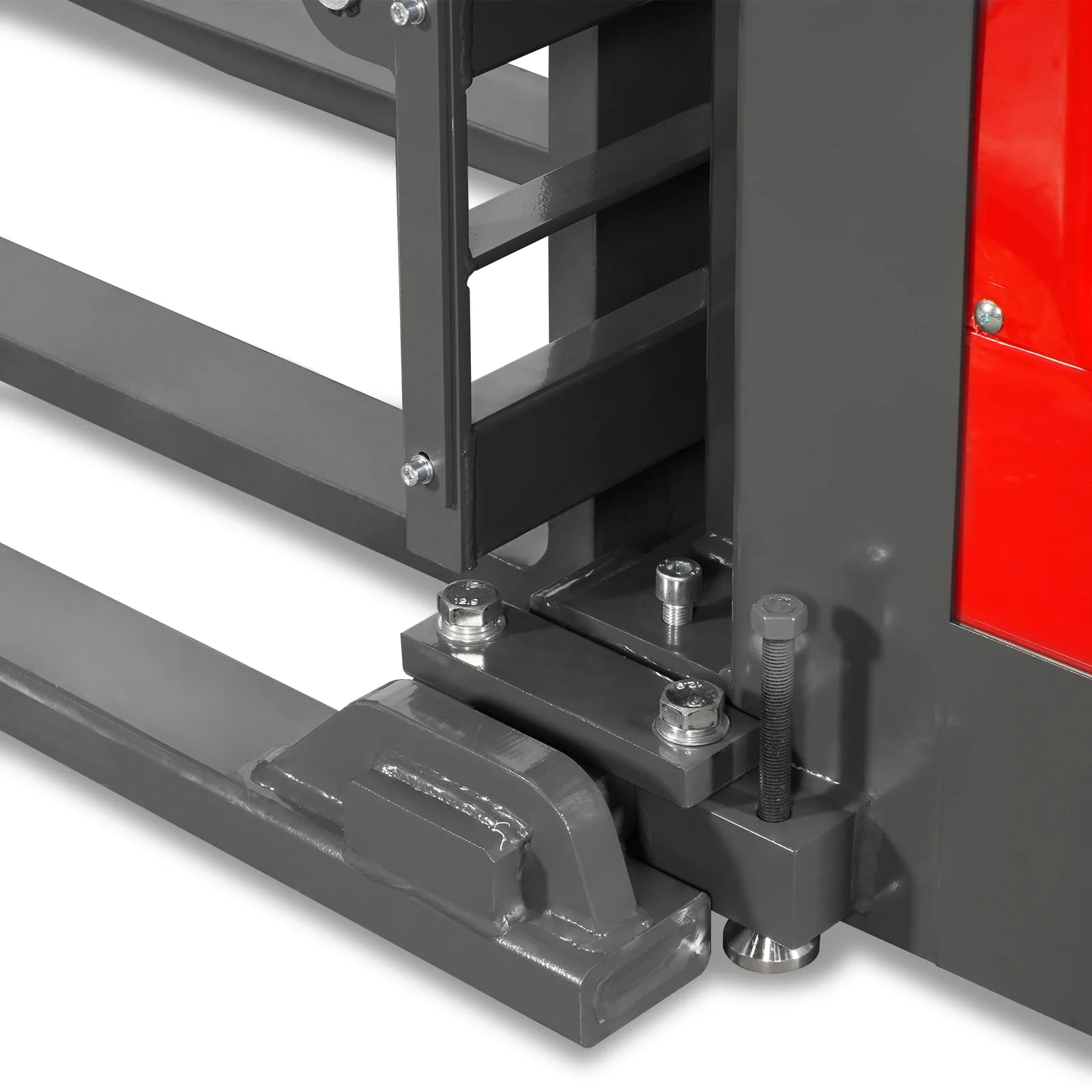

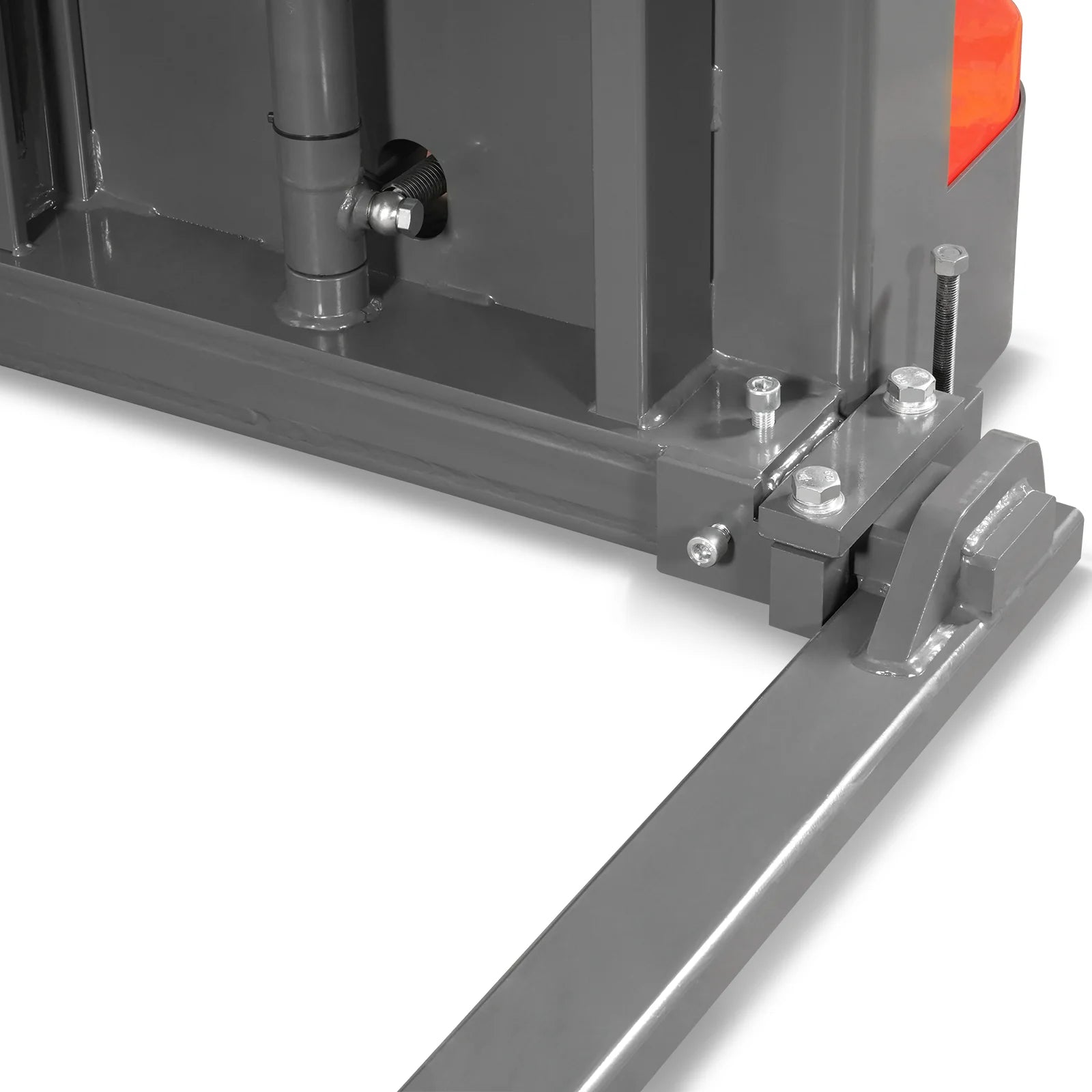

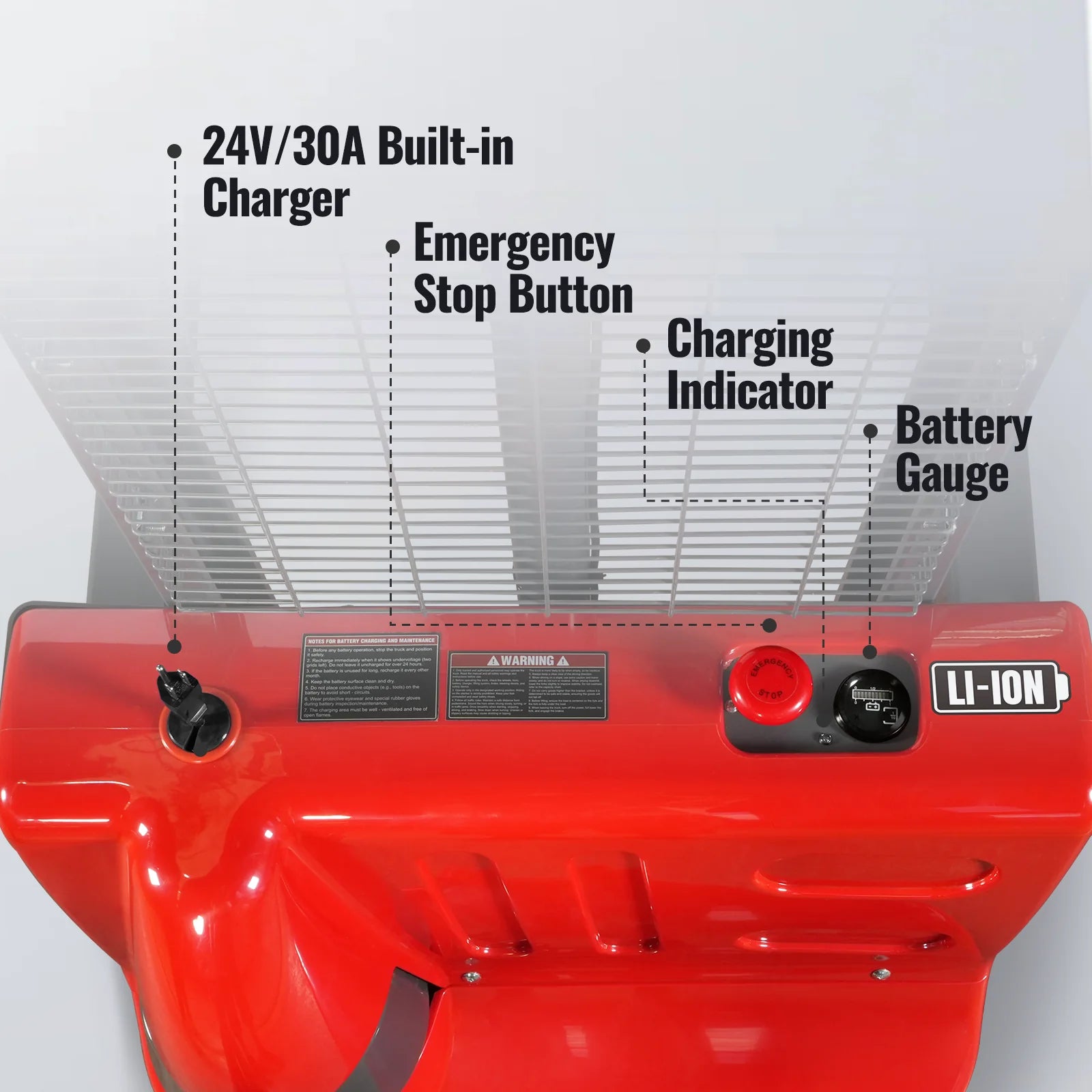

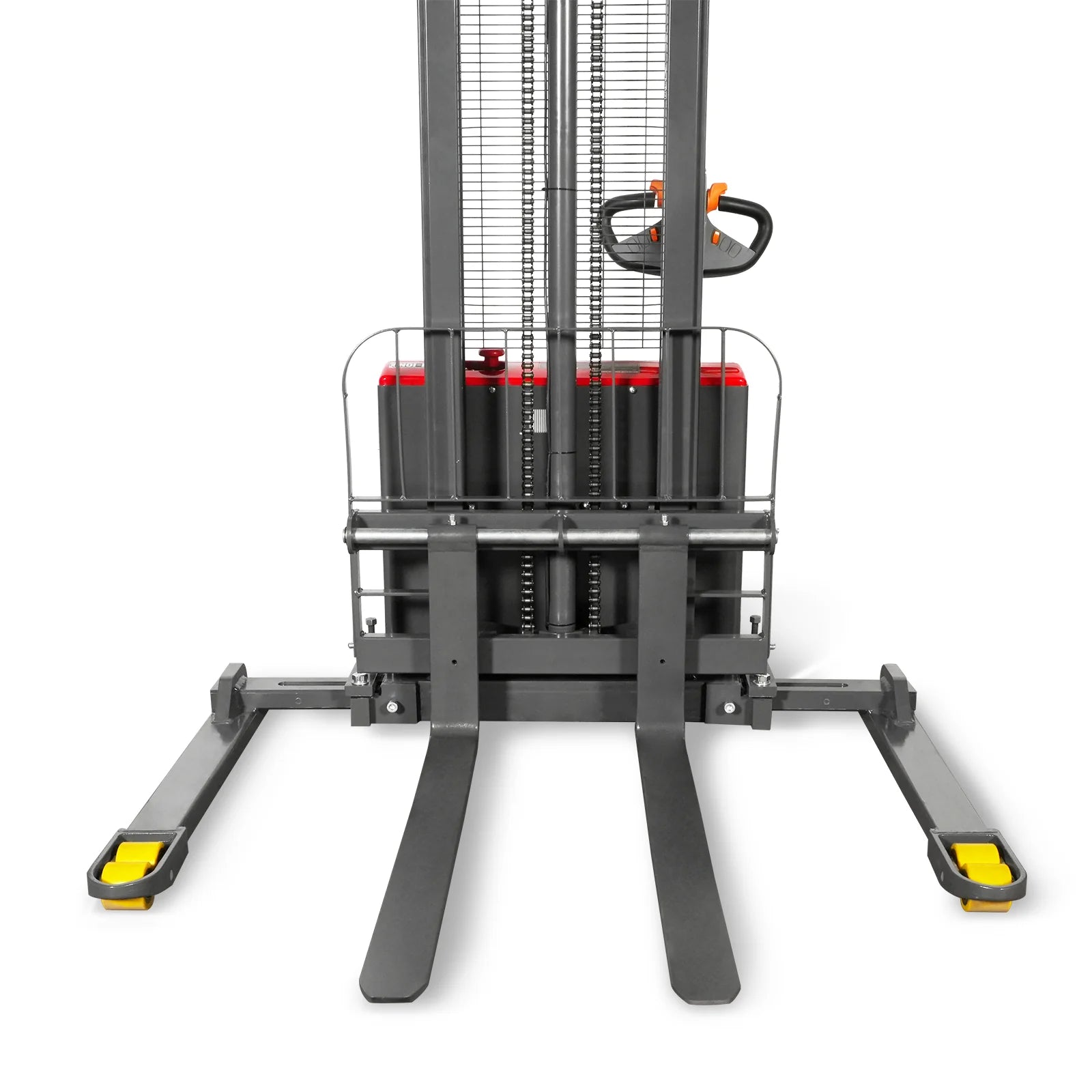

Handle pallets efficiently and safely with the F26 Series Electric Straddle Stacker, built for 2,640 lb capacity and up to 98" of lift height. Powered by a maintenance-free 24V/60Ah lithium-ion battery with a built-in 24V/30A charger, this stacker delivers extended runtime across multiple shifts with opportunity-charge capability, so you spend less downtime charging and more time working. The American Curtis travel controller offers smooth, precise control, while adjustable forks (8.3"-33.5") and straddle legs (35.4"-51.2" I.D.) accommodate a range of pallet widths.

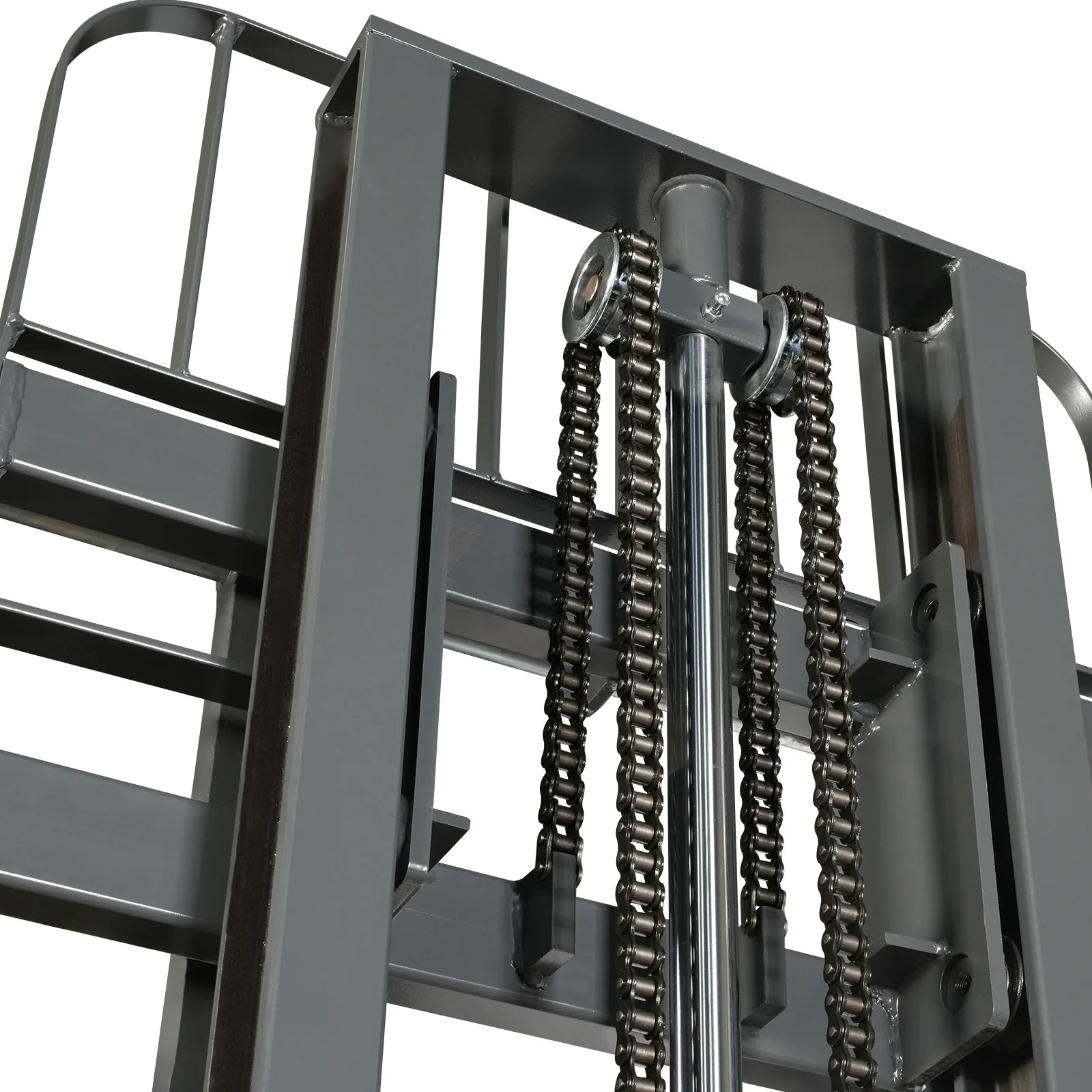

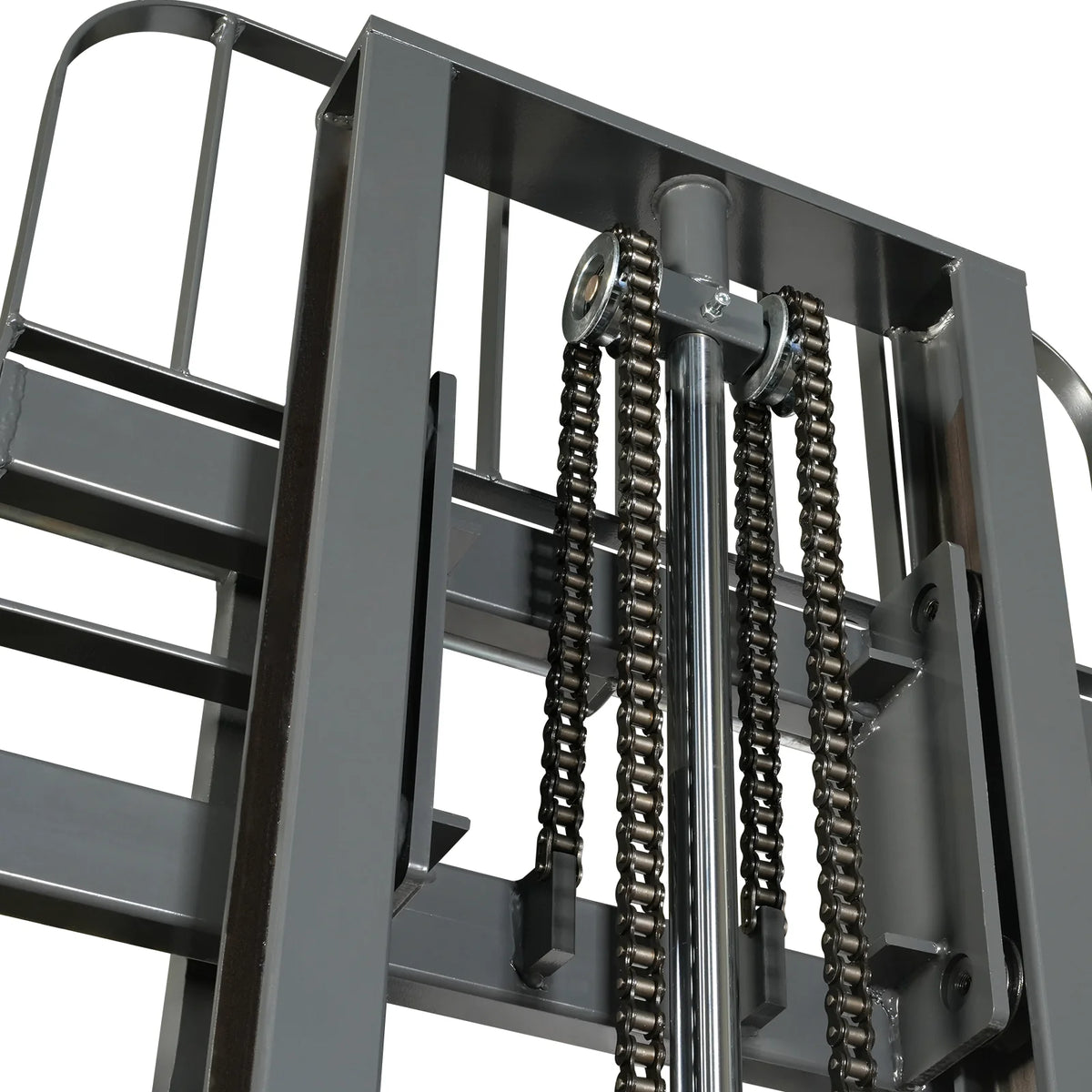

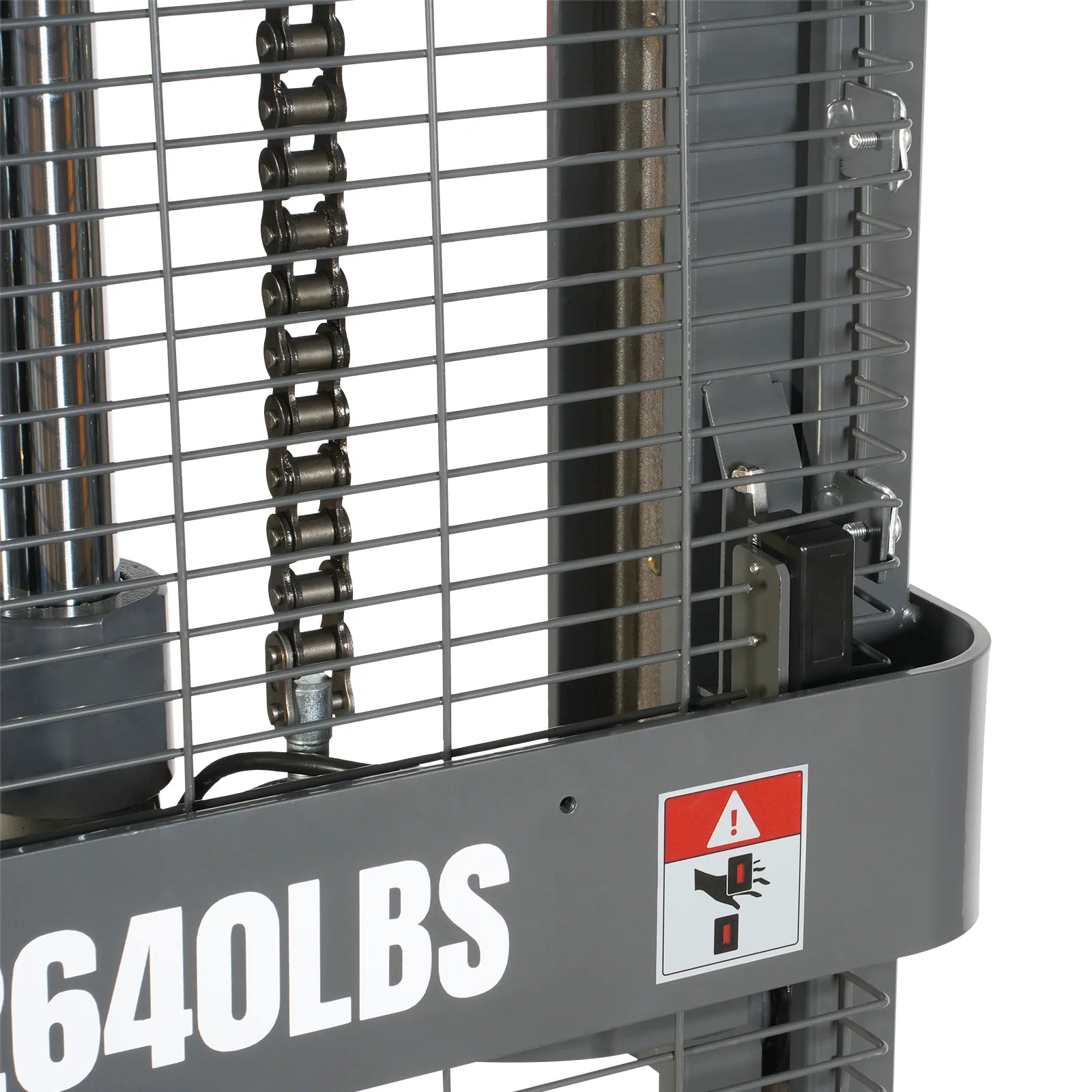

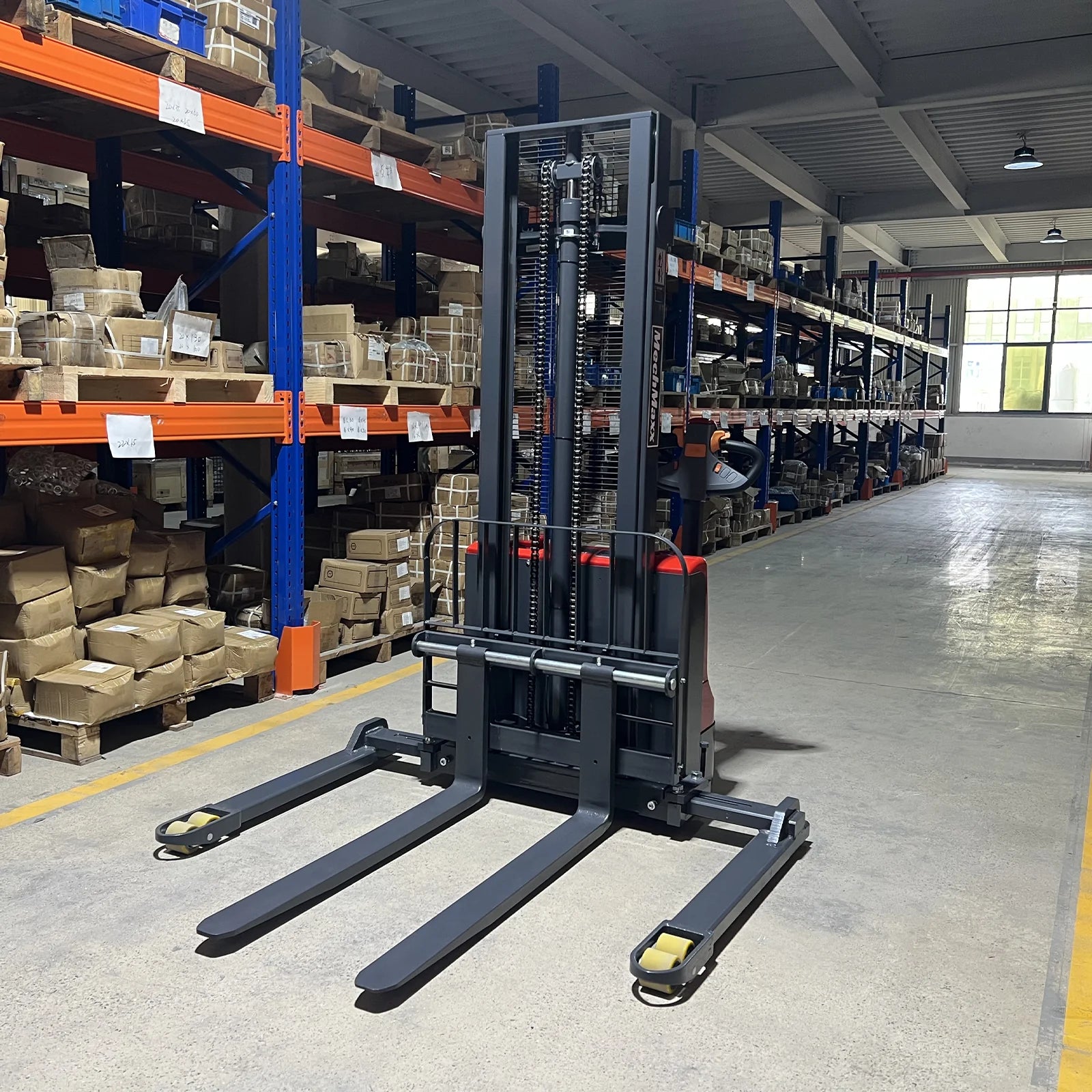

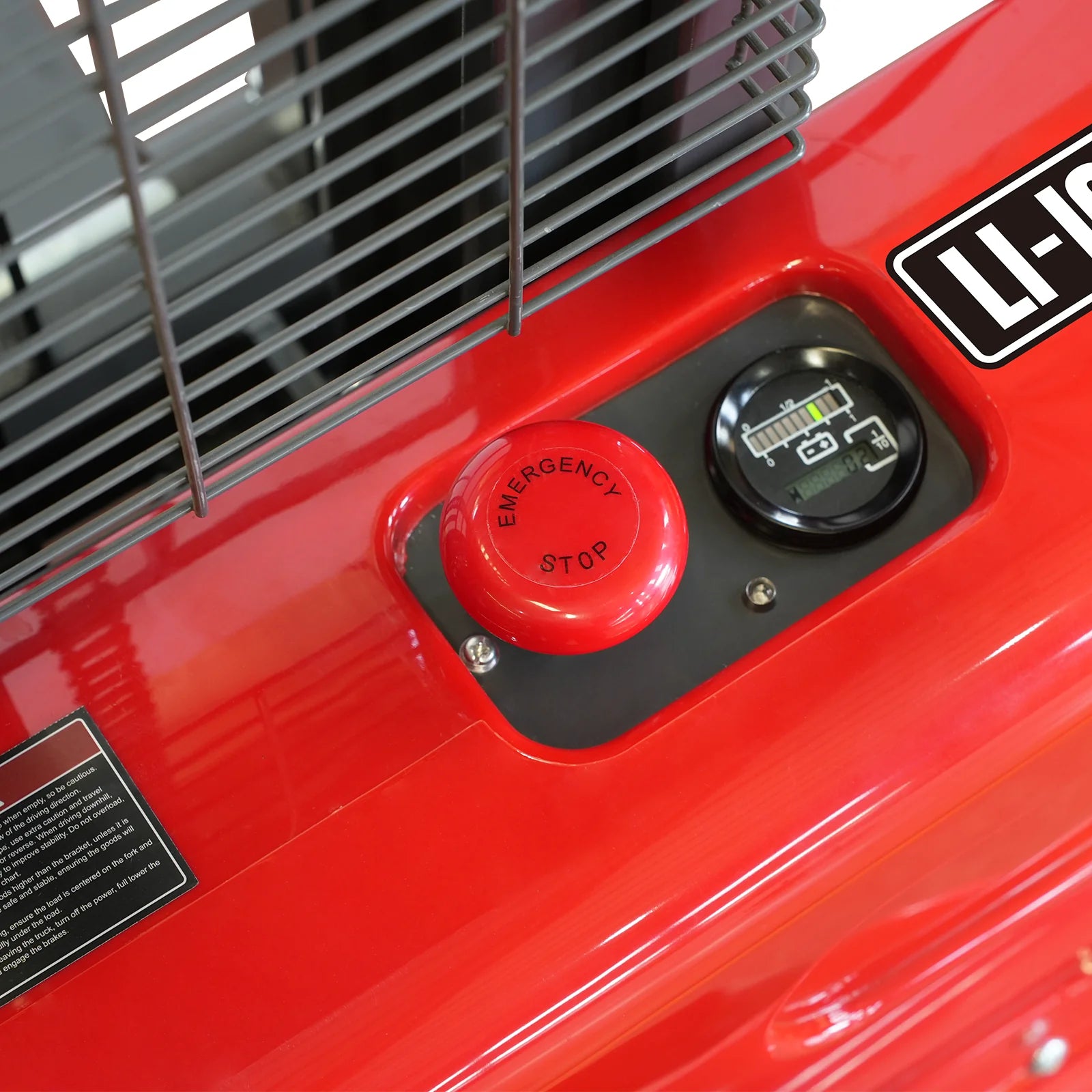

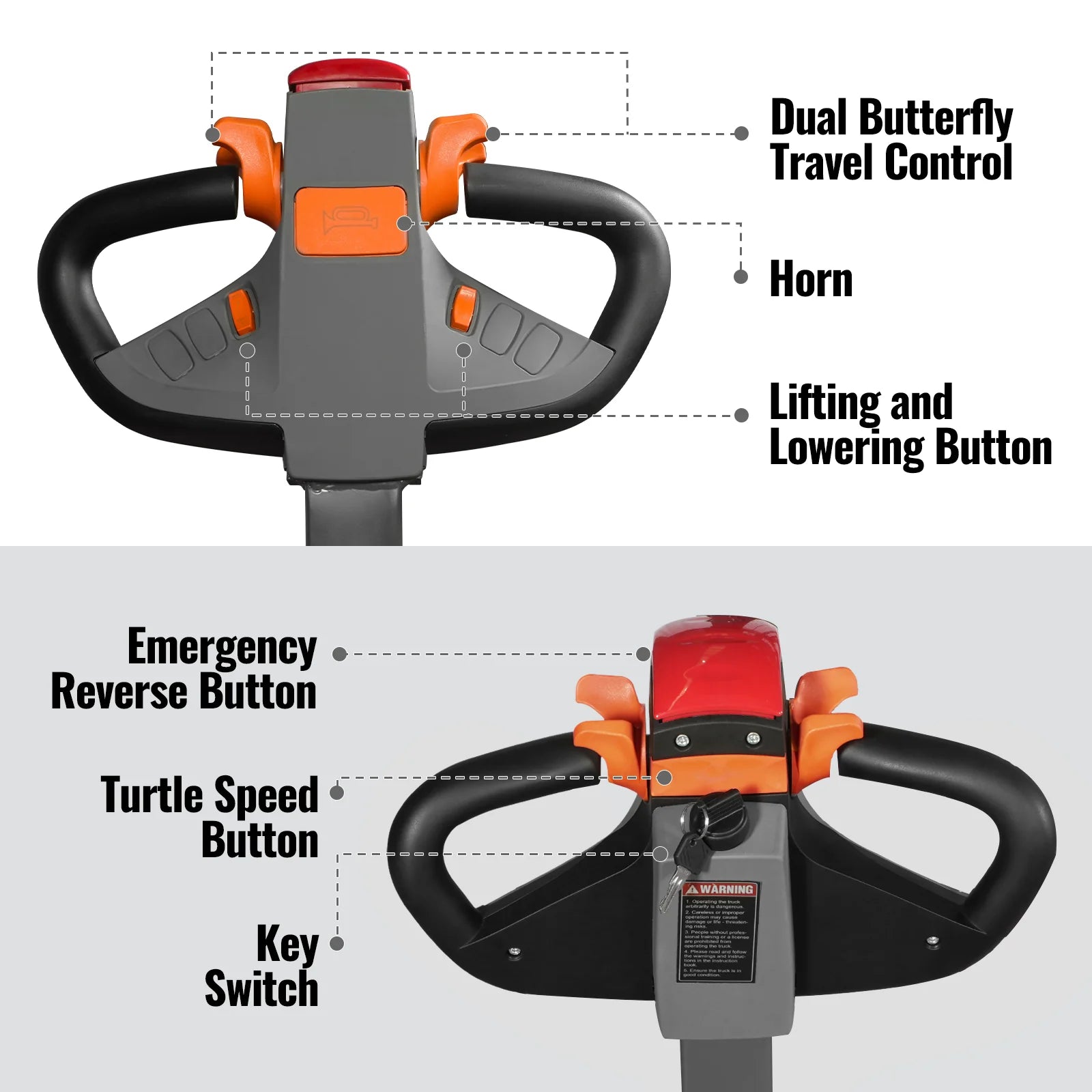

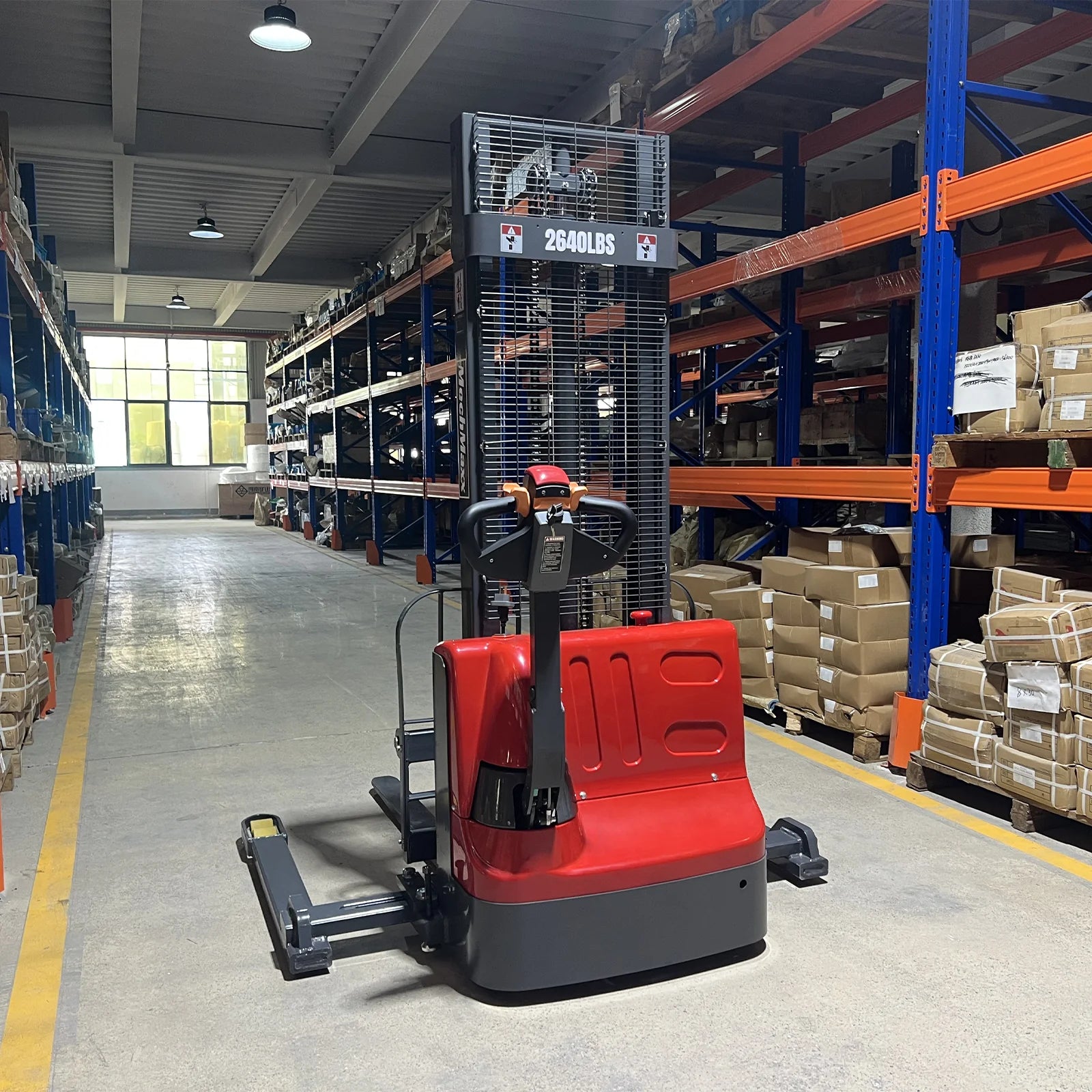

Built with a double-frame steel design and reinforced stiffening bars, this stacker delivers stable lifting performance and extended service life under heavy-duty use. Safety features include an electromagnetic brake, emergency reverse button, electronic lift limit switch, explosion-proof valve, and mesh guard, ensuring comprehensive operator protection. Polyurethane wheels leave no scratches on warehouse floors, making this stacker a reliable choice for warehouses, distribution centers, and industrial environments.

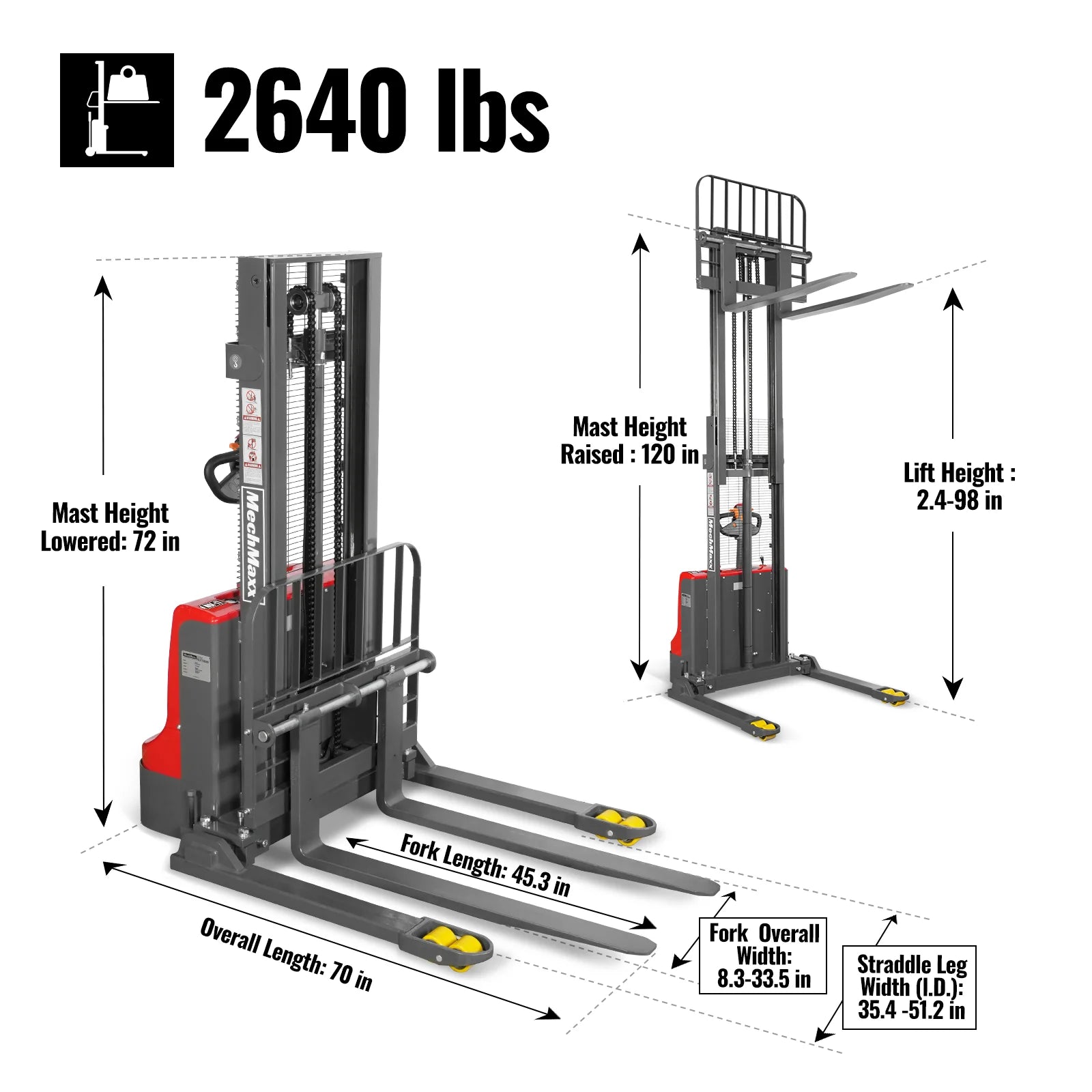

Load Capacity 2640 lbs Turning Radius 53 in
Operator Position Walkie Lifting Speed (laden/unladen) 18.1/26.8 fpm
Tire Type Polyurethane Lowering Speed (laden/unladen) 22/19.3 fpm
Overall Length 70 in Driving Speed (laden/unladen) 2.5/2.6 mph
Max Lift Height 98 in Max Gradeability (laden/unladen) 3/8%
Min Lift Height 2.4 in Service Brake Electromagnetic
Mast Height (raised) 120 in Battery 24V/60Ah Maintenance-free Li-ion Battery
Mast Height (lowered) 72 in Charger 24V/30A Built-in
Straddle Leg Width (I.D.) 35.4-51.2 in Controller Brand Curtis
Straddle Leg Width (O.D.) 43.3-59 in Drive Motor 0.75 kW DC
Load Center 23.6 in Lift Motor 2.2 kW
Fork Overall Width 8.3-33.5 in Packing Size (LxWxH) 39x37x77 in
Fork Size (TxWxL) 1.4x4x45.3 in Weight (N.W./G.W.) 1245/1400 lbs
Warranty Electric Straddle Stacker (SKU

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

Electric Straddle Stacker (SKU: 202013) stands up to extreme testing and comes with a one-year warranty for machine.

Frequently Asked Questions

How much weight can this stacker lift?

This stacker has a load capacity of 2,640 lbs with a maximum lift height of 98 inches.

How long does the battery last, and how is it charged?

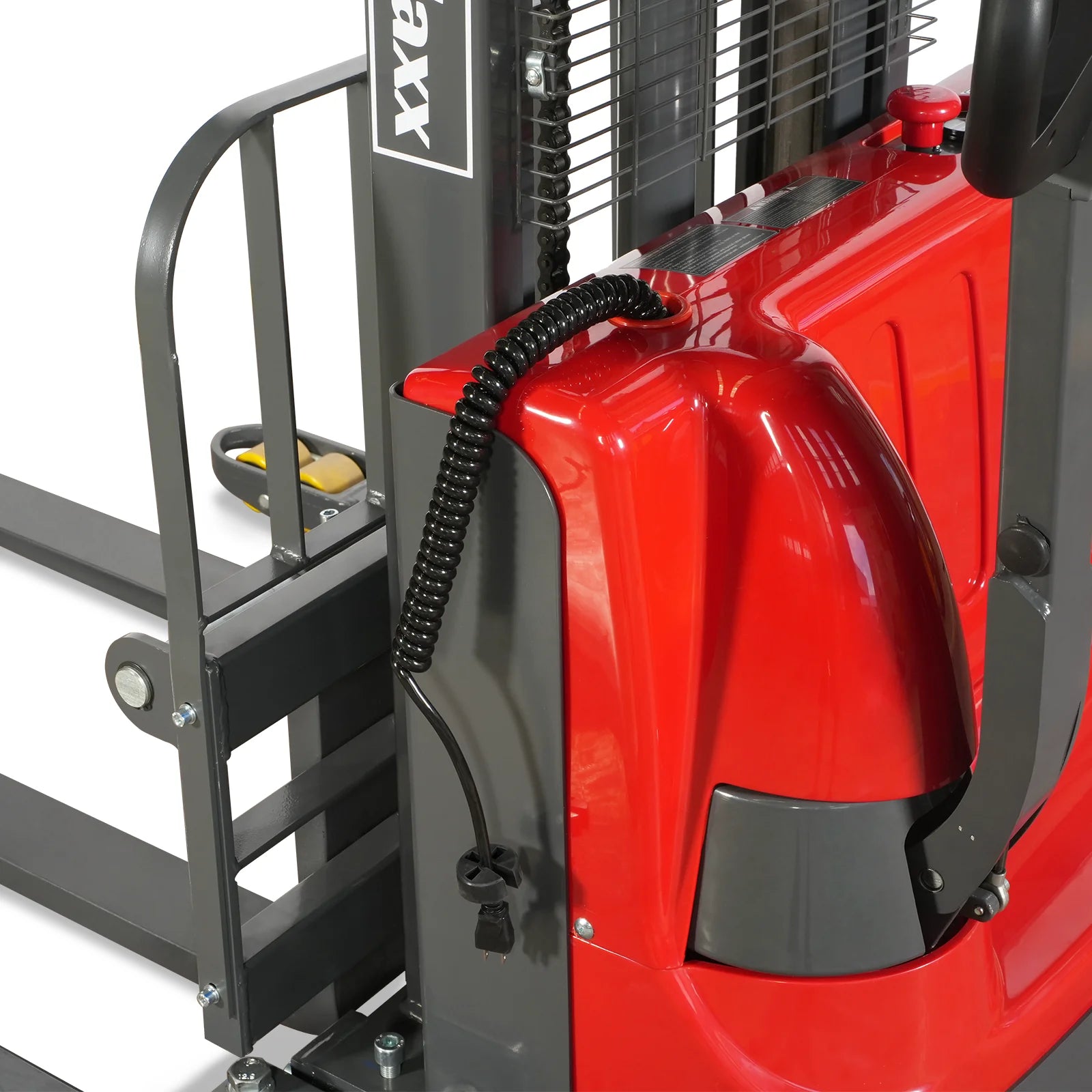

This stacker is powered by a maintenance-free 24V/60Ah lithium-ion battery with a built-in 24V/30A charger for convenient on-board charging. We recommend fully charging after each use and charging at least once a month even when not in use.

Does this require special training to operate?

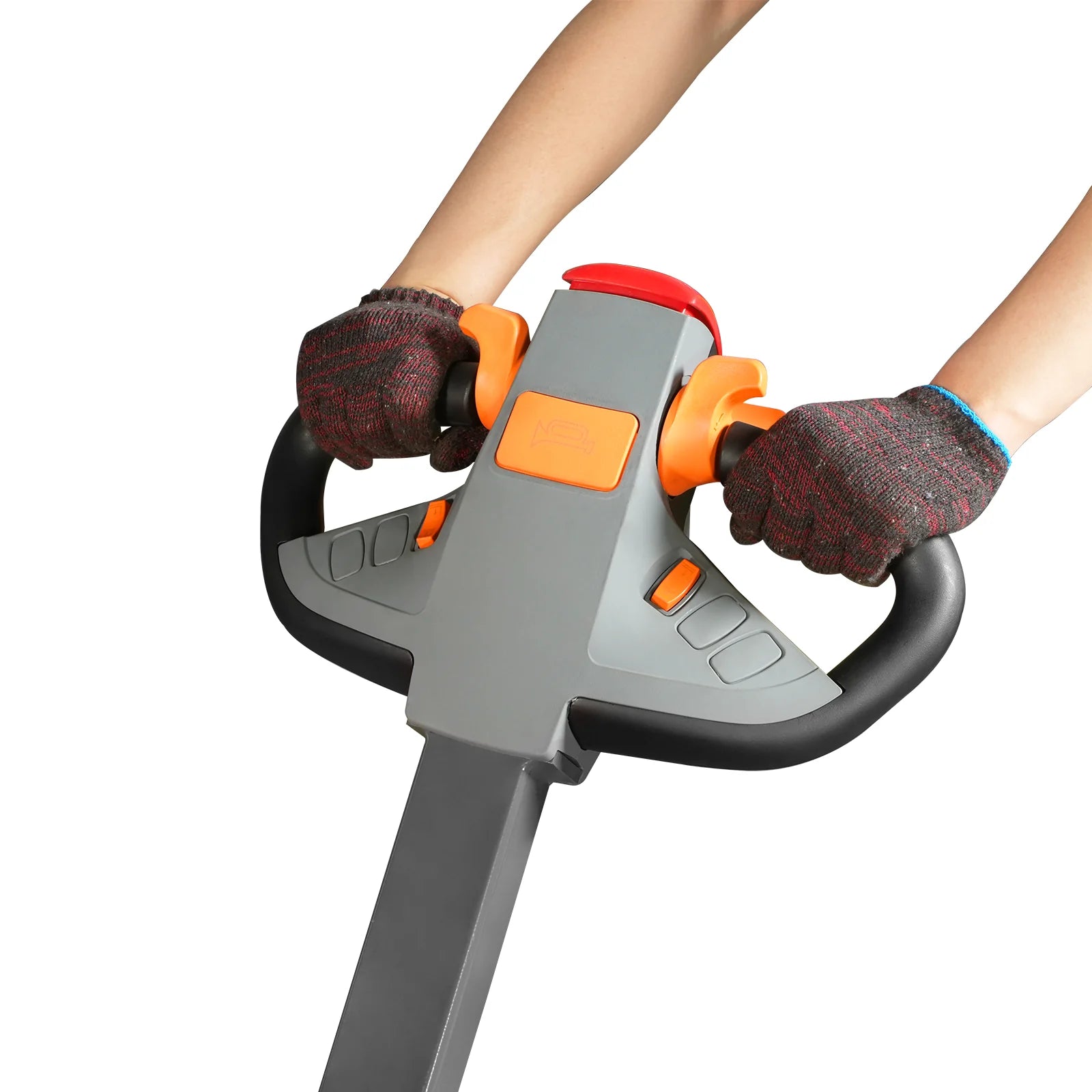

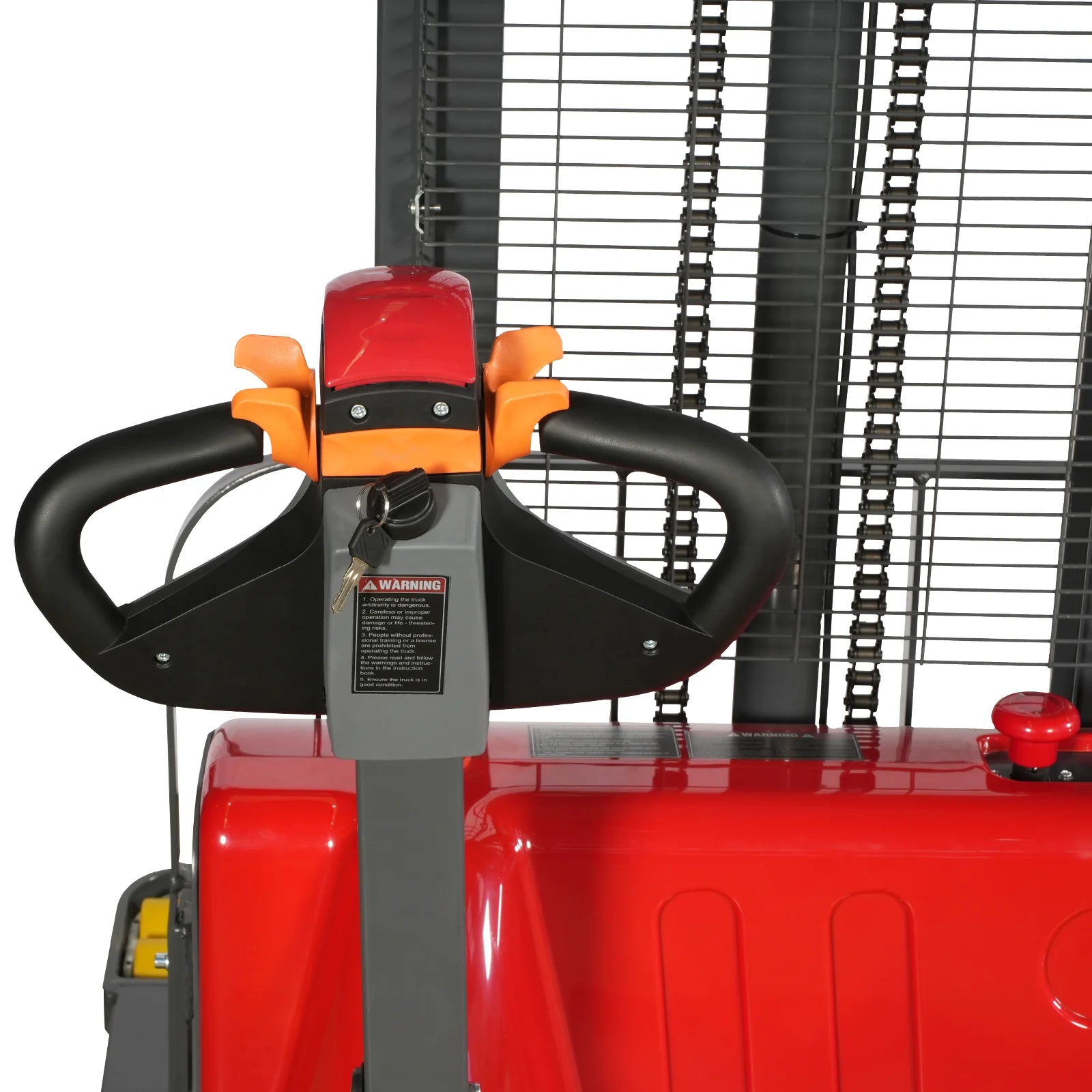

We recommend reviewing the included product manual and all safety labels before operation. This stacker includes ergonomic controls, an electromagnetic brake, and multiple safety features for operator protection.

How is this delivered?

This product exceeds the carrying range of a standard liftgate, so you'll need to arrange your own forklift or unloading platform for delivery.

Does this come with a warranty?

Yes, Electric Straddle Stacker (SKU: 202013) stands up to extreme testing and comes with a one-year warranty for machine.

What pallet widths and fork sizes does this stacker accommodate?

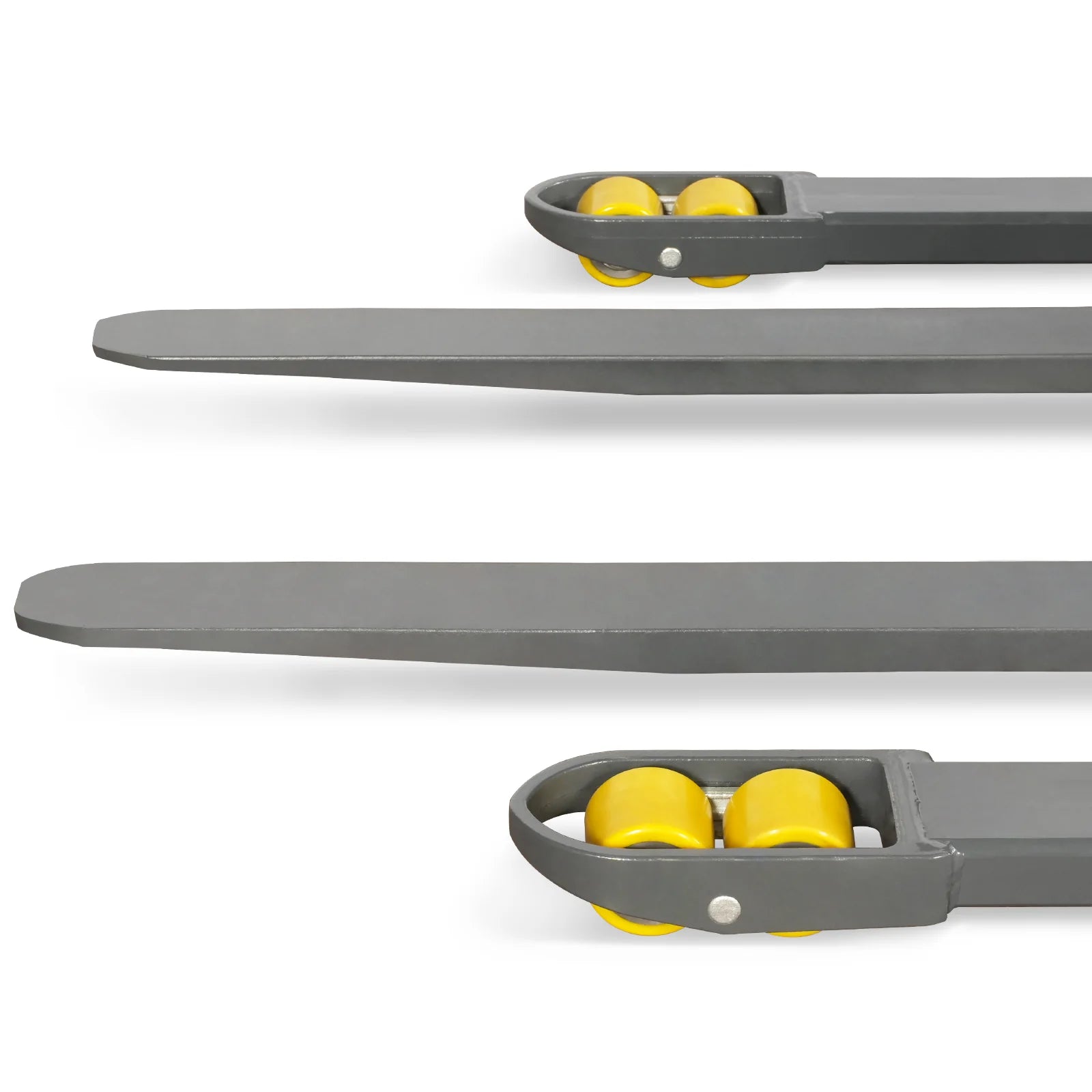

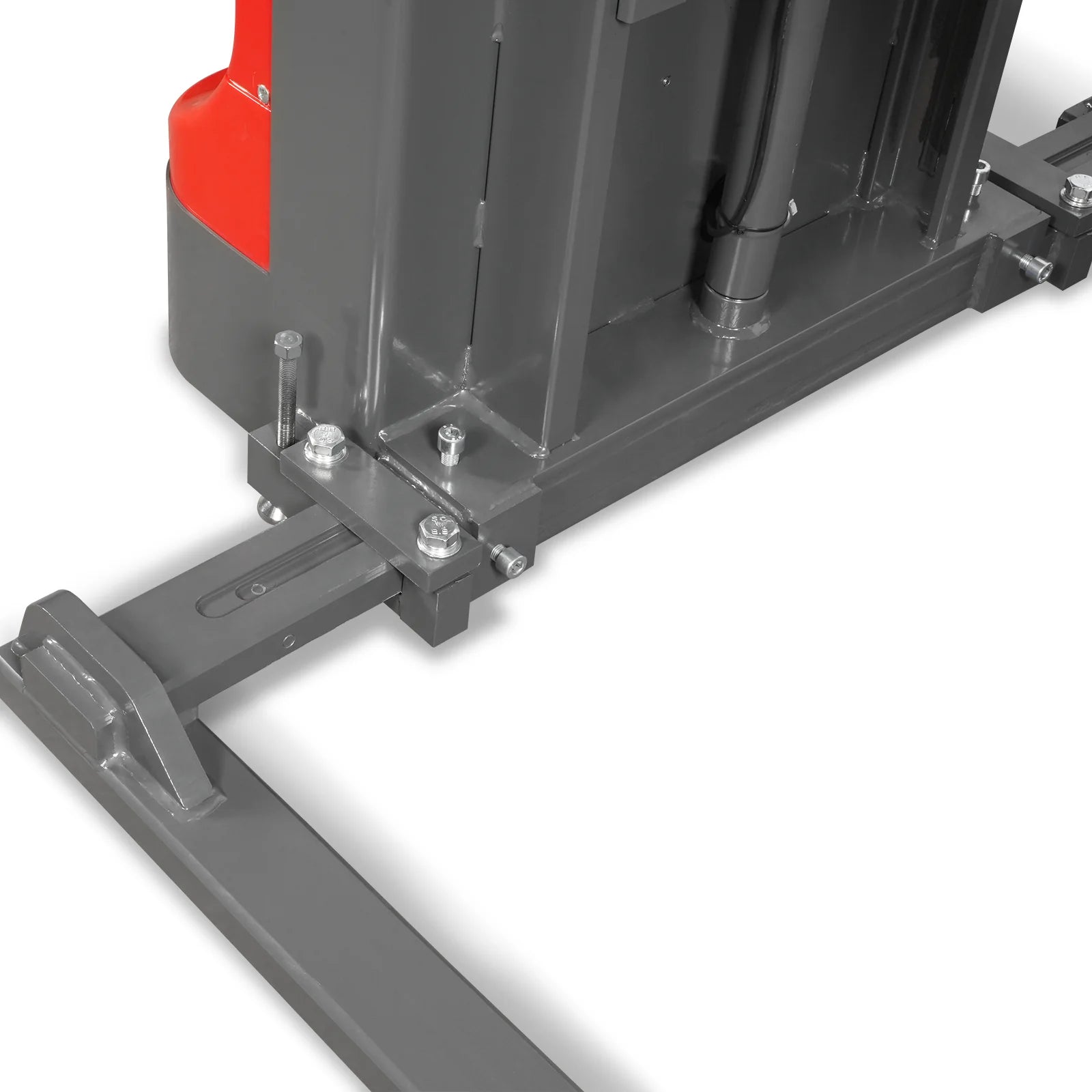

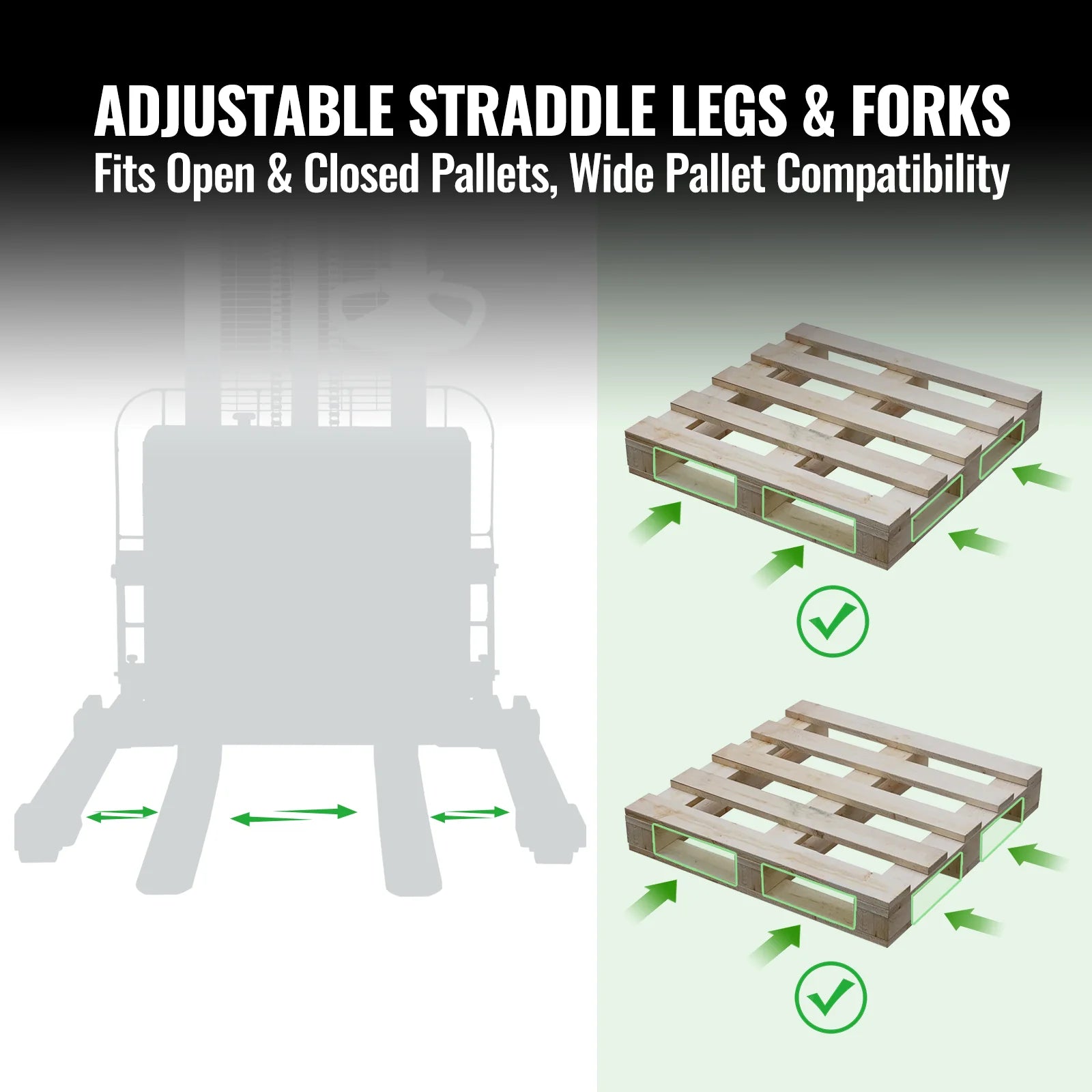

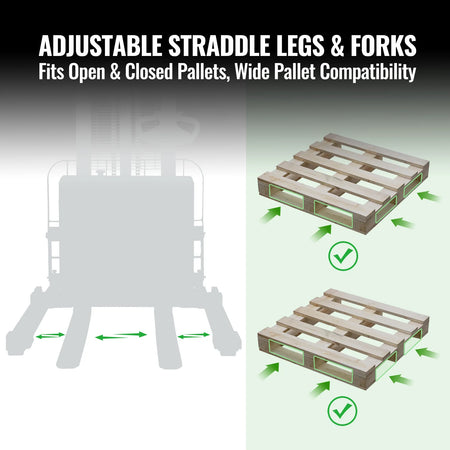

This stacker features adjustable forks (8.3"-33.5" wide) and adjustable straddle legs (35.4"-51.2" I.D.) to accommodate a range of pallet sizes.

Is assembly required?

This stacker arrives mostly assembled. Review the included product manual for setup and safety instructions before first use.
