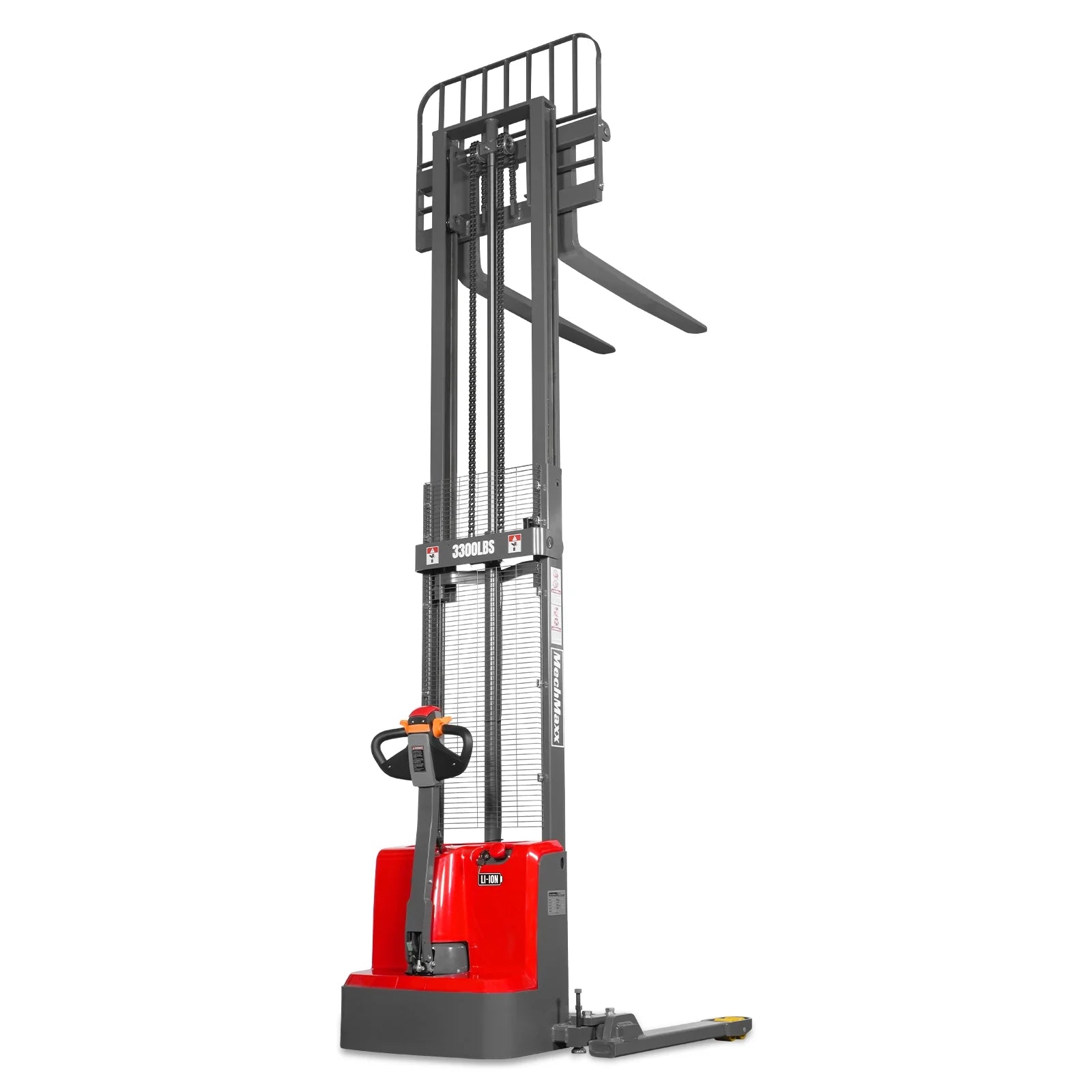

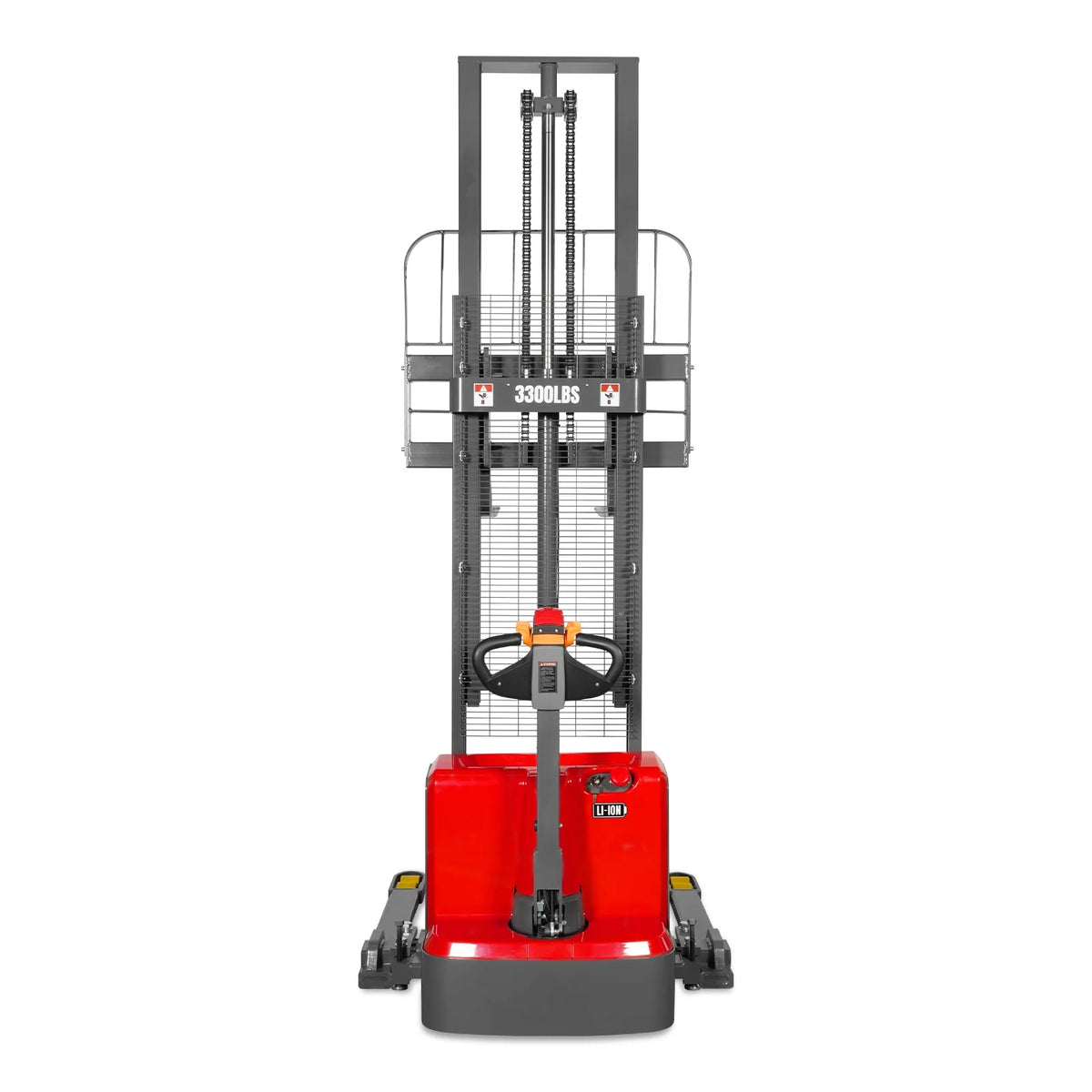

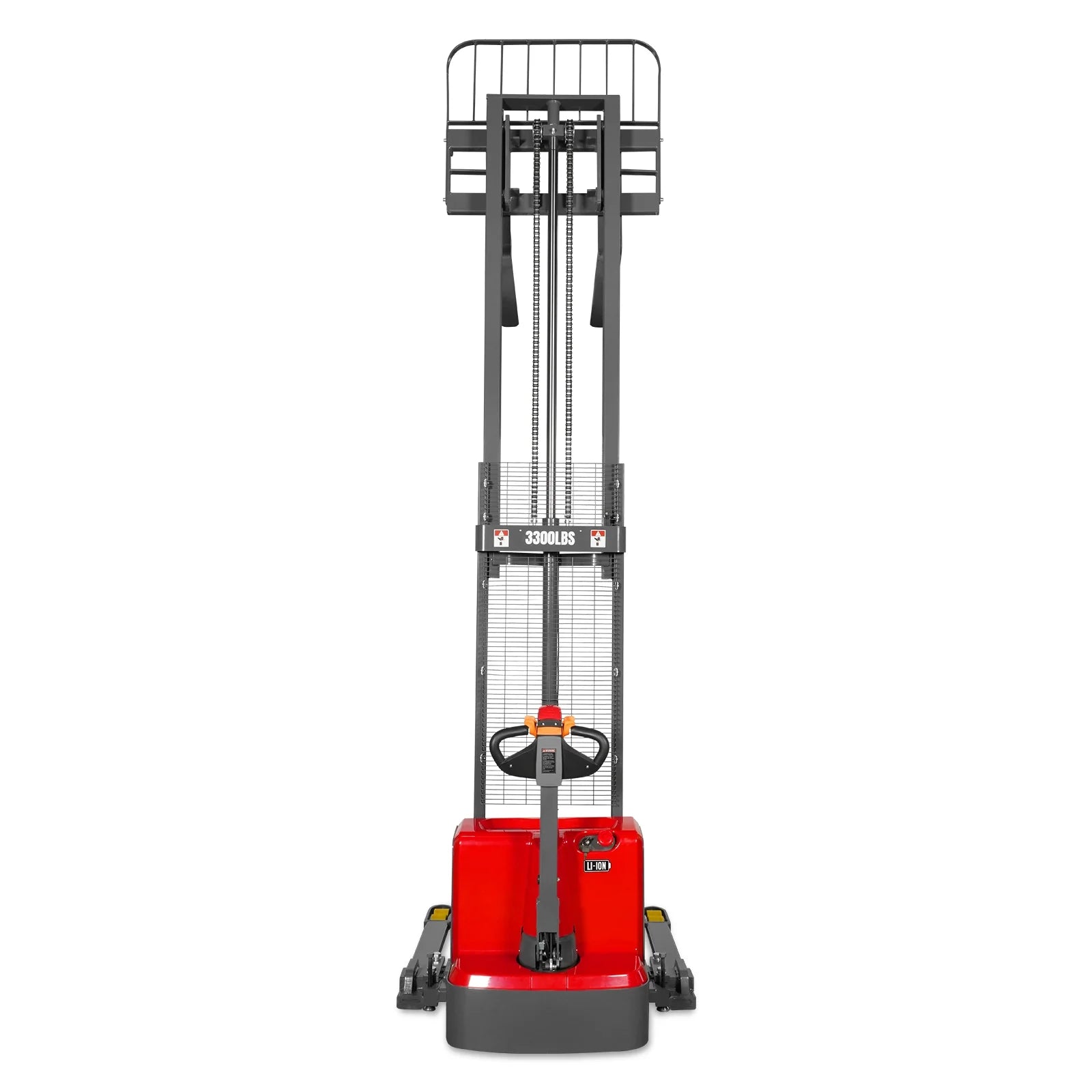

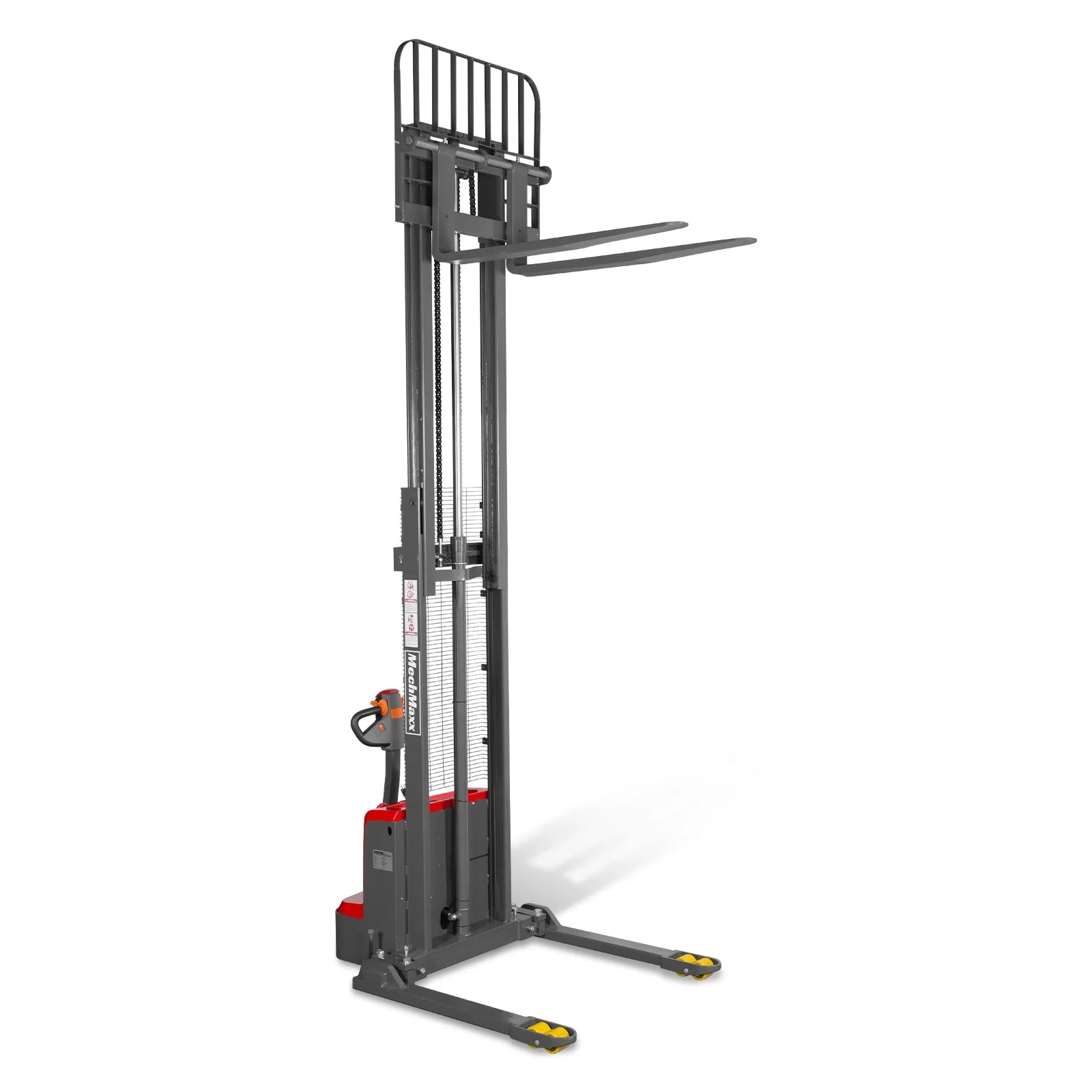

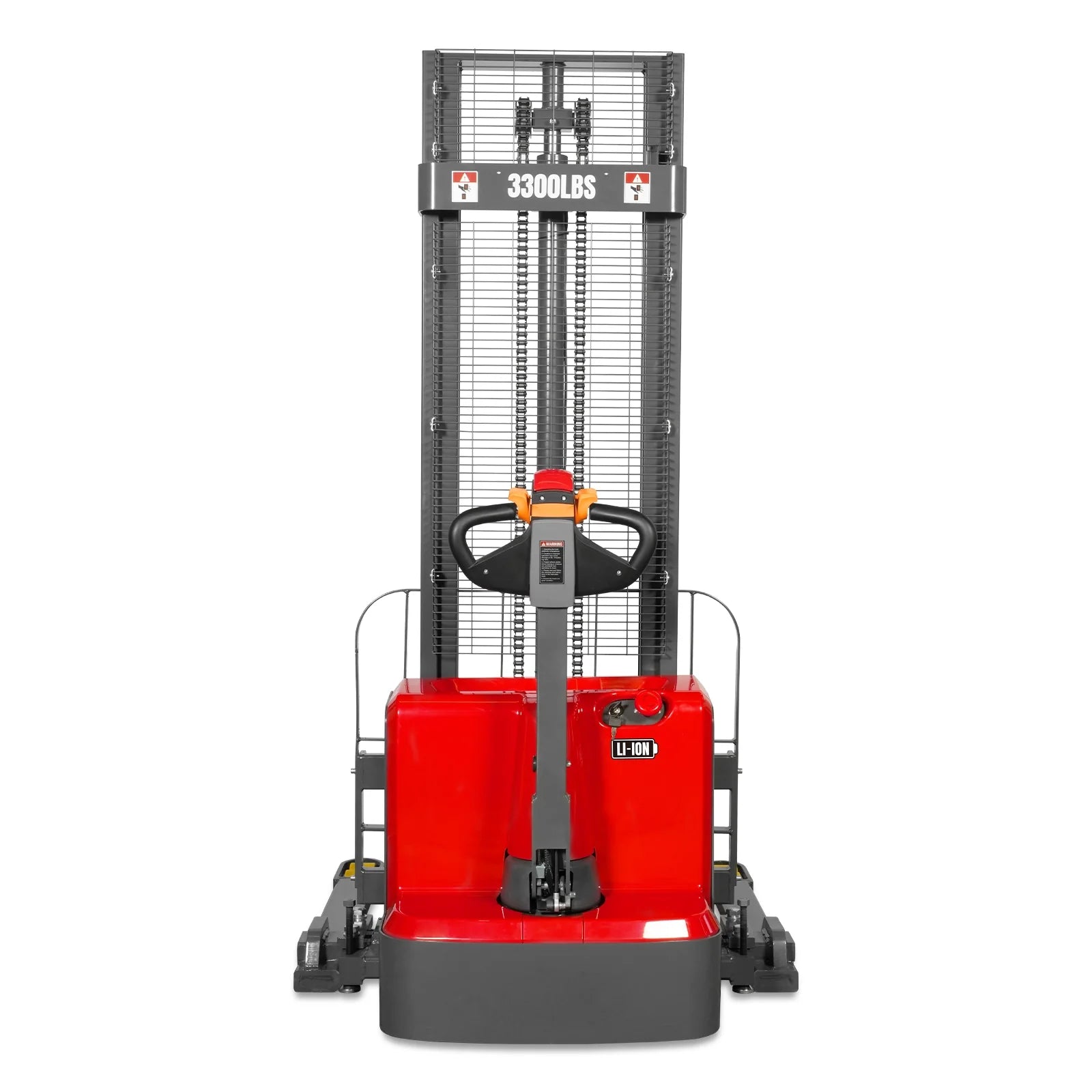

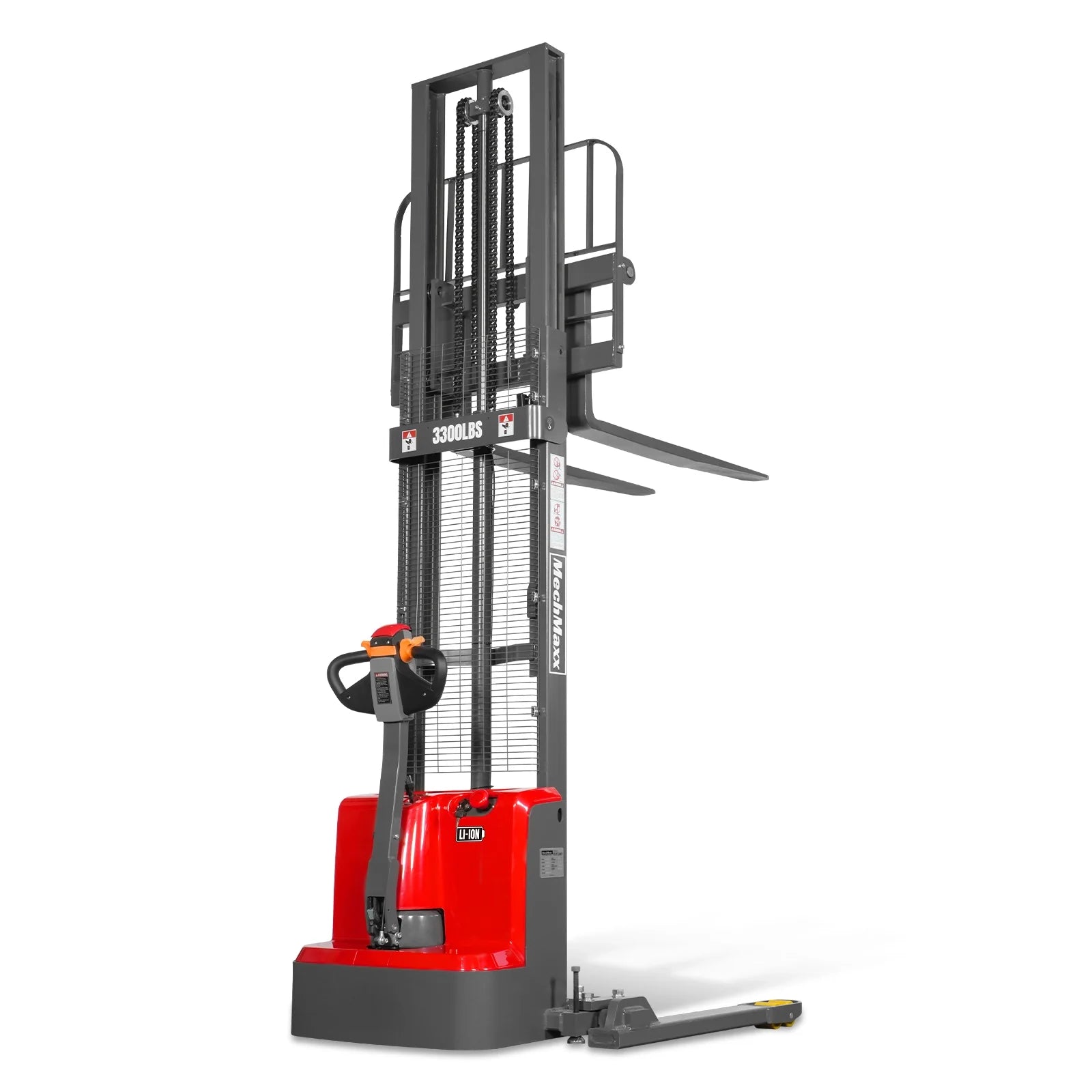

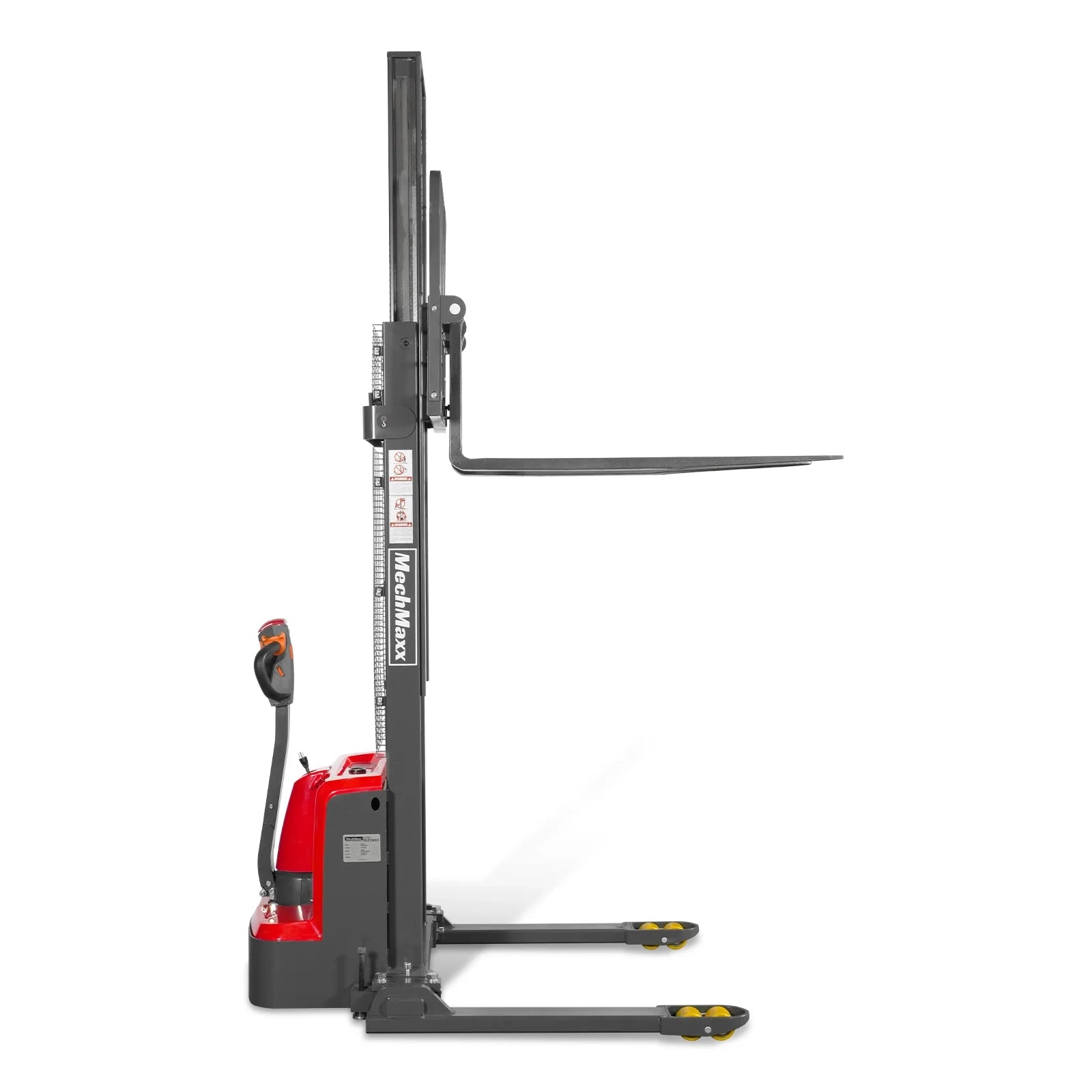

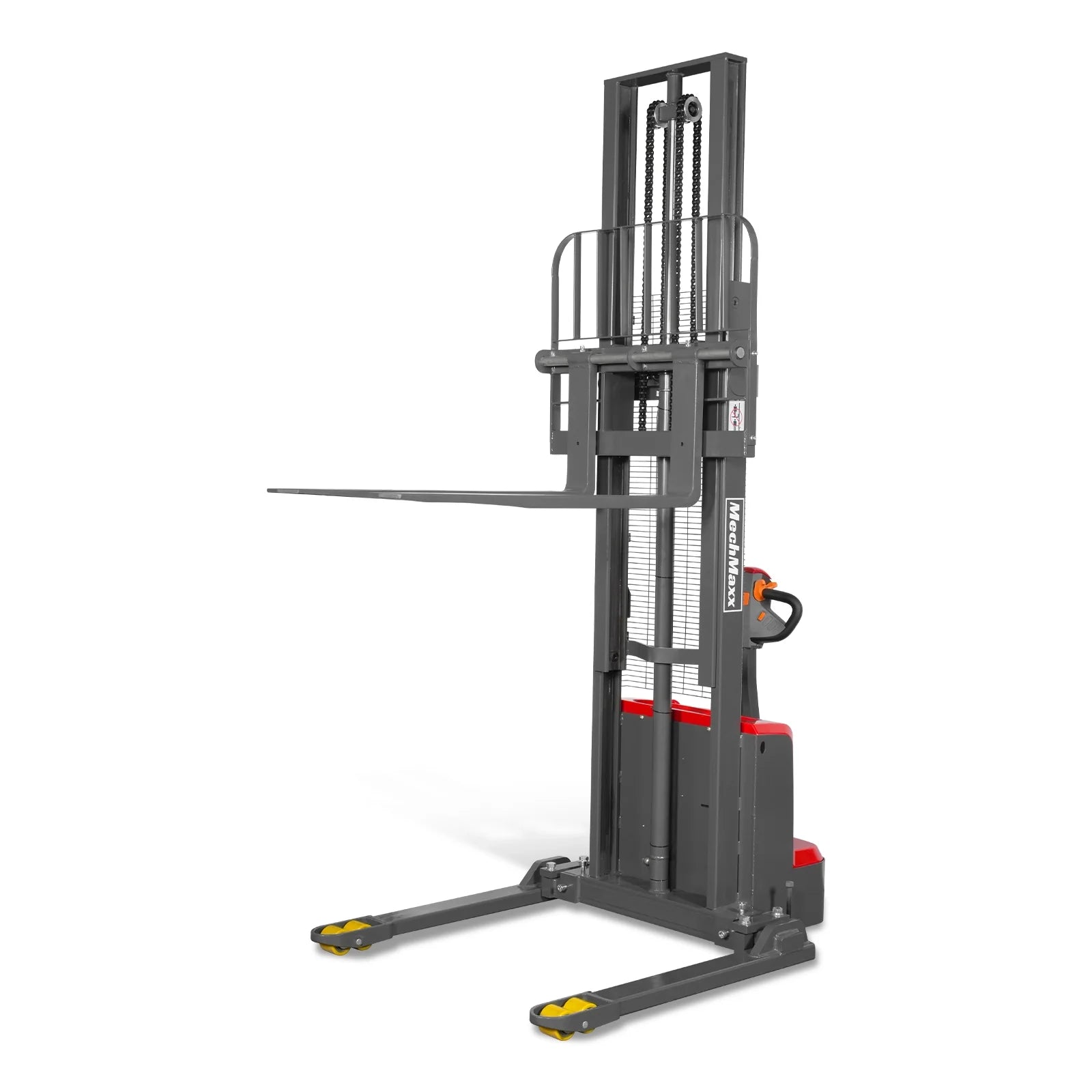

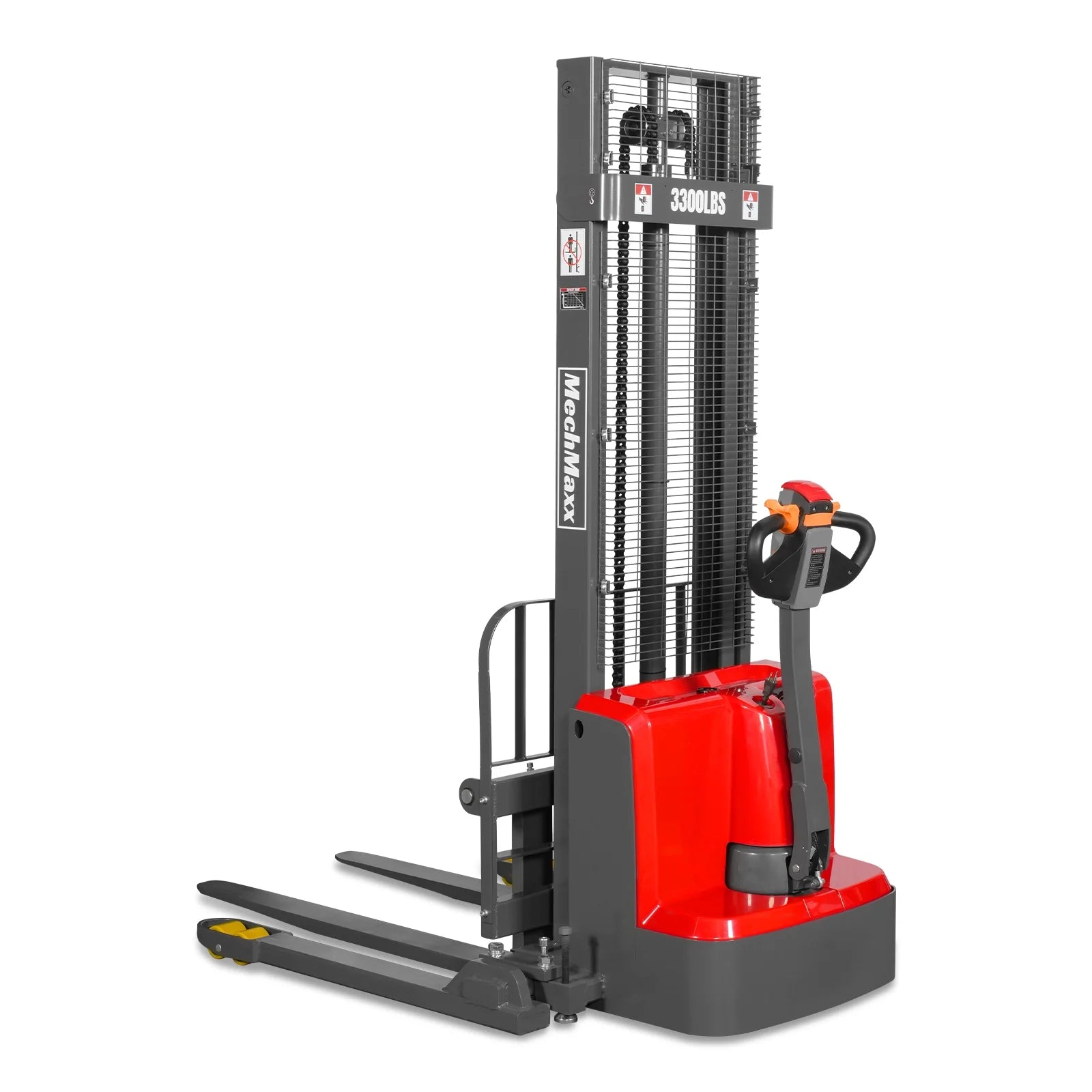

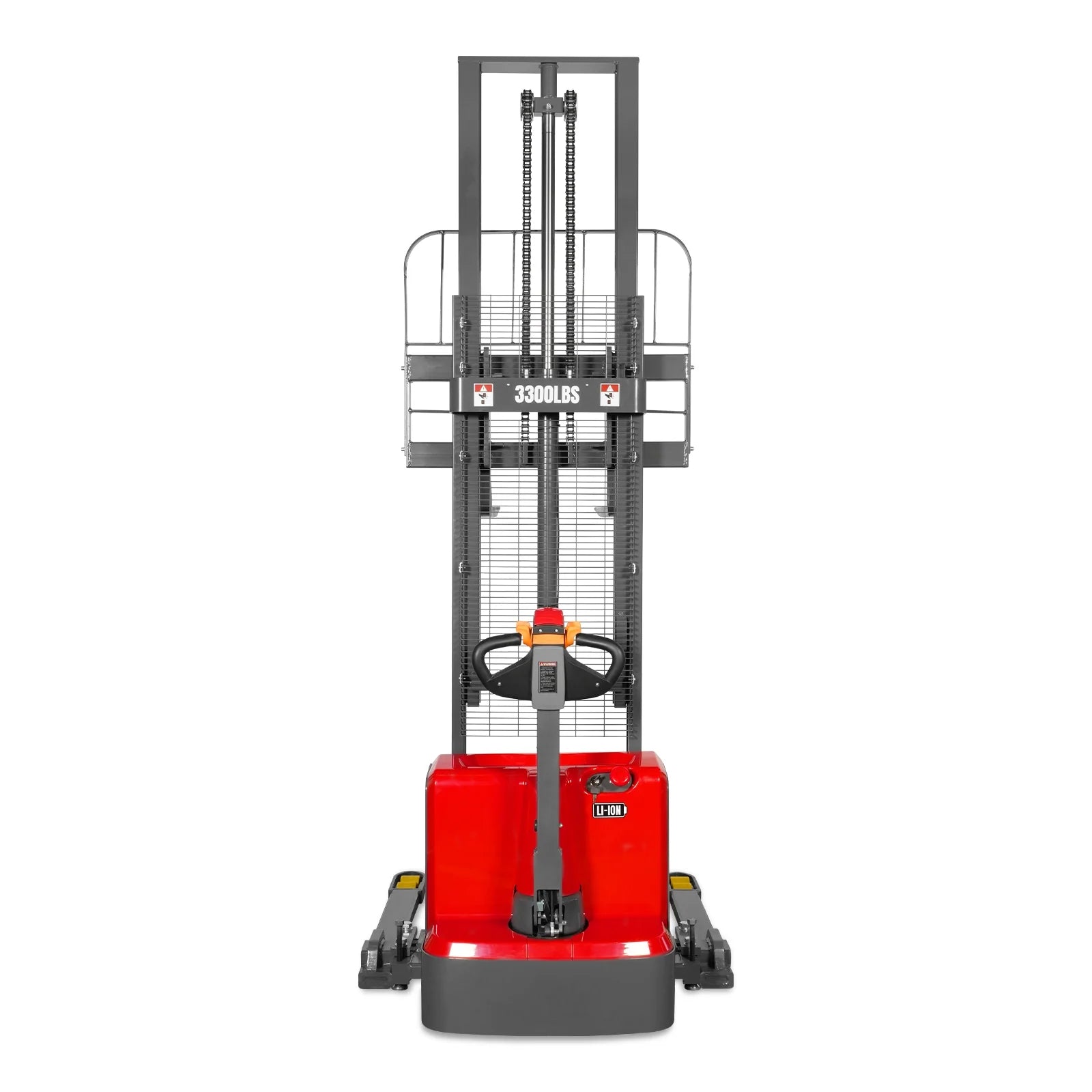

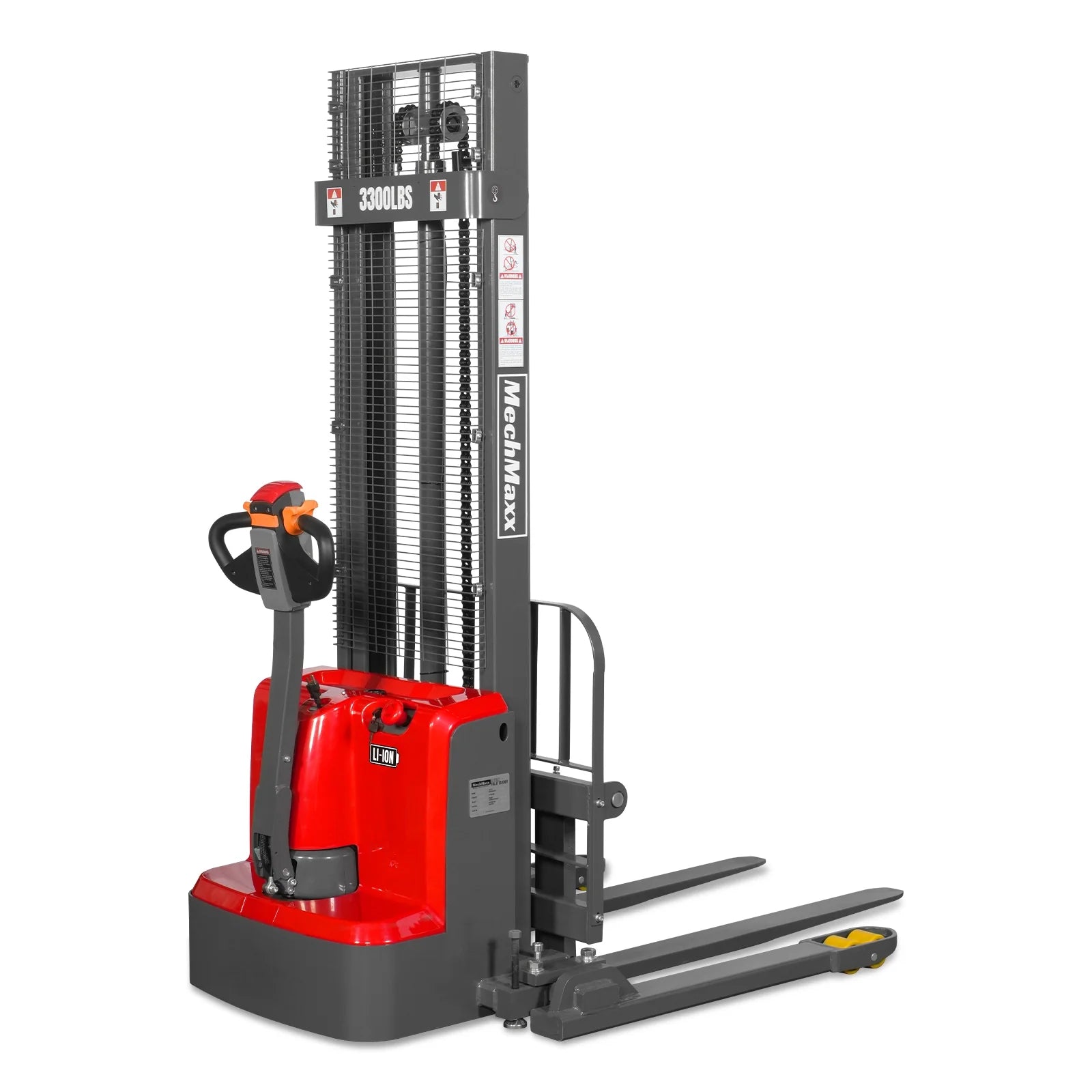

3300lbs Lithium-ion Electric Straddle Stacker, 118" Lift, Adjustable Legs & Forks, F33-118S

SKU: 202010
(0)
$7,199.00
Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Chat Email +1 (844) 969-2952

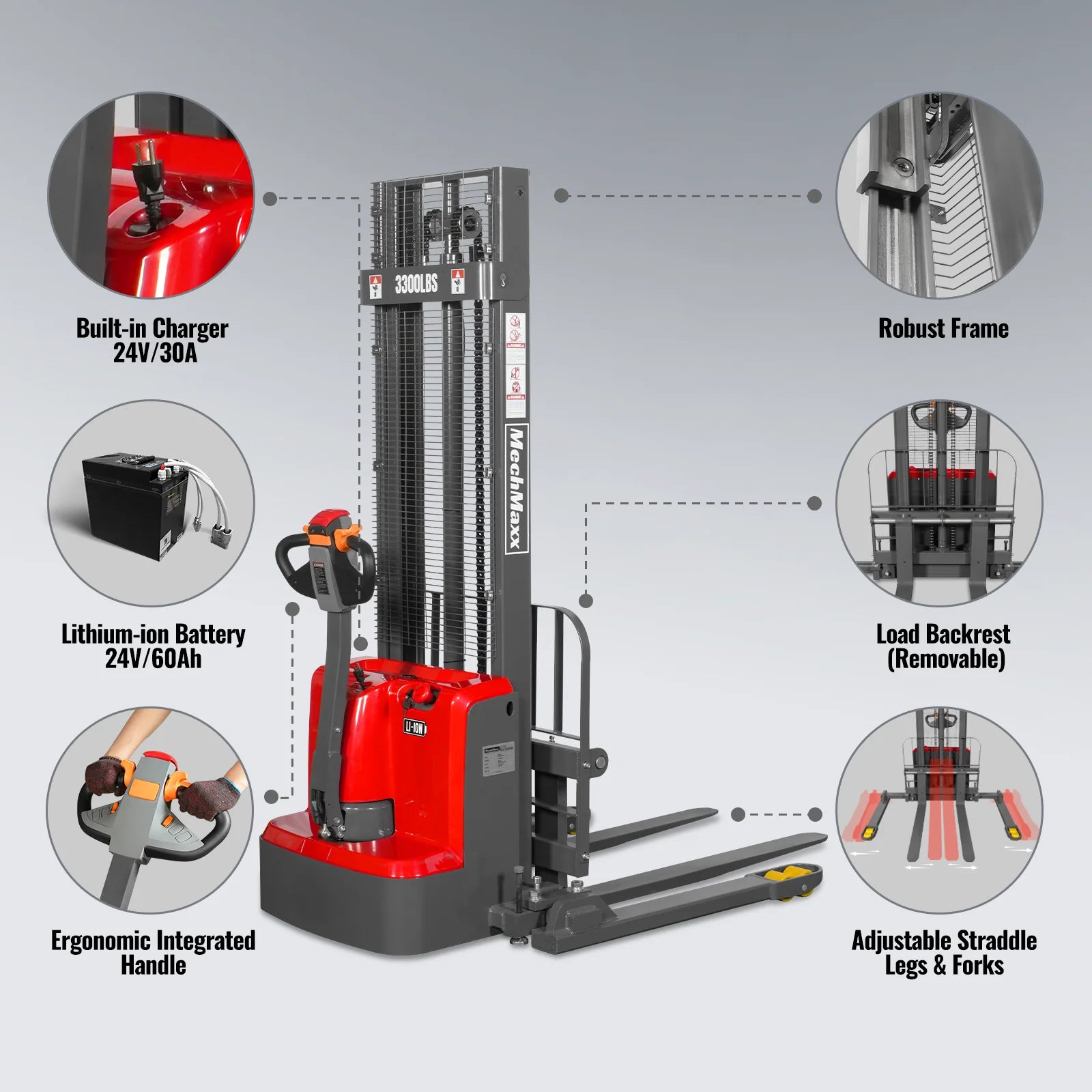

  • 3,300 lb load capacity with 118" maximum lift height Maintenance-free 24V/60Ah lithium-ion battery with built-in fast charger American Curtis travel controller for smooth, precise, energy-efficient control Adjustable forks and straddle legs fit a range of pallet widths Comprehensive safety features: electromagnetic brake, explosion-proof valve, and electronic lift limit switch Polyurethane wheels protect warehouse floors from scratches

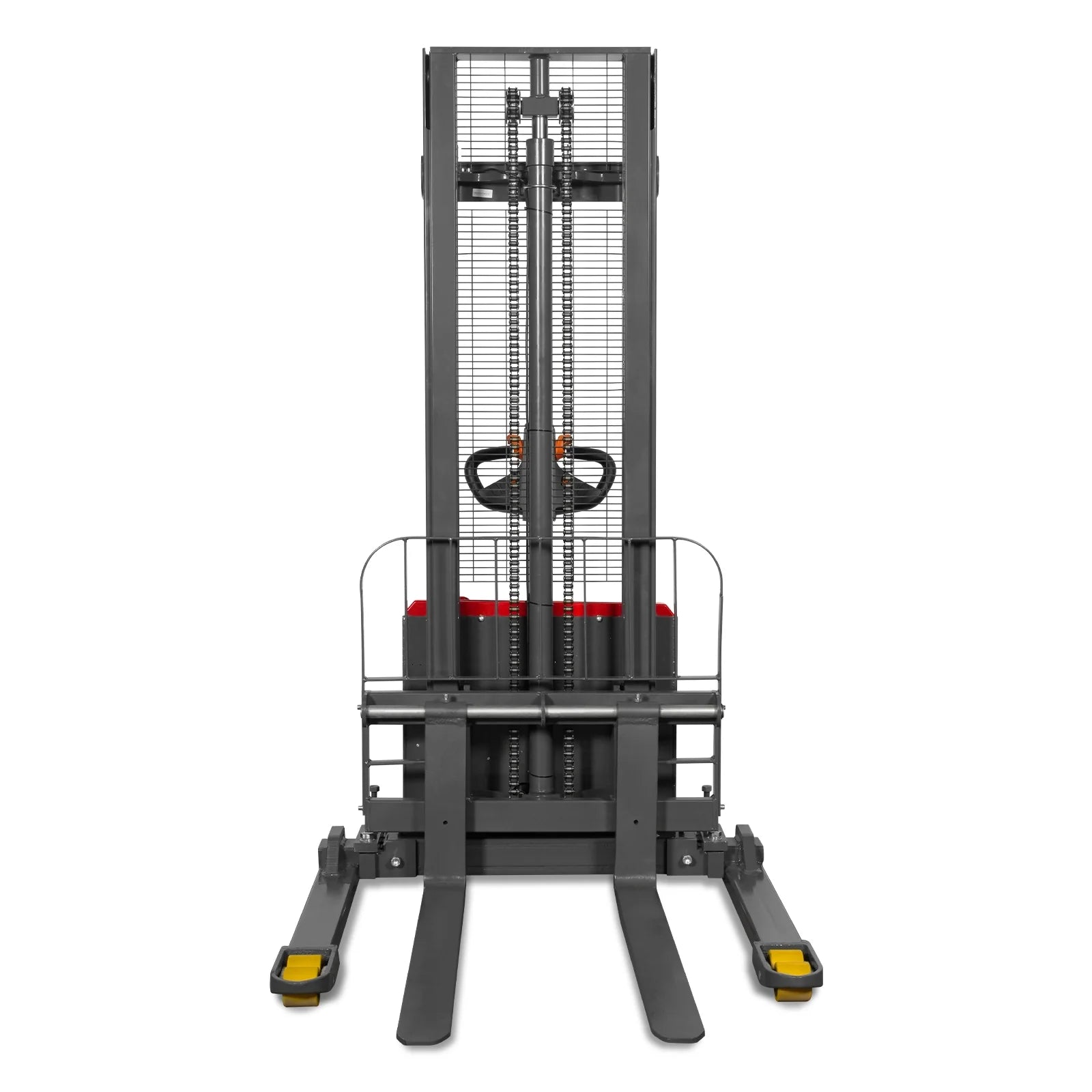

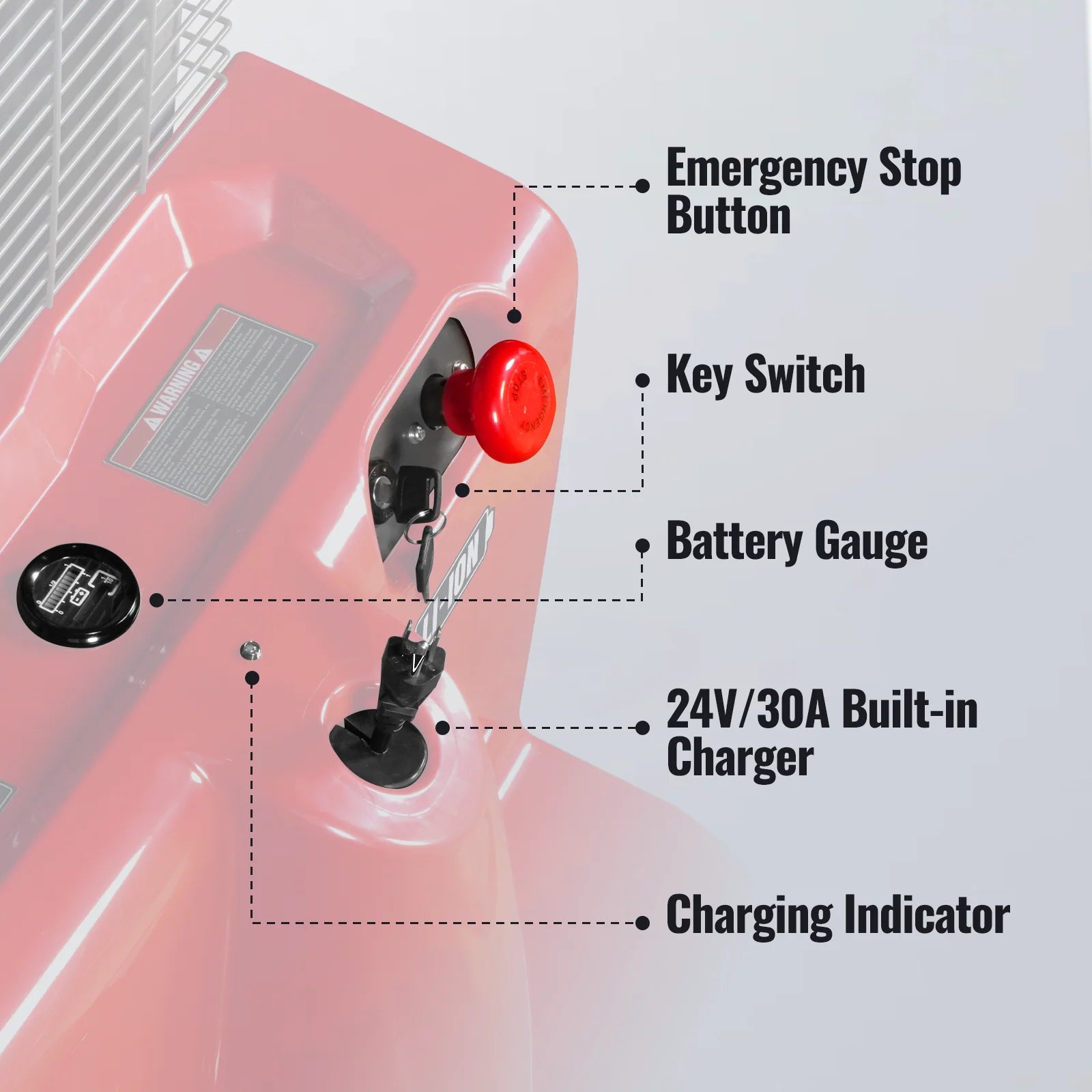

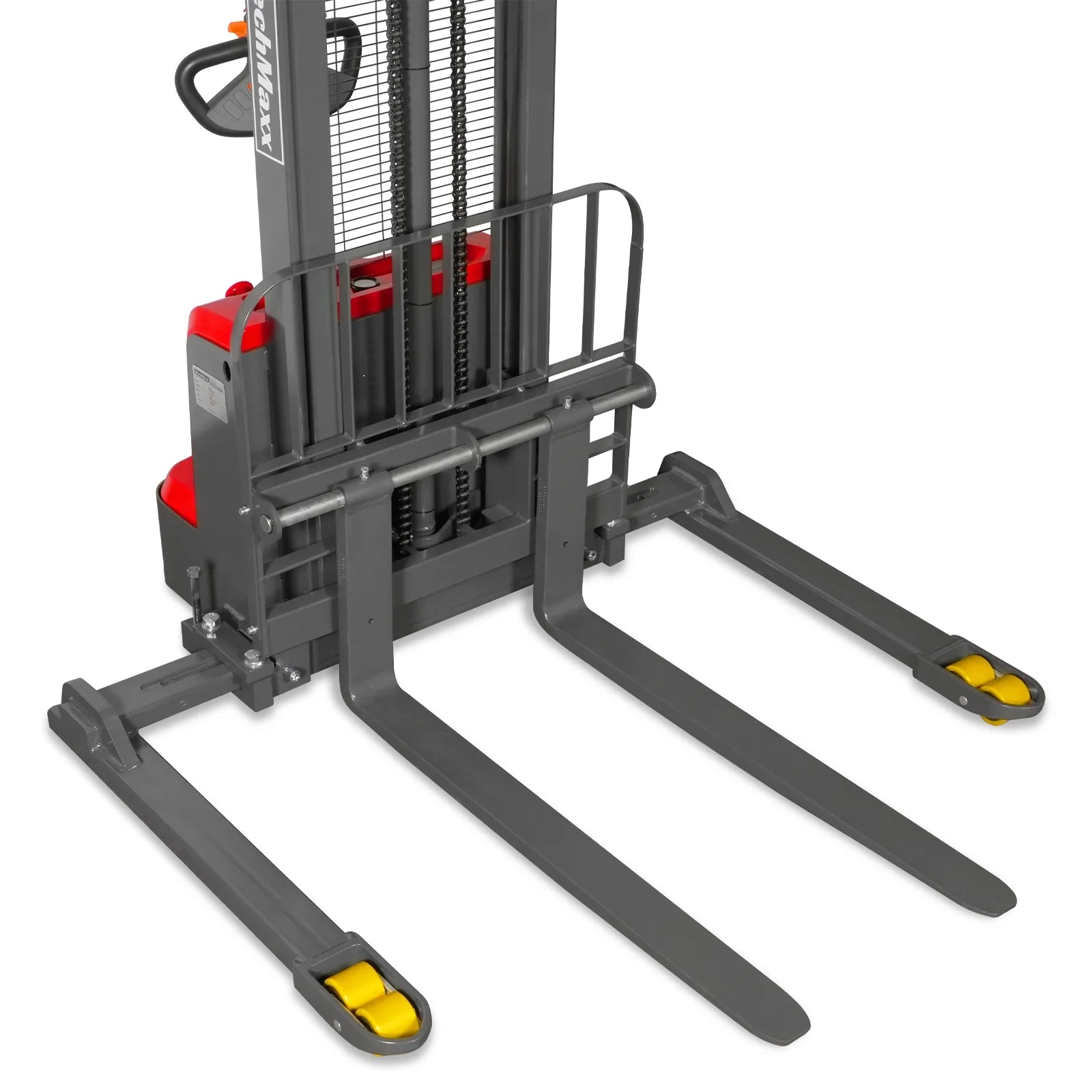

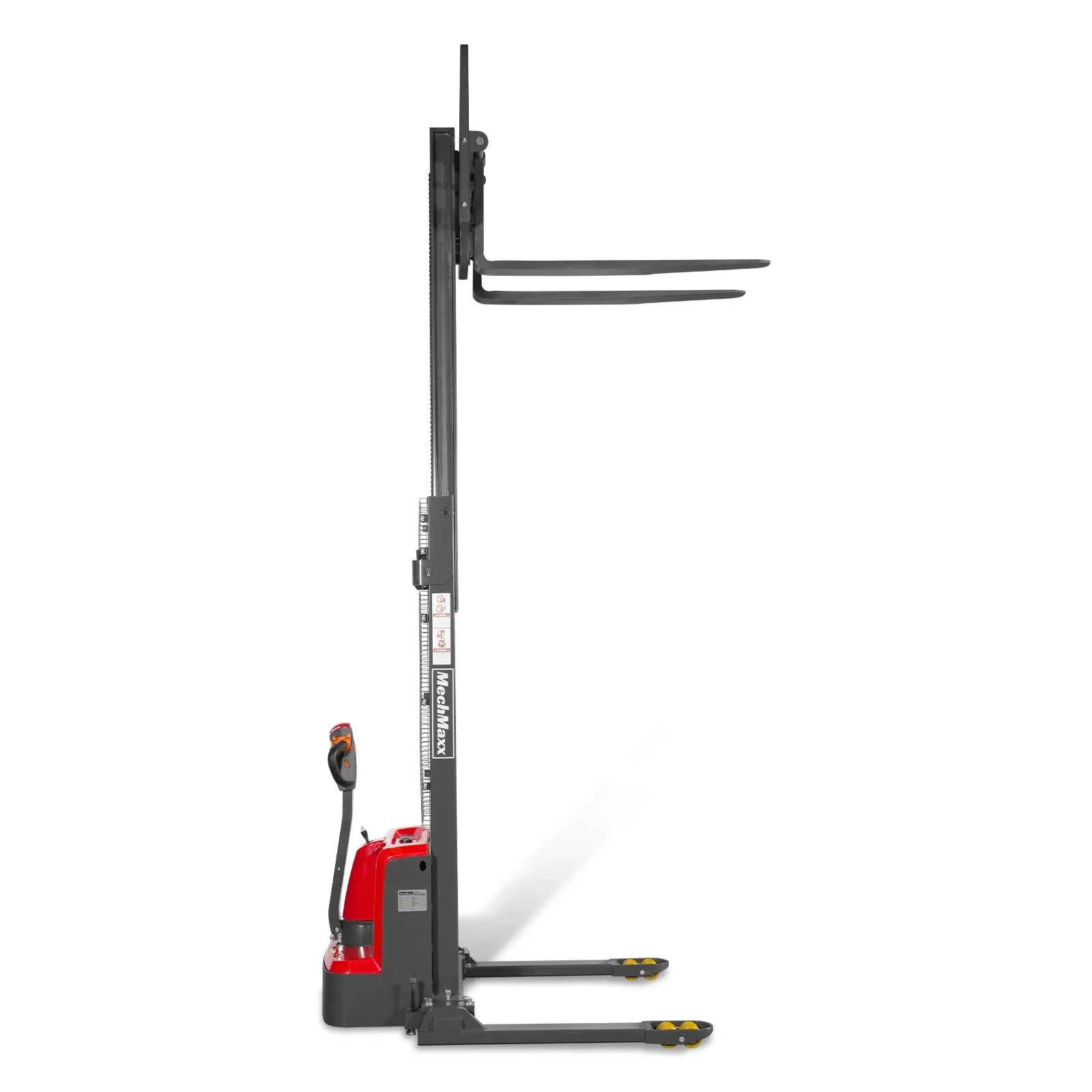

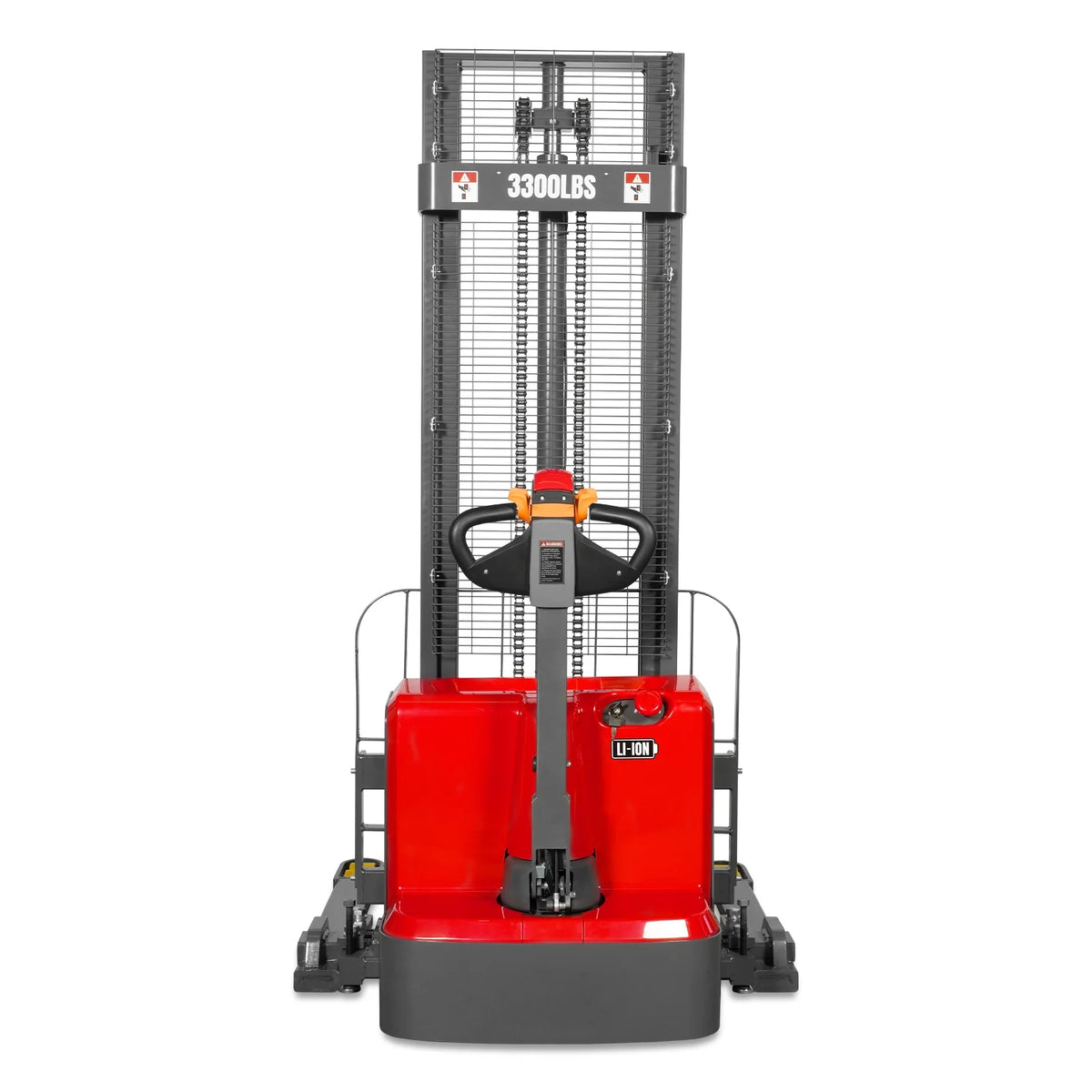

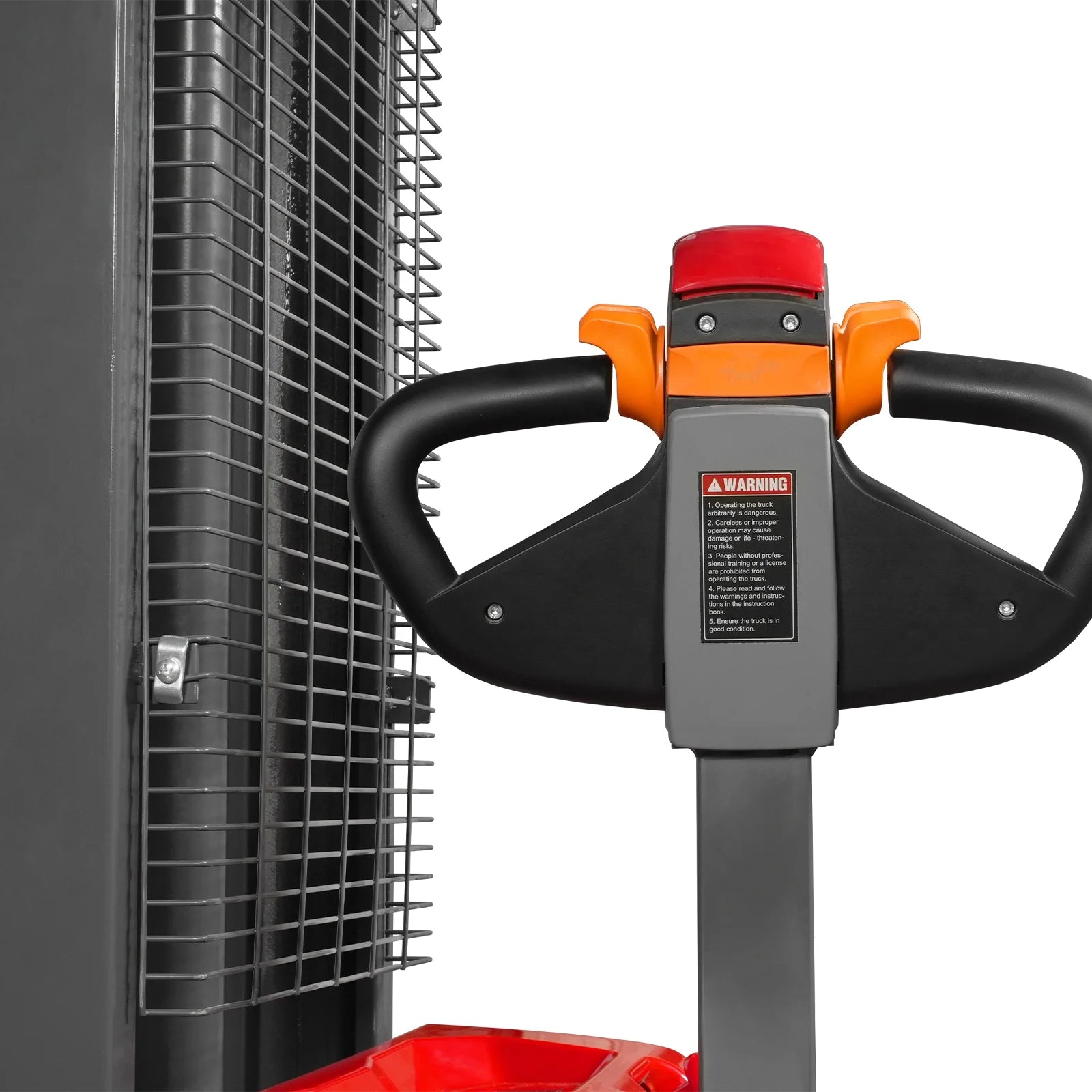

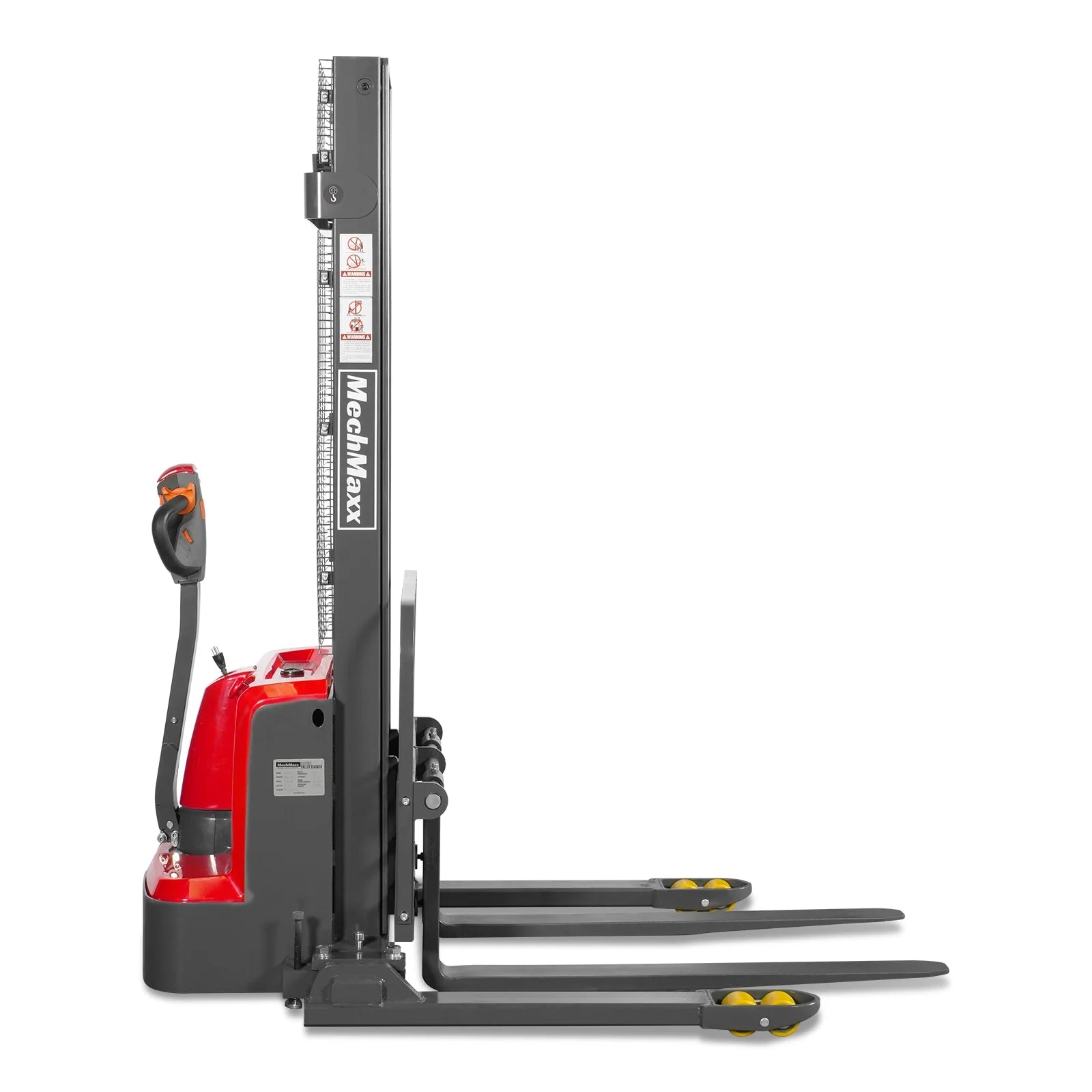

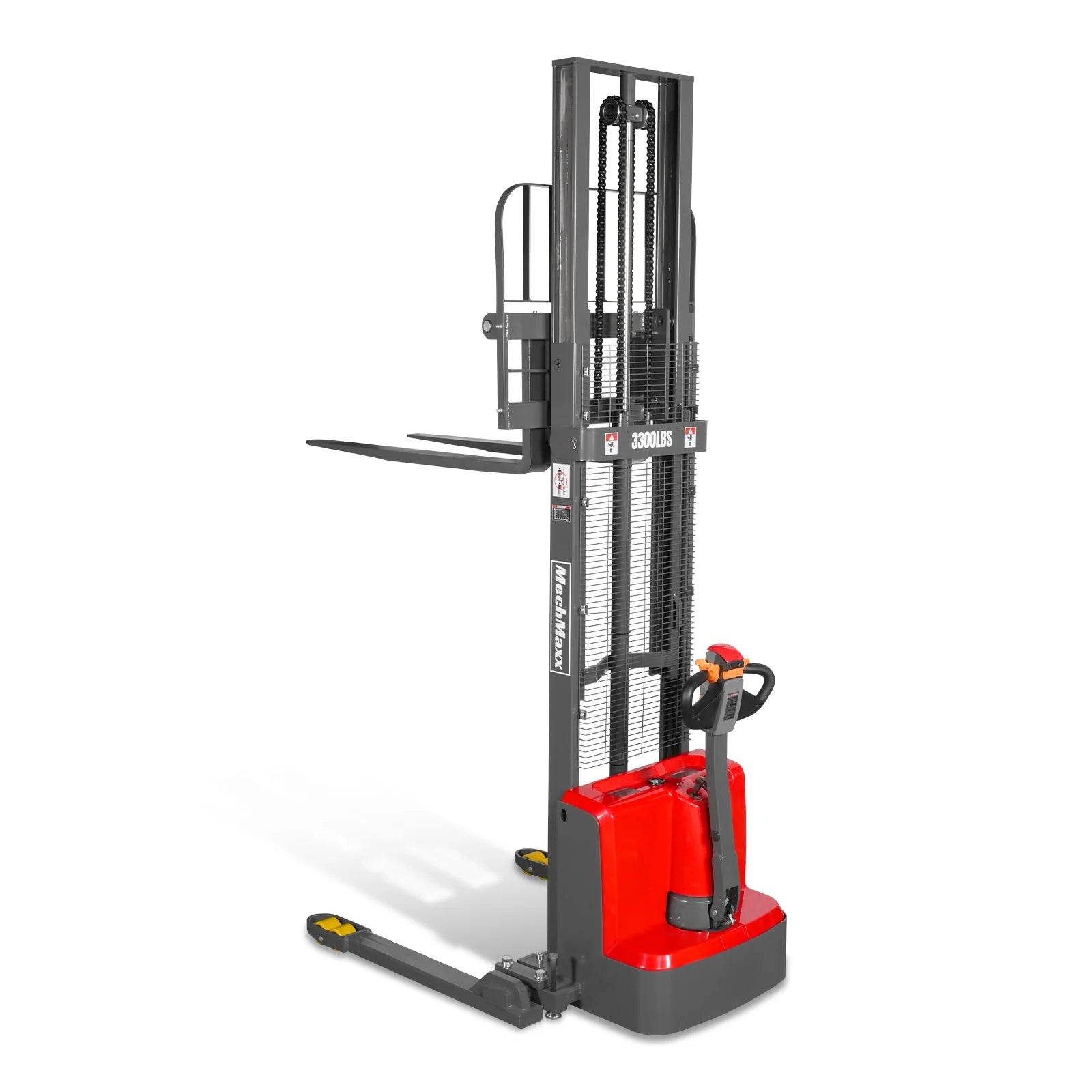

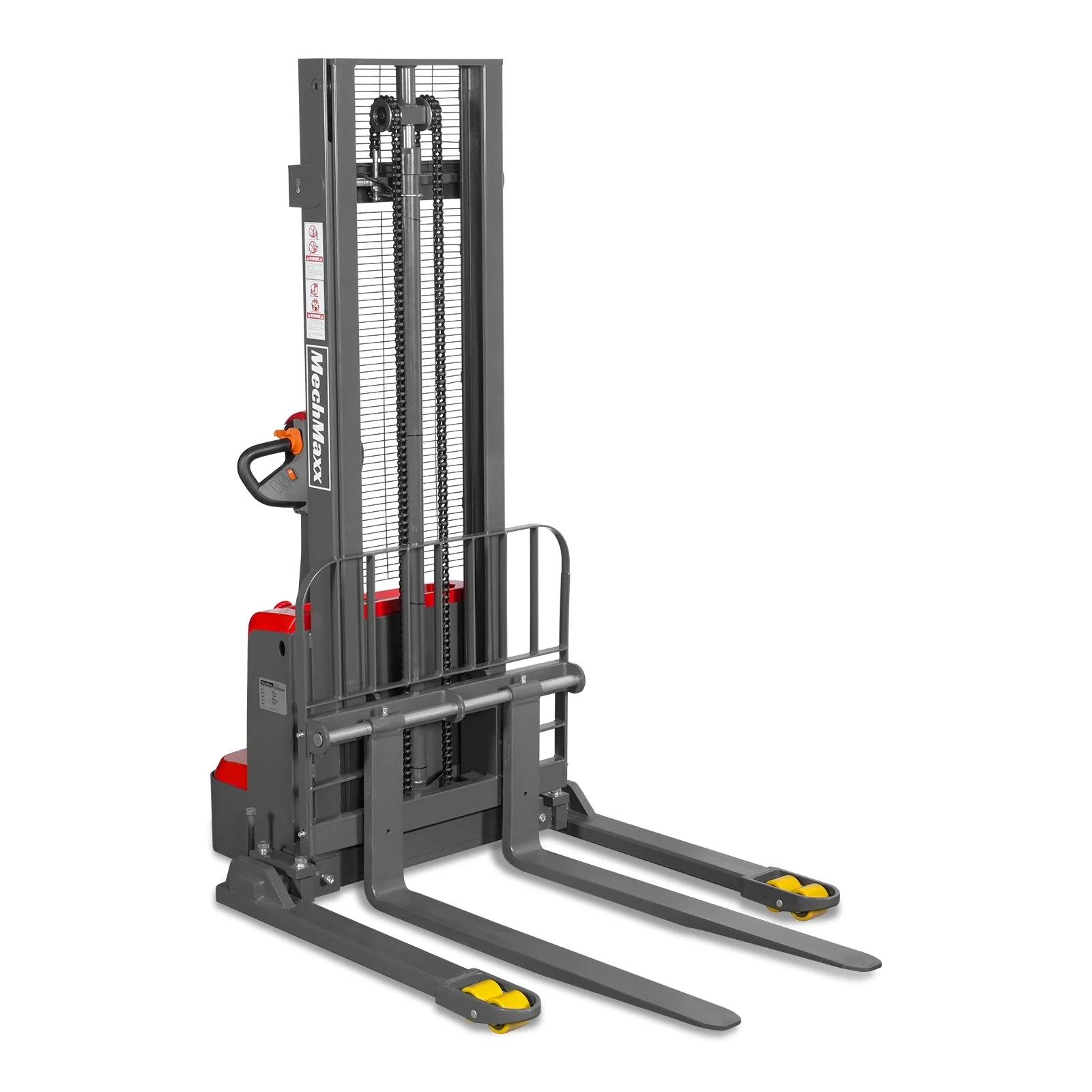

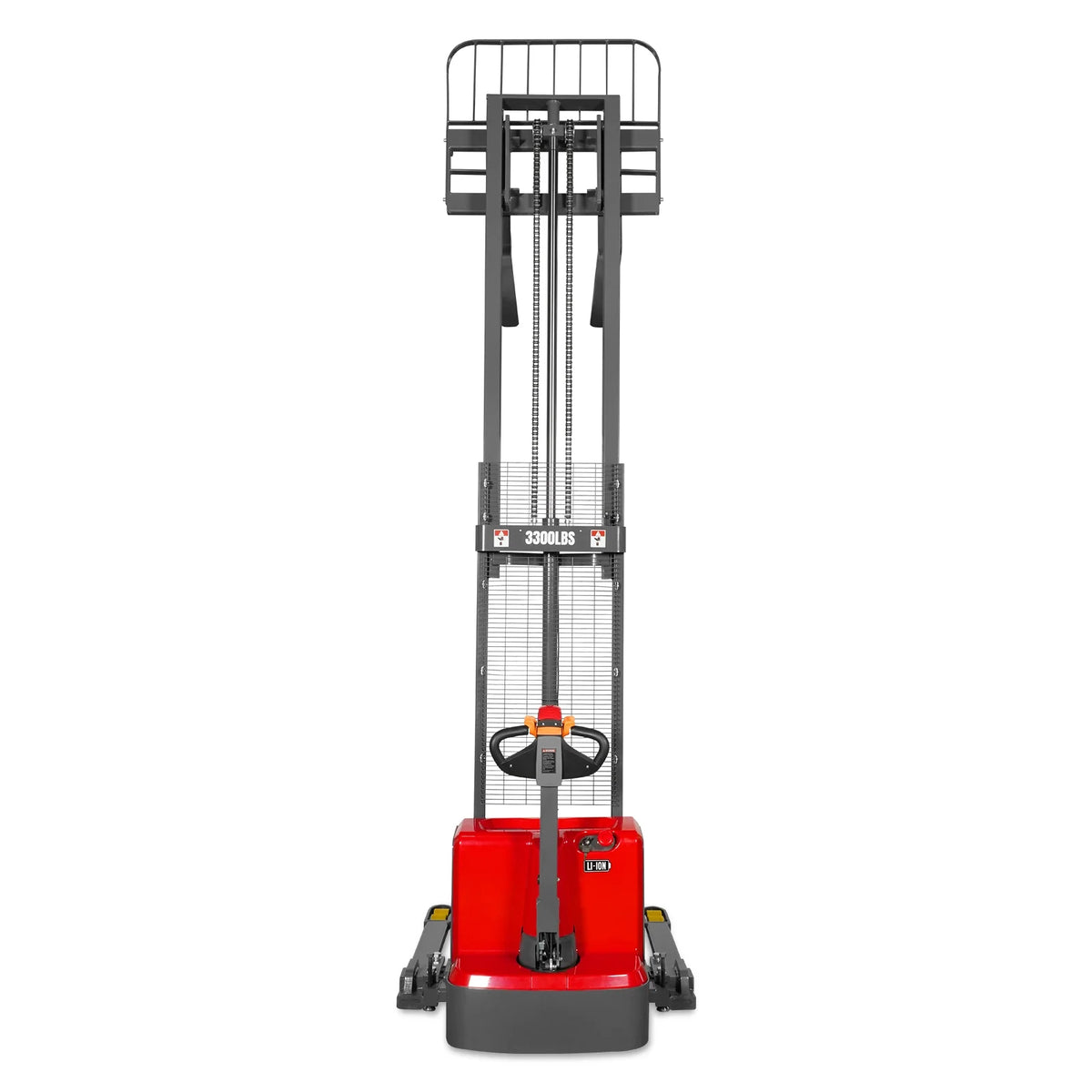

Handle heavier pallets with confidence using the F33 Series Electric Straddle Stacker, built for 3,300 lb capacity and up to 118" of lift height. Powered by a maintenance-free 24V/60Ah lithium-ion battery with a built-in 24V/30A charger, this stacker delivers extended runtime across multiple shifts with opportunity-charge capability. The American Curtis travel controller offers smooth, precise control, while adjustable forks (8.3"-33.5") and straddle legs (35.4"-51.2" I.D.) accommodate a range of pallet widths.

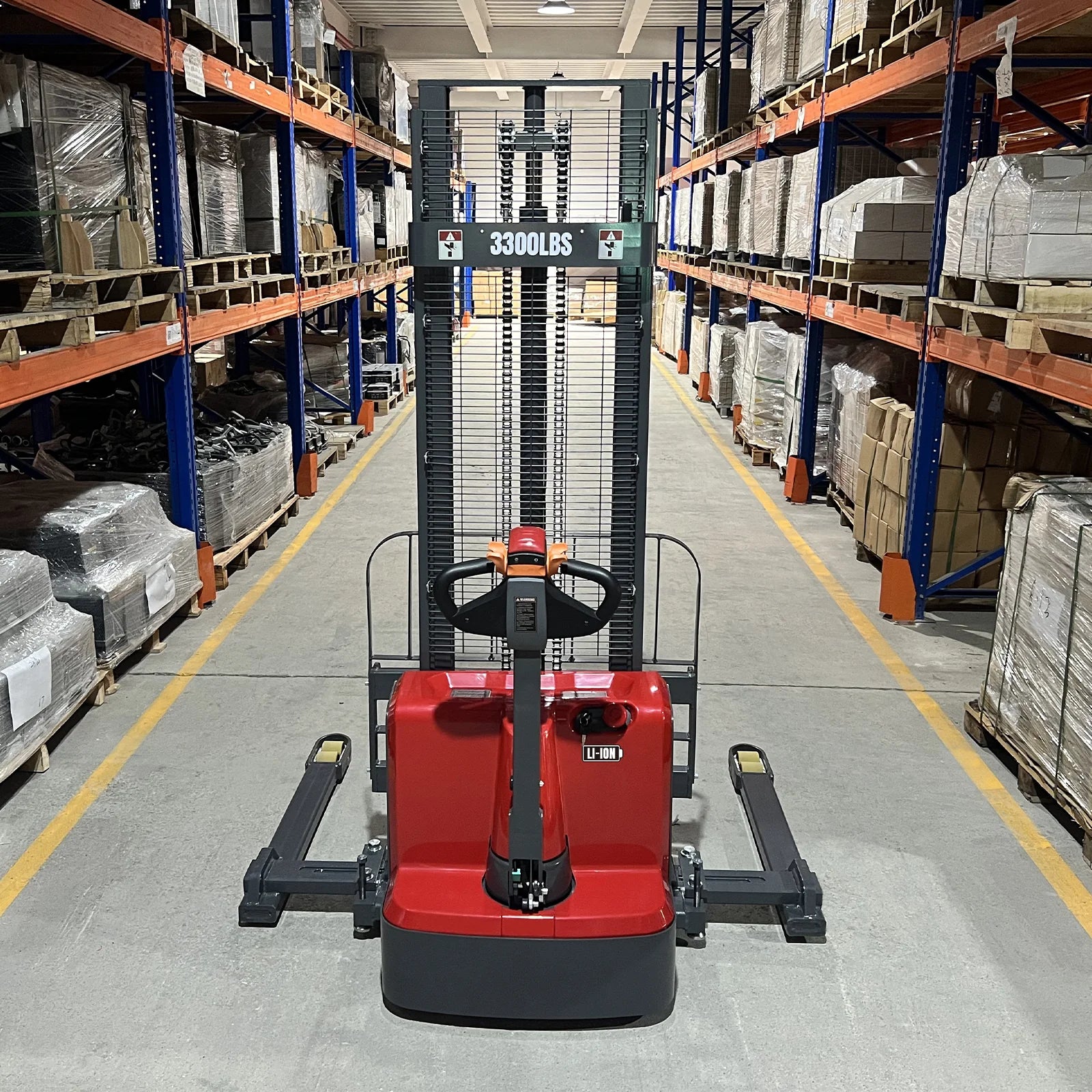

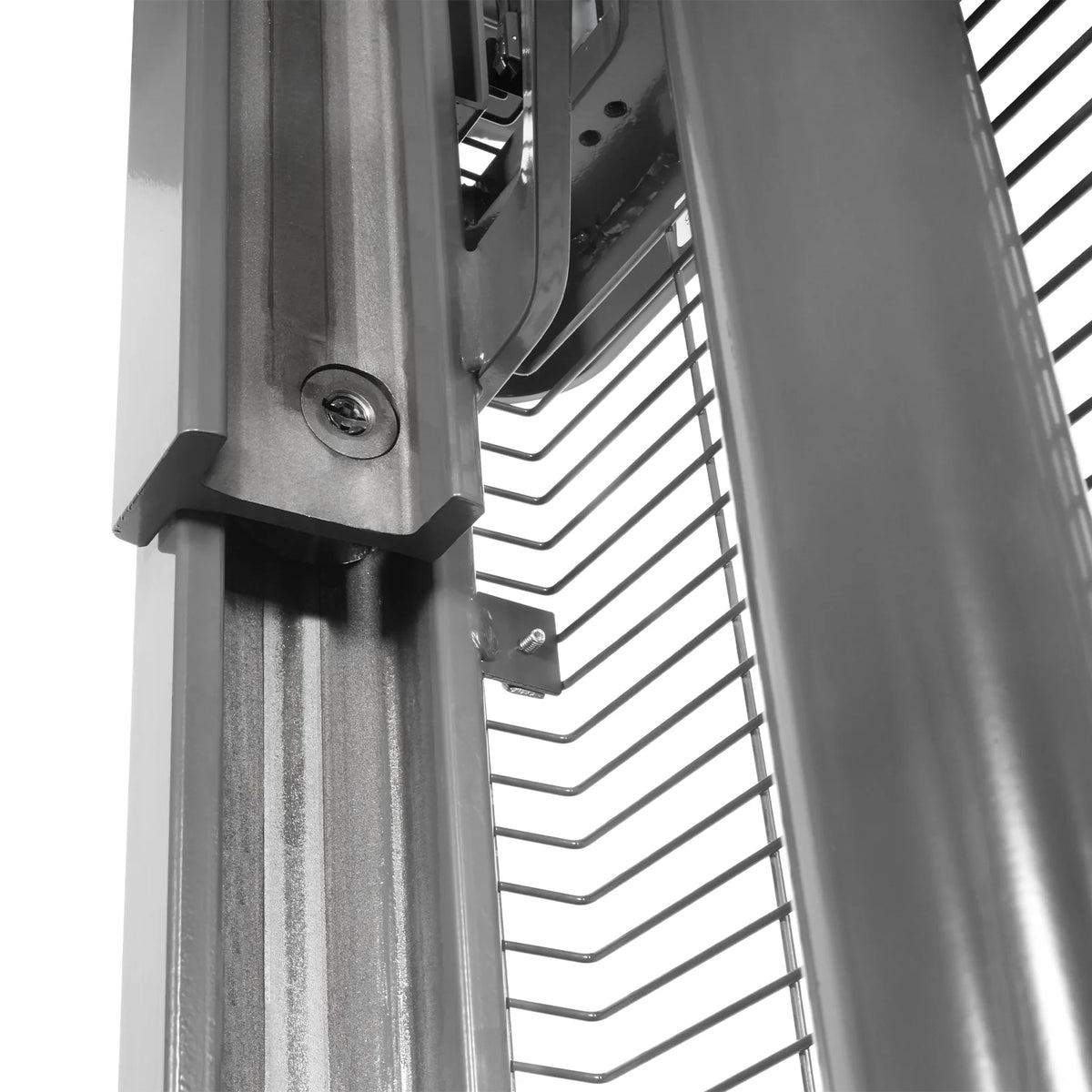

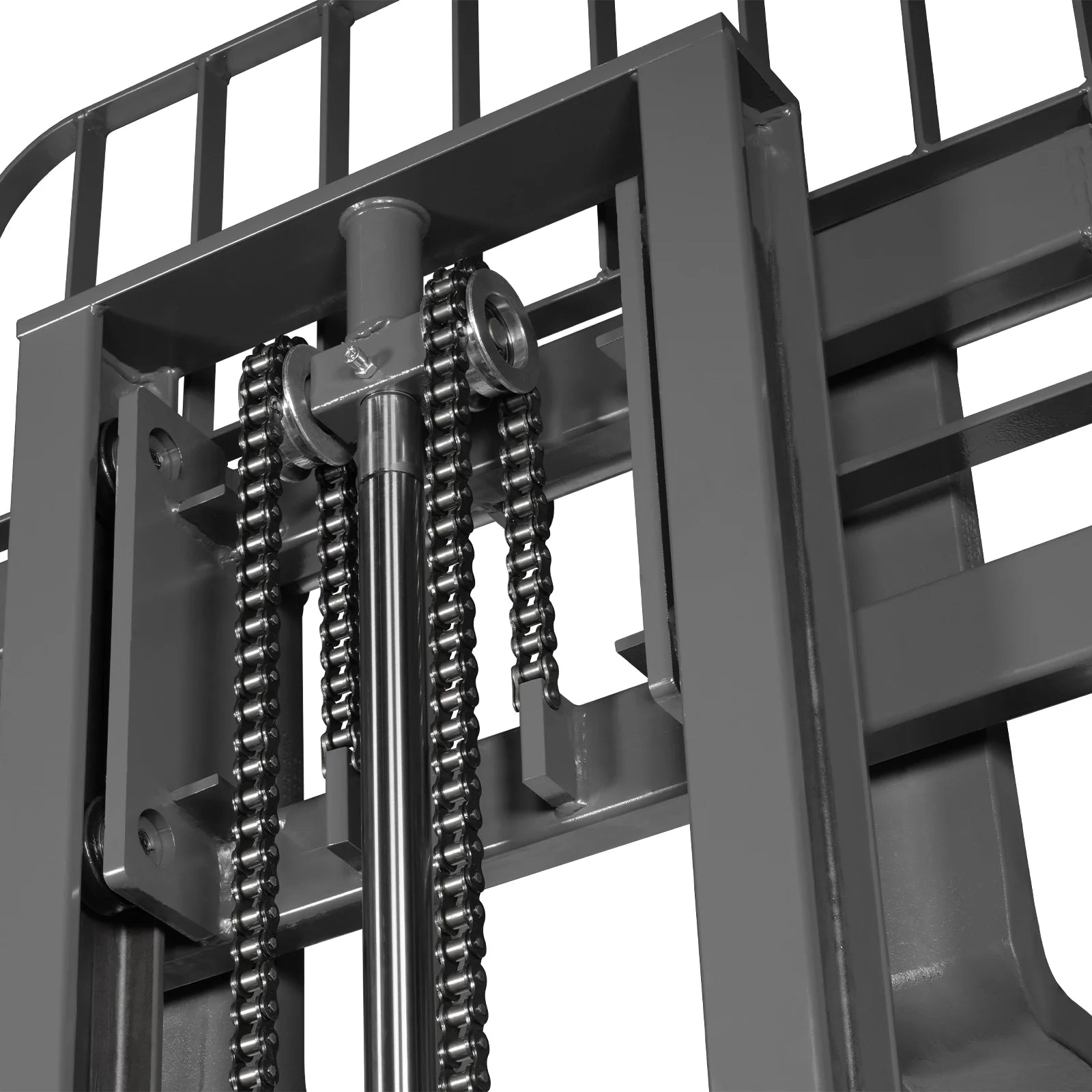

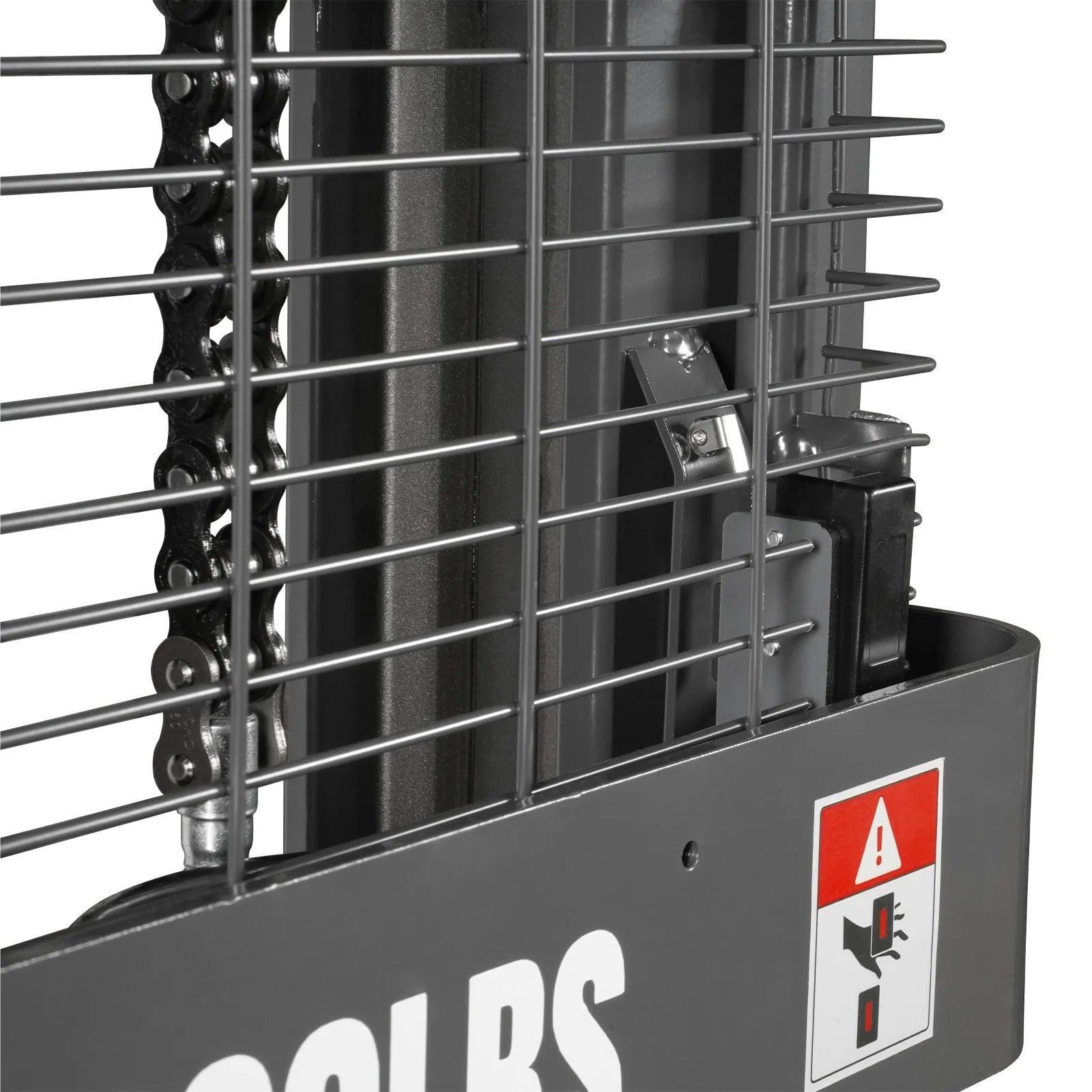

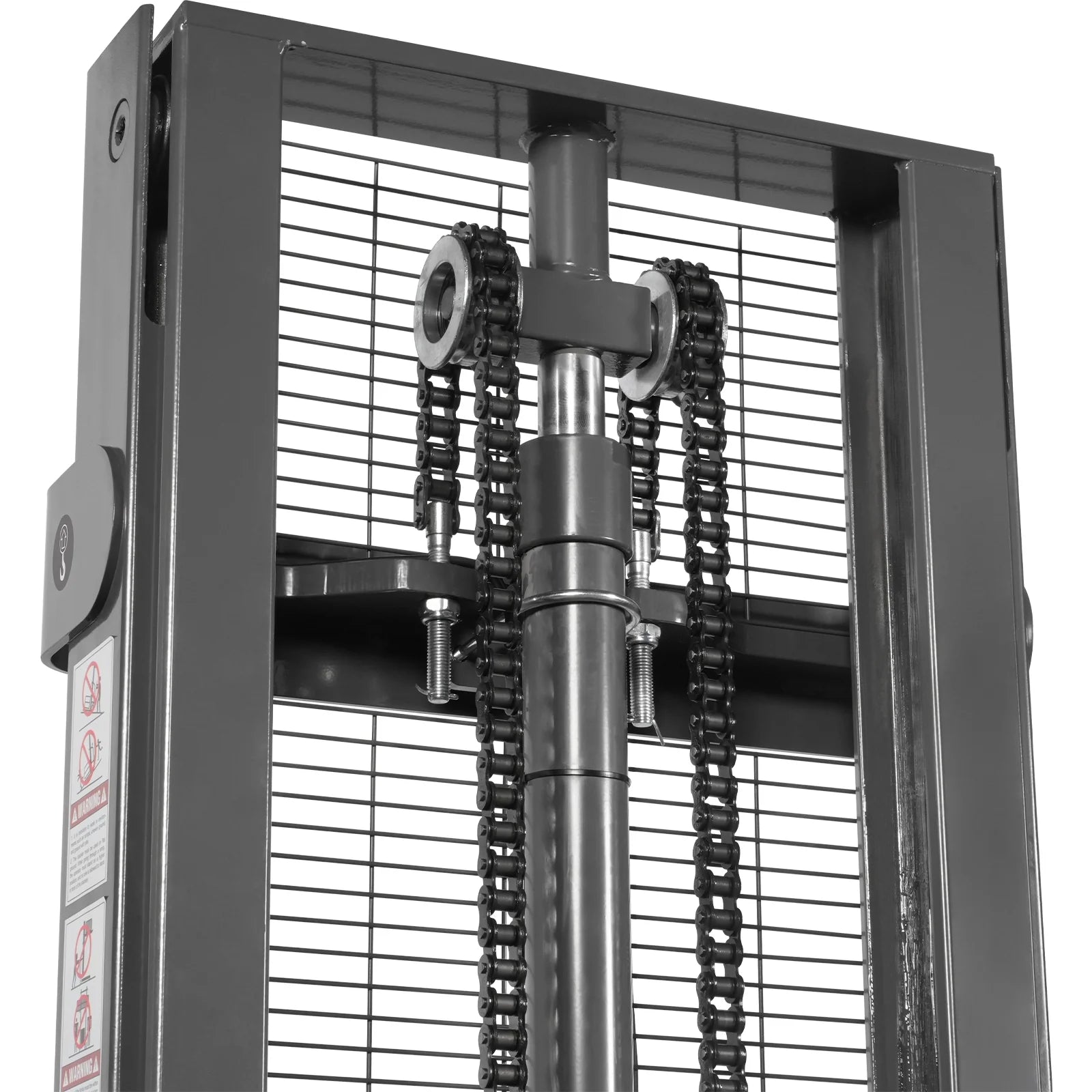

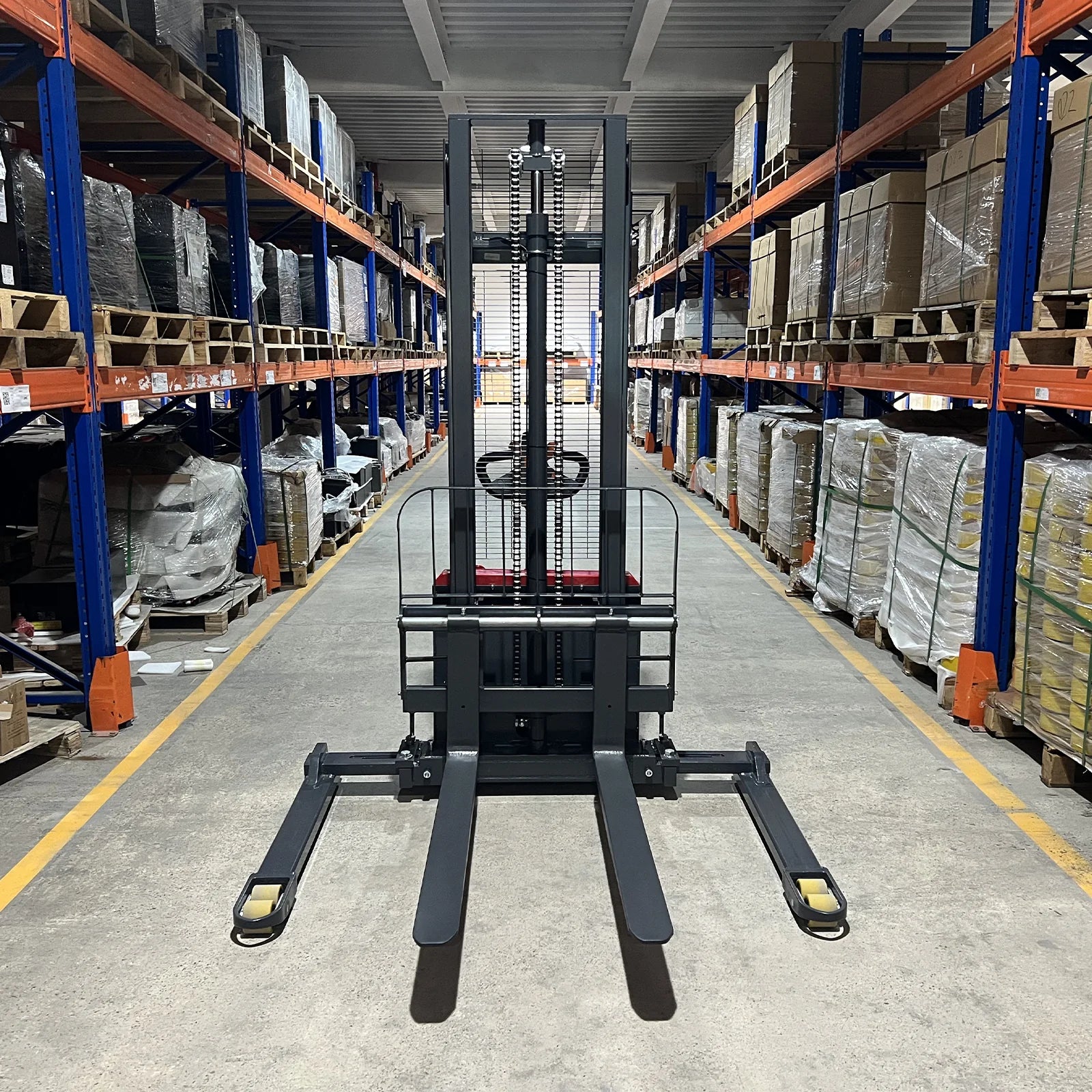

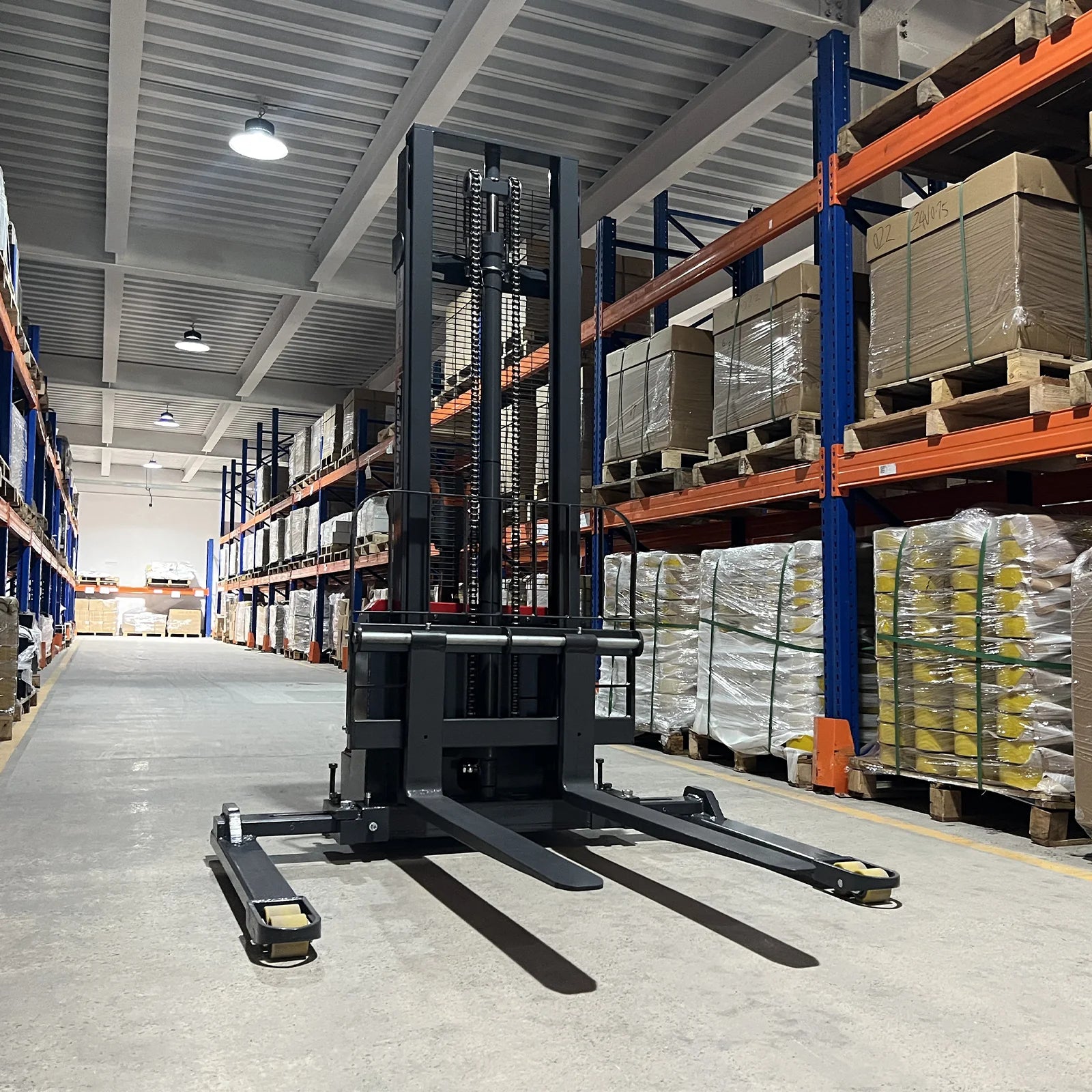

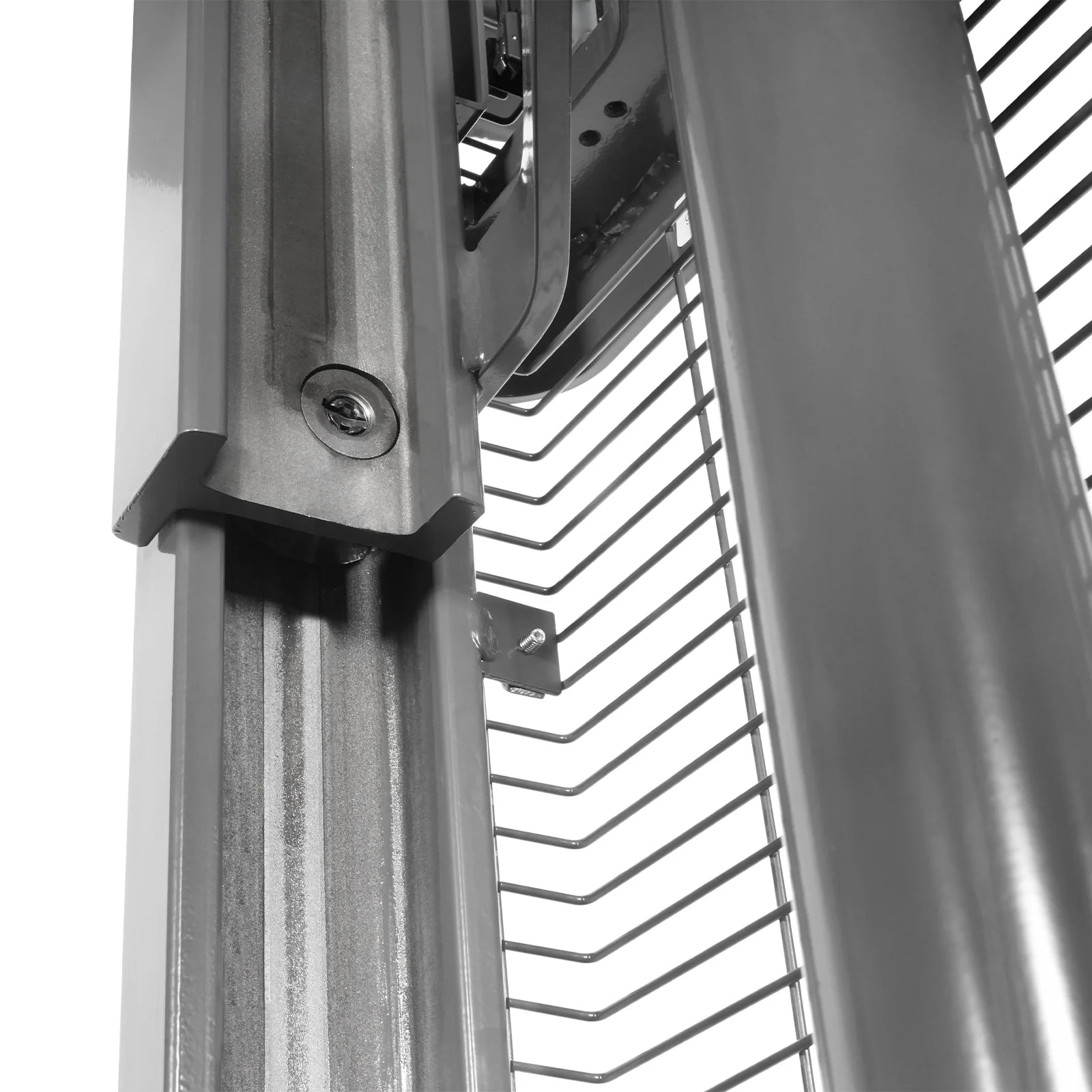

Built with a double-frame steel design and reinforced stiffening bars, this stacker delivers stable lifting performance and extended service life under heavy-duty use. Safety features include an electromagnetic brake, emergency reverse button, electronic lift limit switch, explosion-proof valve, and mesh guard, ensuring comprehensive operator protection. Polyurethane wheels leave no scratches on warehouse floors, making this stacker a reliable choice for warehouses, distribution centers, and industrial environments that need mid-range lift height with higher load capacity.

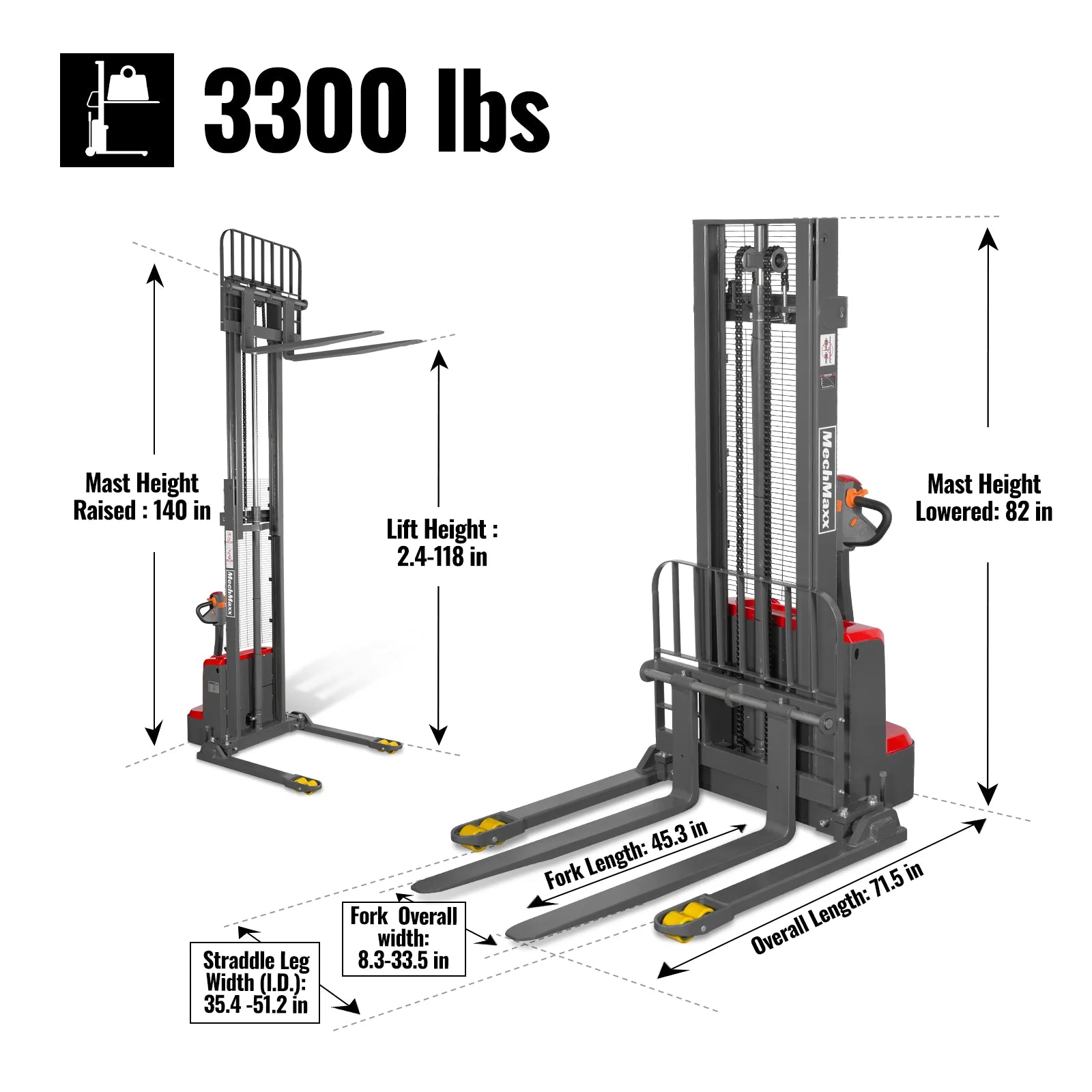

Load Capacity 3300 lbs Turning Radius 53 in
Operator Position Walkie Lifting Speed (laden/unladen) 18.1/26.8 fpm

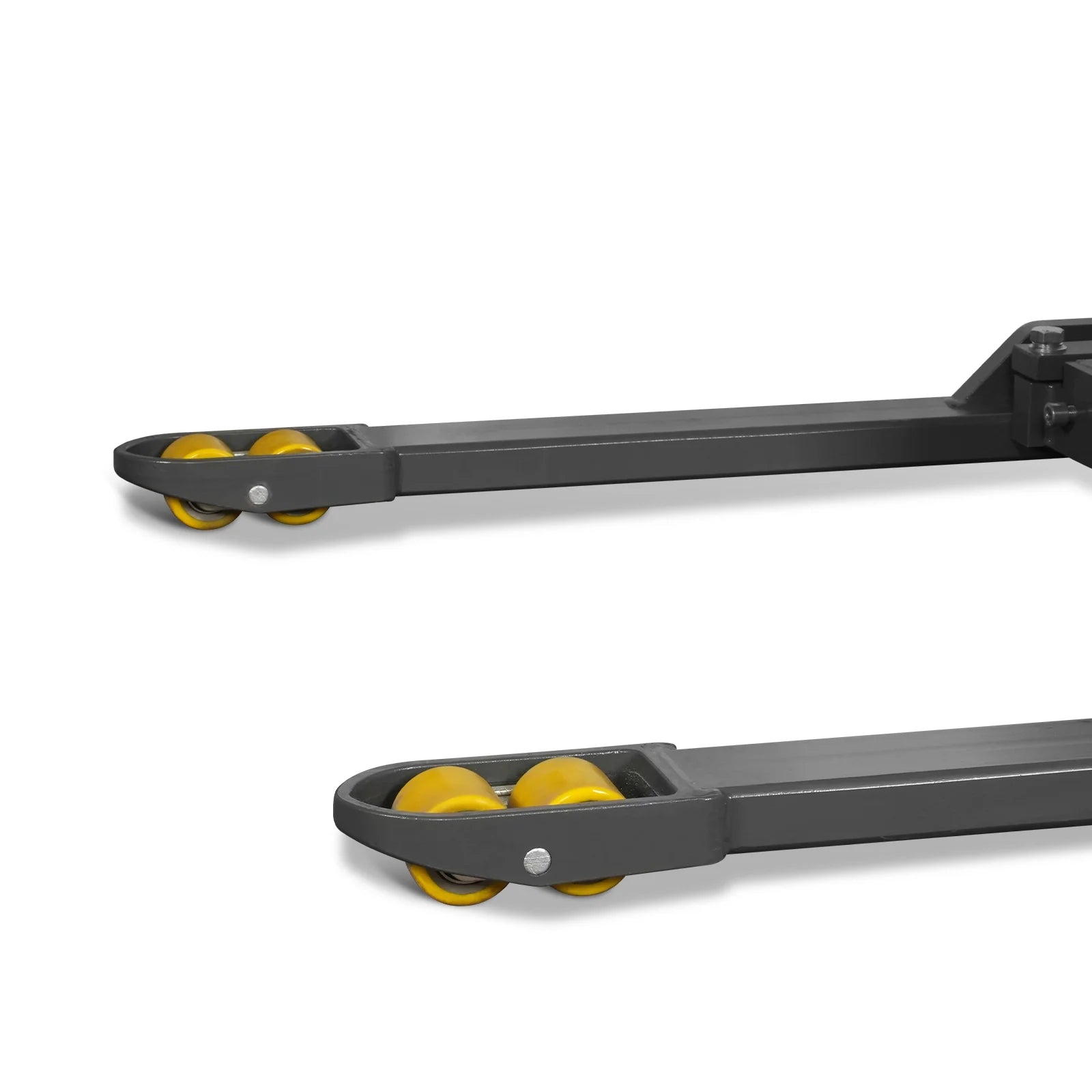

Tire Type Polyurethane Lowering Speed (laden/unladen) 22/19.3 fpm
Overall Length 71.5 in Driving Speed (laden/unladen) 2.5/2.6 mph
Max Lift Height 118 in Max Gradeability (laden/unladen) 3/8%
Min Lift Height 2.4 in Service Brake Electromagnetic
Mast Height (raised) 140 in Battery 24V/60Ah Maintenance-free Li-ion Battery
Mast Height (lowered) 82 in Charger 24V/30A Built-in
Straddle Leg Width (I.D.) 35.4-51.2 in Controller Brand Curtis
Straddle Leg Width (O.D.) 43.3-59 in Drive Motor 0.75 kW DC
Load Center 23.6 in Lift Motor 2.2 kW
Fork Overall Width 8.3-33.5 in Packing Size (LxWxH) 43x37x87 in
Fork Size (TxWxL) 1.4x4x45.3 in Weight (N.W./G.W.) 1355/1510 lbs
Warranty Electric Straddle Stacker (SKU

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

Electric Straddle Stacker (SKU: 202010) stands up to extreme testing and comes with a one-year warranty for machine.

Frequently Asked Questions

How much weight can this stacker lift?

This stacker has a load capacity of 3,300 lbs with a maximum lift height of 118 inches.

How long does the battery last, and how is it charged?

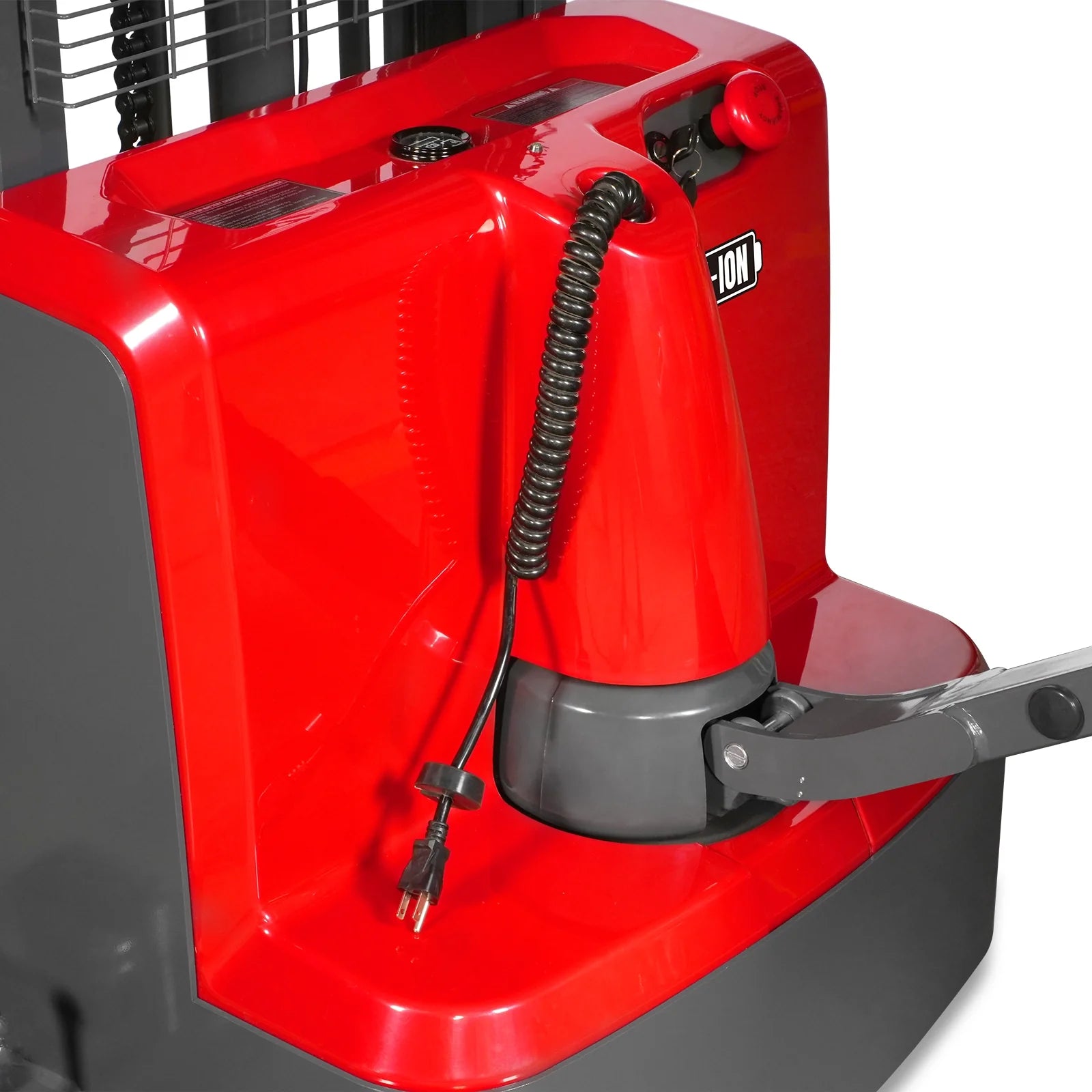

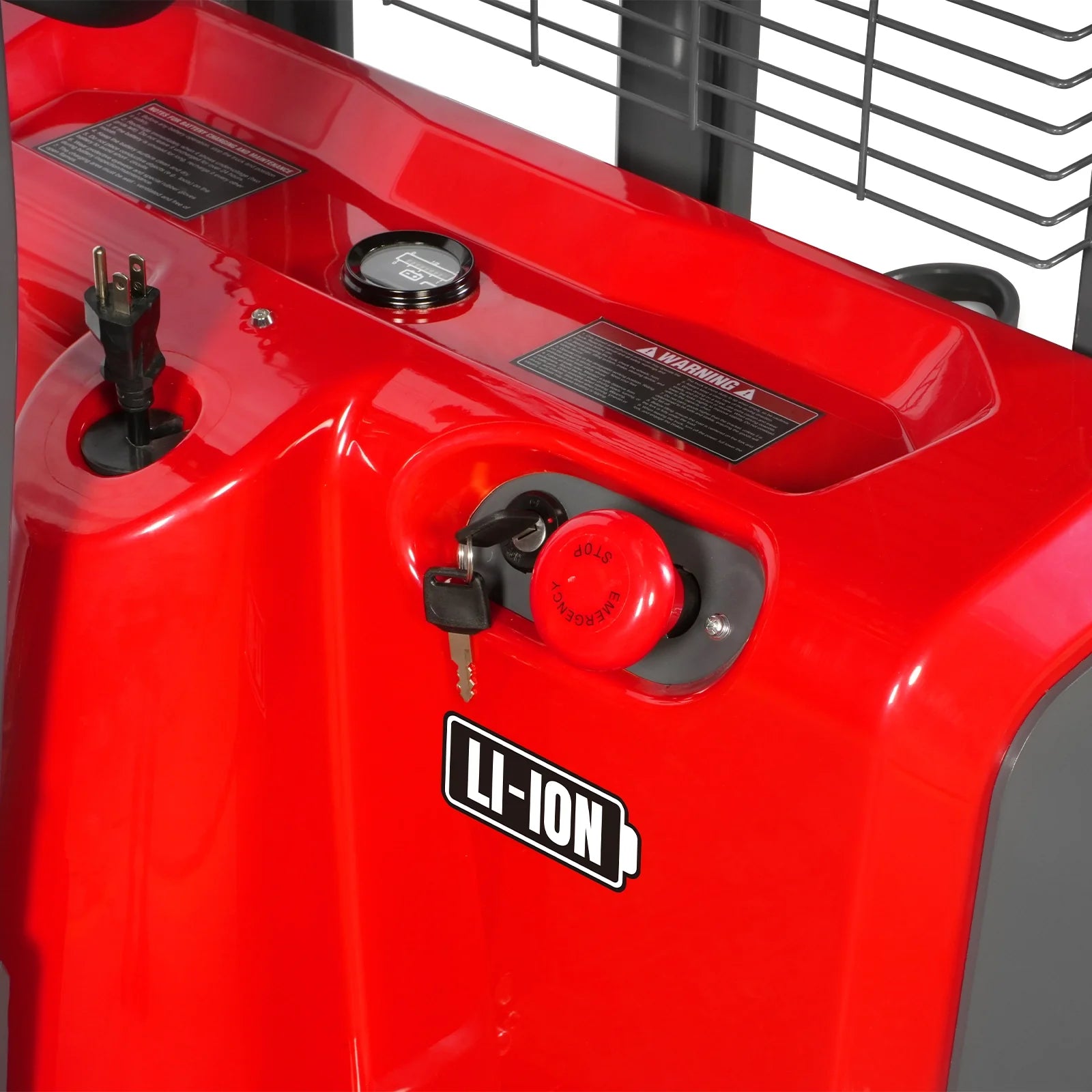

This stacker is powered by a maintenance-free 24V/60Ah lithium-ion battery with a built-in 24V/30A charger for convenient on-board charging. We recommend fully charging after each use and charging at least once a month even when not in use.

Does this require special training to operate?

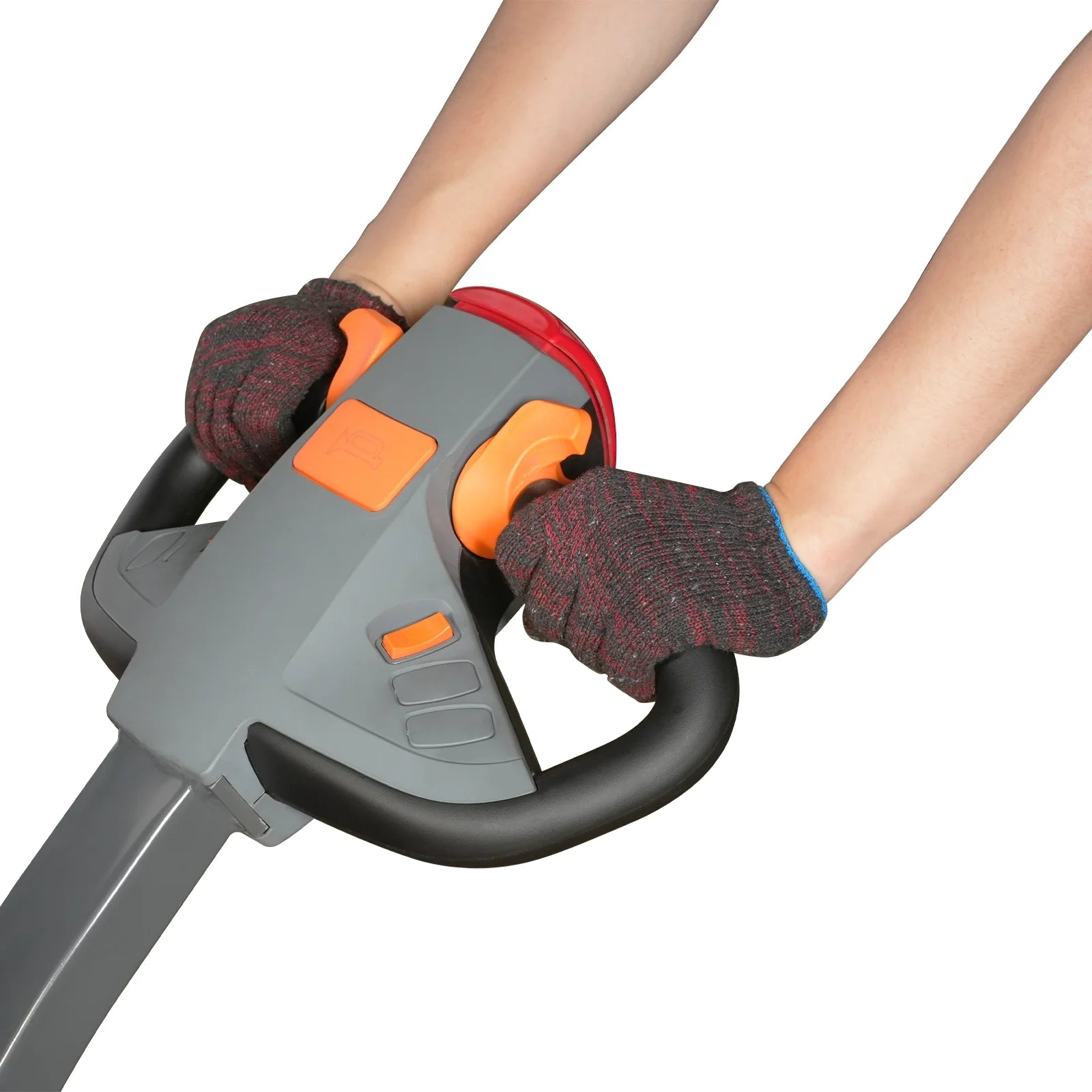

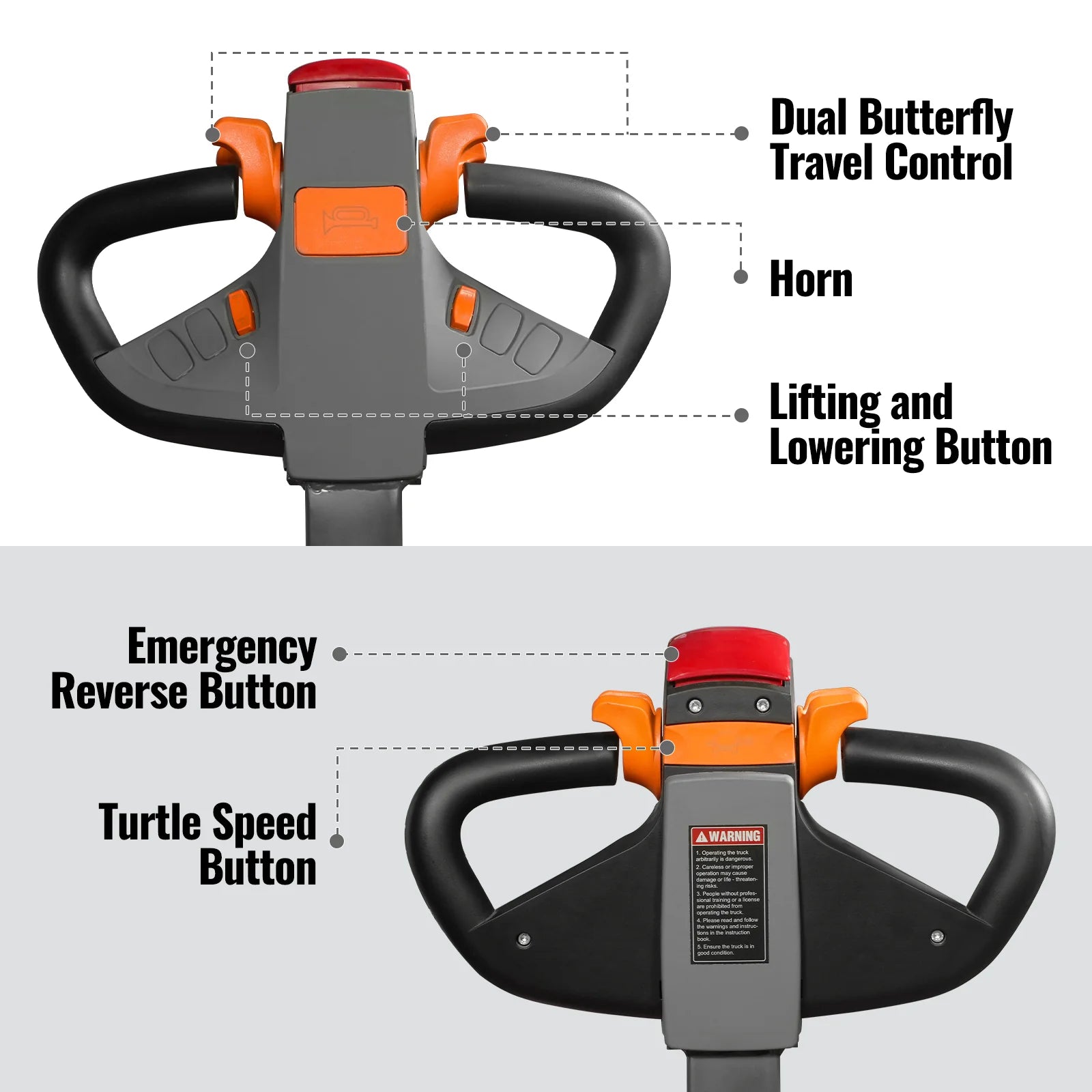

We recommend reviewing the included product manual and all safety labels before operation. This stacker includes ergonomic controls, an electromagnetic brake, and multiple safety features for operator protection.

How is this delivered?

This product exceeds the carrying range of a standard liftgate, so you'll need to arrange your own forklift or unloading platform for delivery.

Does this come with a warranty?

Yes, Electric Straddle Stacker (SKU: 202010) stands up to extreme testing and comes with a one-year warranty for machine.

What pallet widths and fork sizes does this stacker accommodate?

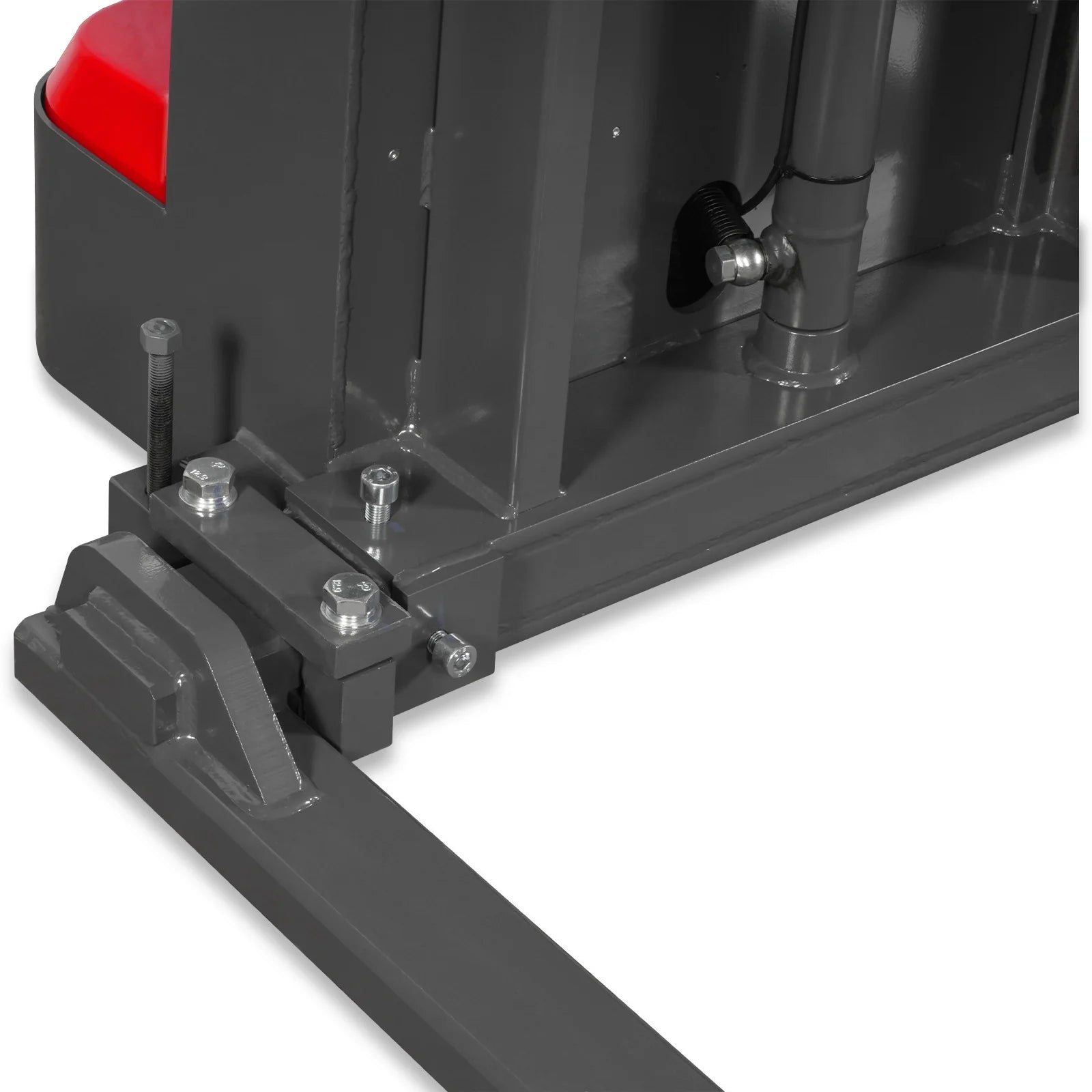

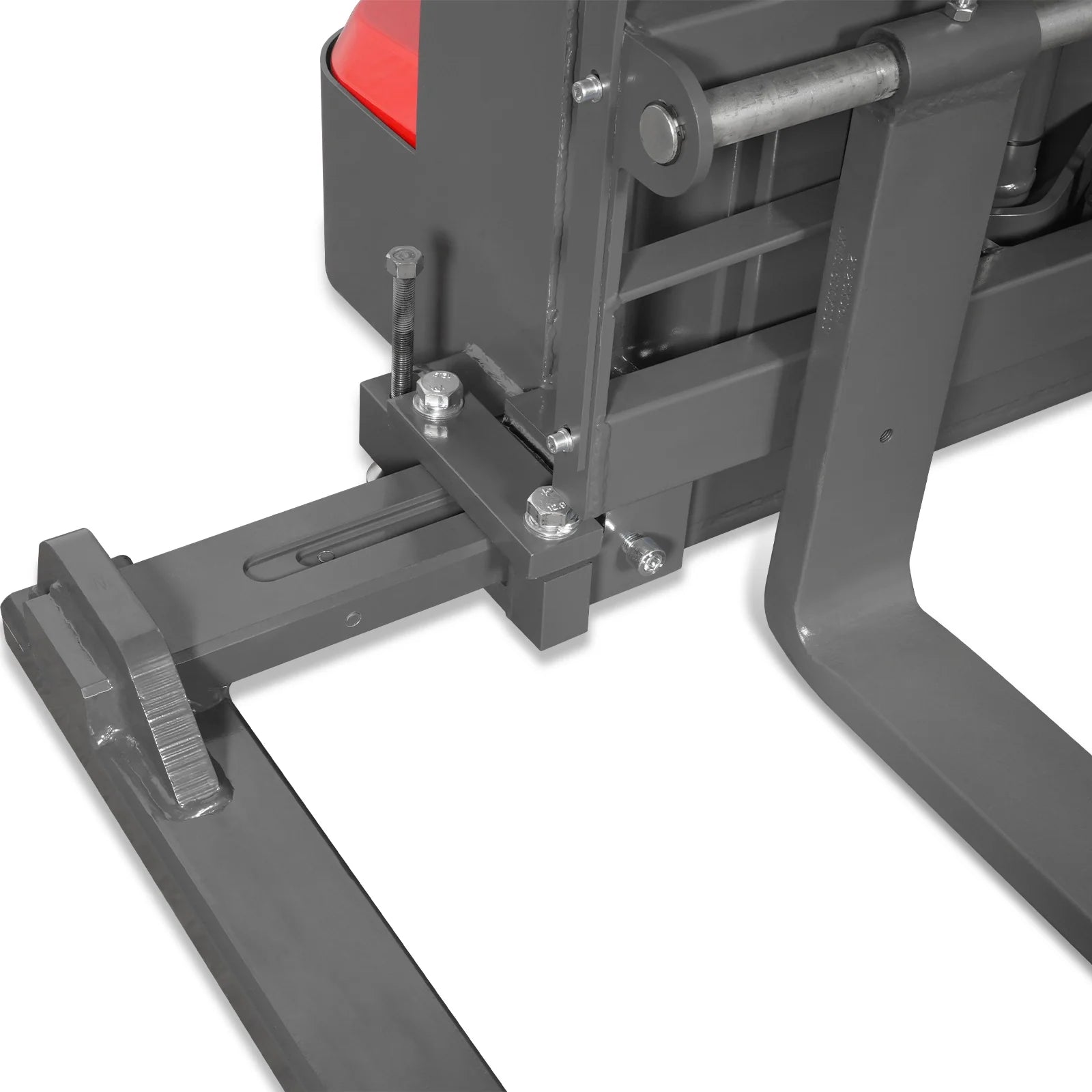

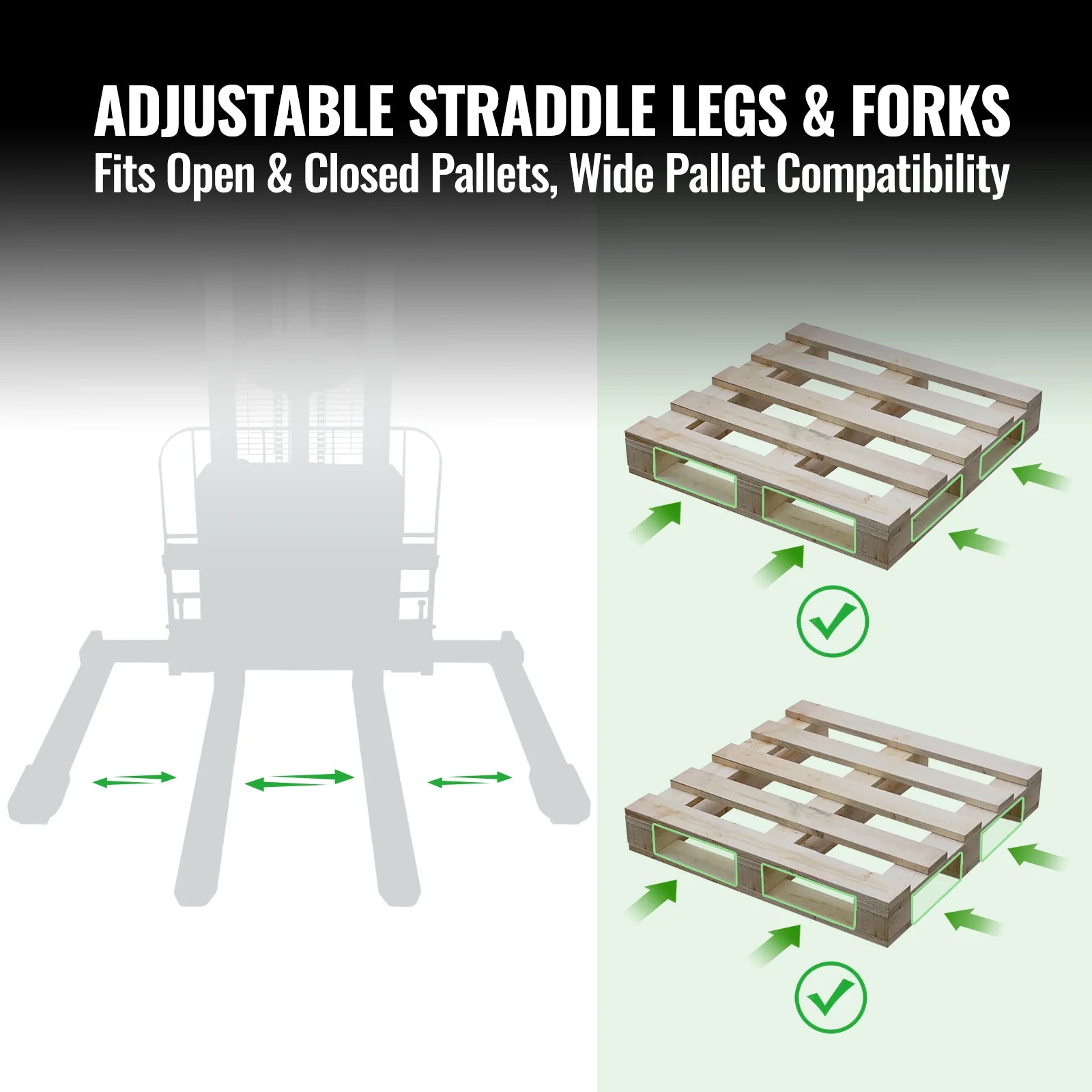

This stacker features adjustable forks (8.3"-33.5" wide) and adjustable straddle legs (35.4"-51.2" I.D.) to accommodate a range of pallet sizes.

Is assembly required?

This stacker arrives mostly assembled. Review the included product manual for setup and safety instructions before first use.
