MechMaxx

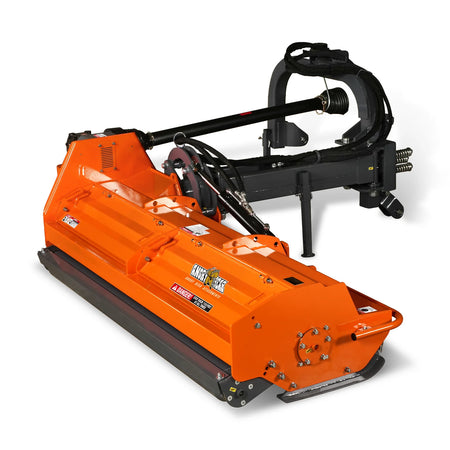

MechMaxx 78" Heavy Duty 3 Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 80-110HP, PTO Driven, VBM78

SKU: 150203
(0)
$5,699.00
Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Chat Email +1 (844) 969-2952
  • 78" working width for time-saving, economical mowing of larger areas like fields, long ditches, building perimeters, and large yards 18 forged hammer blades keep your mowing area cut consistently short Compatible with 80-110 HP tractors, operating at 540 RPM for powerful, efficient mowing Hydraulically controlled rotation with 90° tilt-up and 55° tilt-down angles for versatile cutting Hydraulically controlled side-to-side movement and right side offset for reaching distant overgrown areas Includes PTO shaft (1-3/8" Z6) for Category 1 hookups, compatible with most tractor makes and models Italian CMR gearbox efficiently transmits power for smooth, reliable operation External SKF shaft bearings for smooth, quiet, cool-running performance and easier user maintenance Openable rear cover for easy blade replacement and clearing blockages Anti-collision bar with spring buffer protects the machine on impact with stones and stumps Four-position adjustable blade ground clearance (0.2"-0.9"-1.7"-2.4")

Trimming and maintaining banks, roadsides, ditches, and shorelines can be challenging. These bank mowers are built to efficiently handle overgrown grass on ditches and embankments. Powered by a 65HP CMR gearbox from Italy for consistent performance and equipped with forged hammer flail blades, the mower can cut and mulch material up to 6" in diameter in one pass. An adjustable rear opening panel offers convenient maintenance access. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land, with trimmings dropping directly to the ground to reduce debris. An adjustable rear roller provides precise cutting height control for a clean, even cut on uneven terrain. Built for Category 2 tractors, this 78" model pivots 90 degrees up and 55 degrees down for a precise, clean cut every time. Includes a PTO shaft with safety pin, and is dynamically balance tested for safe and reliable operation. Note: due to its size, this product exceeds the carrying range of standard liftgate service — customers will need to arrange their own forklift or unloading platform for delivery.
Engine Power Required 80-110 HP Rotor Diameter 5.5 in
Working Width 78 in Rotor Thickness 0.5 in
Overall Width 94 in Rear Roller Diameter 6 in
Blade Ground Clearance (Four Gears) 0.2-0.9-1.7-2.4 in Rear Roller Thickness 0.25 in
Max. Cutting Diameter Depends on the type of grass PTO Shaft Speed 540 rpm
Offset Distance from Center (Maximum) 122 in Deck Thickness 2 in
Tilt-Up Angle 90° Side Plate Thickness 0.25 in
Tilt-Down Angle 55° Driveline Shaft Length T6-LF-73 with shear bolt; 73in-126in
Number of Blades 18 Spline End 1.375 in Z6
Number of Belts 4 3-Point Hitch CAT 2
Blade Type Hammer Gearbox Oil Type 85W-90
Blade Weight 2.6 lbs Finish Powder Coating
Blade Material Cast Steel Warranty 1 Year
Belt Adjustment Bolt Tightening Shipping Box 100x41x31 in
Working Efficiency 450 cu.ft./hr. Weight (N.W./G.W.) 1848/2040 lbs

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

Our products stand up to extreme testing and come with a one-year warranty.

Frequently Asked Questions

What size material can this mower handle?

It can cut and mulch material up to 6" in diameter in one pass.

What tractors is this compatible with?

It's compatible with 80-110 HP tractors and operates at 540 RPM.

How does the cutting angle adjust?

It's hydraulically controlled, with a 90° tilt-up angle and 55° tilt-down angle for versatile cutting capabilities.

What protects the machine from impacts?

An anti-collision bar with a spring buffer protects the machine when it hits stones, stumps, or other hard objects.

How many blades does it have?

It has 18 forged hammer blades.

What hitch category does it use?

It uses a CAT 2 3-point hitch.

Does it come with a warranty?

Yes, it comes with a 1-year warranty.

How much does it weigh?

It has a net weight of 1848 lbs and a gross shipping weight of 2040 lbs.

How is this delivered given its size?

Due to its size, this product exceeds standard liftgate carrying capacity, so customers need to arrange their own forklift or unloading platform.
