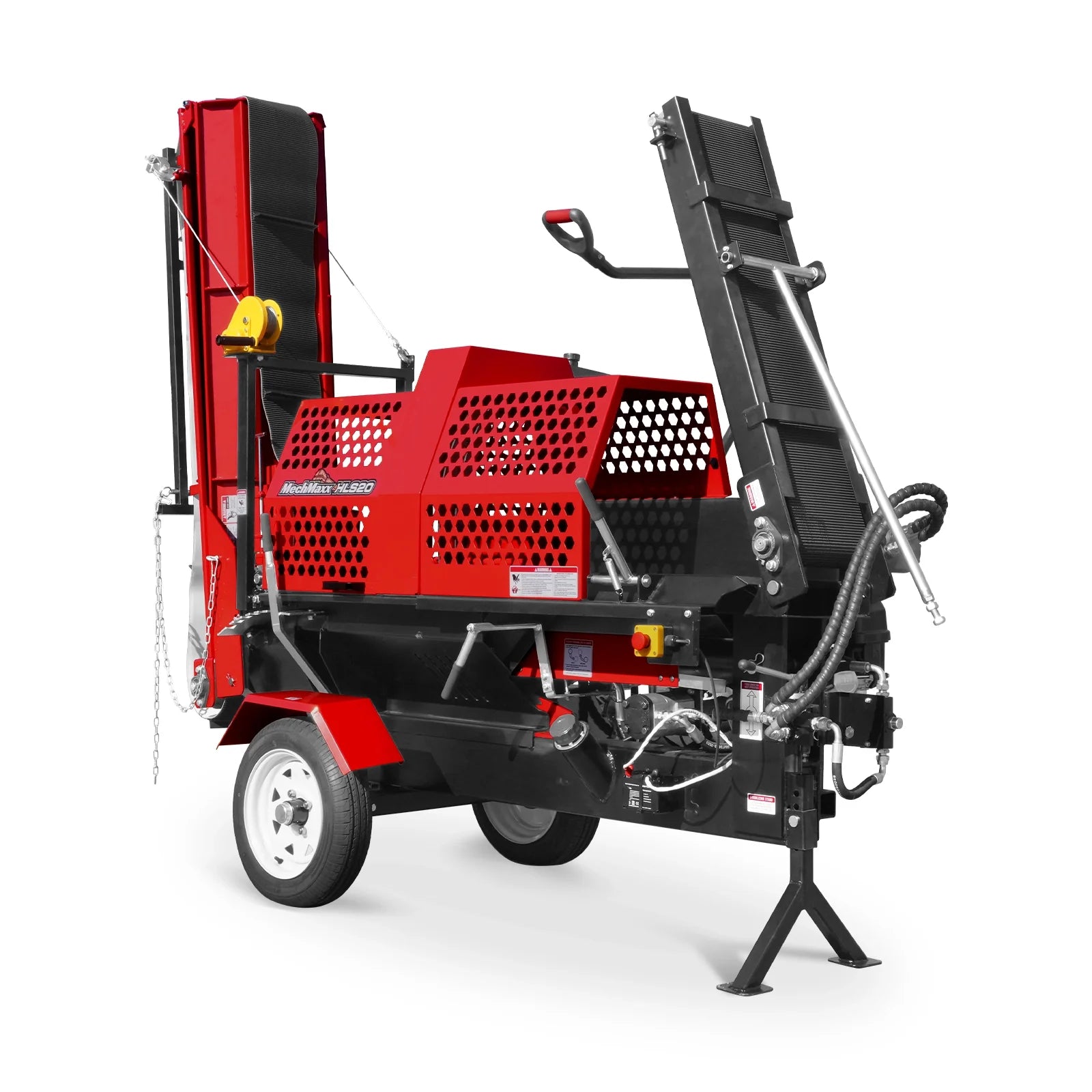

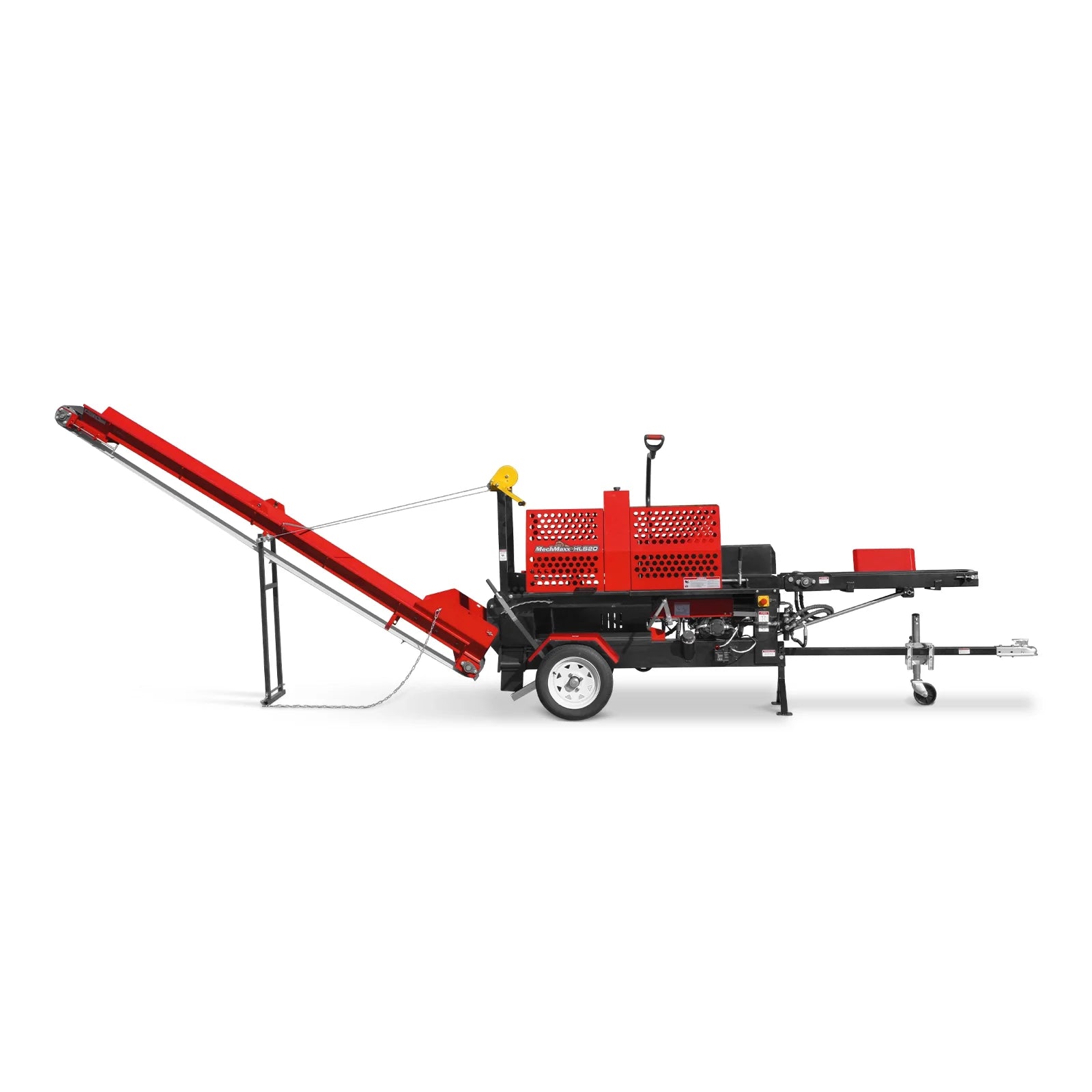

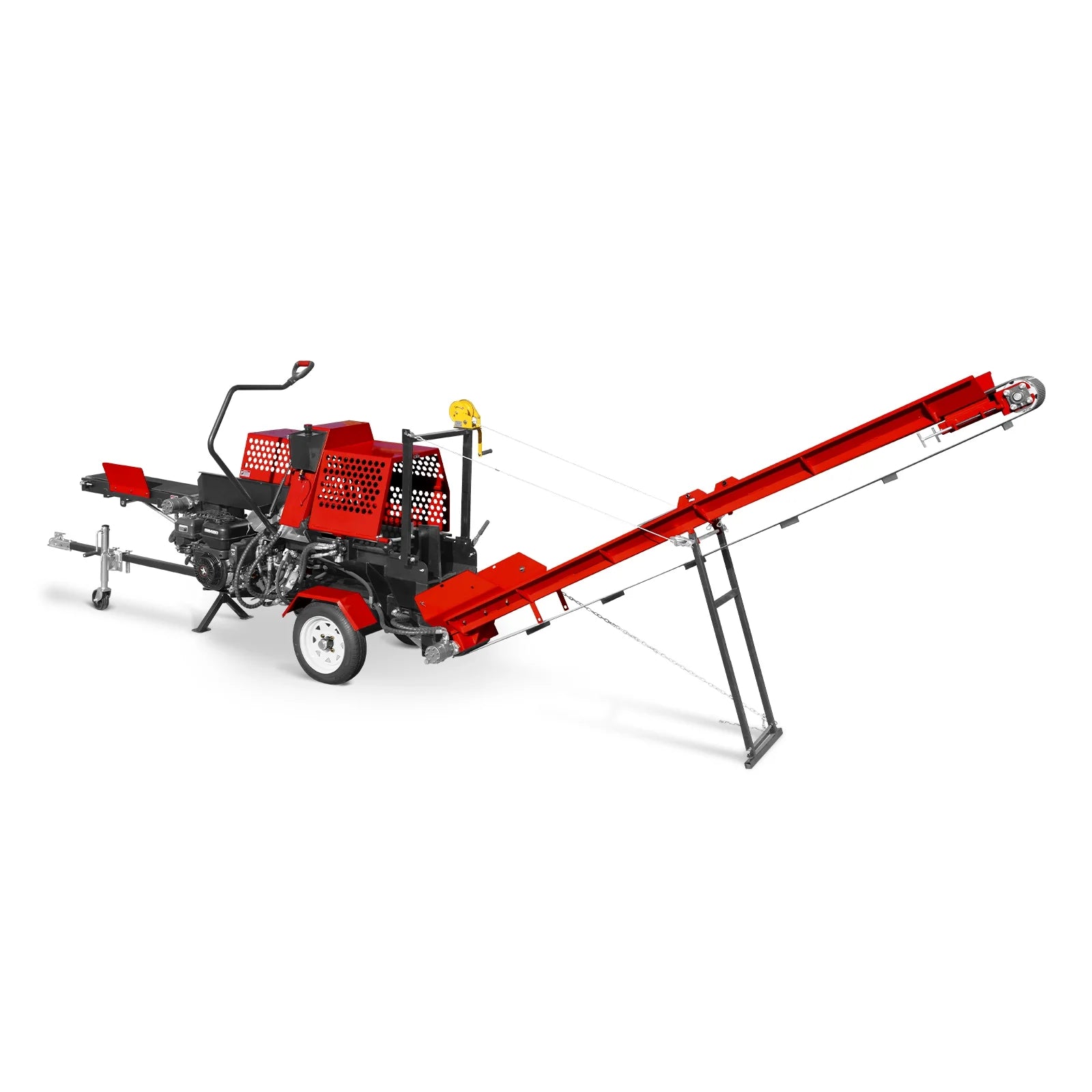

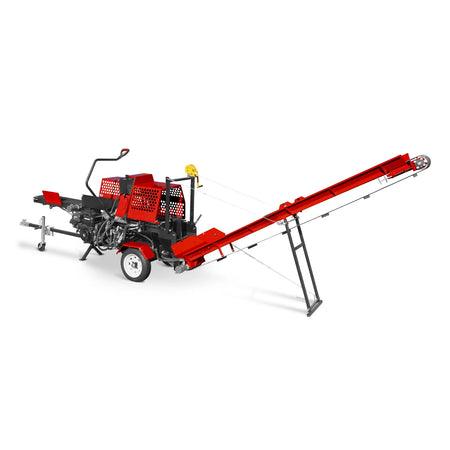

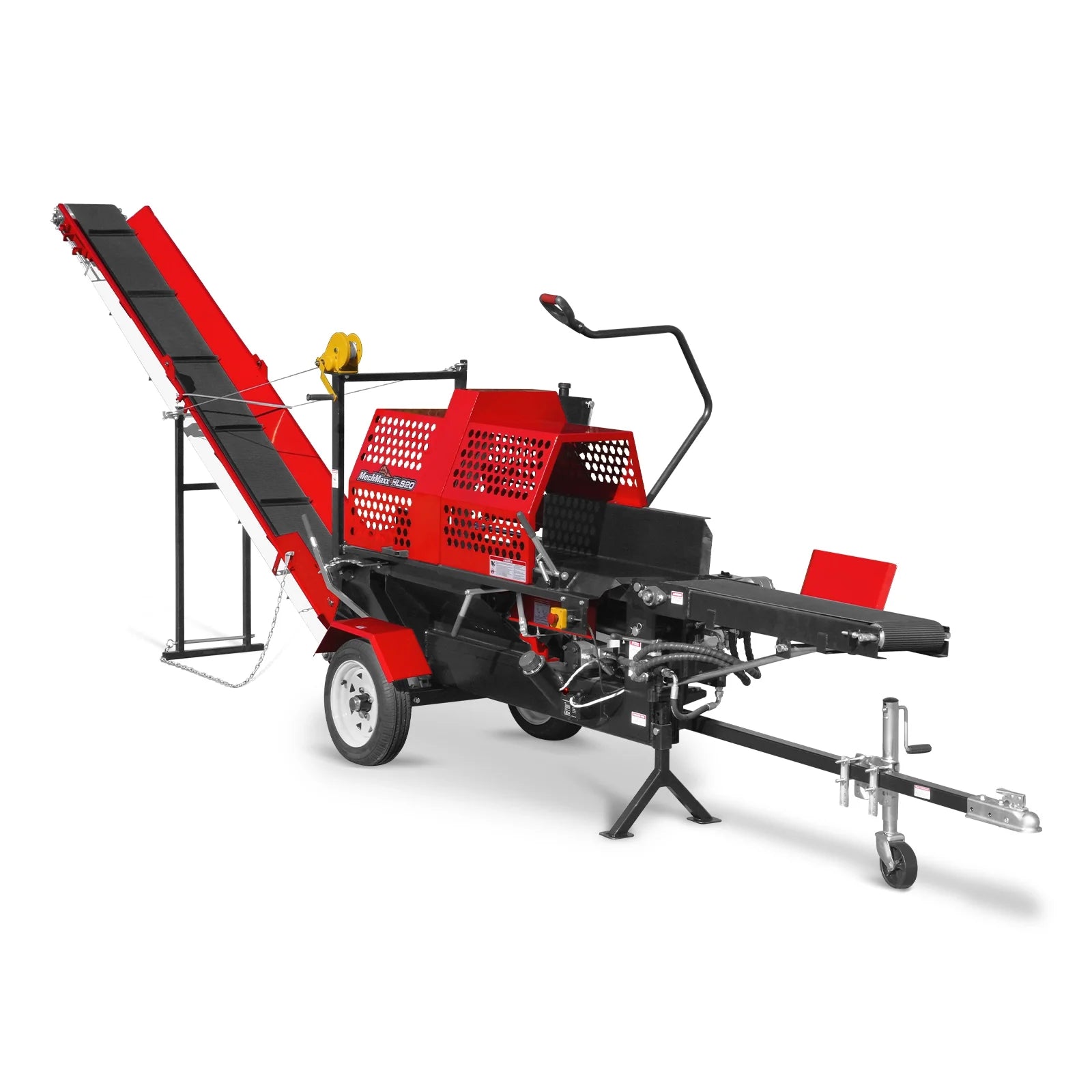

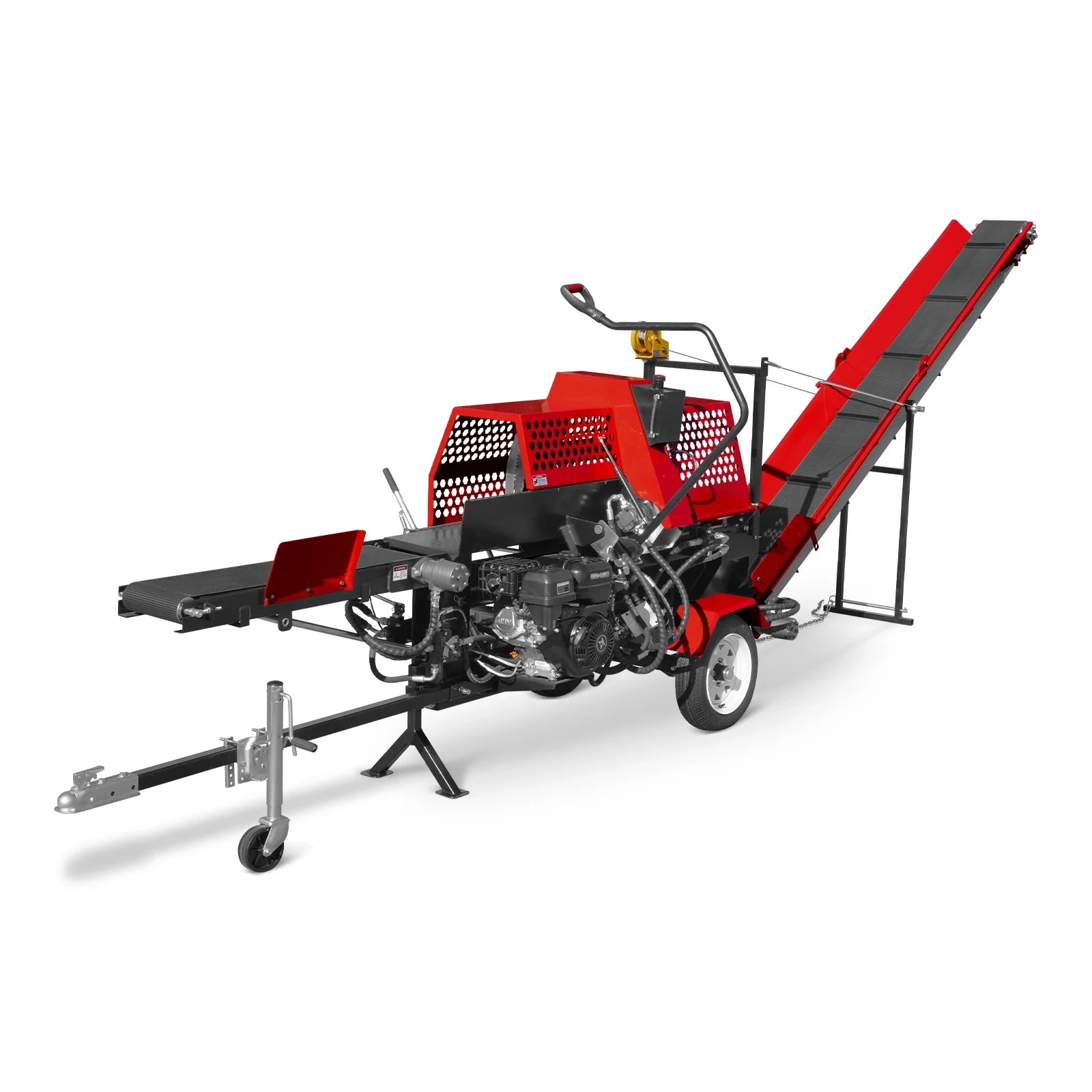

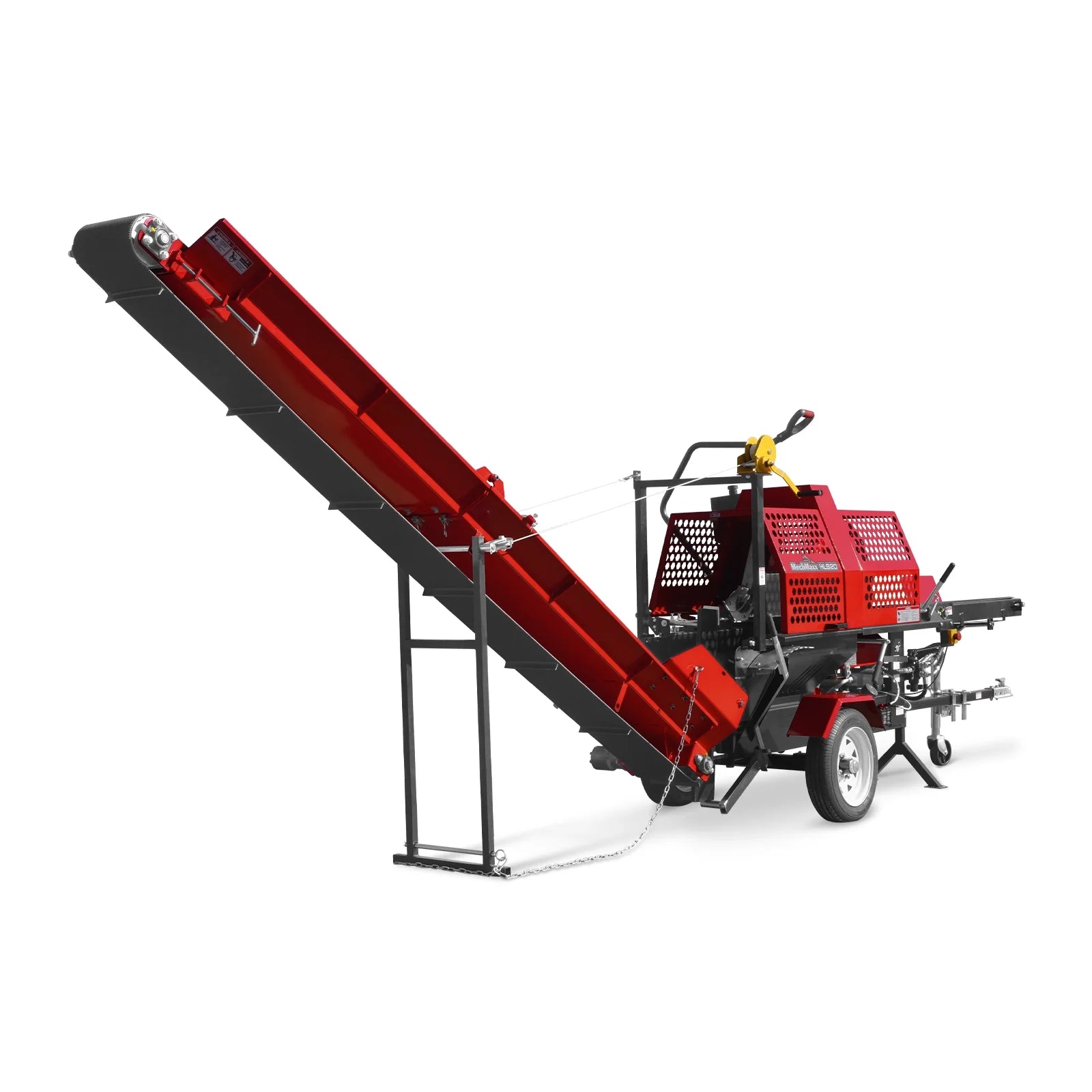

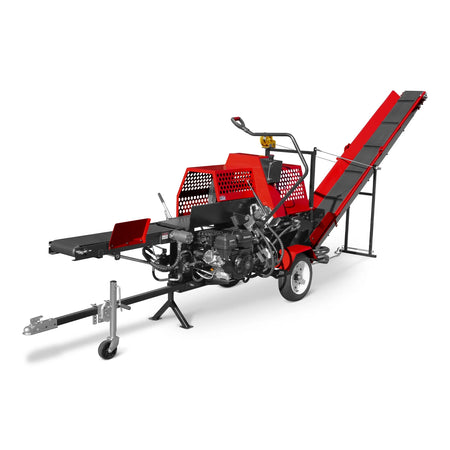

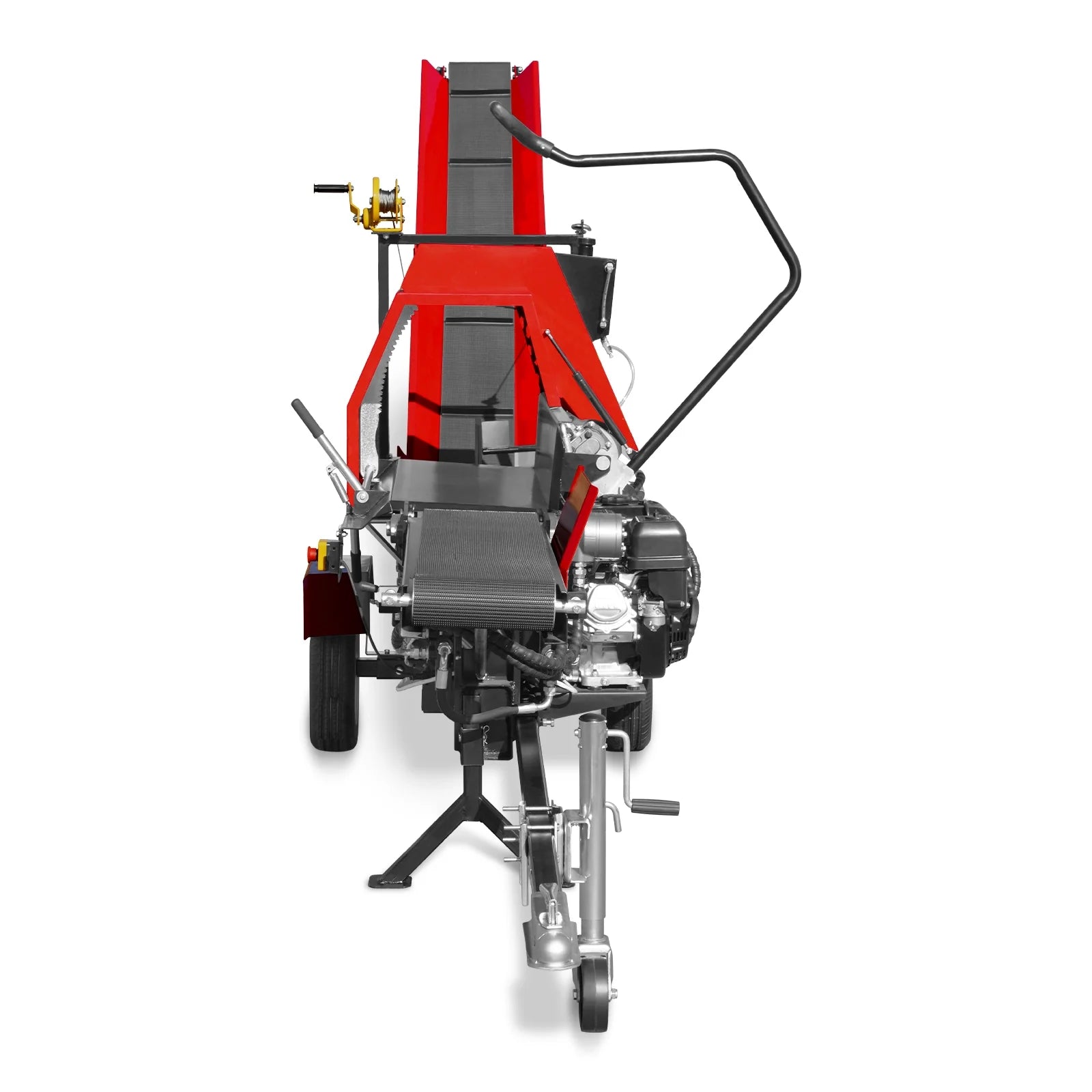

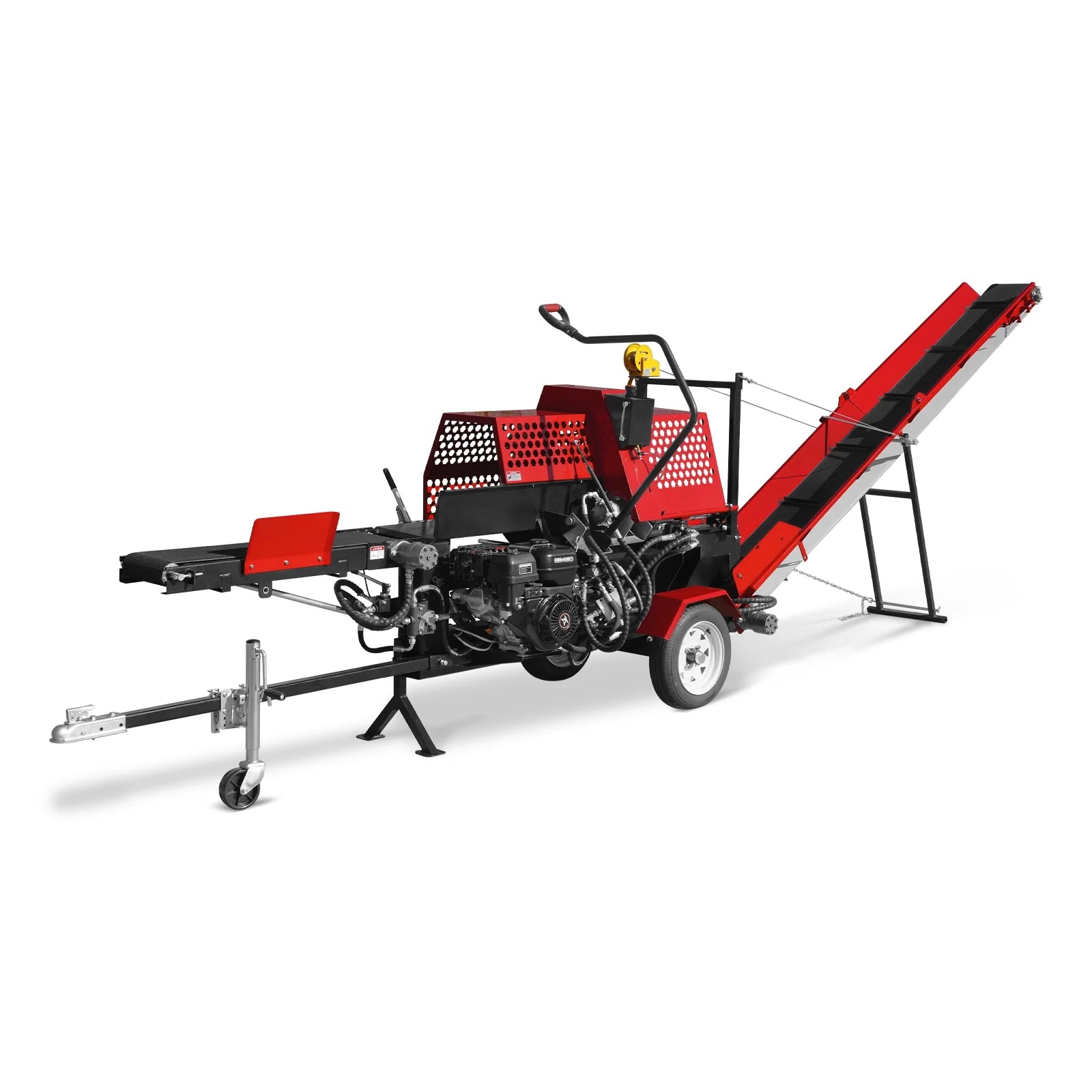

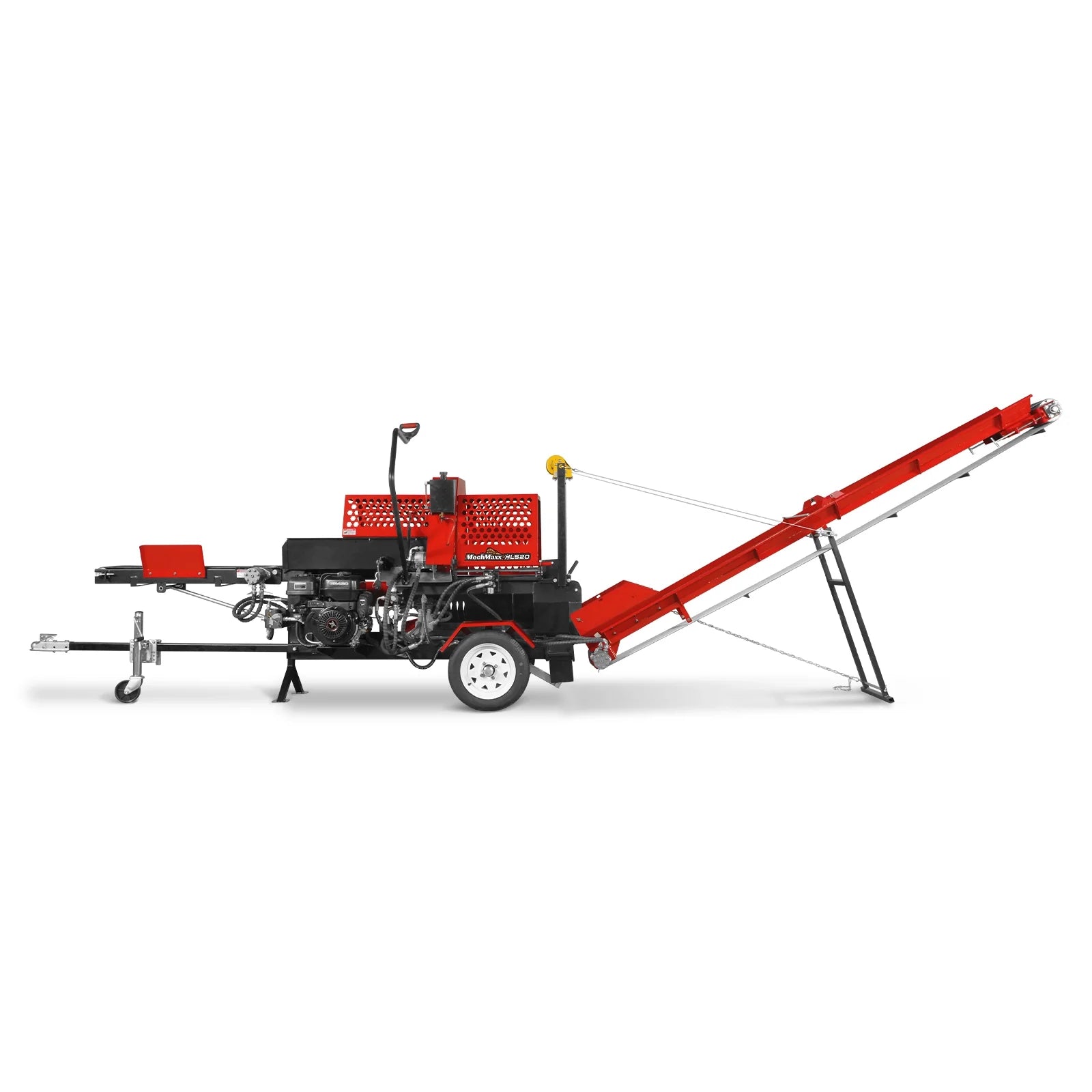

MechMaxx Firewood Log Splitter Processor with Conveyor, 20ton Splitting Force 24" x 15" Log Capacity, 18" Chainsaw, HLS20
Regular price
$8,999.00
Couldn't load pickup availability
Free shipping
100% secure payments
Industry leading quality
Ask an expert!
- 459cc 15HP ZONSEN electric start engine with 12V20Ah lead-acid battery Hydraulic 18" chainsaw delivers fast, reliable cutting power for tough log processing 20 tons of splitting force with 24" maximum splitting length handles hardwoods with ease 2-4 way adjustable splitter produces uniform firewood, customizable for various log sizes Processes logs up to 15" in diameter with consistent power, safety, and efficiency Foldable design enables compact storage and simple transport between job sites Backed by a 1-year machine warranty and 1-year engine warranty

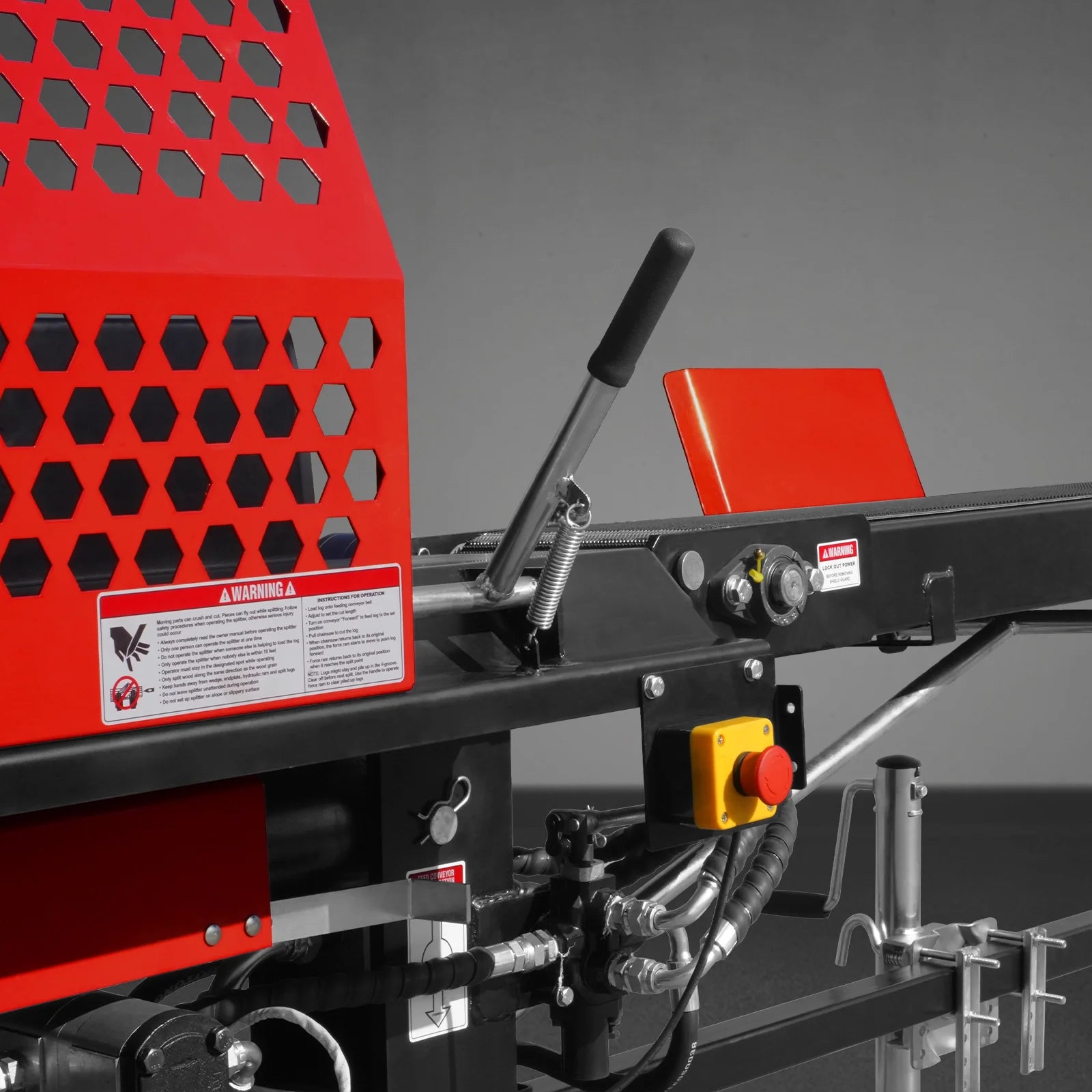

The HLS20 is a versatile, high-efficiency wood-processing machine powered by a 459cc 15HP ZONSEN GB460 electric start engine with a 12V20Ah lead-acid battery. Built with a durable steel frame and a high-performance hydraulic system, this combination splitter delivers up to 20 tons of splitting force to process logs up to 15" in diameter and 24" in length. A hydraulic 18" chainsaw bar provides fast, powerful cutting, while the 2-4 way adjustable splitter produces uniform firewood tailored to various log sizes. The hydraulic inlet and outlet conveyors move logs and split wood efficiently, reducing manual labor, and the foldable design allows for compact storage and simple transport. Operator-friendly controls and safety guards ensure safe, efficient operation, backed by a 1-year machine warranty and 1-year engine warranty.
| Engine Power | Zonsen GB460, 15hp | Maximum Log Diameter | 15 in |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Maximum Splitting Length | 24 in |
| Displacement | 459cc | Maximum Splitting Force | 20 Ton |
| Start Type | Electric & recoil | Hydraulic Chainsaw | 18 in |

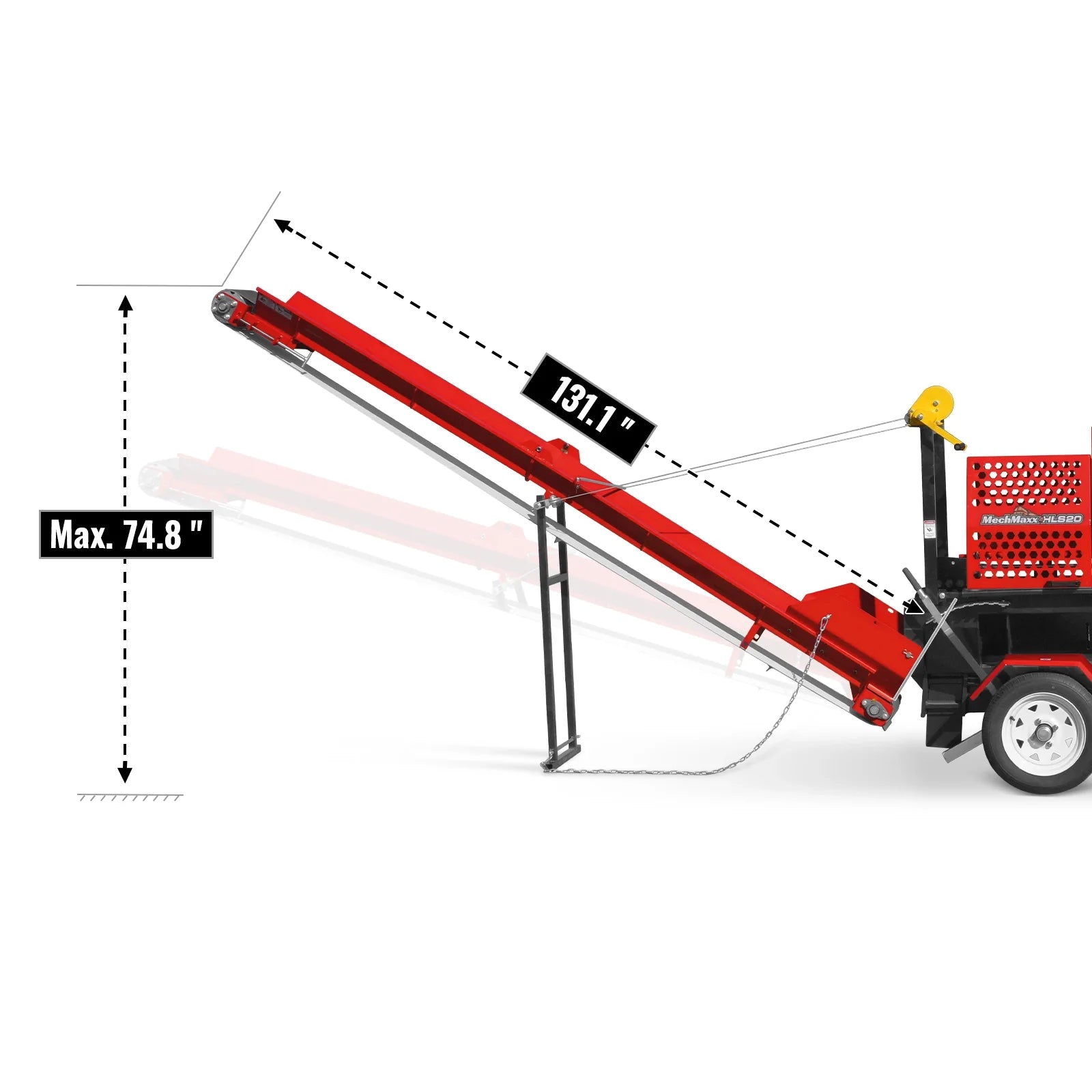

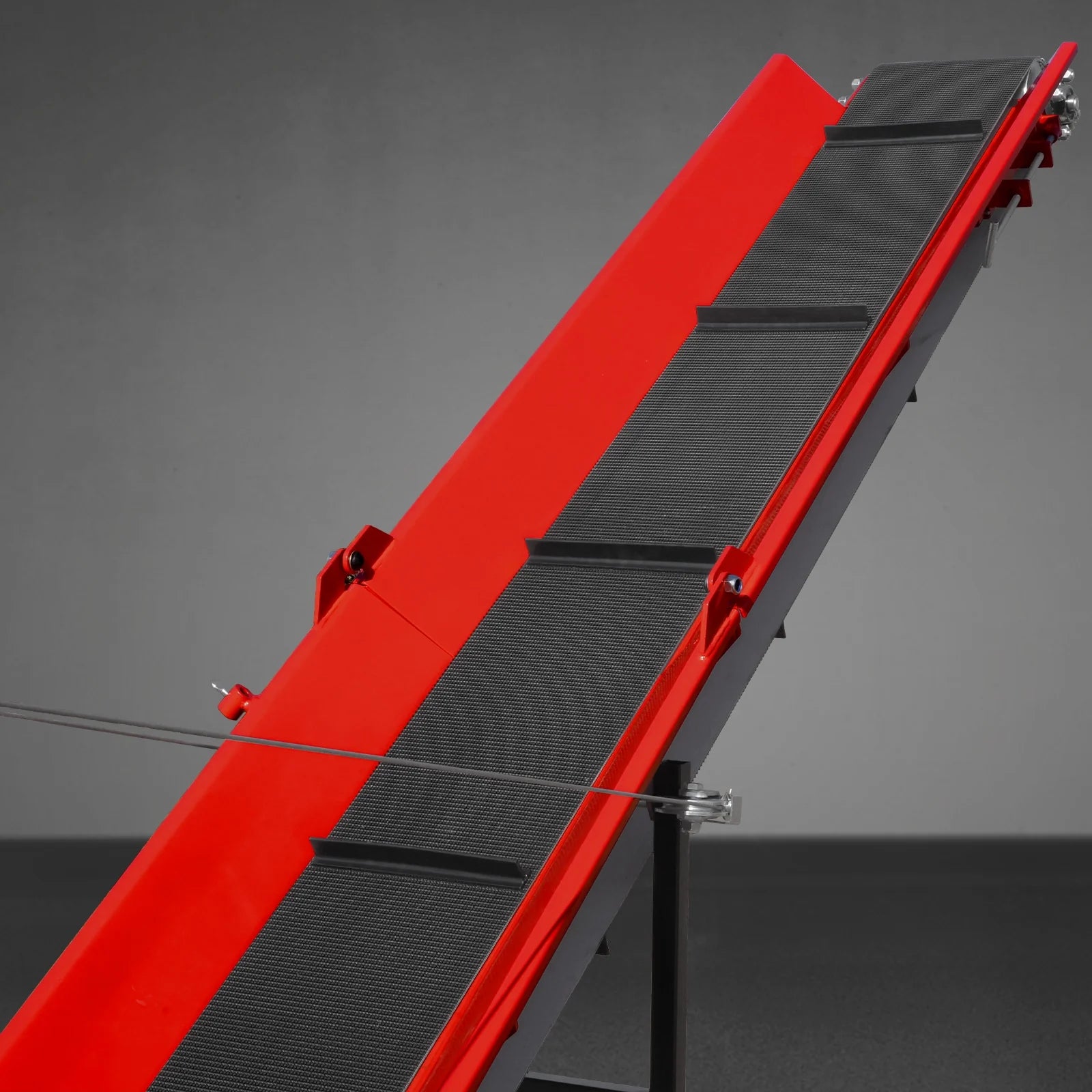

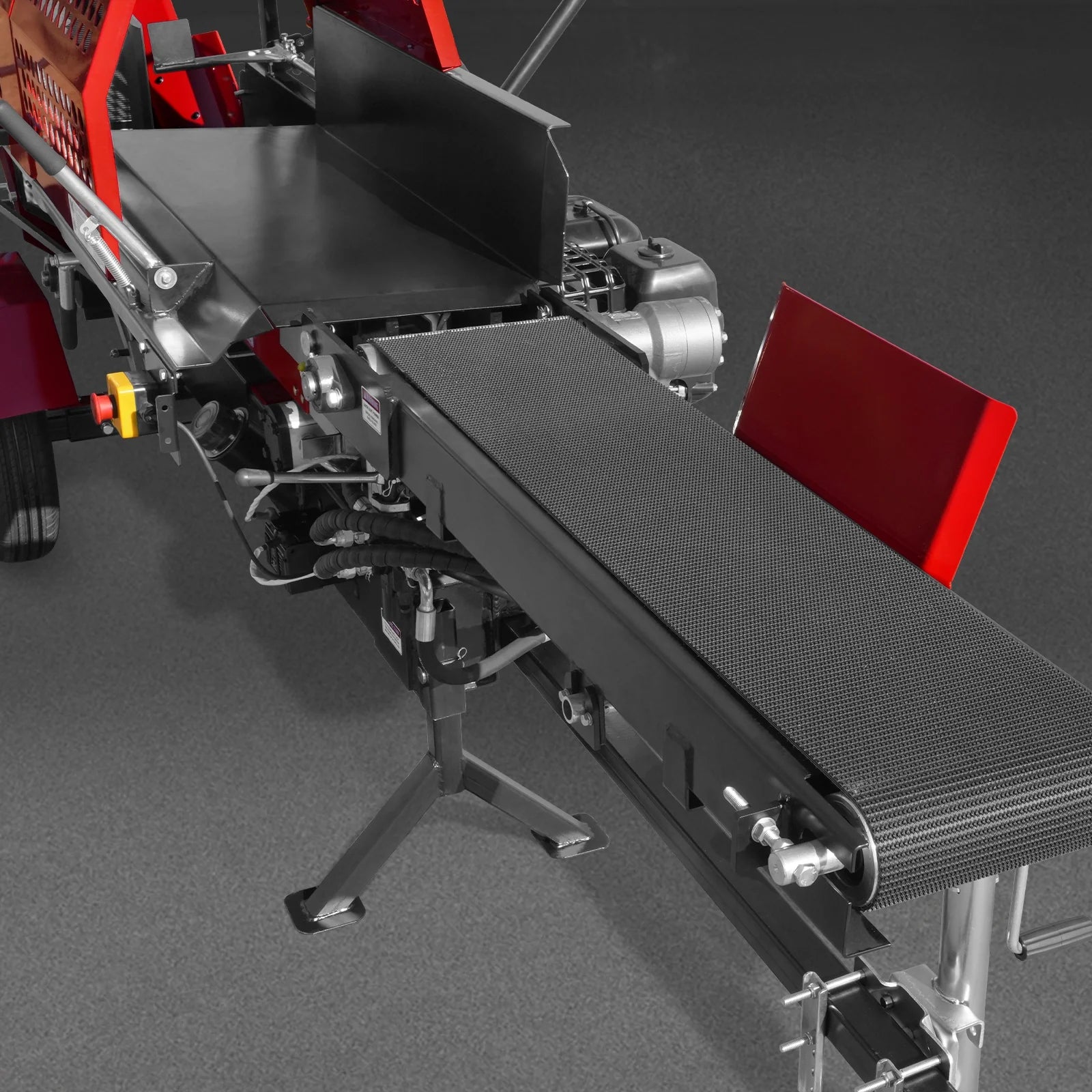

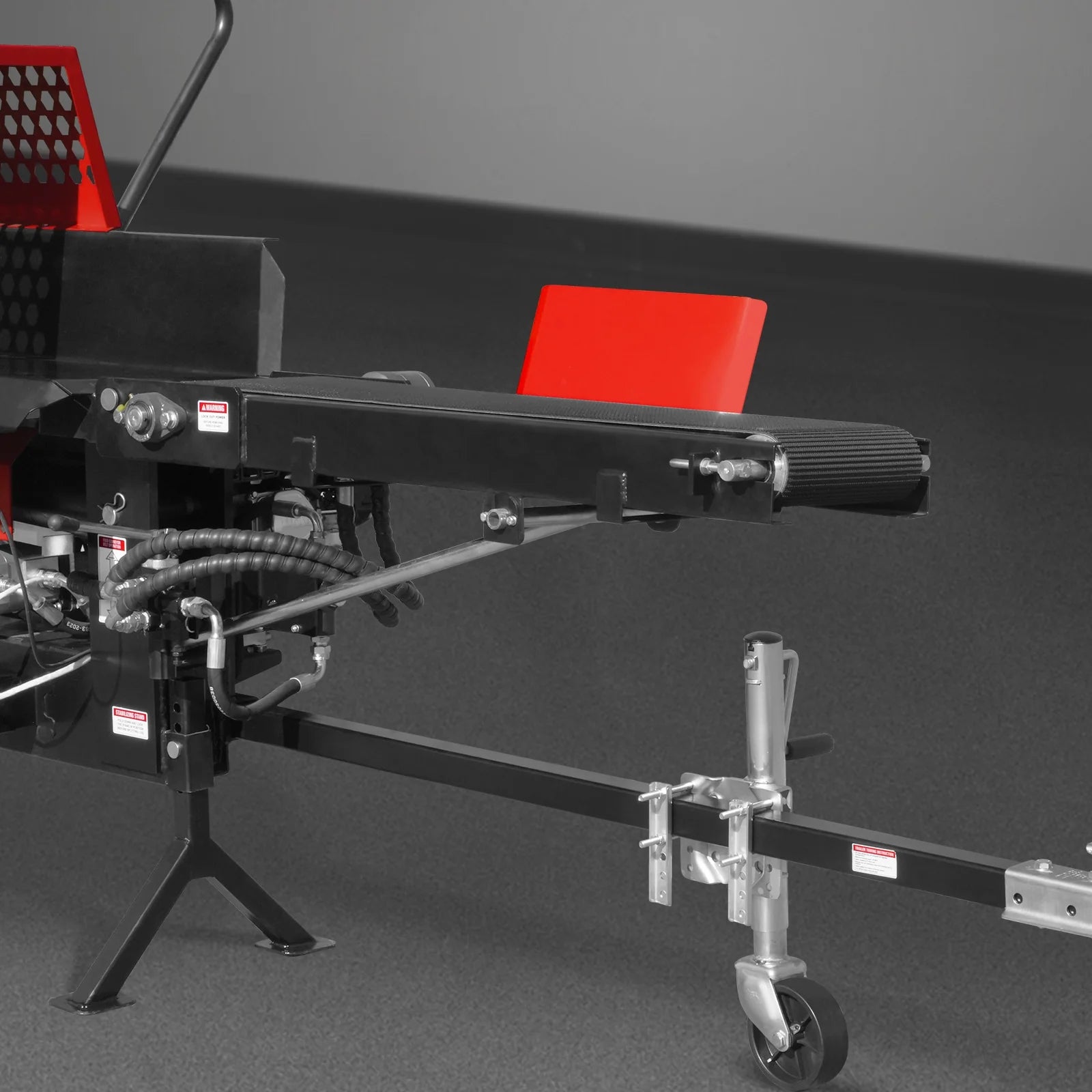

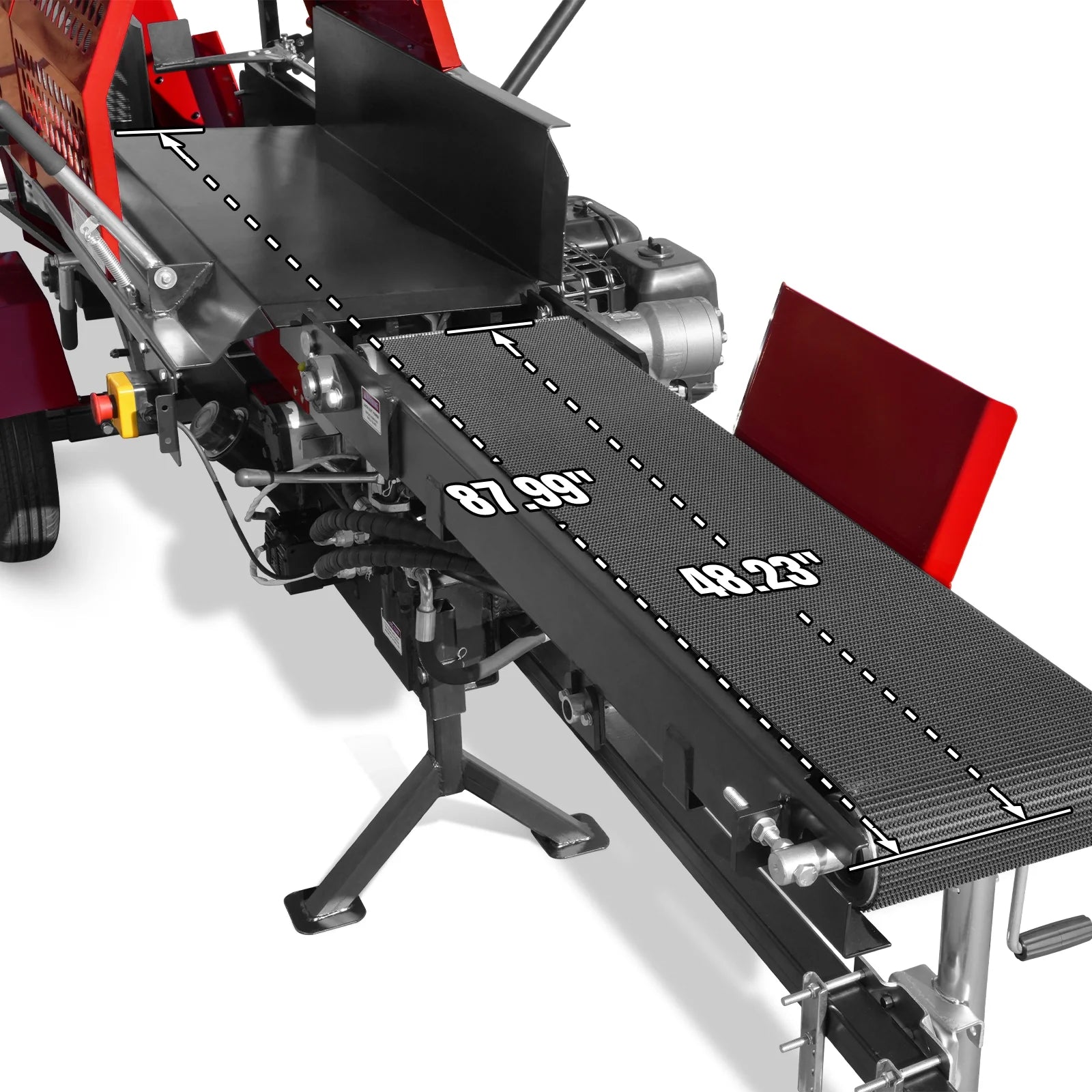

| Hydraulic Inlet Conveyor (LxW) | 41 in x 10 in | Hydraulic Outlet Conveyor (LxW) | 126 in x 10 in |

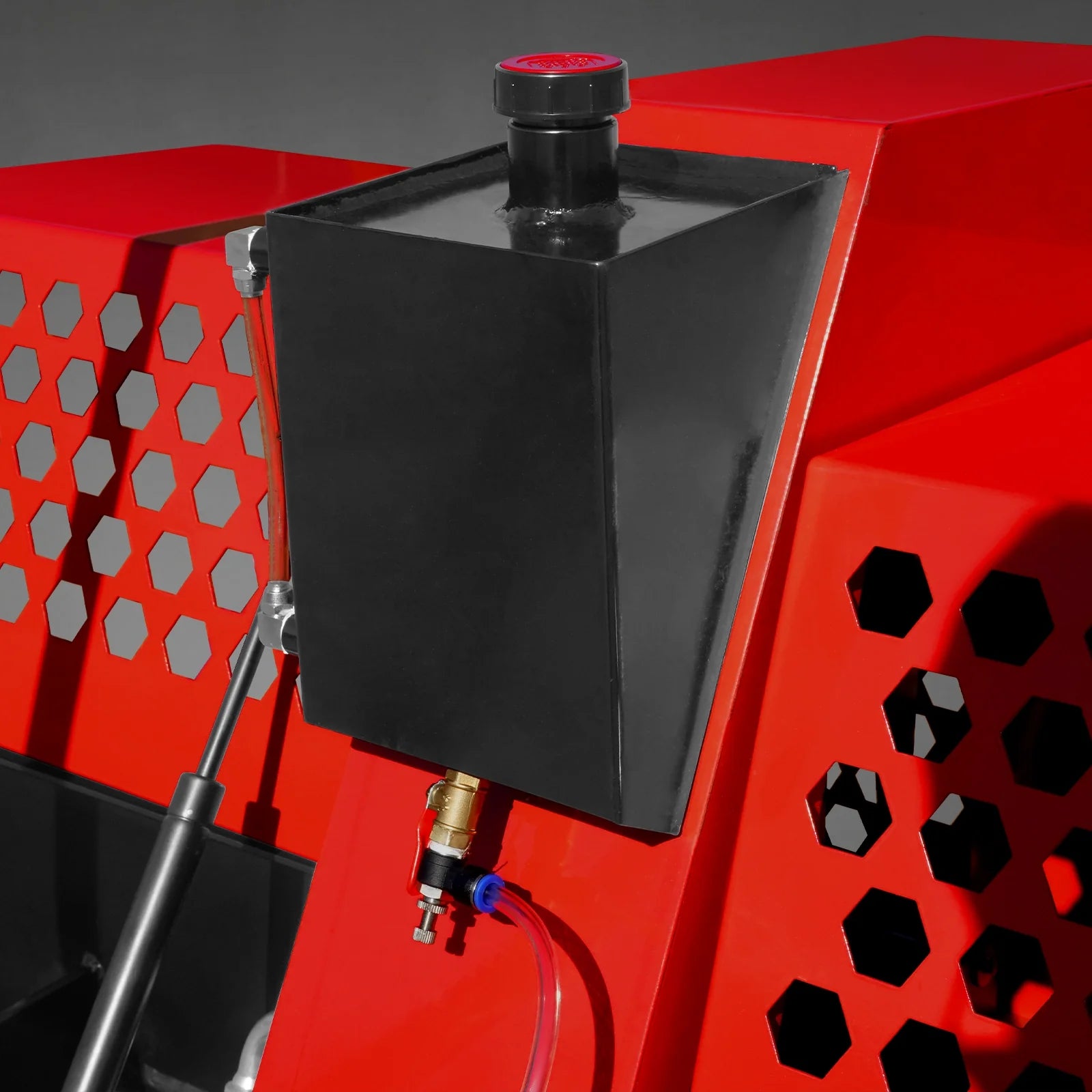

| Hydraulic Tank Capacity | 6.87 gal | Conveyor Belt Height | 75 in |
| Conveyor Belt Length | 130 in | Towing | Tow Bar With 2 in Coupler |
| Machine Warranty | 1 Year | Engine Warranty | 1 Year |
| Package Method | Plywood Case | Packing Size | 90x37.8x45.3 in |
| Weight (N.W./G.W.) | 1367/1521 lbs |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Combination Wood Splitter (SKU: 150245) stands up to extreme testing and comes with a one-year warranty for machine.
Frequently Asked Questions
What size logs can this splitter process?
This splitter handles logs up to 15 inches in diameter and 24 inches in length, delivering up to 20 tons of splitting force for hardwoods and softwoods alike.
How does the chainsaw feature work?

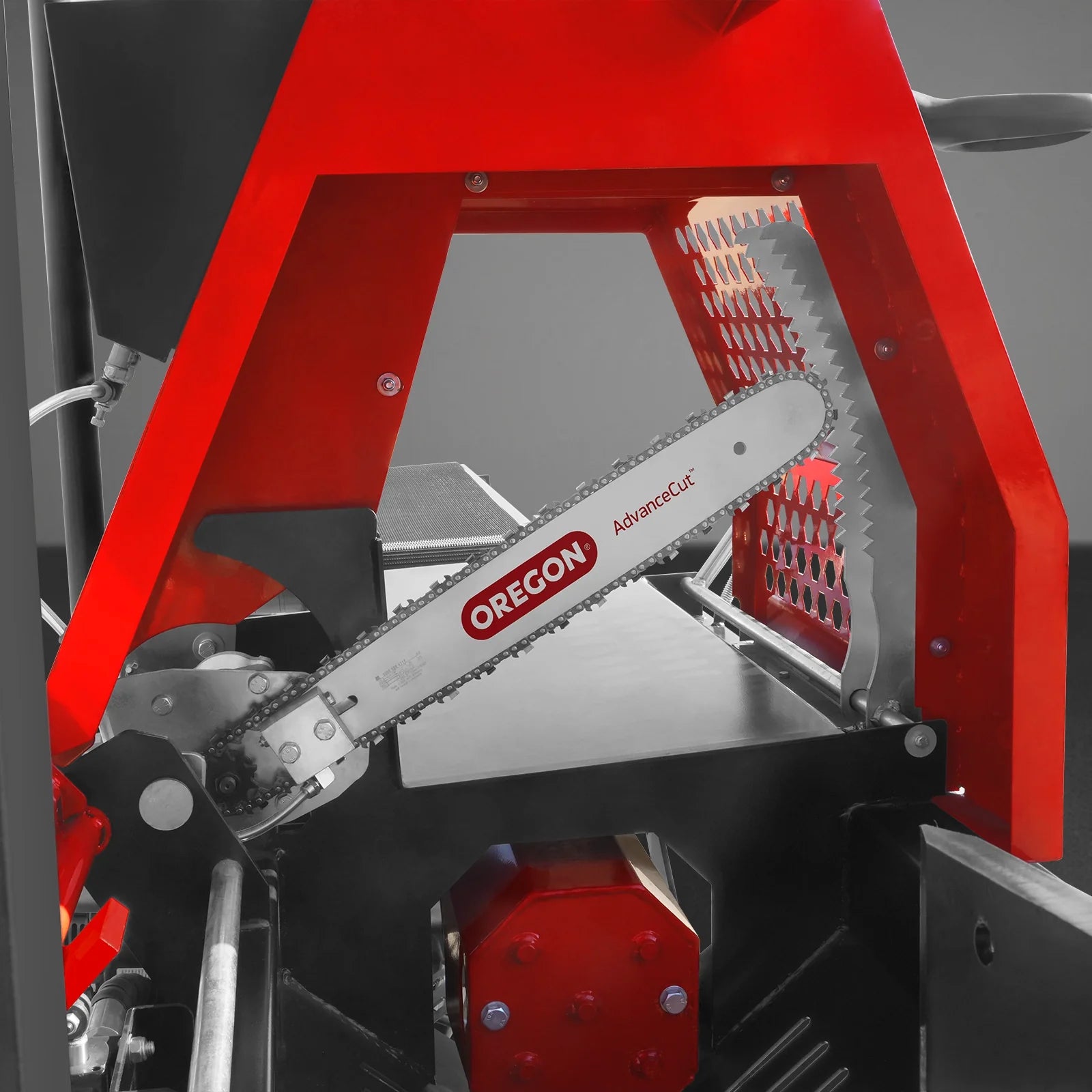

The HLS20 features a hydraulic-driven 18" chainsaw bar that delivers smooth, powerful cutting for fast log processing before splitting.
Can I customize how the wood is split?
Yes, the 2-4 way adjustable splitter lets you switch between splitting modes to produce uniform firewood tailored to different log sizes.
Is this machine easy to transport and store?

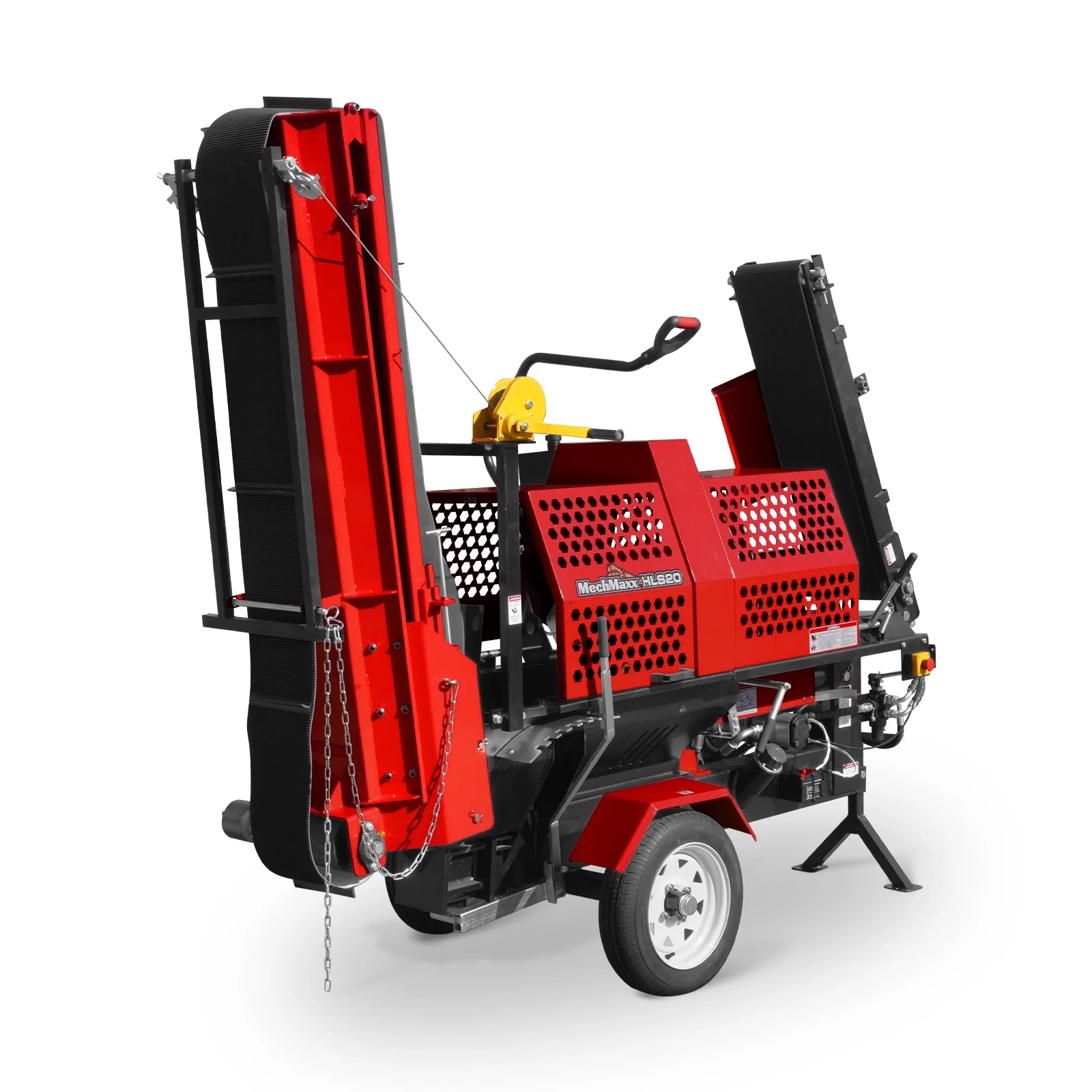

Yes, the HLS20 has a foldable design that enables compact storage and simple transport between work locations.
What kind of engine powers this machine?

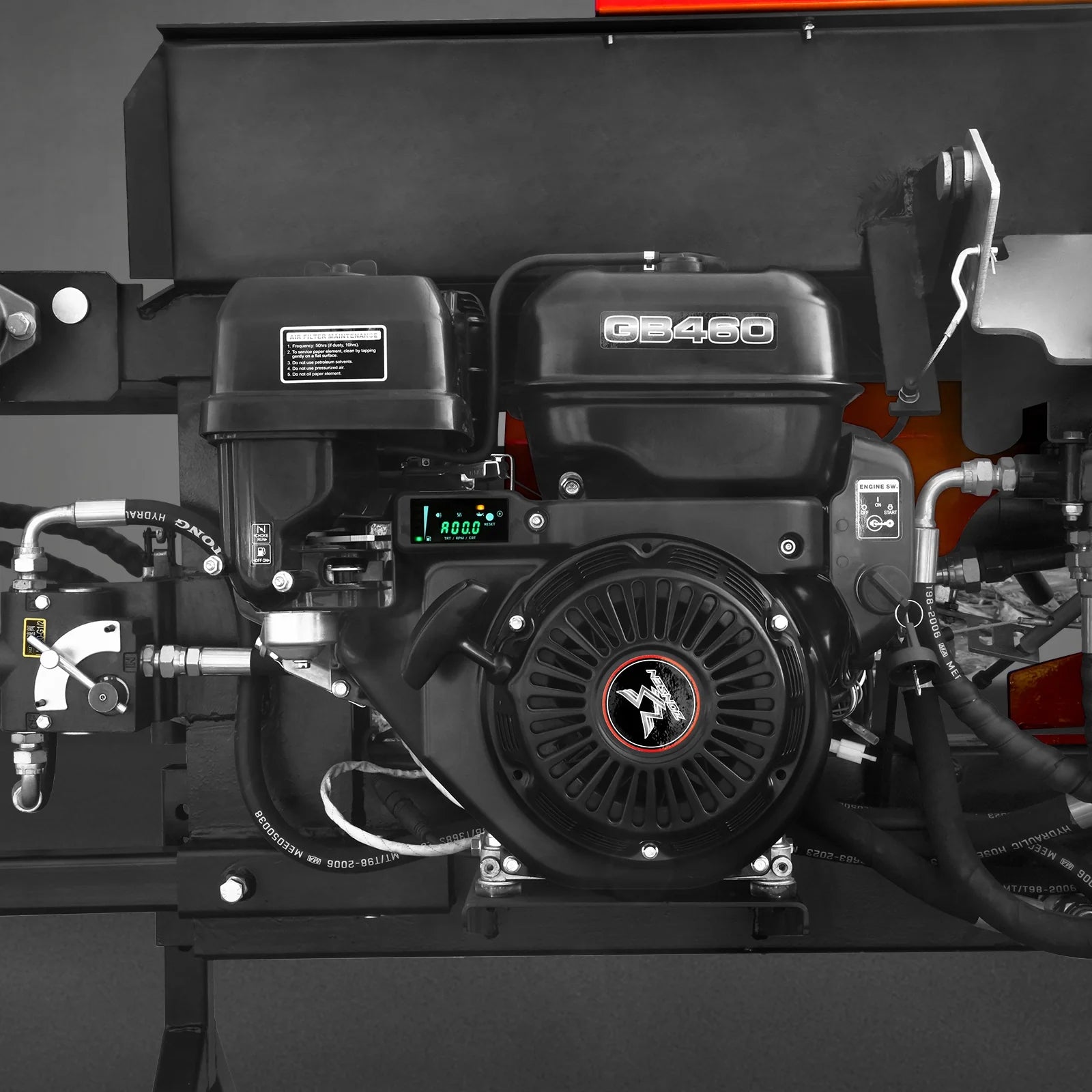

The HLS20 is equipped with a 459cc 15HP ZONSEN GB460 electric start engine, delivering excellent performance and reliable long-term quality.
Does this come with a warranty?
Yes, Combination Wood Splitter (SKU: 150245) stands up to extreme testing and comes with a one-year warranty for the machine.
How much does this machine weigh?
This machine has a net weight of 1,367 lbs and a gross shipping weight of 1,521 lbs.
Is this suitable for commercial use?
Yes, the HLS20 is designed to meet the demands of both home users and commercial wood-processing operations.
