Boss Industrial 37-Ton 3-Point Hitch Log Splitter (Horizontal/Vertical)

Up to 37 Tons of Splitting Force • Horizontal/Vertical Operation • Category 1 or 2 Hitch

Turn your tractor into a serious wood-splitting machine with the Boss Industrial 3PT37TE 3-Point Hitch Log Splitter. Designed to operate from your tractor’s hydraulic system, this commercial-grade splitter delivers up to 37 tons of splitting force, depending on the tractor’s available hydraulic pressure.

The horizontal and vertical operating positions provide the flexibility to split logs at waist height or handle oversized rounds closer to the ground. A rugged full-beam frame, 5-inch hydraulic cylinder, and 7-inch tool-alloy steel wedge provide the strength needed for demanding firewood processing.

One-hand control and automatic return help streamline operation, while two large log trays support split pieces and reduce repeated bending. The splitter connects to compatible Category 1 or Category 2 three-point hitches and includes two 100-inch hydraulic hoses for connecting to the tractor’s hydraulic system.

Key Features & Benefits

• Up to 37 Tons of Splitting Force
  Delivers heavy-duty splitting performance based on the hydraulic pressure supplied by the tractor.
• Horizontal and Vertical Operation
  Split smaller logs at a comfortable working height or move the beam into the vertical position for large, heavy rounds.
• Fast Cycle Time
  Capable of cycle times as fast as 11 seconds, depending on the tractor’s hydraulic flow rate.
• Category 1 and Category 2 Compatibility
  Designed to connect to tractors equipped with a compatible Cat 1 or Cat 2 three-point hitch.
• Tractor-Powered Hydraulic Operation
  Uses the tractor’s existing hydraulic system, eliminating the need for a separate gasoline engine or hydraulic power unit.
• Heavy-Duty Full-Beam Construction
  Rugged steel frame provides strength and stability for demanding splitting applications.
• 5-Inch Hydraulic Cylinder
  Large cylinder bore helps generate substantial splitting force when paired with the appropriate tractor hydraulics.
• 7-Inch Tool-Alloy Steel Wedge
  Durable wedge is built to withstand repeated use on dense and difficult logs.
• One-Hand Control
  Simplifies operation and gives the operator straightforward control of the splitting cycle.
• Automatic Return
  Retracts the ram automatically to help improve productivity between logs.
• Patented Mechanical Pressure-Release System
  Integrated into the hydraulic valve to support consistent operation and system protection.
• Two Large Log Trays Included
  Support logs and split pieces while helping reduce lifting, bending, and material handling.
• Hydraulic Hoses Included
  Includes two 1/2-inch × 100-inch hoses for hydraulic inlet and outlet connections.

Tractor Hydraulic Requirements

This splitter relies entirely on the tractor’s hydraulic system. Performance will vary according to the tractor’s available pressure and flow.

Confirm that the tractor’s hydraulic system is compatible before ordering or operating the splitter.

Quick Specifications

Shipping Specifications

Important Compatibility Information

Splitting force and cycle time depend on the hydraulic pressure and flow supplied by the tractor. Verify the tractor’s hitch category, hydraulic pressure, hydraulic flow, hose connections, and return-circuit requirements before purchase.

Do not exceed the pressure limitations stated in the operator’s manual. Hydraulic connections and system adjustments should be completed by someone familiar with tractor hydraulic systems.

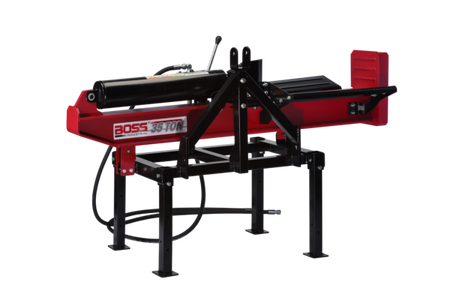

** Product Video & Photo Disclaimer: This is NOT the actual 37 ton.  This is the 28 ton shown in video. Photo's are for illustration purposes as this item is very similar.  WSD is not responsible for any variances from the item in the video or photo's and the item you purchase. Please review all product specs prior to purchase. From time to time slight variances can occur.

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days
