MechMaxx

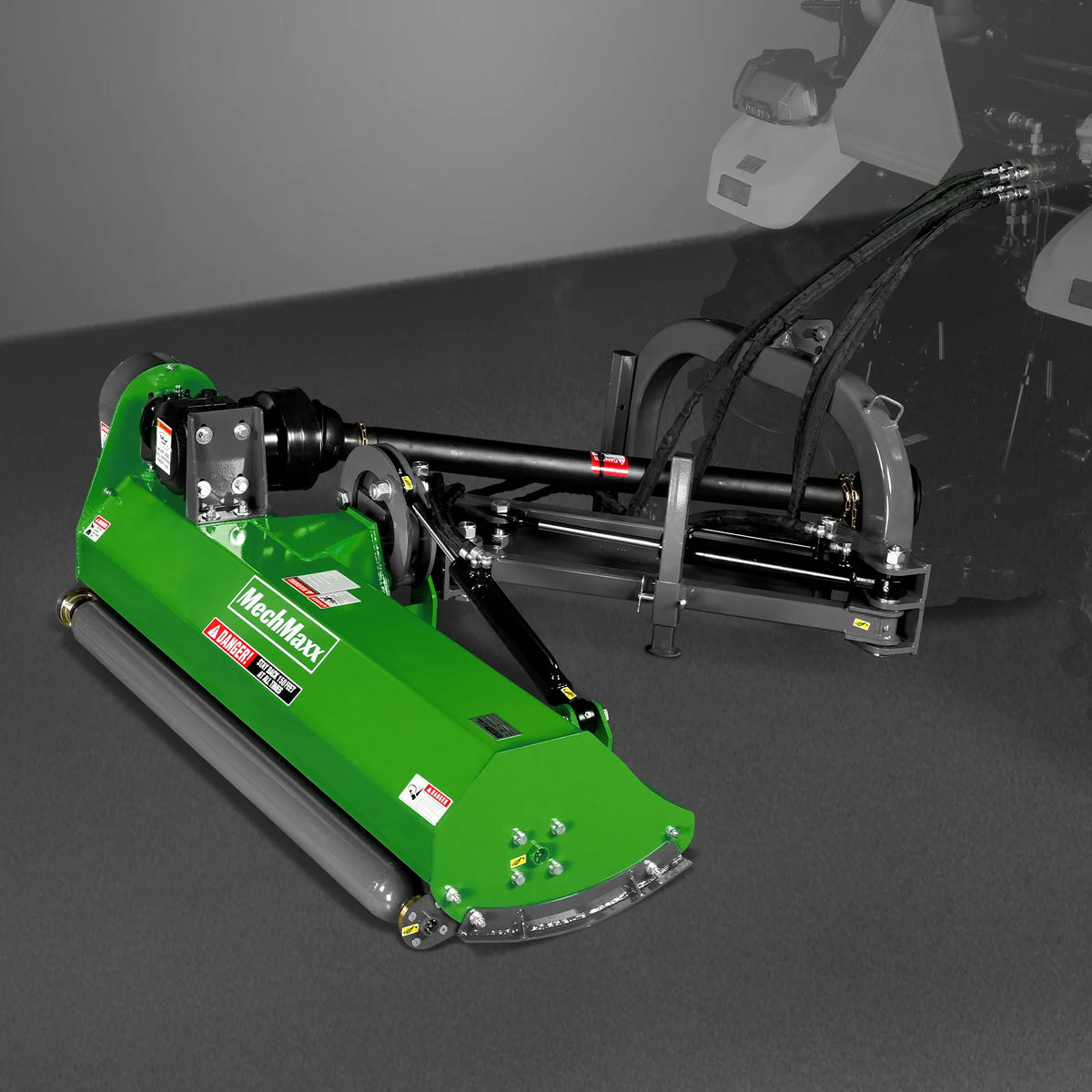

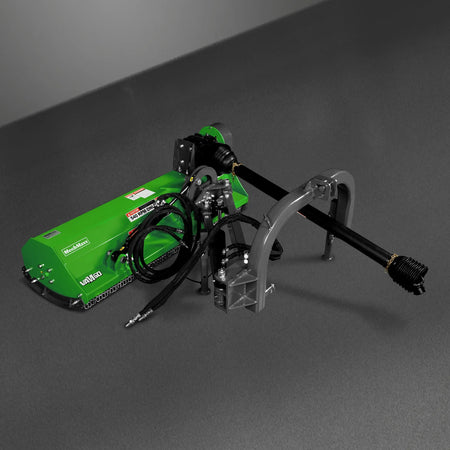

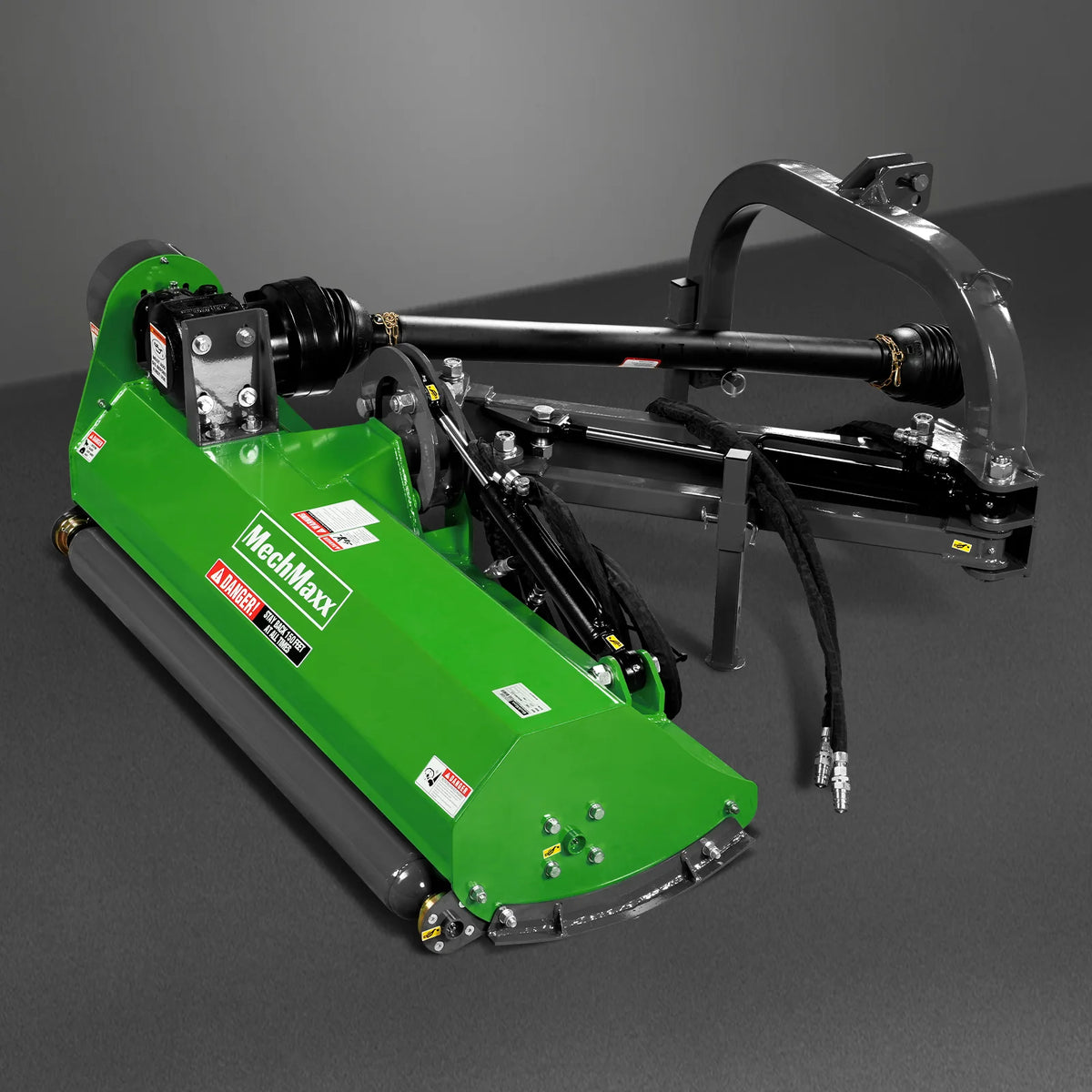

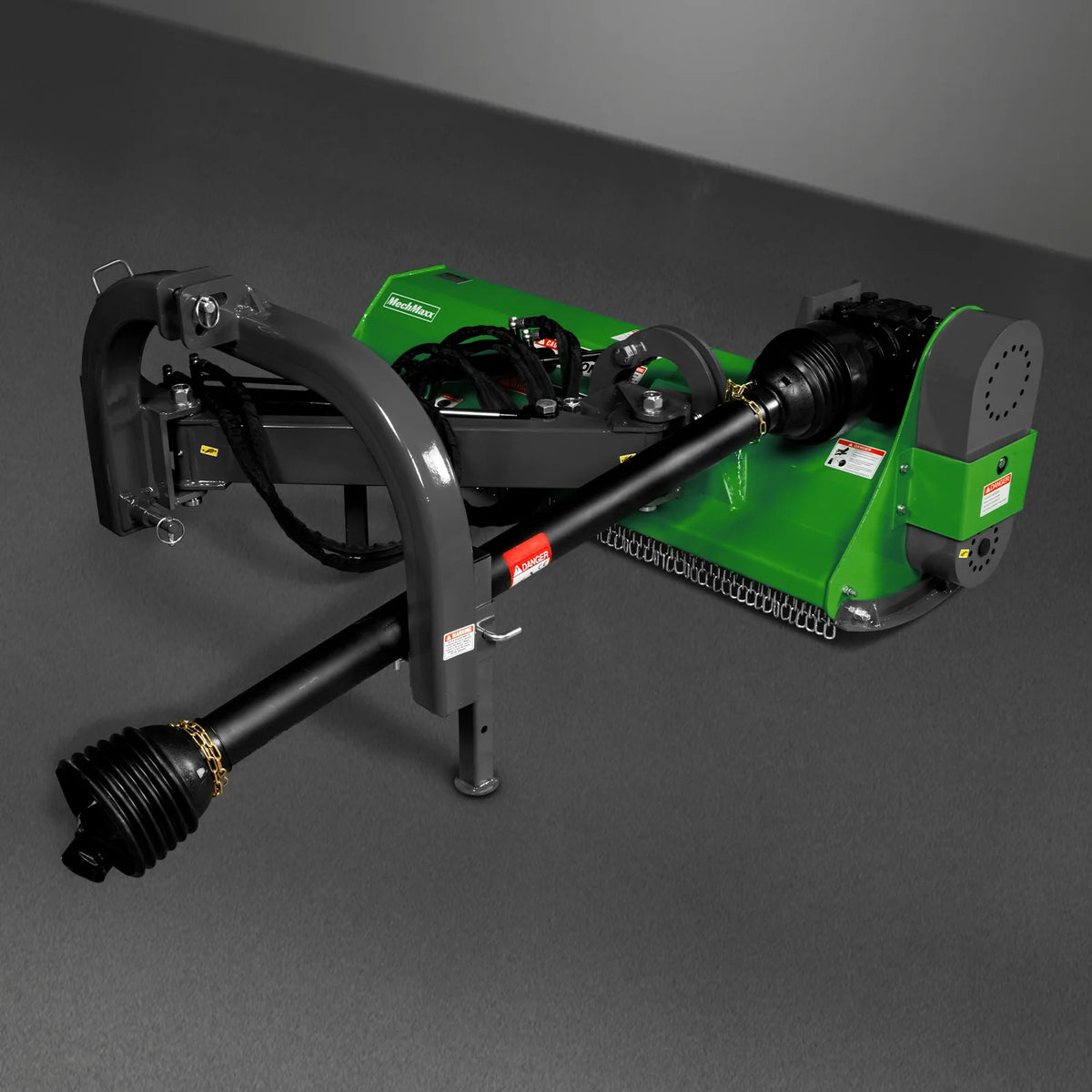

MechMaxx 60" Standard 3Point Offset Flail Ditch Bank Mower, 25-60HP, VAM60

SKU: 150144G
(0)
$3,599.00
Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Chat Email +1 (844) 969-2952
  • 60" working width for time-saving, economical mowing of fields, long ditches, building perimeters, and large yards 24 hammer-type blades keep your mowing area cut consistently short Compatible with 25-60 HP tractors, operating at 540 RPM Hydraulically controlled rotation with 90° tilt-up and 60° tilt-down angles for versatile cutting Hydraulically controlled side-to-side movement and right side offset for reaching distant overgrown areas Includes PTO shaft (1-3/8" Z6) for Category 1 hookups, compatible with most tractor makes and models Front safety chains keep out debris; sealed tapered roller bearings for durability Storage brackets for easy storage when not in use

This mower saves time and economically cuts plants in larger areas. The attachment has a flail hammer to help the mower push through dense debris. The included PTO drive shaft easily connects to your tractor, and the belt drive allows for efficient power transfer. It uses an offset Category 1, 3-point hookup and is recommended for 25-60 HP tractors, capable of covering material up to 1.5" in diameter. Front safety chains keep out debris, and sealed tapered roller bearings and storage brackets make it easy to maintain and store when not in use.
Engine Power Required 25-60 HP Rotor Shaft Speed 2356 rpm
Working Width 60 in Hydraulic Fittings Size G1/2 in
Overall Width 64 in Hydraulic Hoses Quantity 4
Ground Clearance (Two Gears) 0.5-0.6 in Drive Type Belt Drive
Max. Cutting Diameter Depends on the type of grass Spline End 1.375 in Z6
Offset Distance from Center (Maximum) 77 in Driveline Shaft Length T6-LF-63 with shear bolt; 63in-77in [05B-1600]
Tilt-Up Angle 90° PTO Shaft Speed 540 rpm
Tilt-Down Angle 60° 3-Point Hitch CAT 1
Number of Blades 24 Deck Thickness 0.16 in
Blade Type Hammer Side Plate Thickness 0.25 in
Size of Blades 3.5 x 3.2 x 1.6 in Number of Belts 3
Blade Weight 0.9 lbs Belt Size V Belt 17x991
Blade (Tines) Material Cast Steel Gearbox Oil Type 85W-90
Rotor Bearing SKF Bearing Dimensions (L x W x H) 64 x 27.5 x 28 in
Rotor Diameter 4.3 in Finish Powder Coating
Blade Swing Diameter 14 in Warranty 1 Year
Rotor Thickness 0.3 in Weight (N.W./G.W.) 657/772 lbs

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

Flail Mower (SKU: 150144G) stands up to extreme testing and comes with a one-year warranty for the machine.

Frequently Asked Questions

What can this mower cut?

It's designed for green or tender grass — it cannot cut tall grass, shrubs, vines, or thorny brambles.

What tractors is this compatible with?

It's compatible with 25-60 HP tractors and requires rear hydraulic connections.

How does the cutting angle adjust?

It's hydraulically controlled, with a 90° tilt-up angle and 60° tilt-down angle.

Can it reach distant overgrown areas?

Yes, hydraulically controlled side-to-side movement and right side offset allow it to cut distant areas.

How many blades does it have?

It has 24 hammer-type blades.

What hitch category does it use?

It uses a CAT 1 3-point hitch.

Does it come with a warranty?

Yes, it comes with a 1-year warranty on the machine.

How much does it weigh?

It has a net weight of 657 lbs and a gross weight of 772 lbs.
