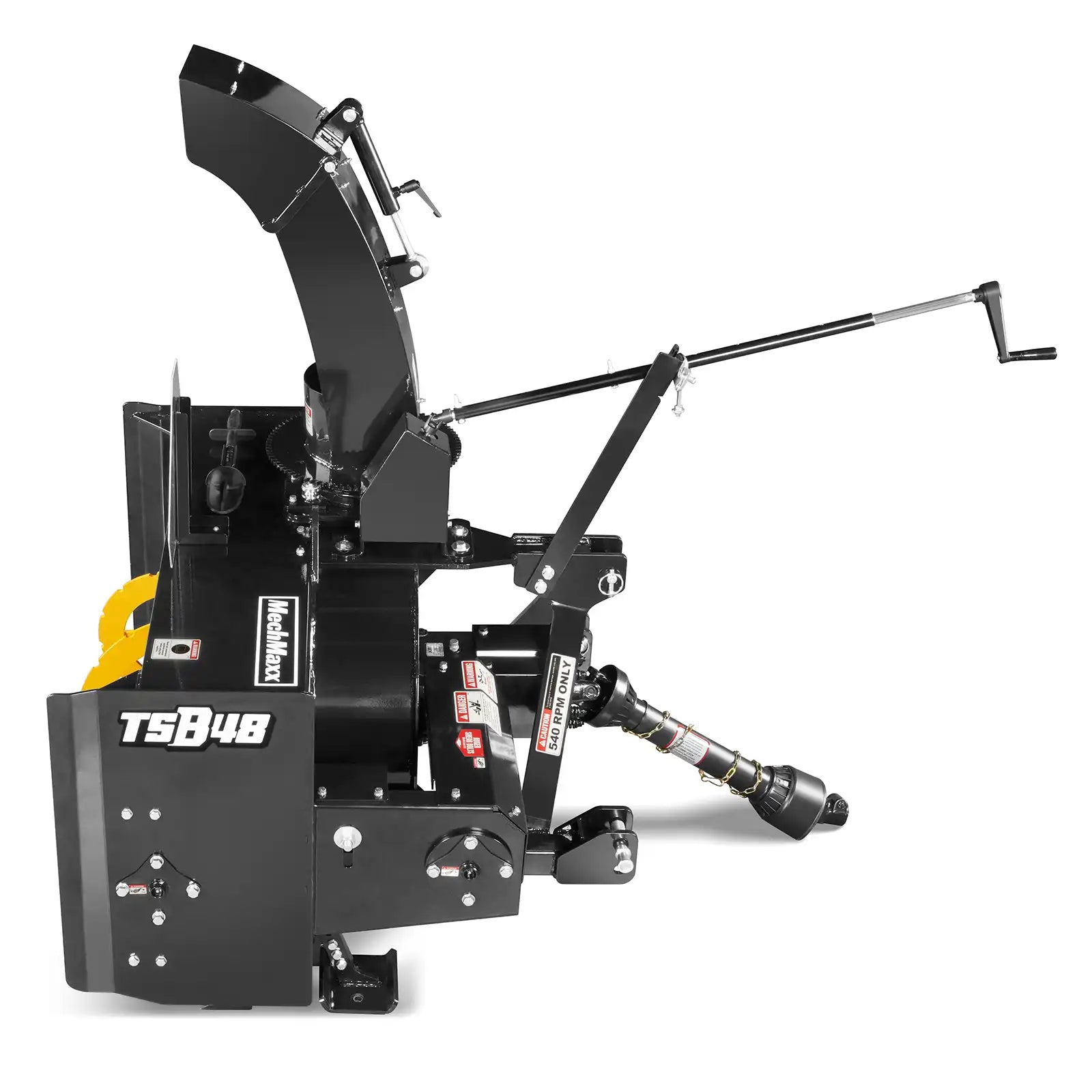

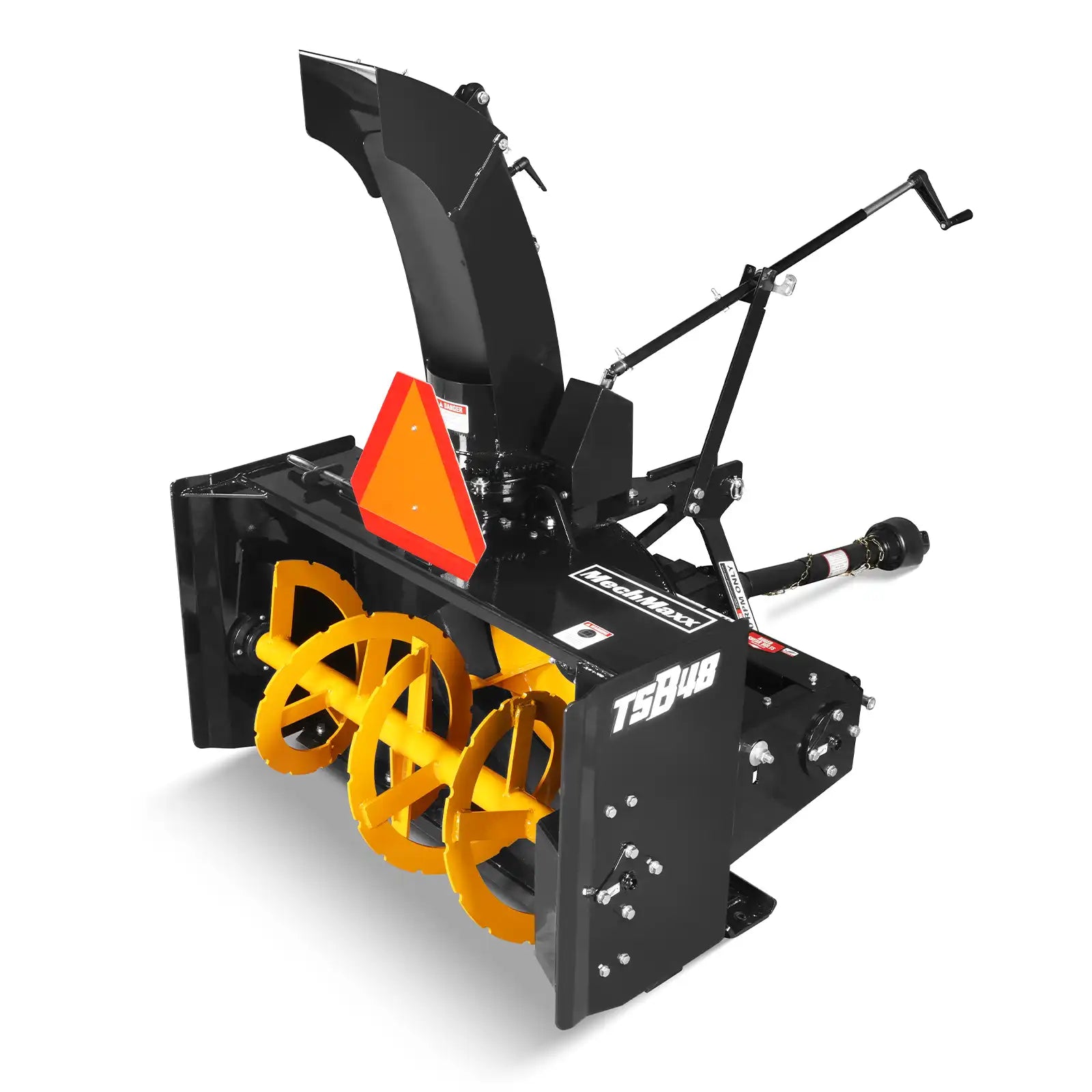

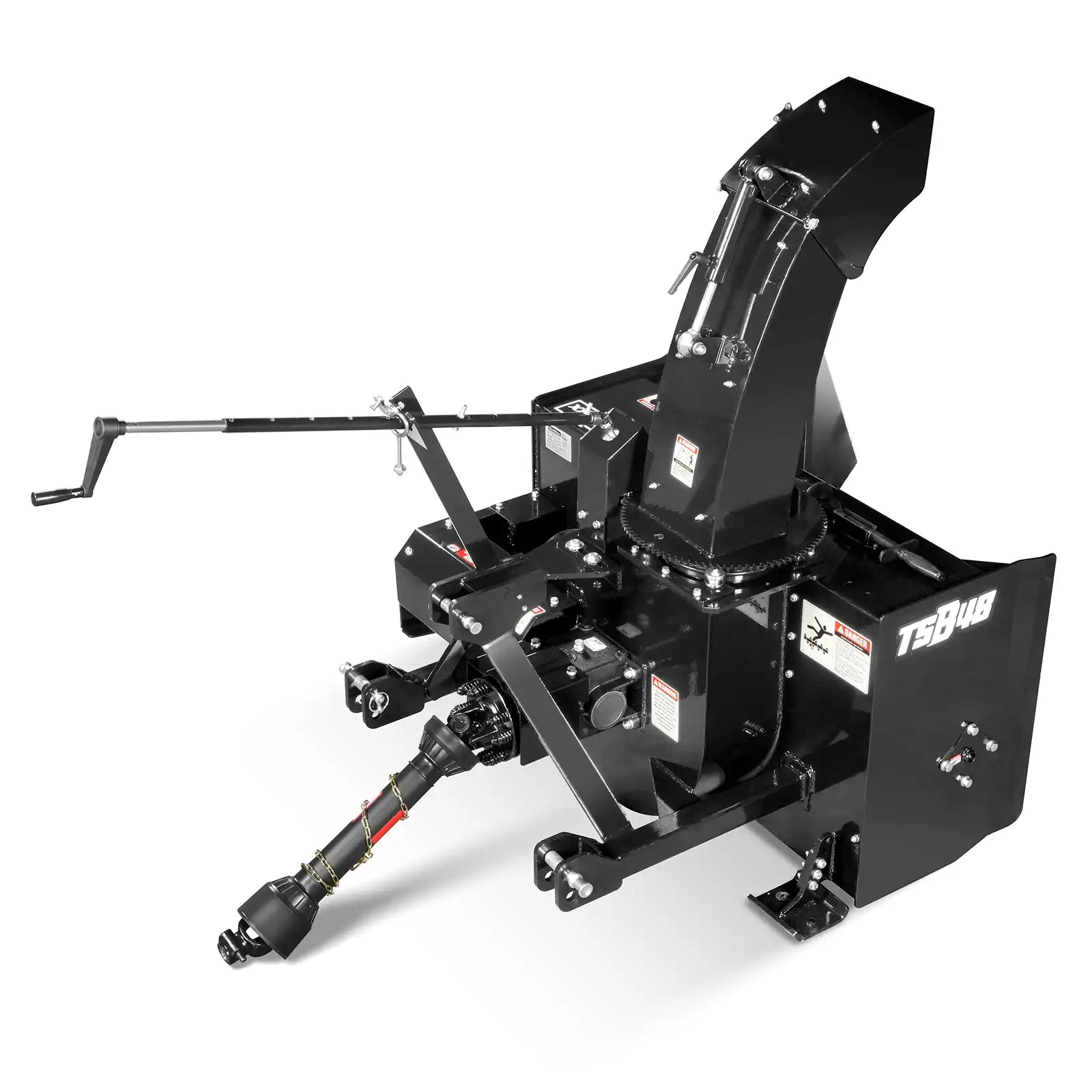

MechMaxx 48" 3 Point PTO Snow Blower 24" Impeller Diameter 360° Snow Chute (PTO Shaft Included with Slip Clutch), 20-45 HP, TSB48
Regular price
$3,199.00
Couldn't load pickup availability
Free shipping
100% secure payments
Industry leading quality
Ask an expert!

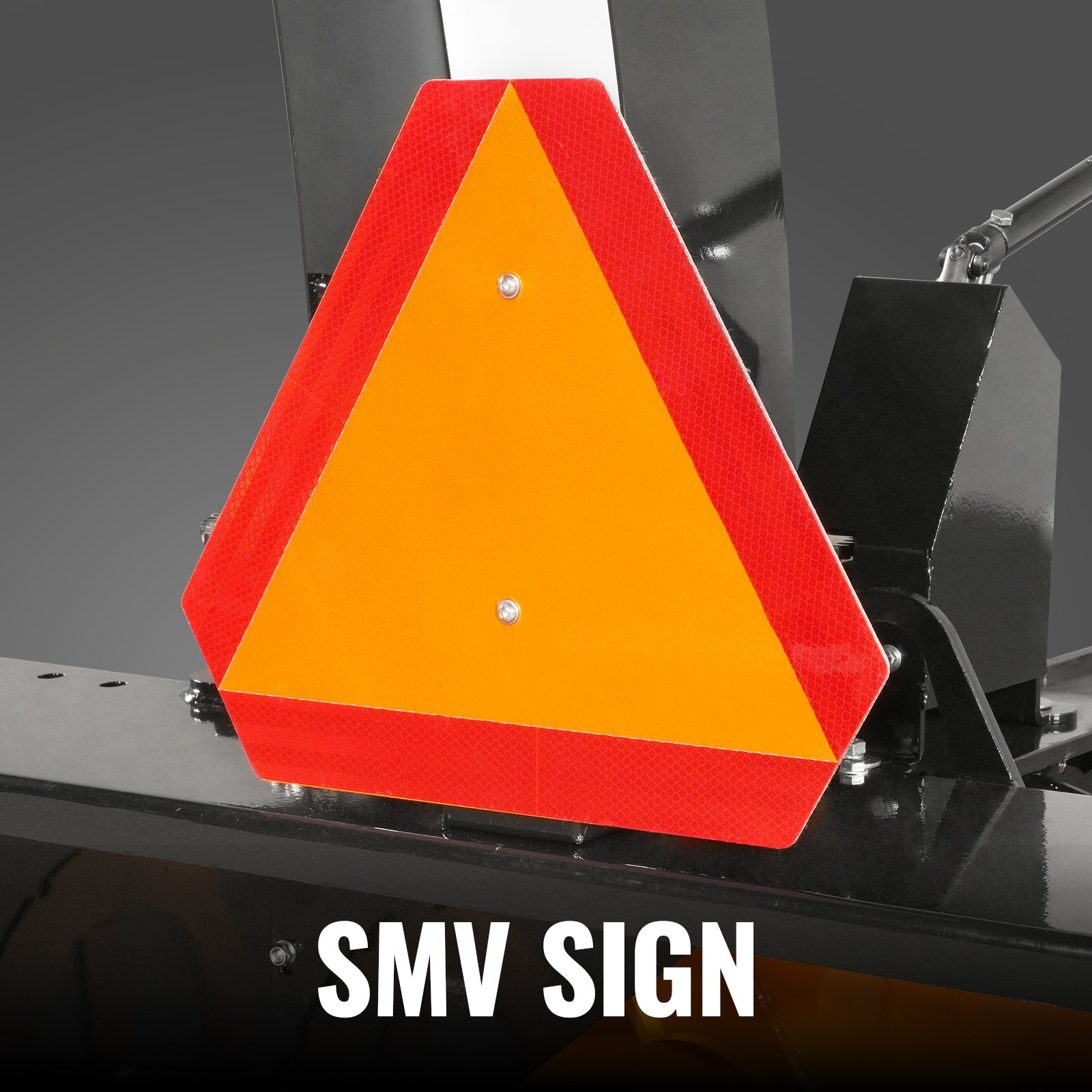

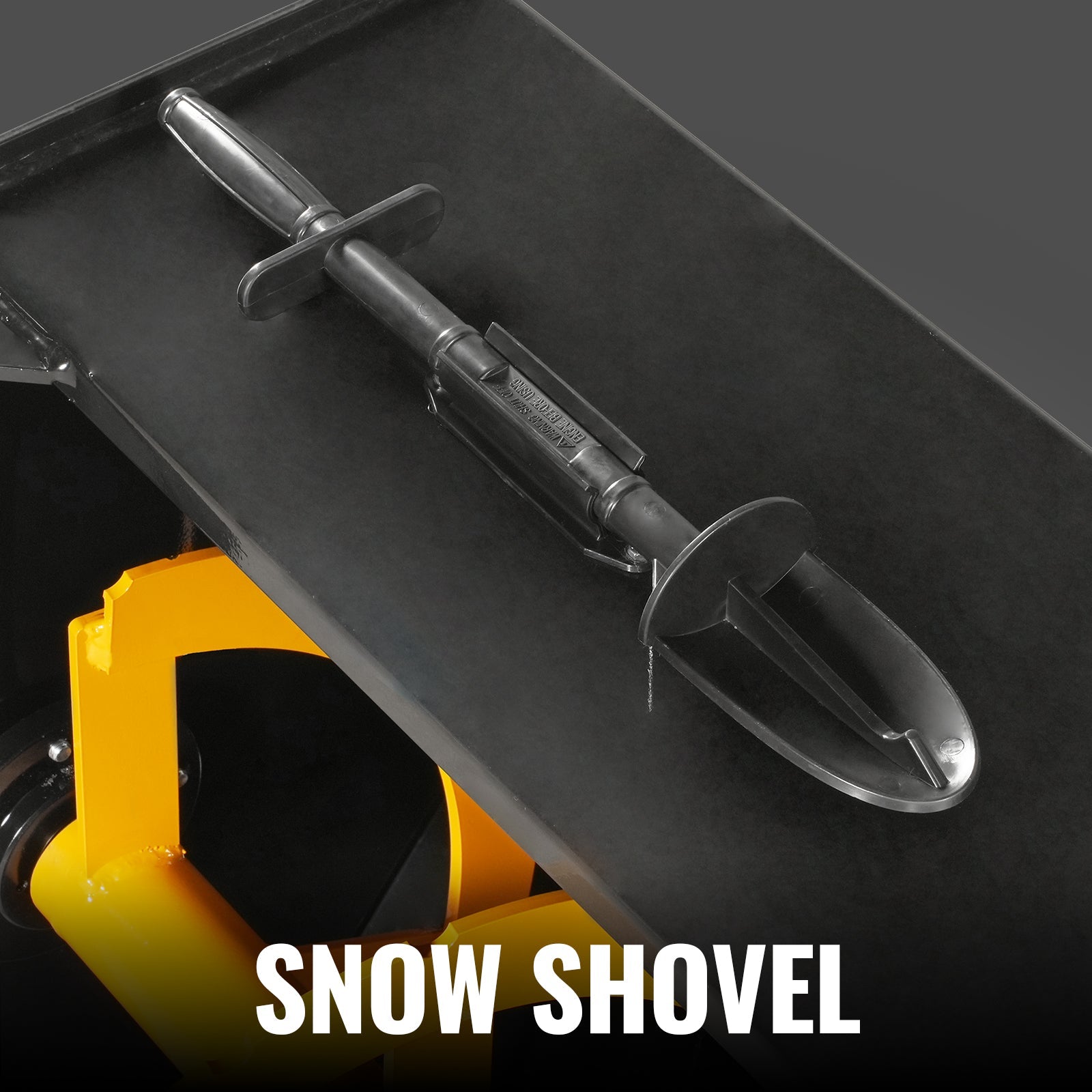

- 48" cutting width and 27" cutting height for clearing deep snow drifts and heavy snowbanks 17.5" diameter auger and 24" diameter fan for powerful, efficient snow clearing Mechanical chute rotator and deflector for precise directional control (Hydraulic version available, SKU: 461033) Fits CAT I & II 3-point hitch with included PTO shaft and slip clutch Cast iron oil bath gearbox for smooth, long-lasting operation Includes snow shovel and SMV sign for safe, US-standard-compliant operation

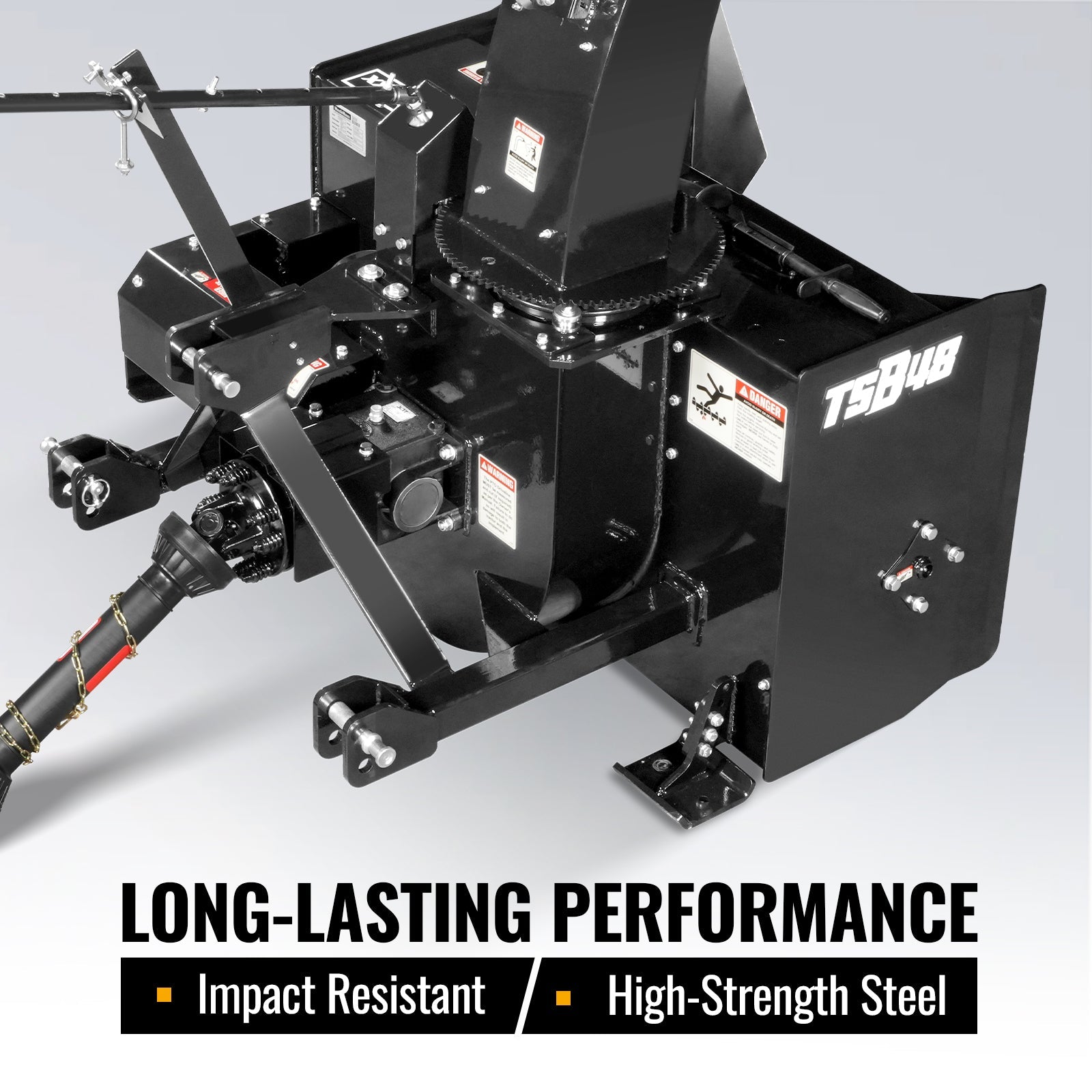

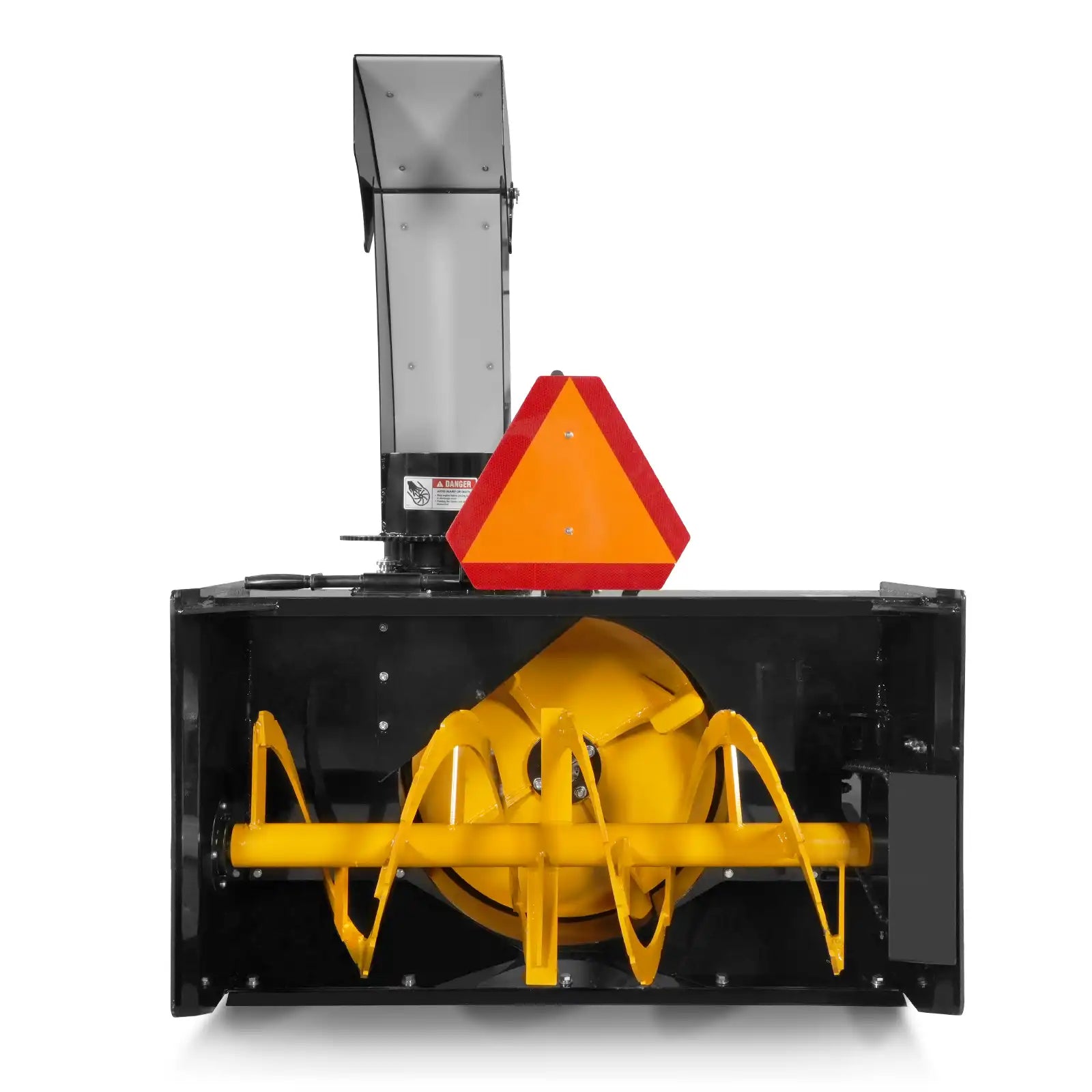

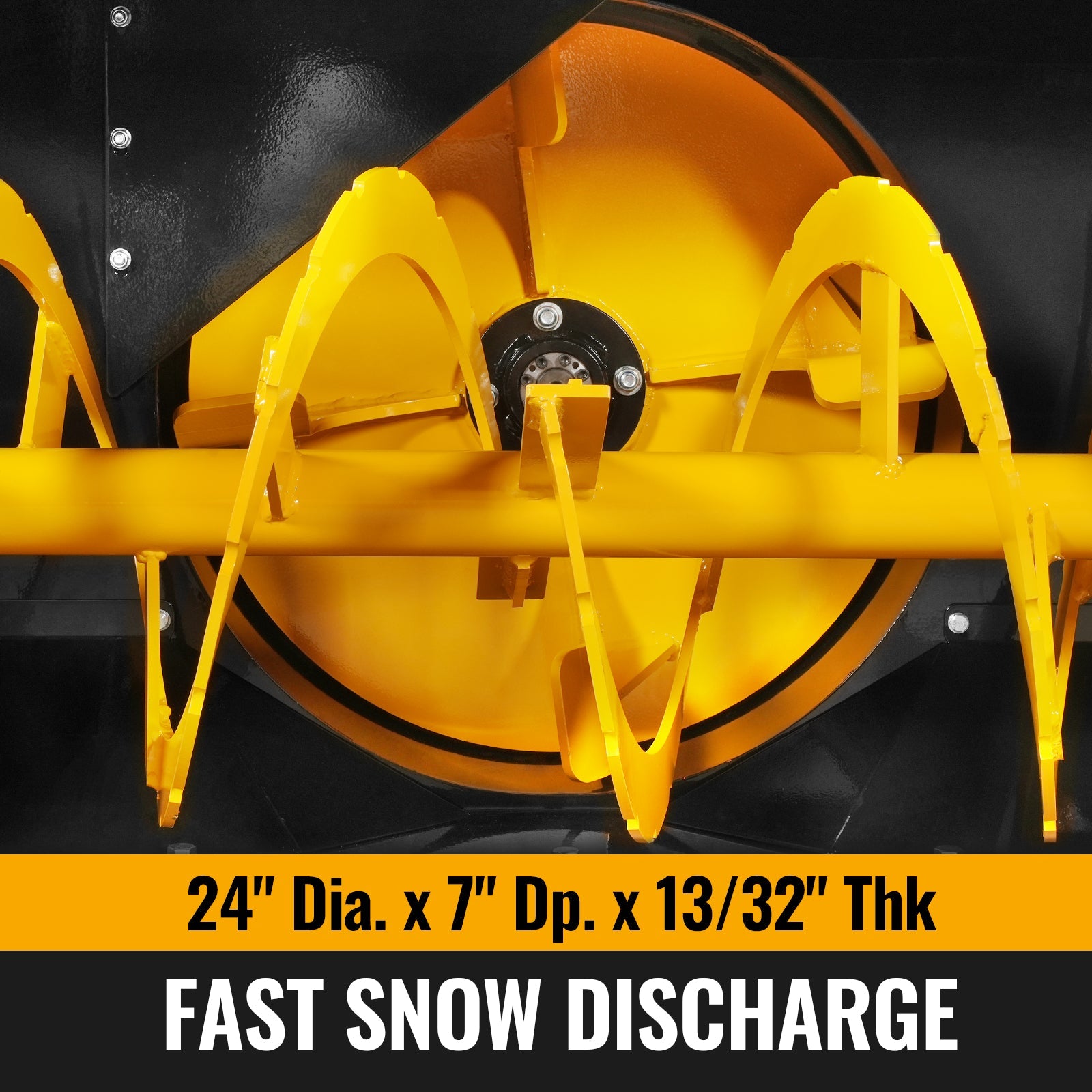

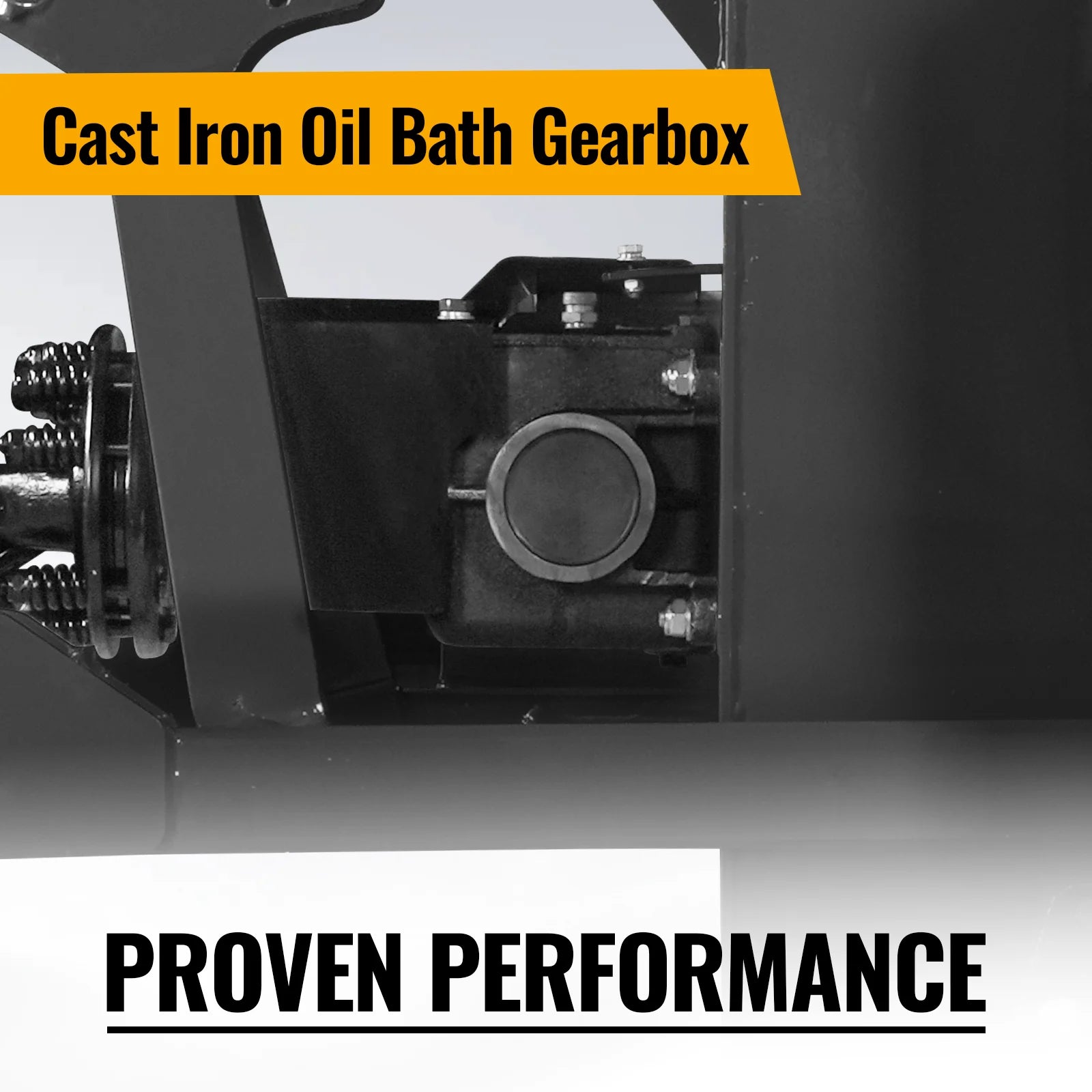

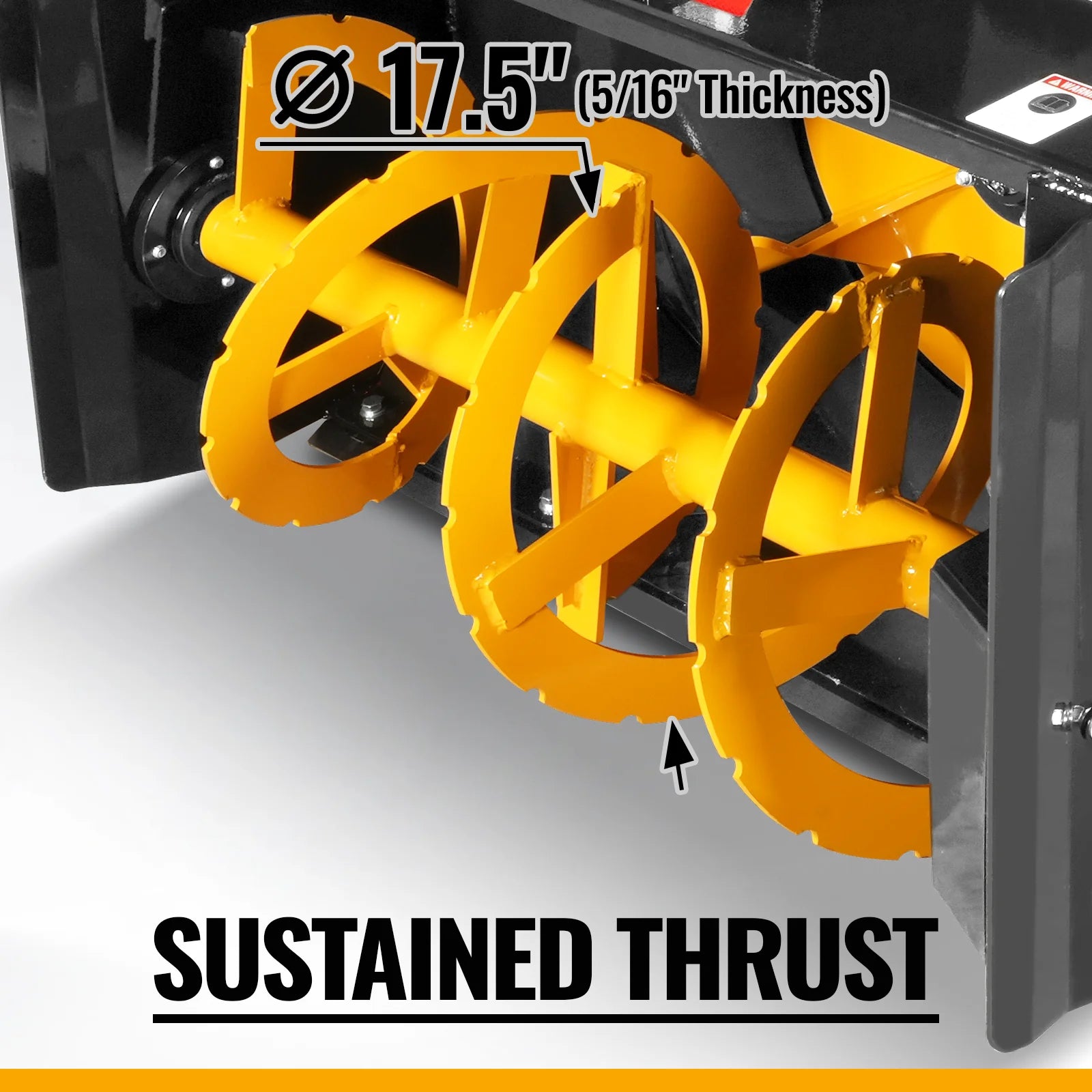

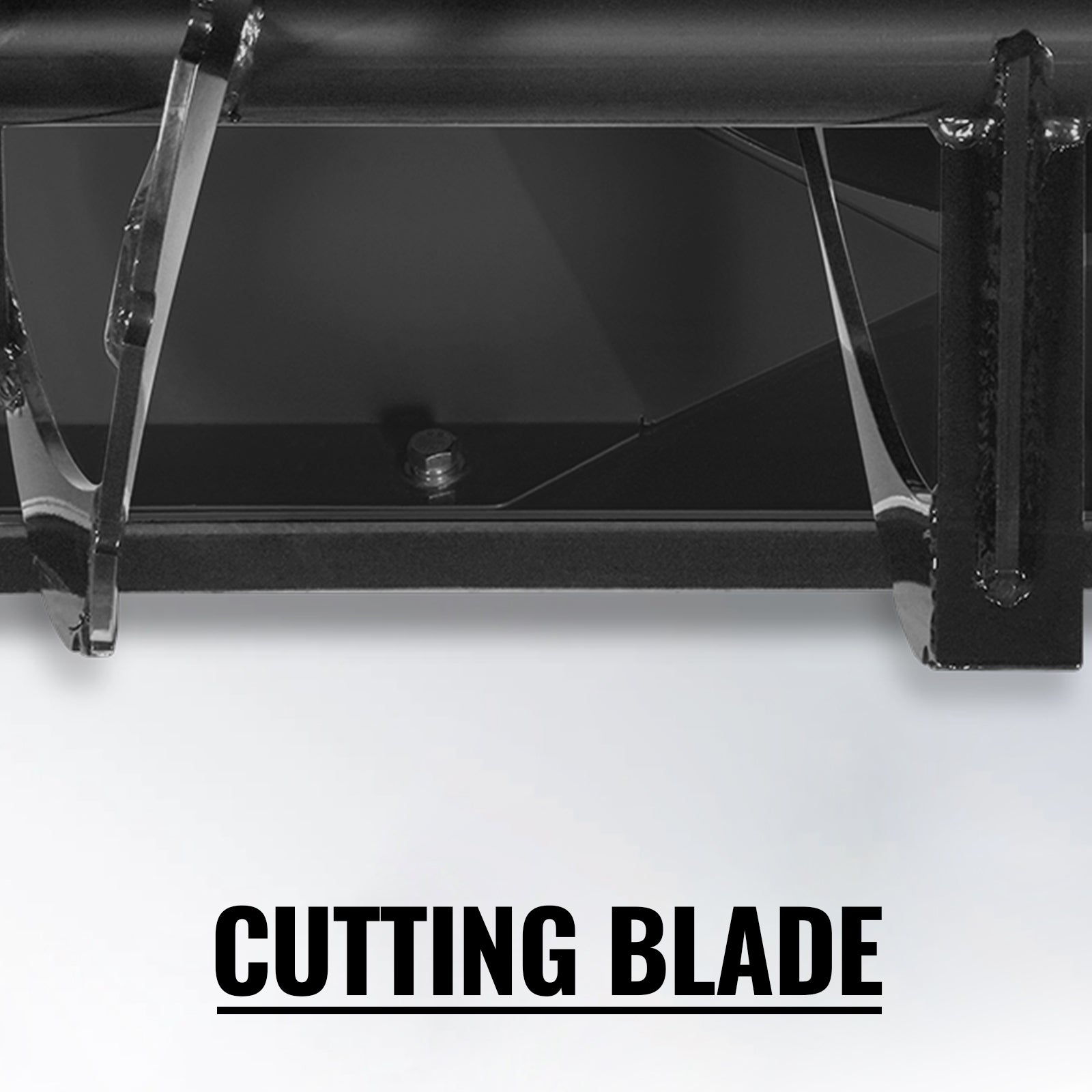

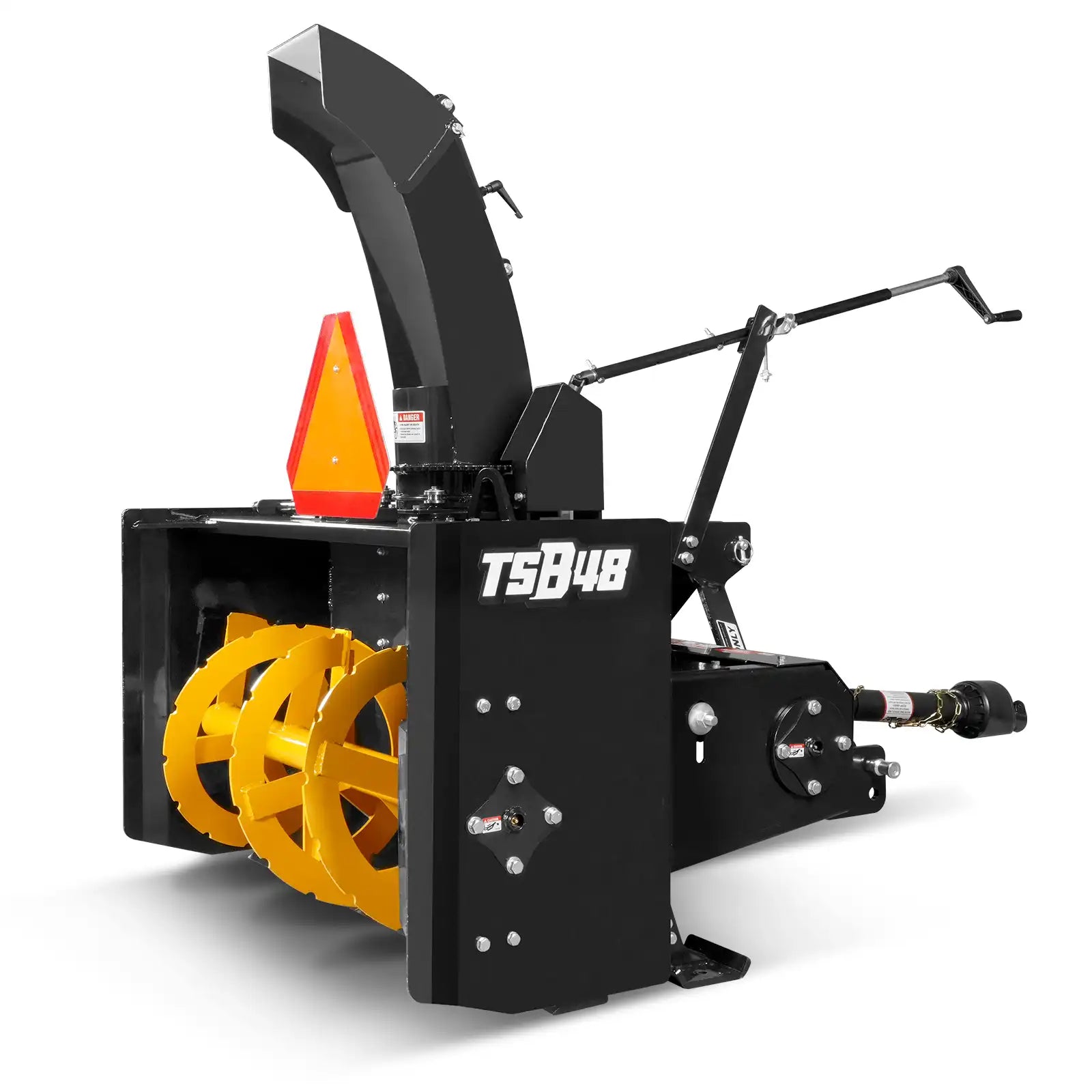

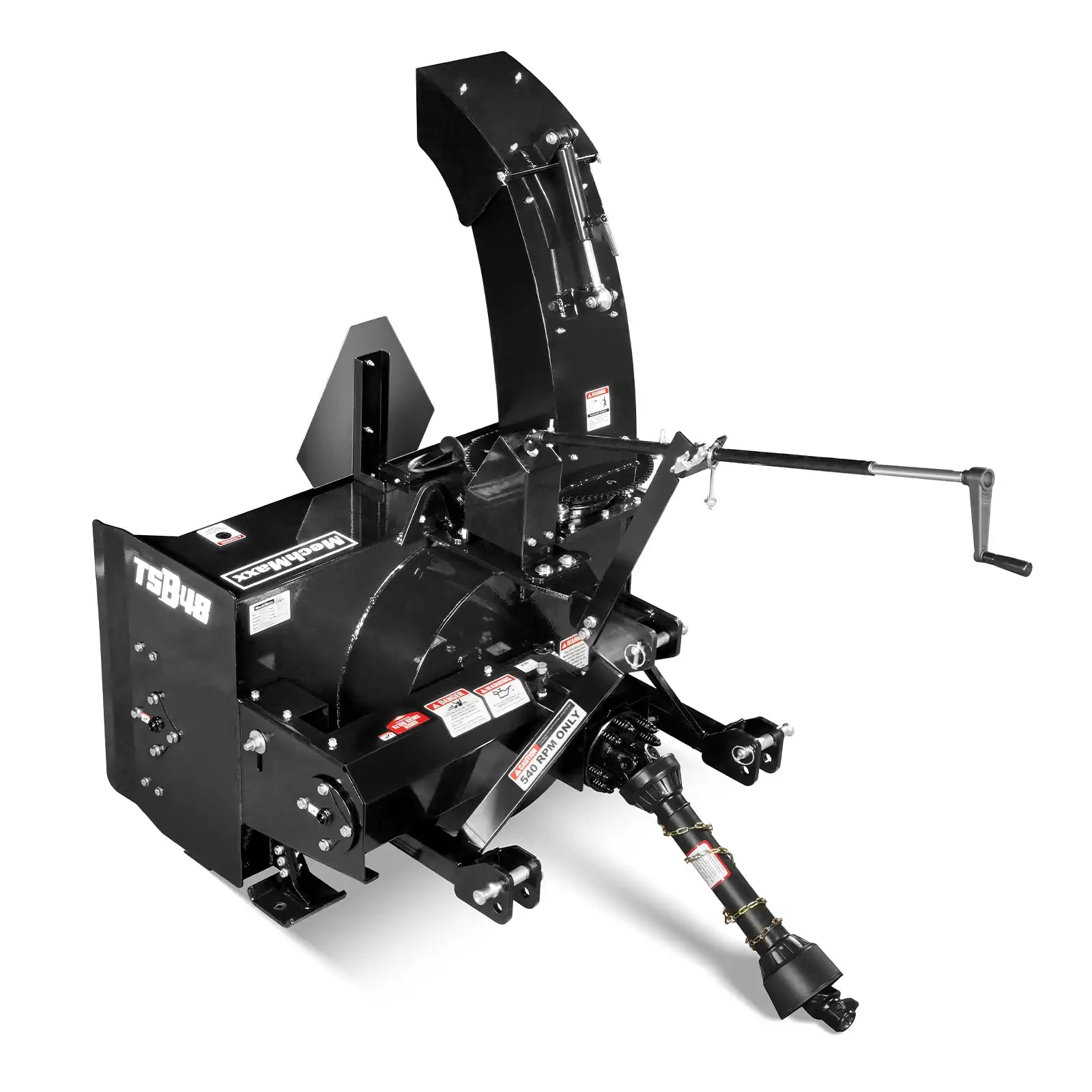

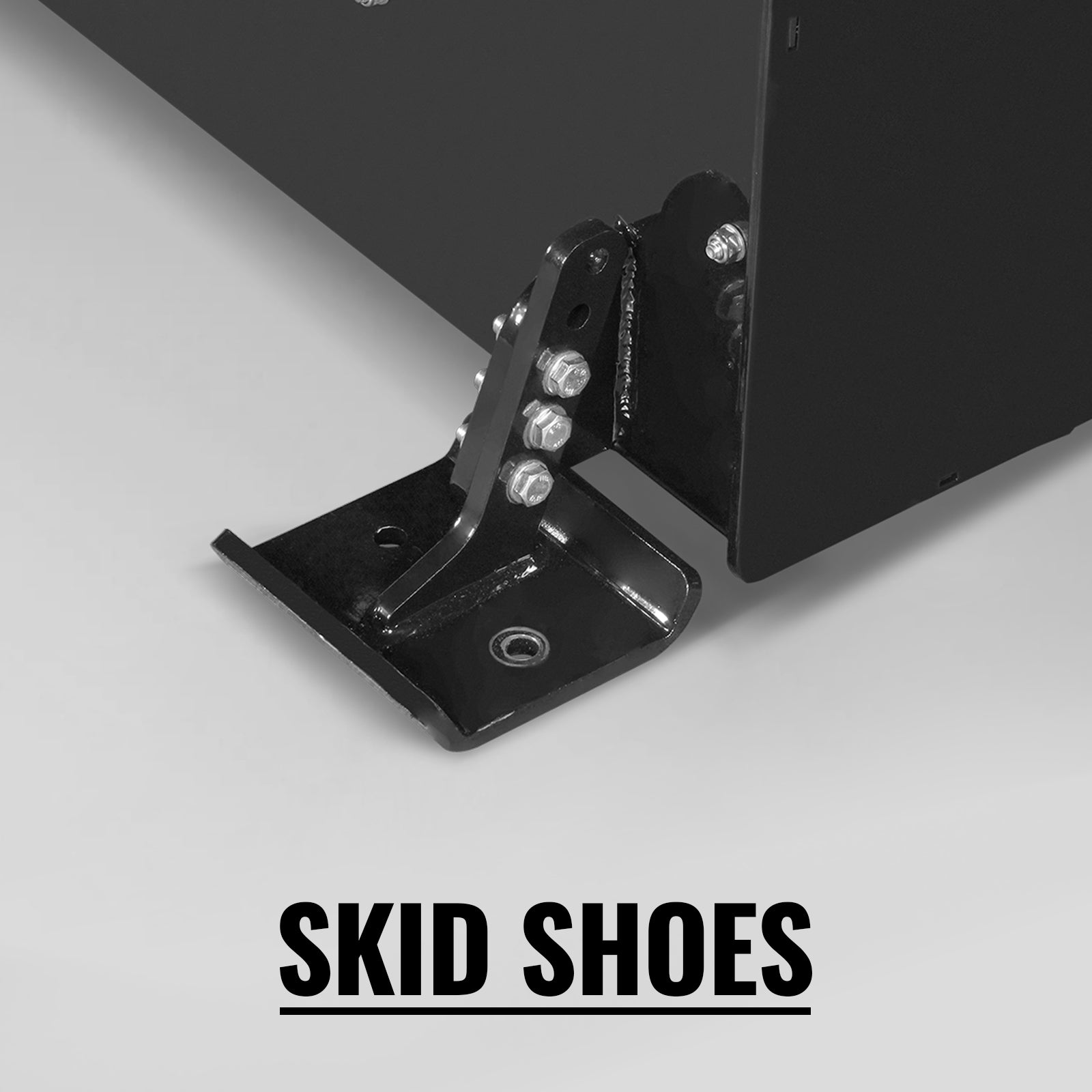

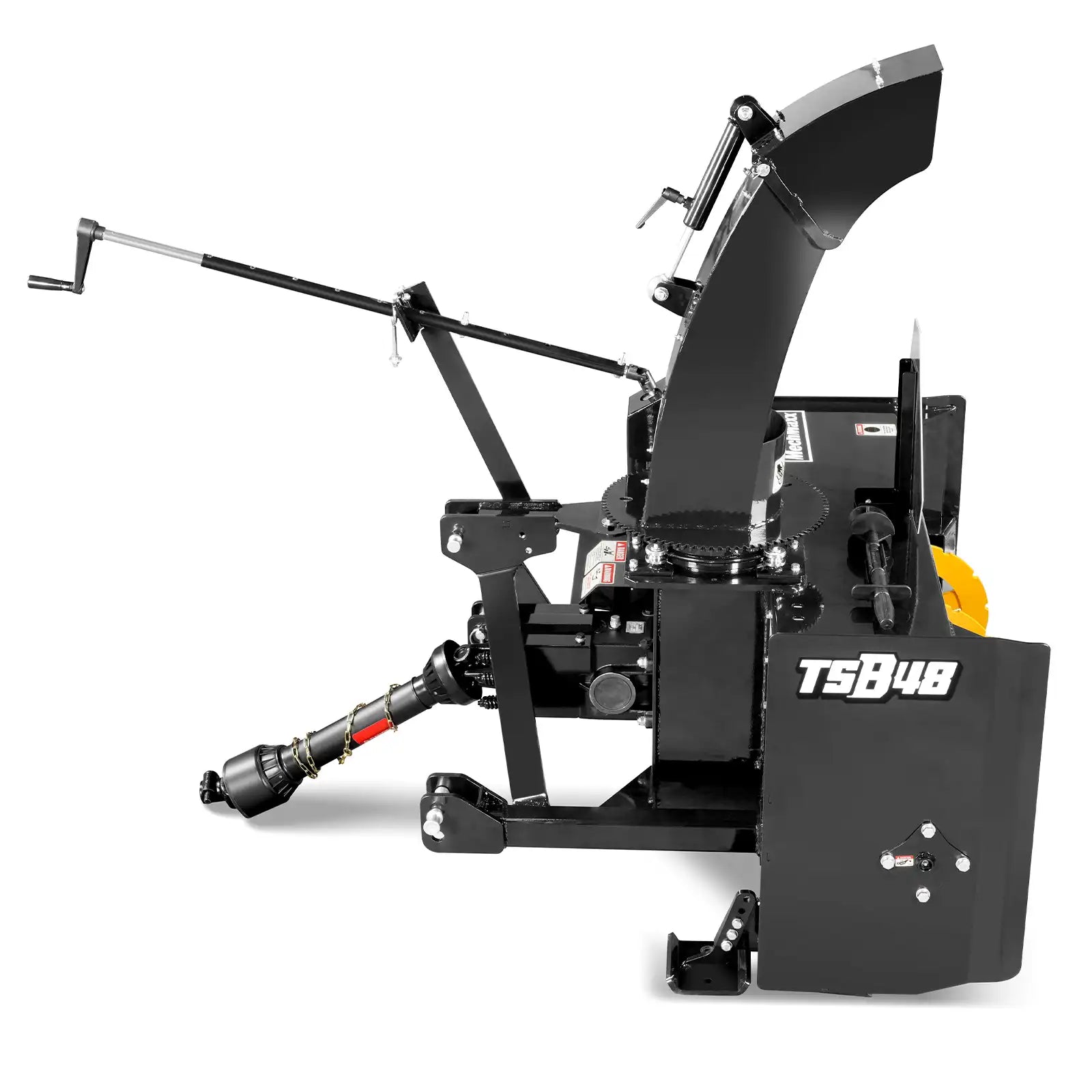

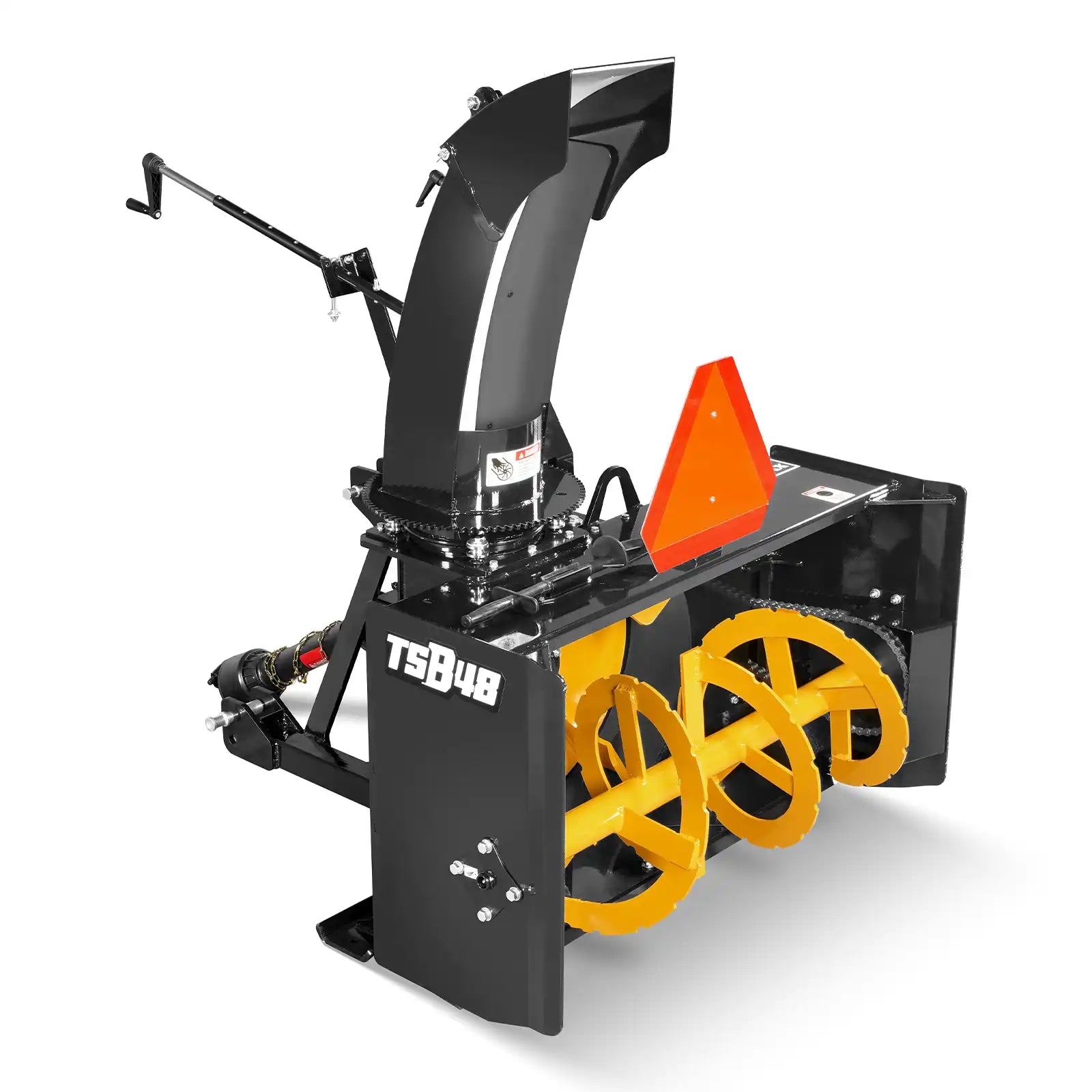

Clear deep snow drifts and heavy snowbanks with the TSB48, a 48" 3-point hitch snow blower built from heavy-duty structural steel with precision welding for superior strength and durability. Featuring a 17.5" diameter serrated auger, a 24" diameter 4-blade fan-style impeller, and a cast iron oil bath gearbox, this machine delivers consistent power transfer and reliable snow discharge. A 27" cutting height and 360° mechanical chute rotator with deflector give you precise directional control over where snow is thrown, while replaceable cutting edges, skid shoes, and stainless-steel hardware extend service life and resist corrosion. Fits CAT I & II 3-point hitches and includes a PTO shaft with slip clutch, rated for 20-45 HP tractors.
| Cutting Width | 48 in | Gearoil Capacity | Approximately 1.22 quart (1.15L) |
| Cutting Height | 27 in | Gearoil Type Recommended | 85W-90 |
| Cutting Edge | 1/2" x 4" hardened bolt-on replacement | Chute Rotation Control | Mechanical (Hydraulic optional, SKU |
| Auger Diameter | 17.5 in | Mechanical Chute Rotation Angle | 360° |
| Auger Thickness | 5/16 in | Deflector Control | Mechanical (Hydraulic optional, SKU |
| Auger Tube Diameter | 2 3/4 in | Recommended PTO HP | 20-45 HP |

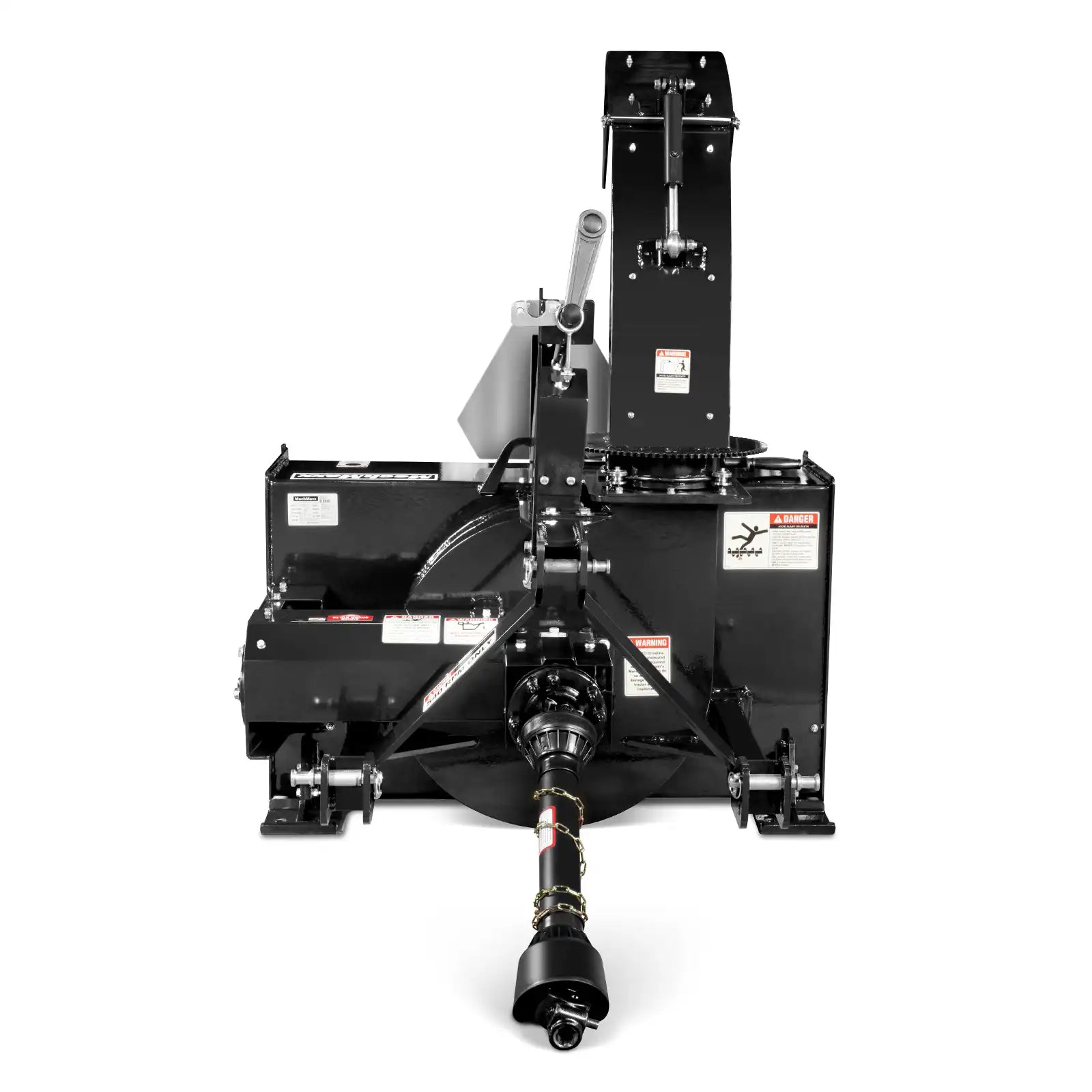

| Impeller Type | 4 Blade Fan Style | Hitch Compatibility | 3-Point Hitch CAT I & II |
| Impeller Diameter | 24 in | PTO Speed | 540 RPM |
| Impeller Depth | 7 in | PTO Shaft | 1-3/8" 6 Spline Slip Clutch |
| Impeller Steel Thickness | 13/32 in | Packing Size (LxWxH) | 55 x 45 x 33 in |
| Gearbox Type | Cast Iron Oil Bath | Weight (N.W./G.W.) | 720/815 lbs |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Snow Blower (SKU: 201042) stands up to extreme testing and comes with a one-year warranty for the machine.
Frequently Asked Questions
What size tractor do I need for this snow blower?
The TSB48 is recommended for tractors with 20-45 HP and runs at a PTO speed of 540 RPM.
How wide of an area can this snow blower clear?

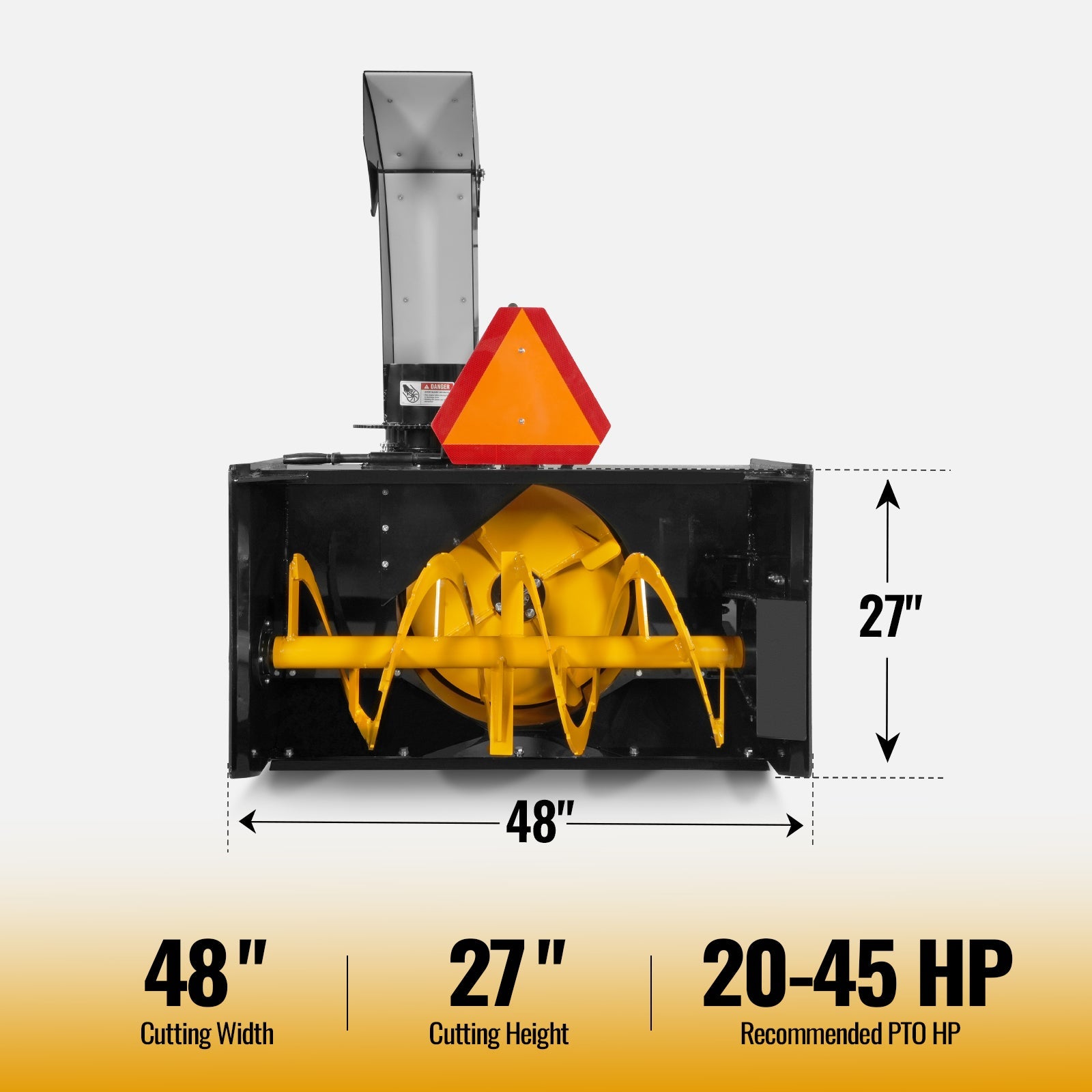

It clears a 48" wide path with a 27" cutting height, making it well suited for smaller driveways and compact tractors.
Can I control which direction the snow is thrown?

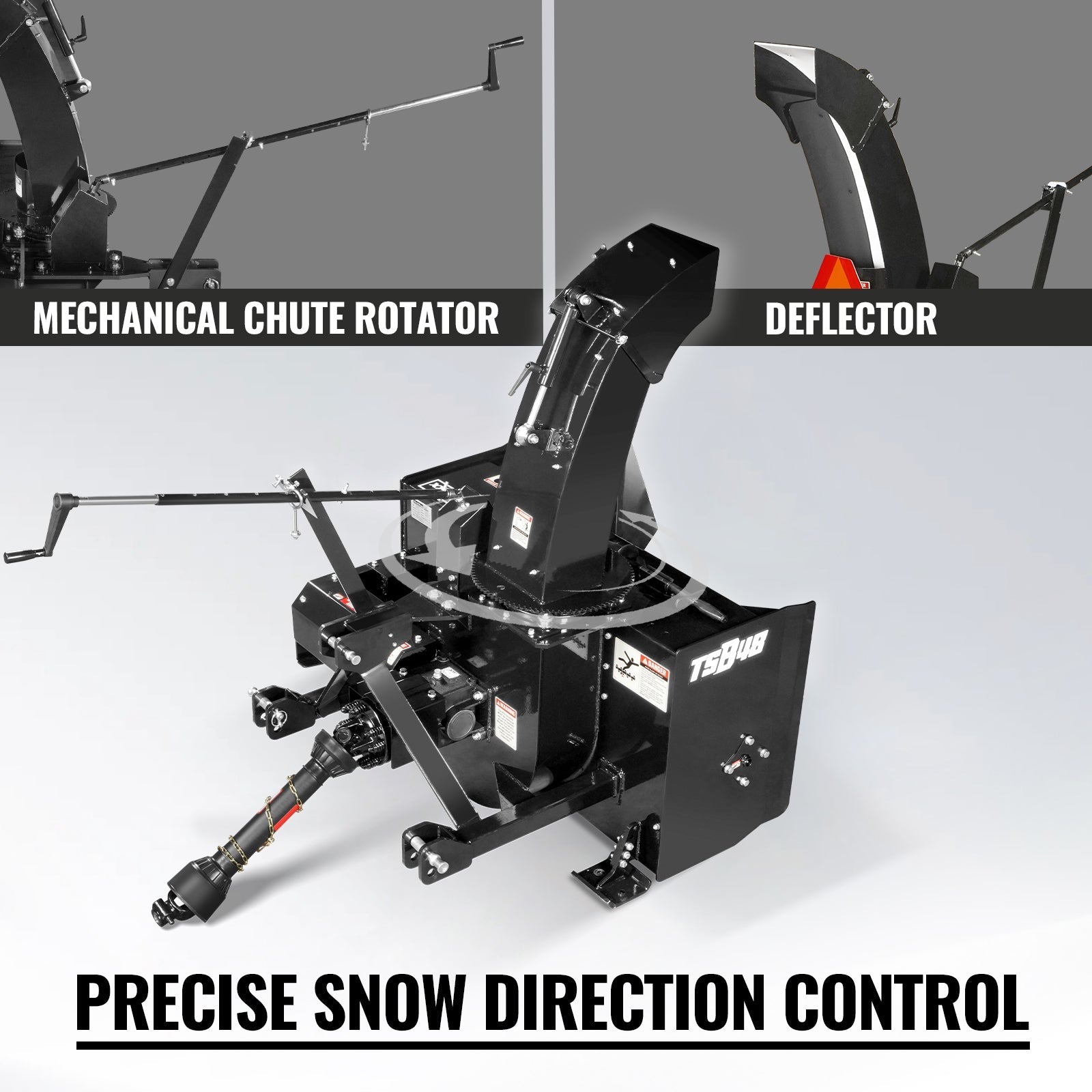

Yes, it features a mechanical chute rotator with 360° rotation and a deflector for precise directional control. A hydraulic chute rotator and deflector kit (SKU: 461033) is also available separately.
Does this snow blower include a PTO shaft?

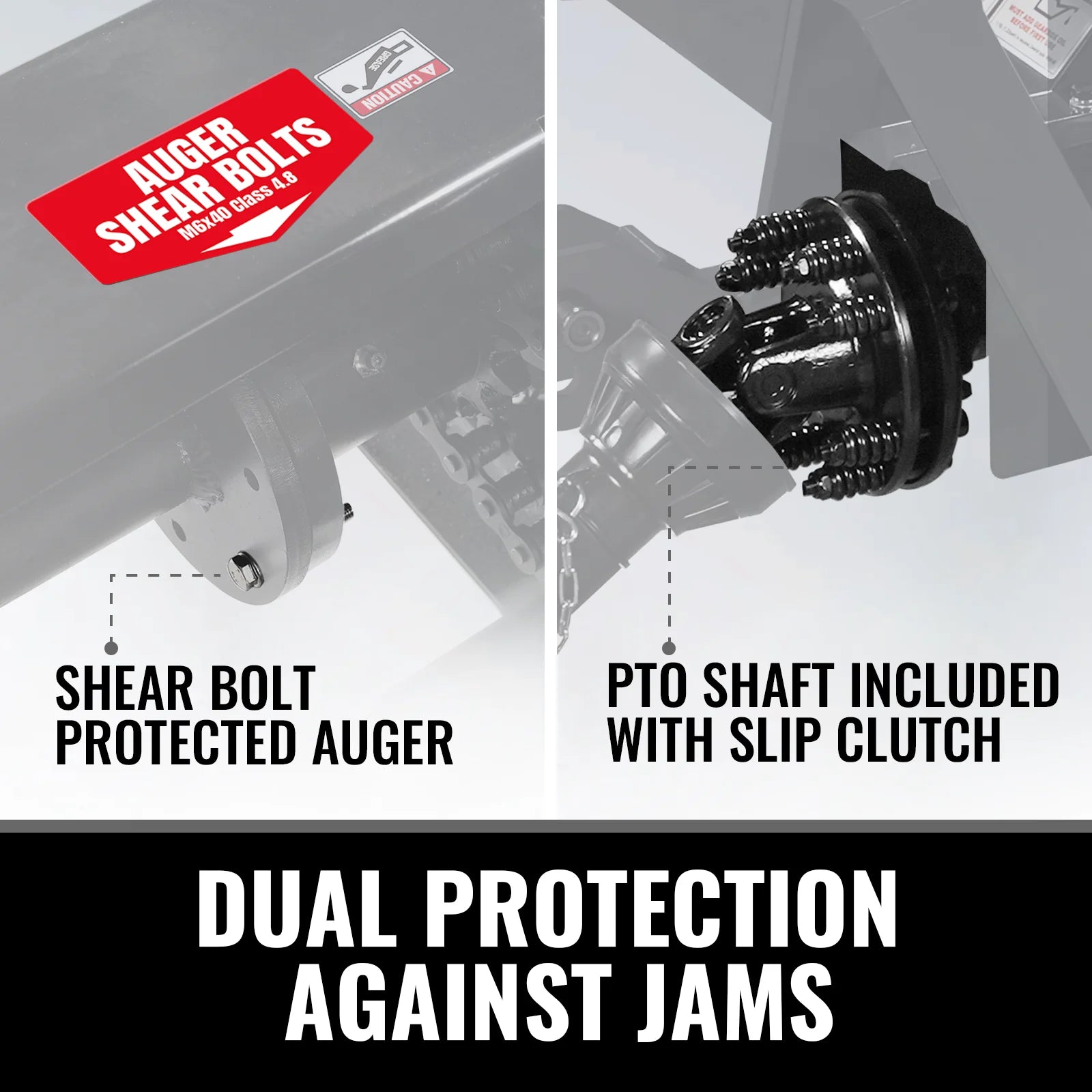

Yes, it comes with a PTO shaft with slip clutch, 1-3/8" x 6 spline on both ends, with a length of 31.5"-39".
What hitch type does this snow blower use?
It's designed for CAT I & II 3-point hitches.
Does this come with a warranty?
Yes, the Snow Blower (SKU: 201042) comes with a one-year warranty for the machine.
Is any maintenance required before first use?

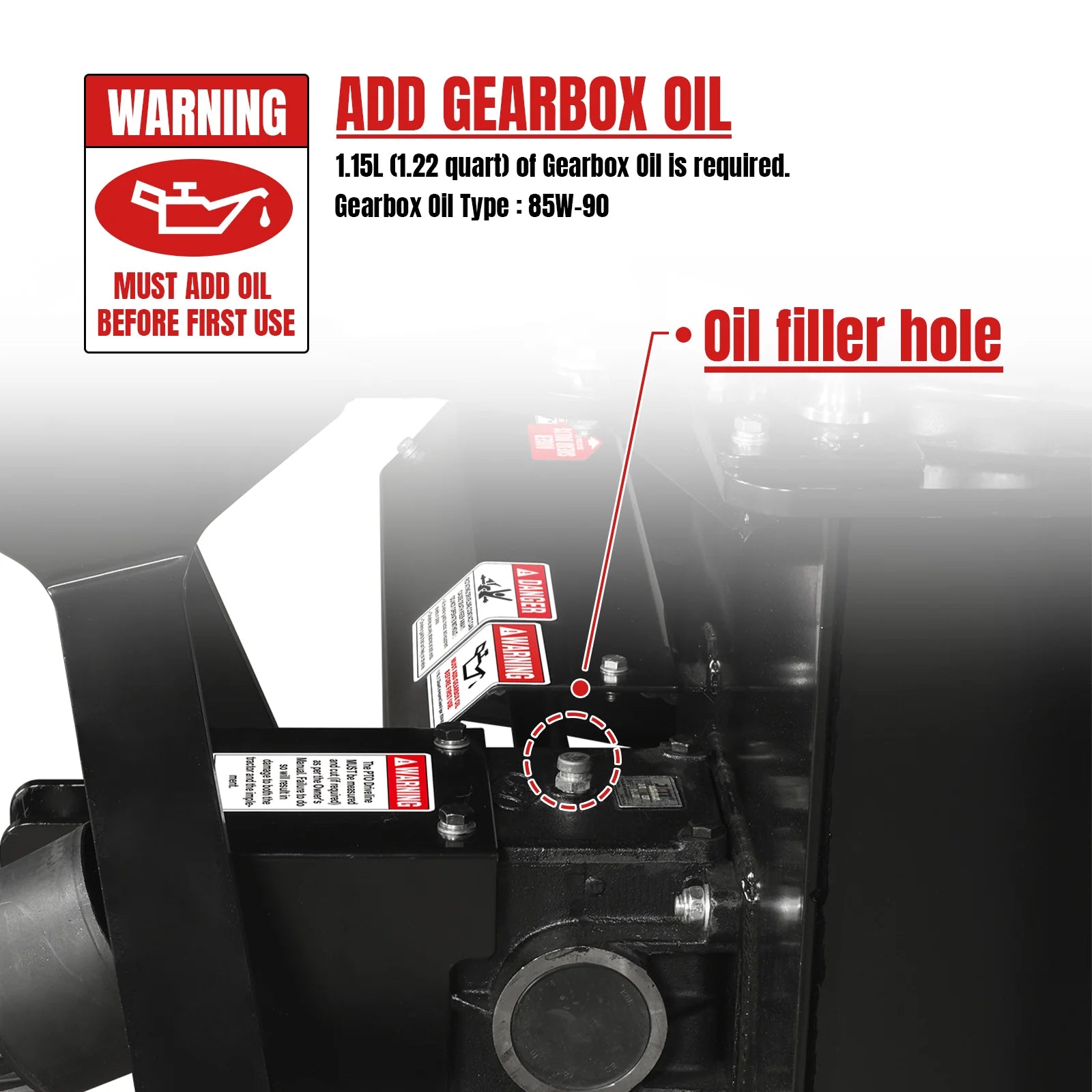

Yes, you should check and grease all grease fittings and the chain, and fill the gearbox with approximately 1.22 quarts (1.15L) of 85W-90 gear oil before operating.
How much does this snow blower weigh?
It has a net weight of 720 lbs and a gross shipping weight of 815 lbs.
