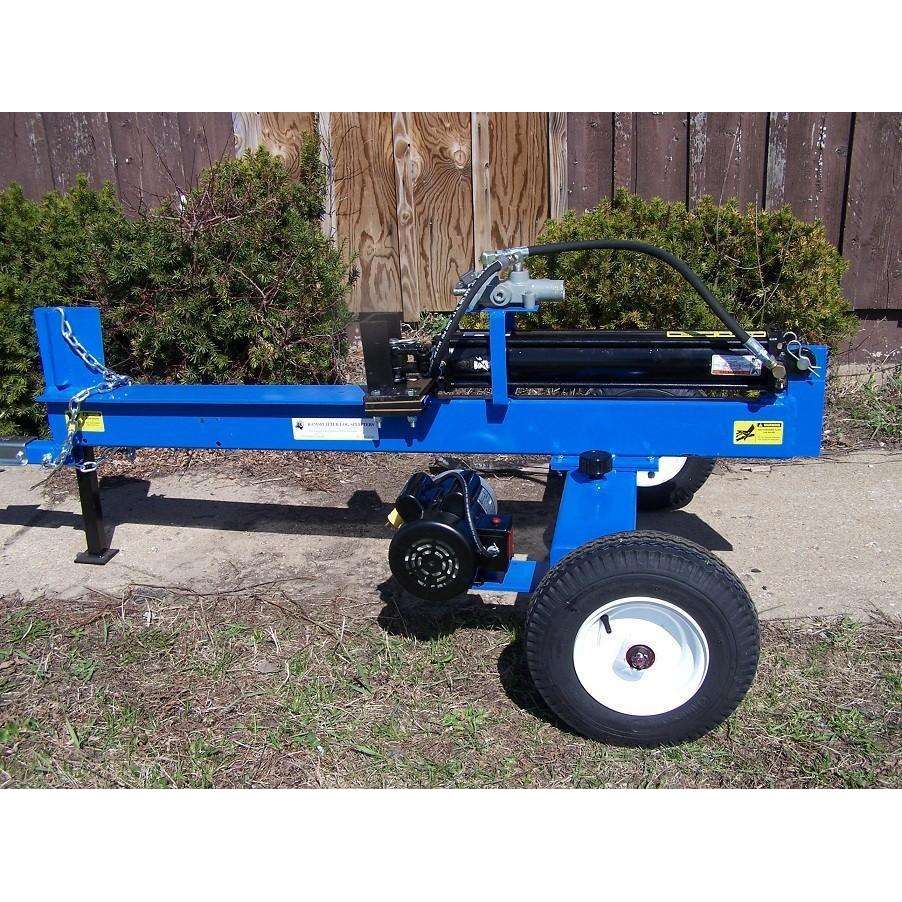

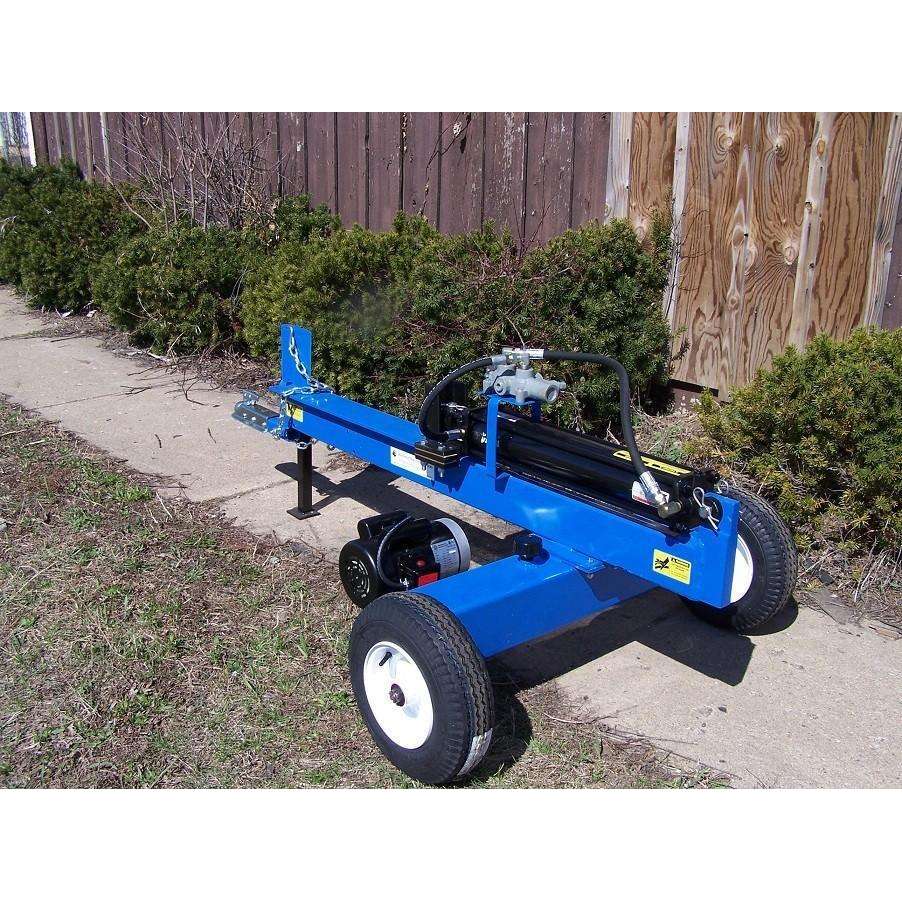

The Ram Splitter H20-4-2 is a heavy-duty 20 ton electric log splitter built for serious firewood splitting without the noise, fumes, or maintenance of a gas engine. Designed with the same rugged frame and hydraulic system used on comparable gas-powered models, this USA-made splitter gives you the power and durability you need — just plug it in and start splitting. Powered by a 2 HP electric motor, it delivers strong torque and dependable splitting performance for a wide variety of log sizes. This splitter is also road towable and comes with a full tow package, making it practical to move around your property or between work areas.
| Model | H20-4-2 | ||
| Beam Structure | 2" Wide x 5" Tall – 5" Top Plate Tubular Design | ||
| Splitting Wedge | 8 in. High | ||
| Operating Position | Horizontal | ||
| Splitting Force | 20 Ton / 40,000 lbs. | ||
| Cylinder | 4 in. x 24 in. | ||
| Cycle Time | Approx. 13-15 Seconds | ||
| Log Opening | 26 in. | ||
| Wheels & Tires | High-Speed 4.80 x 8 | ||
| Road Towable | Yes – 2" Coupler & Safety Chains | ||
| Motor | 2 HP Electric | ||
| Recommended Amps | 25 Amp Breaker | ||
| Working Height | 19 in. | ||
| Operating Size | 50" Wide x 84" Long | ||
| Hydraulic System | 5 Gallon Tank + Cylinder and Hoses | ||
| Safety Control Valve | Detent, Auto Return | ||
| Pump | 2-Stage, 11 GPM | ||
| Operating Weight | 450 lbs. | ||
| Made in USA | Yes |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
1 Year
What is the splitting force?
It has 20 tons of splitting force, delivering 40,000 lbs. of splitting power.
What powers it?
It's powered by a 2 HP electric motor, recommended on a 25 amp dedicated breaker (110 VAC, or wireable for 220 VAC).
How fast is the cycle time?
The cycle time is approximately 13-15 seconds.
What's the log opening size?
It has a 26" log opening.
Is it road towable?
Yes, it includes a full tow package with 4.80 x 8 high-speed tires, a 2" coupler, and safety chains.
Are there optional upgrades?
Yes, an optional 4-way wedge (splits logs into 4 pieces in one pass, reduces opening by 2") and optional welded log cradles are available.
How much does it weigh?
It has an operating weight of 450 lbs.
Where is it made?
It's made in the USA.
