16 Ton Ram Splitter Horizontal Vertical Electric Log Splitter (HV16-4)

16 Tons of Splitting Force • Horizontal / Vertical Operation • Quiet Electric Power

This is built to order and can take 2-4 weeks on average to ship out.

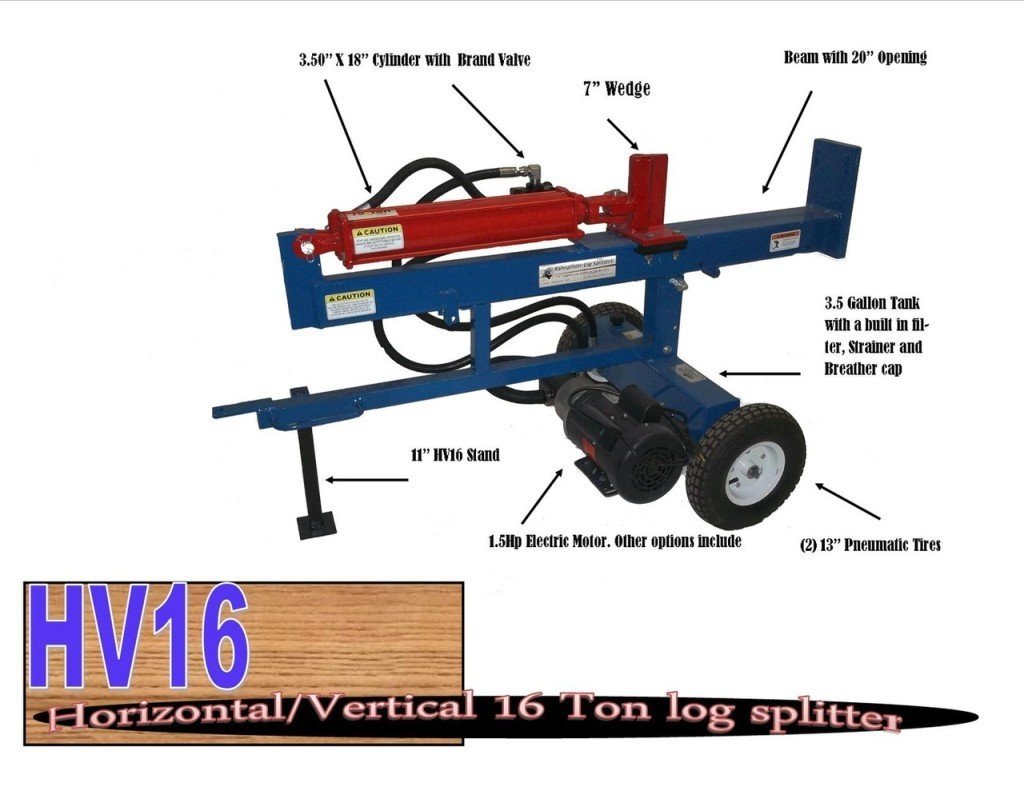

The RamSplitter HV16-4 delivers dependable power, flexibility, and convenience for residential firewood splitting. Designed for homeowners and small-scale woodcutters, this 16-ton electric log splitter offers both horizontal and vertical splitting modes, making it easier to handle everything from standard firewood to larger, heavier rounds.

Powered by a 1.5 HP electric motor, the HV16-4 provides quiet, low-maintenance operation with the convenience of electric start. Its 16-ton hydraulic ram, 18-inch stroke, and 12-second cycle time allow it to split logs up to 20 inches long and up to 40 inches in diameter, giving you strong performance without the noise, fumes, or upkeep of a gas engine.

Built for long-term durability, the HV16-4 features a tube steel beam, 8-inch hardened steel wedge, 11 GPM 2-stage pump, and an 8-gallon hydraulic fluid tank for smooth, reliable splitting performance. With 13-inch pneumatic tires and a garden tractor pin hitch, this splitter is also easy to move around the property.

Key Features & Benefits

• 16 Tons of Splitting Force
  Delivers strong hydraulic power for home firewood processing and routine wood splitting.

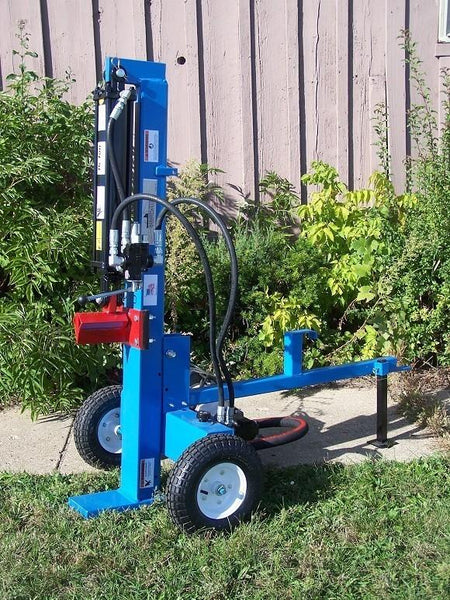

• Horizontal / Vertical Operation
  Split in either position for greater flexibility and easier handling of larger logs.
• Quiet 1.5 HP Electric Motor
  Provides dependable electric performance with less maintenance, no fuel, and no engine fumes.
• Fast 12-Second Cycle Time
  Helps keep splitting productive and efficient.
• Handles Logs Up to 20" Long
  Built to process common firewood lengths with ease.
• Handles Large-Diameter Logs
  Capable of working with logs up to 40 inches in diameter, especially useful in vertical mode.
• 18-Inch Stroke Hydraulic Ram
  Strong ram design built for reliable splitting performance.
• 8-Inch Hardened Steel Wedge
  Durable single wedge designed for long-term splitting use.
• Heavy-Duty Tube Steel Beam
  Built for strength, stability, and long service life.
• 24-Inch Working Height
  Practical beam height helps improve comfort during operation.
• 11 GPM 2-Stage Pump
  Supports smooth hydraulic performance and consistent splitting power.
• 8-Gallon Hydraulic Tank
  Large fluid capacity helps support dependable operation.
• Portable Design
  Includes 13-inch pneumatic tires and a garden tractor pin hitch for convenient towing up to 35 MPH.

Optional Upgrades

• 4-Way Wedge
  Quickly slips over the standard wedge to split logs into 4 pieces in one pass.
  Note: 4-way wedge reduces opening size by 2 inches.
• Log Cradles
  Helps catch split wood and reduce bending by keeping logs off the ground and closer to the beam.
• Protective Cover
  Optional cover helps protect the splitter during storage.

Why Choose the HV16-4?

If you want the convenience of electric power with the versatility of horizontal and vertical splitting, the RamSplitter HV16-4 is a strong option. It gives you solid homeowner-level splitting performance, easier handling of larger rounds, and lower maintenance than gas-powered machines, all in a durable towable design.

Quick Specs

Hydraulic System

Motor Specifications
