MechMaxx

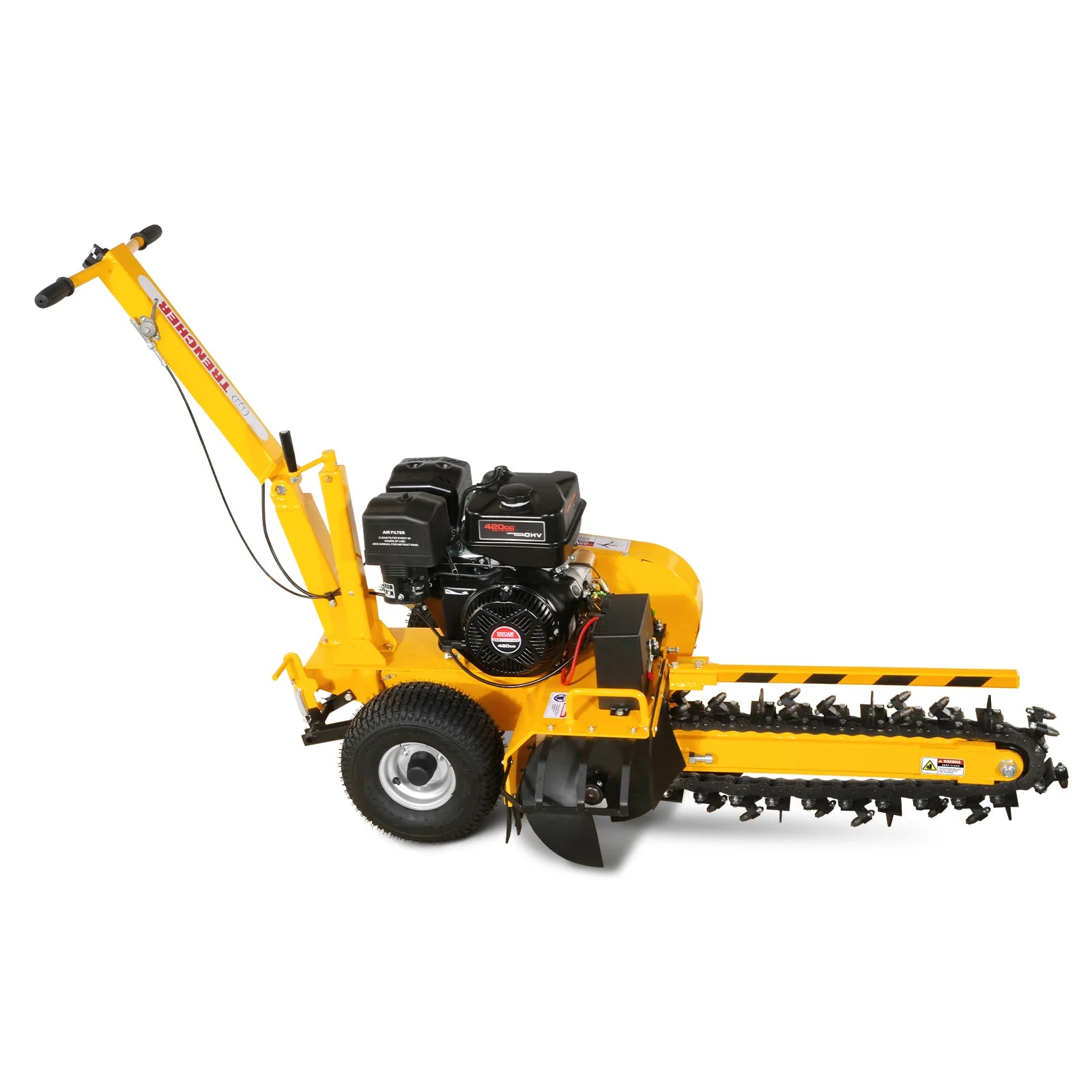

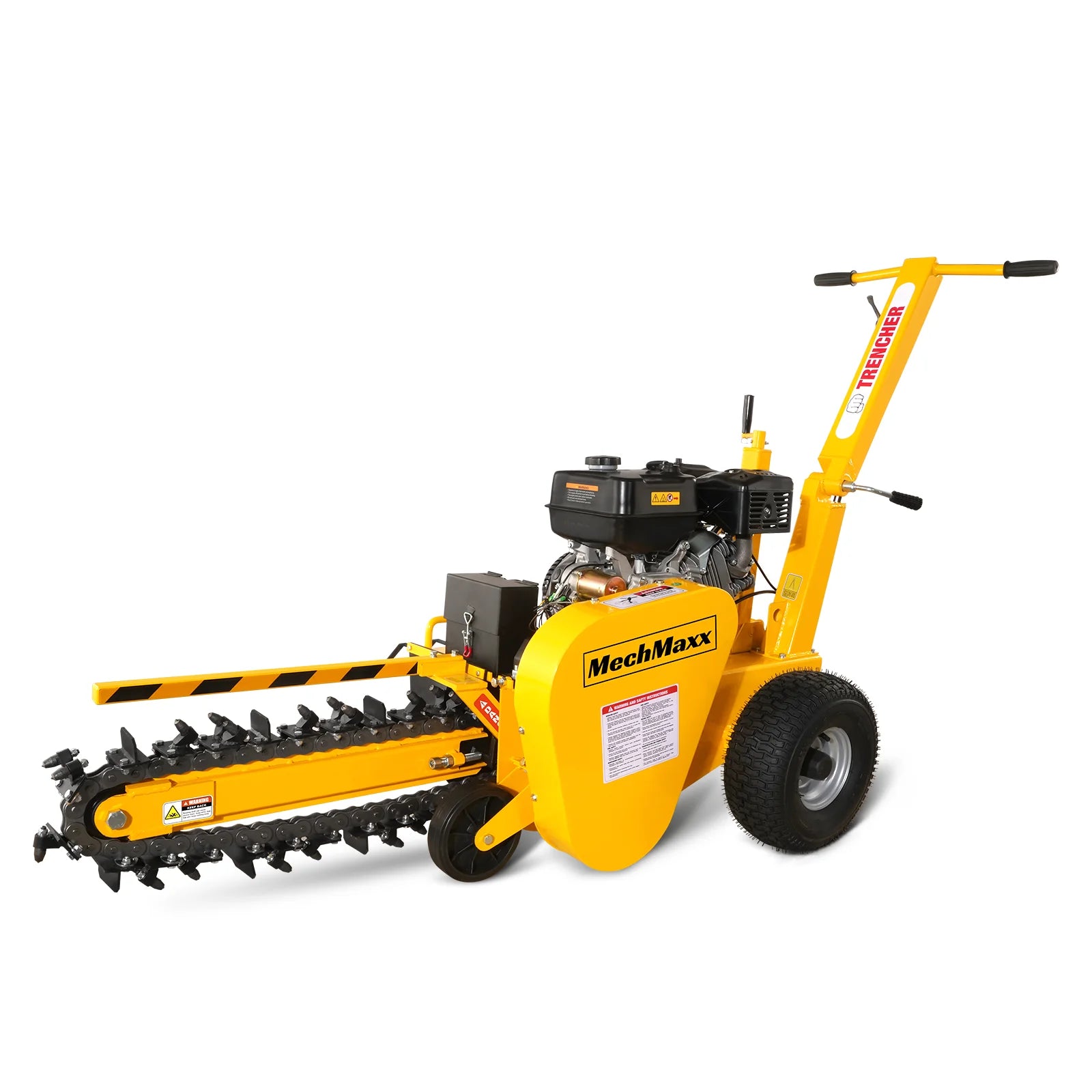

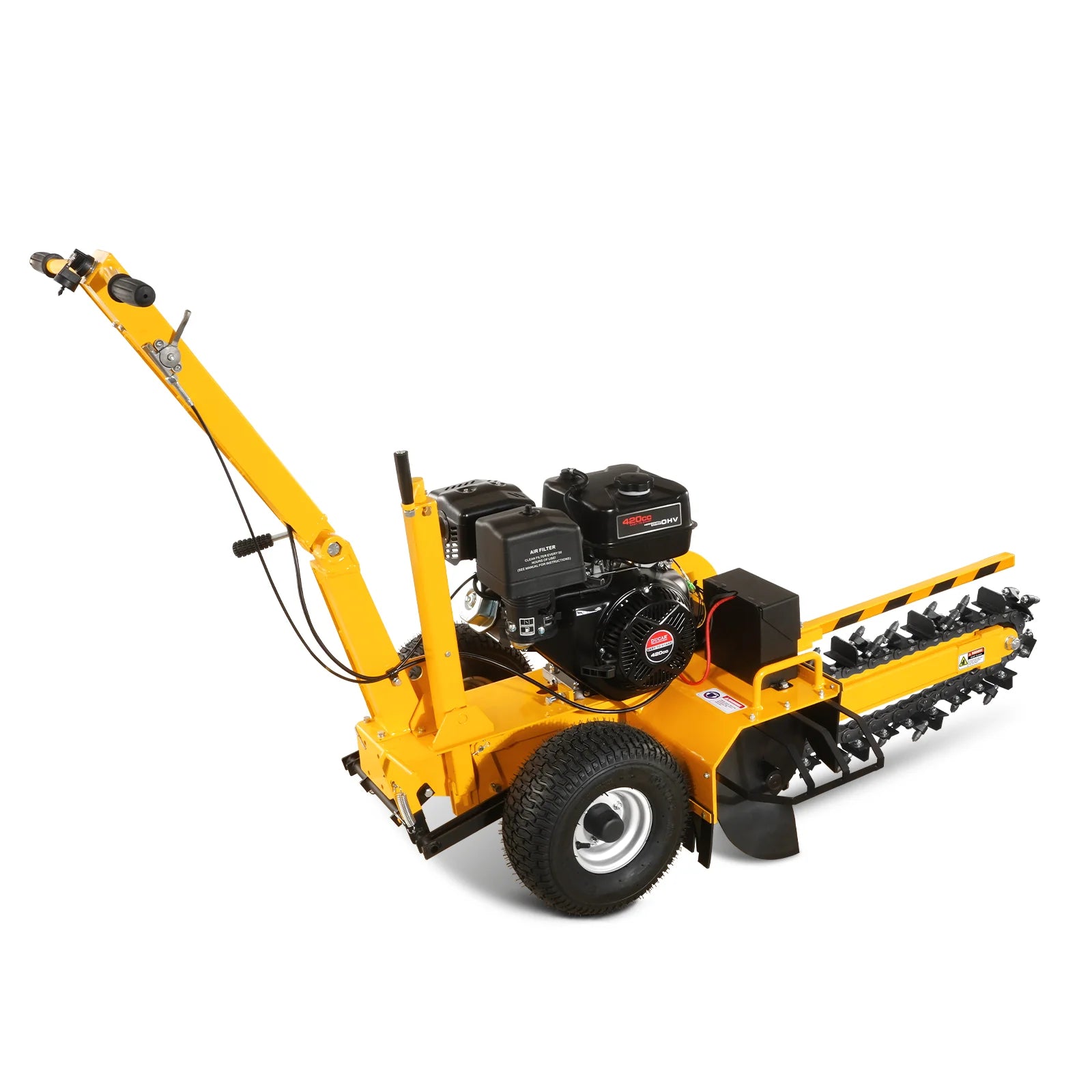

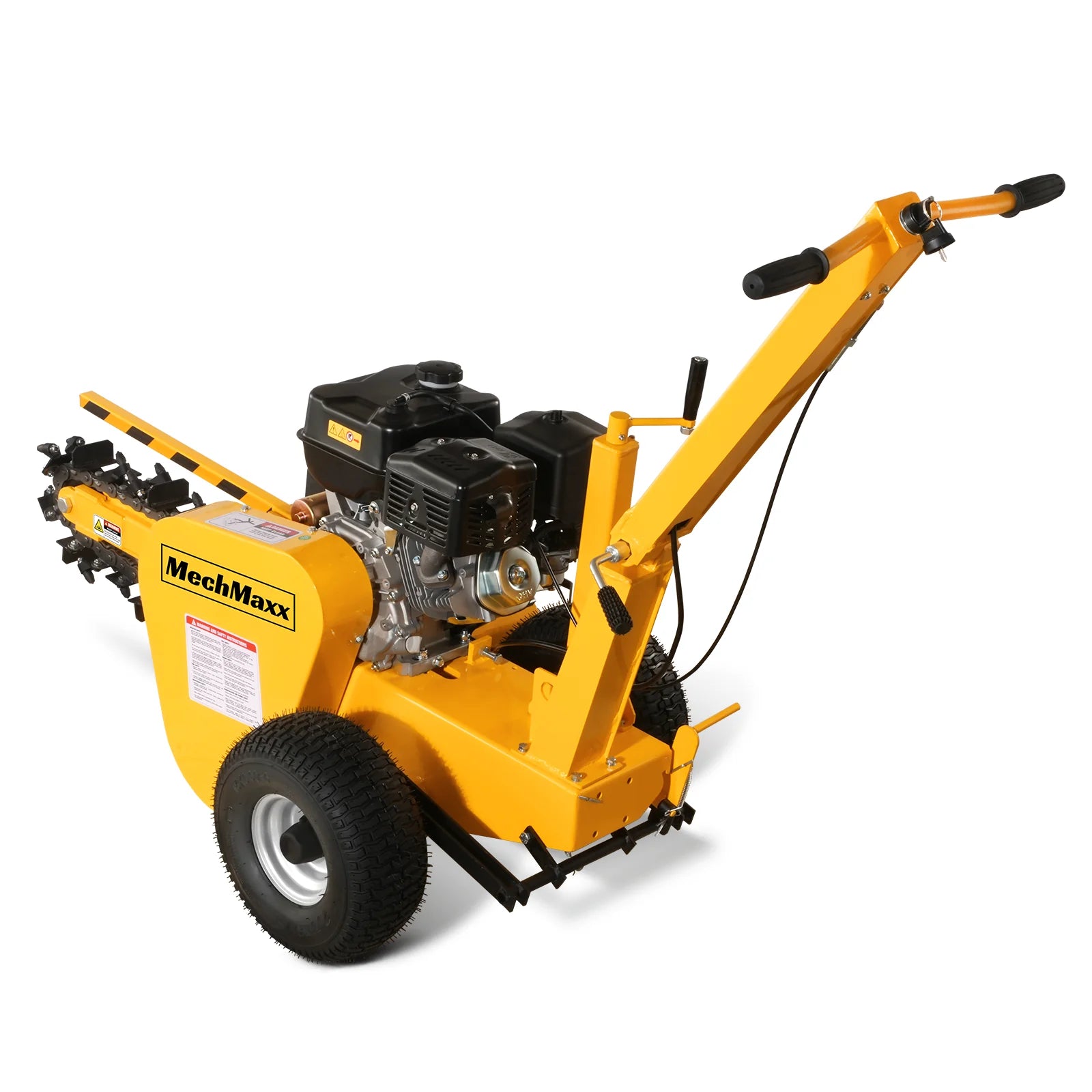

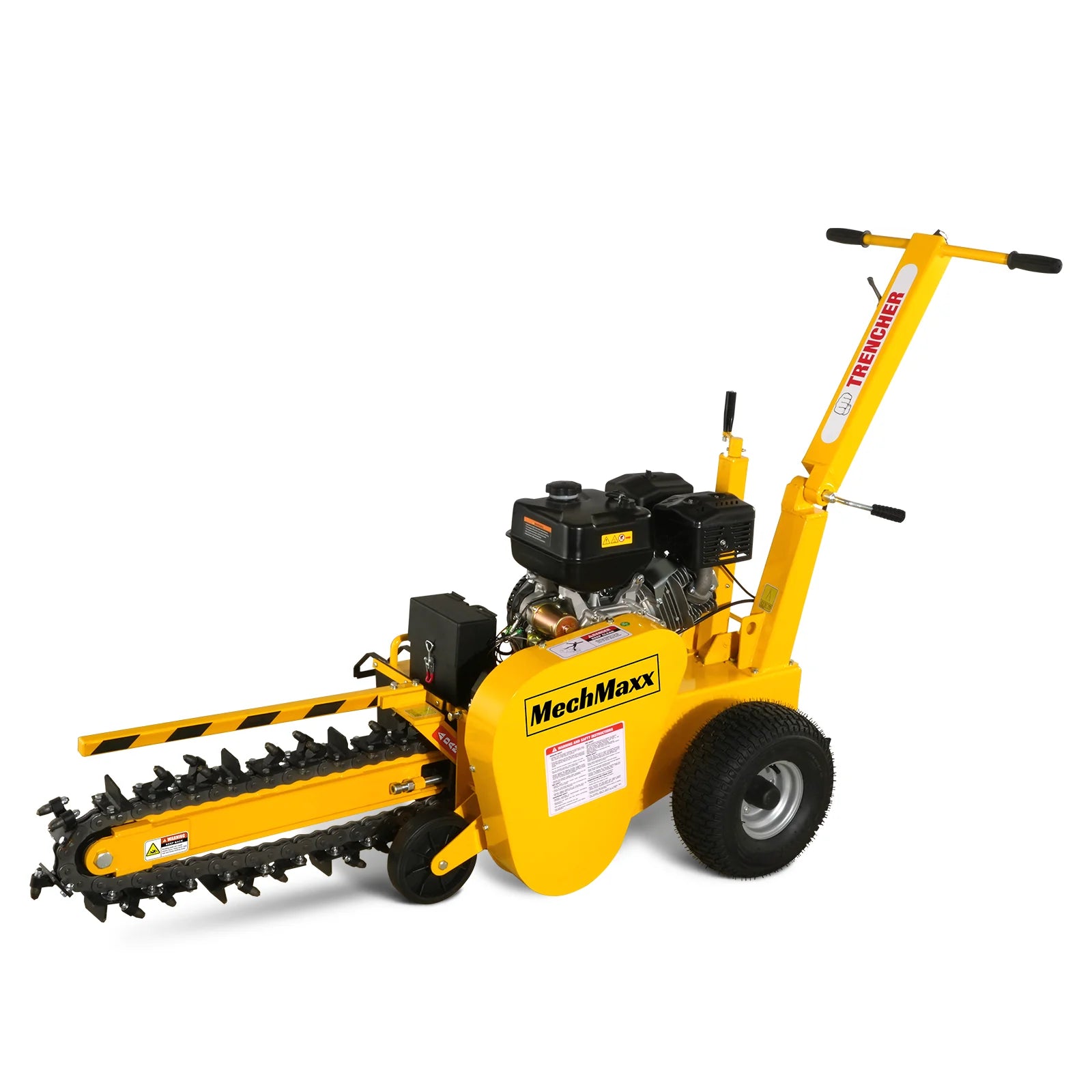

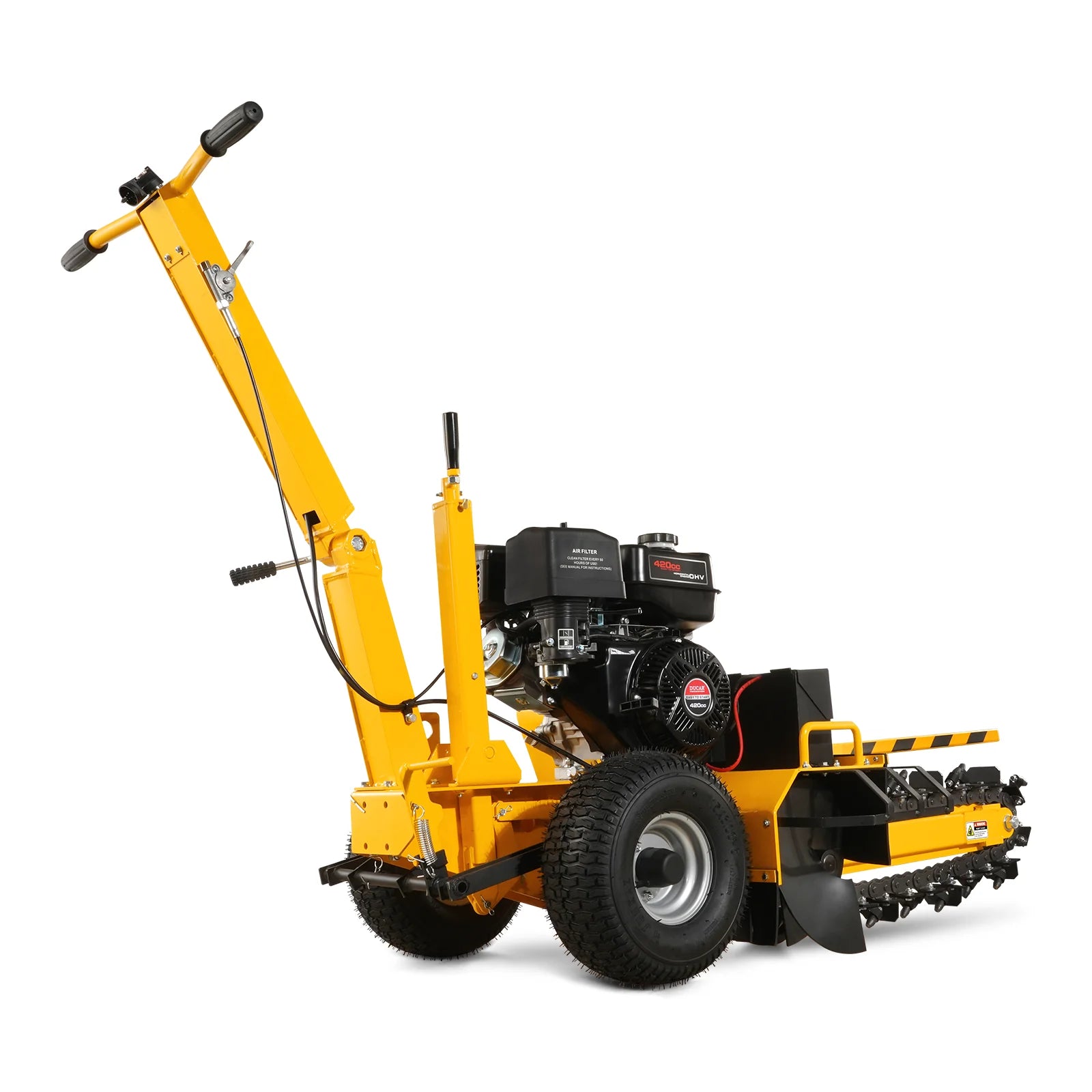

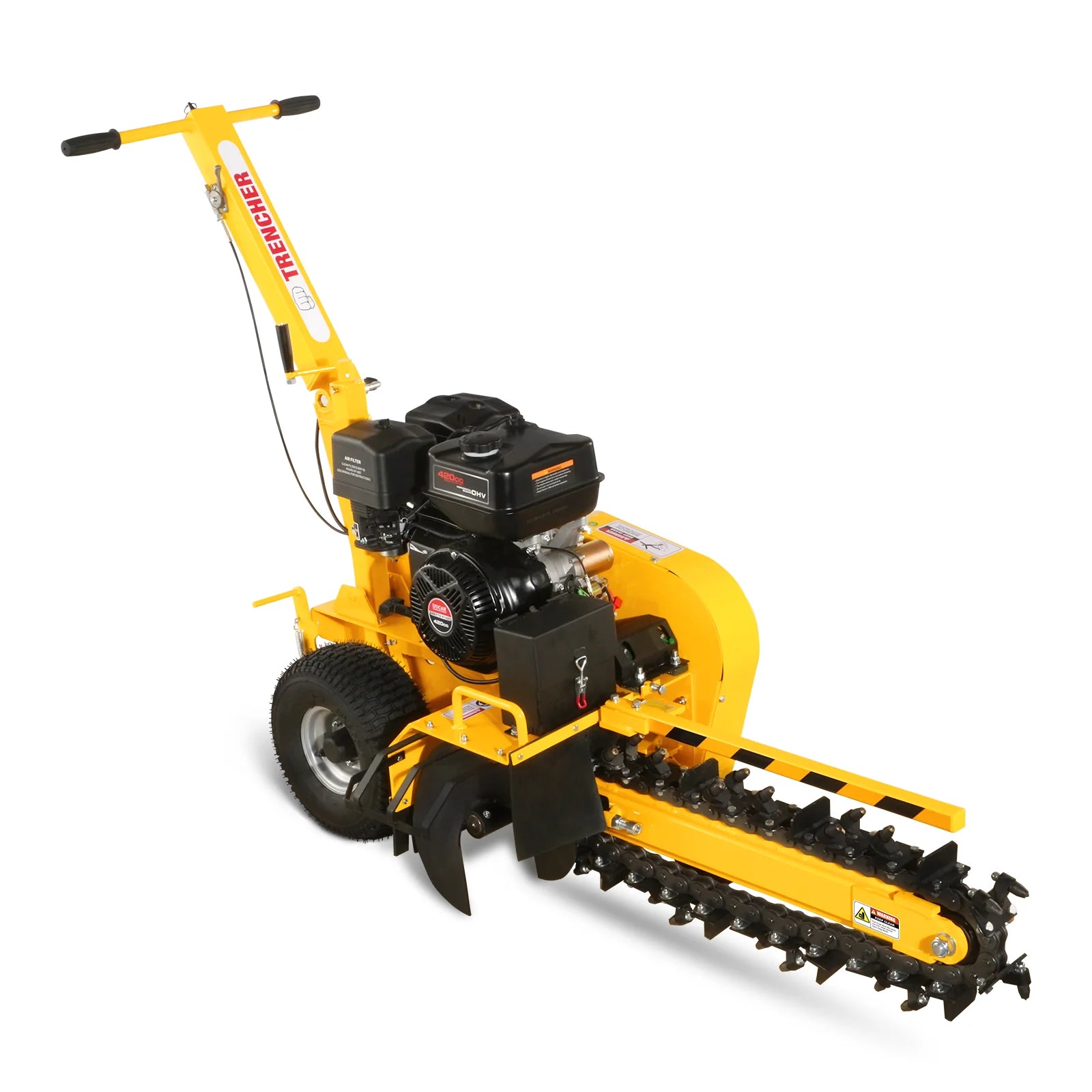

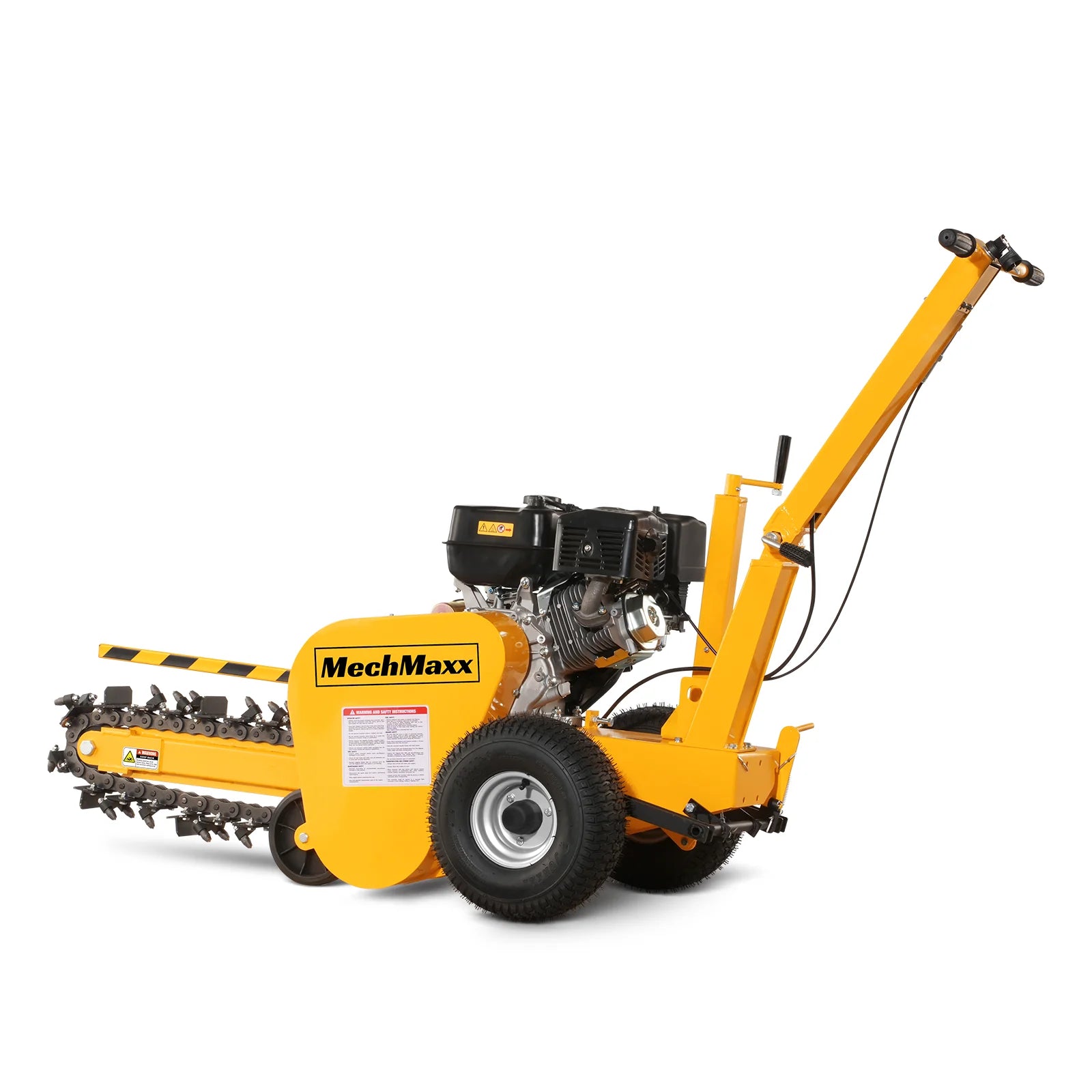

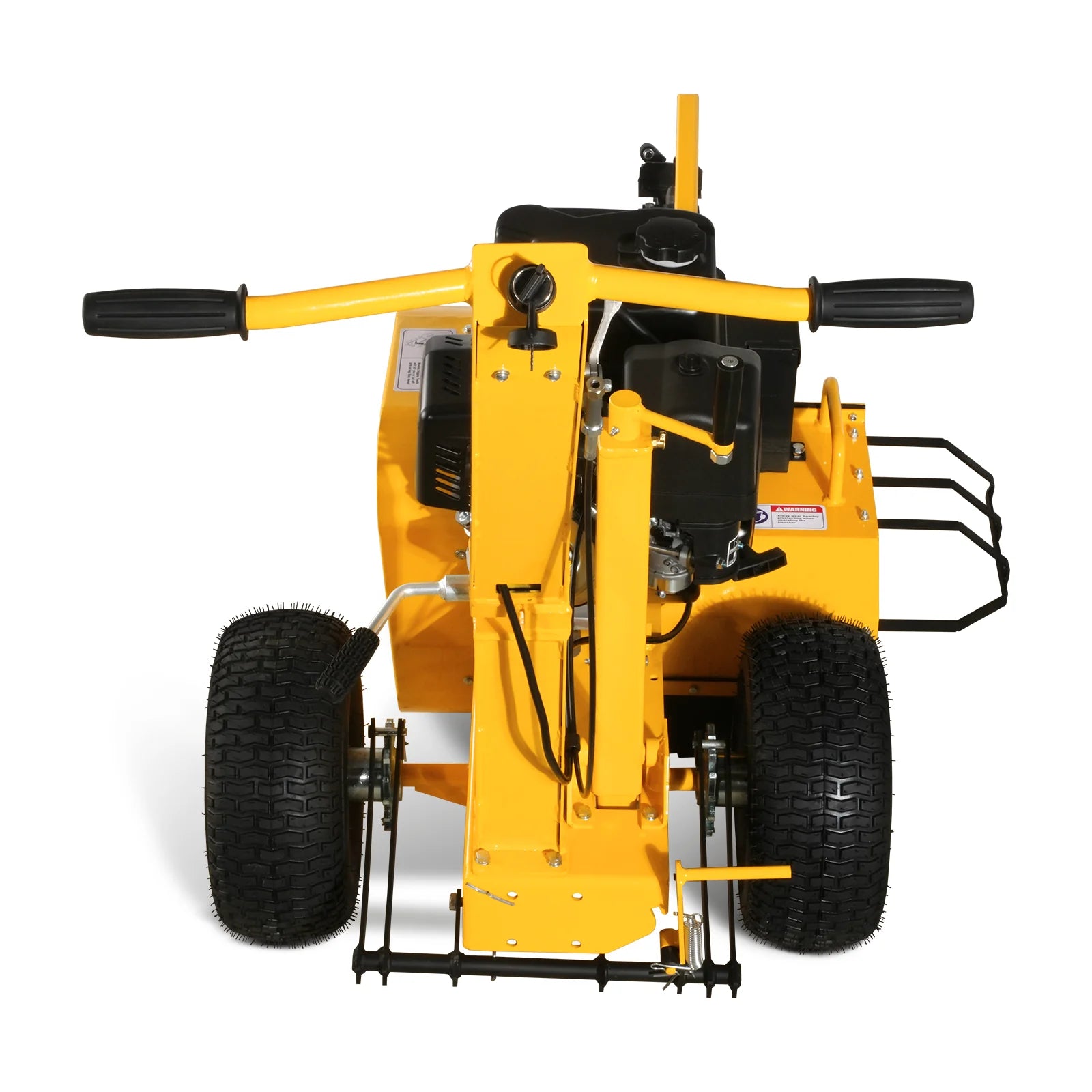

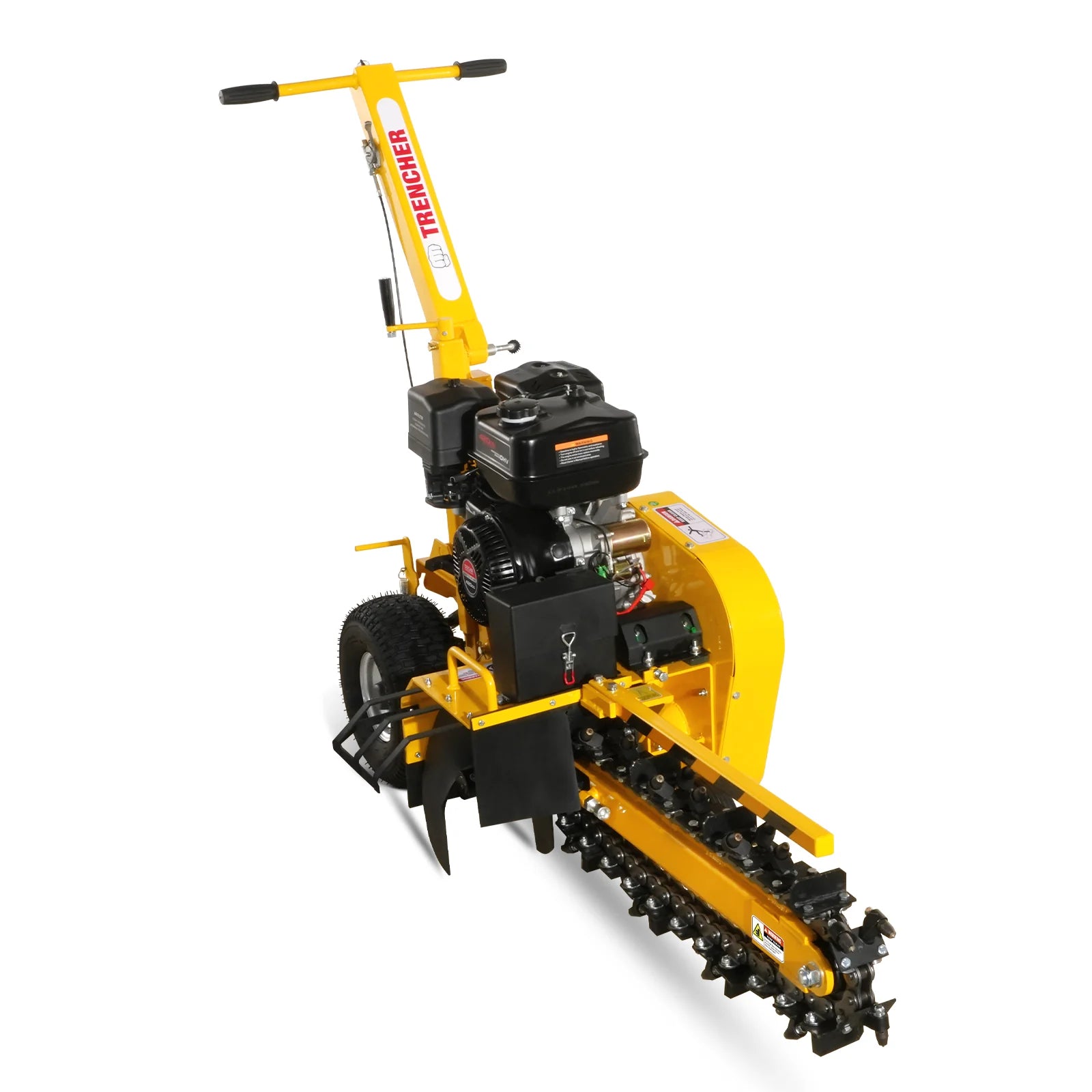

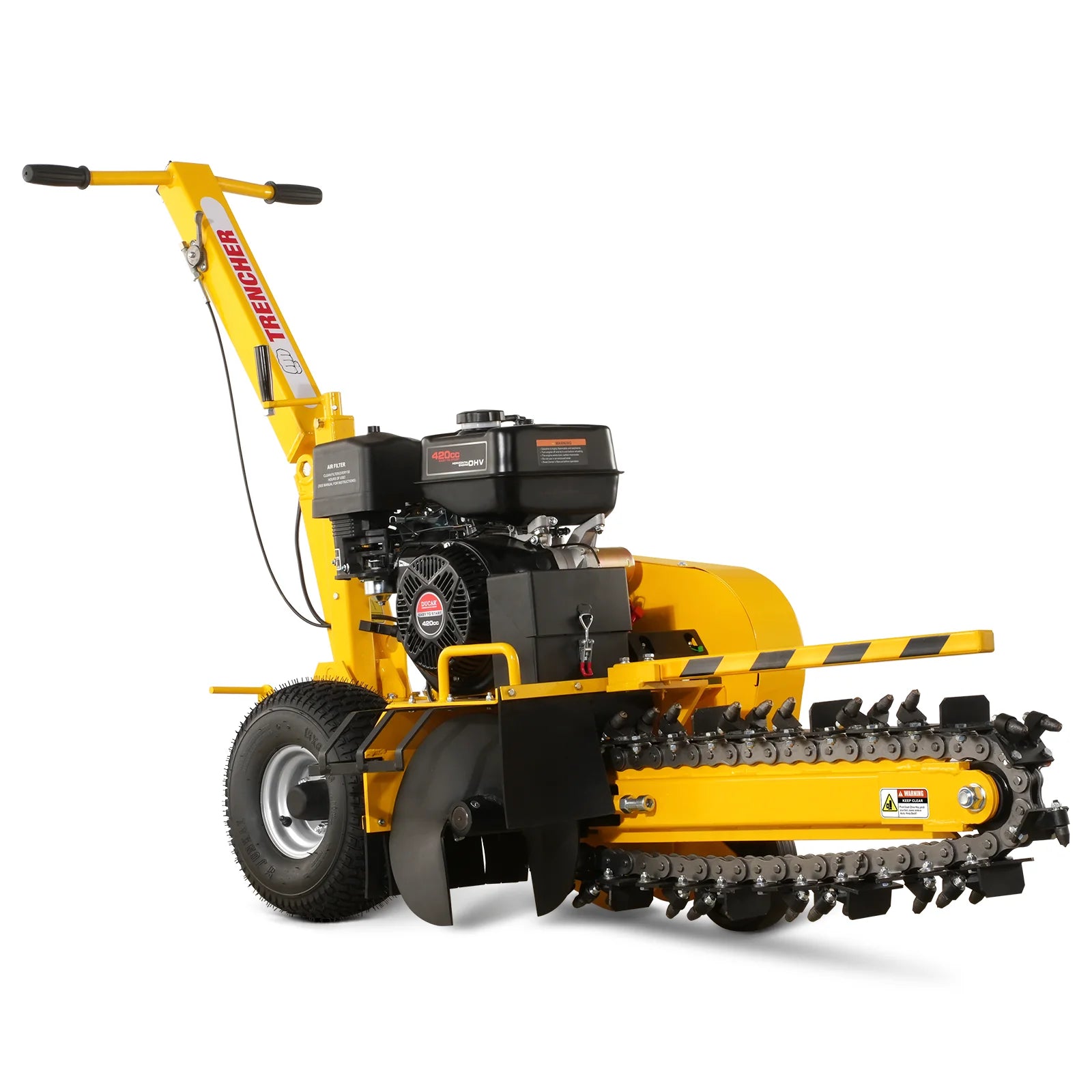

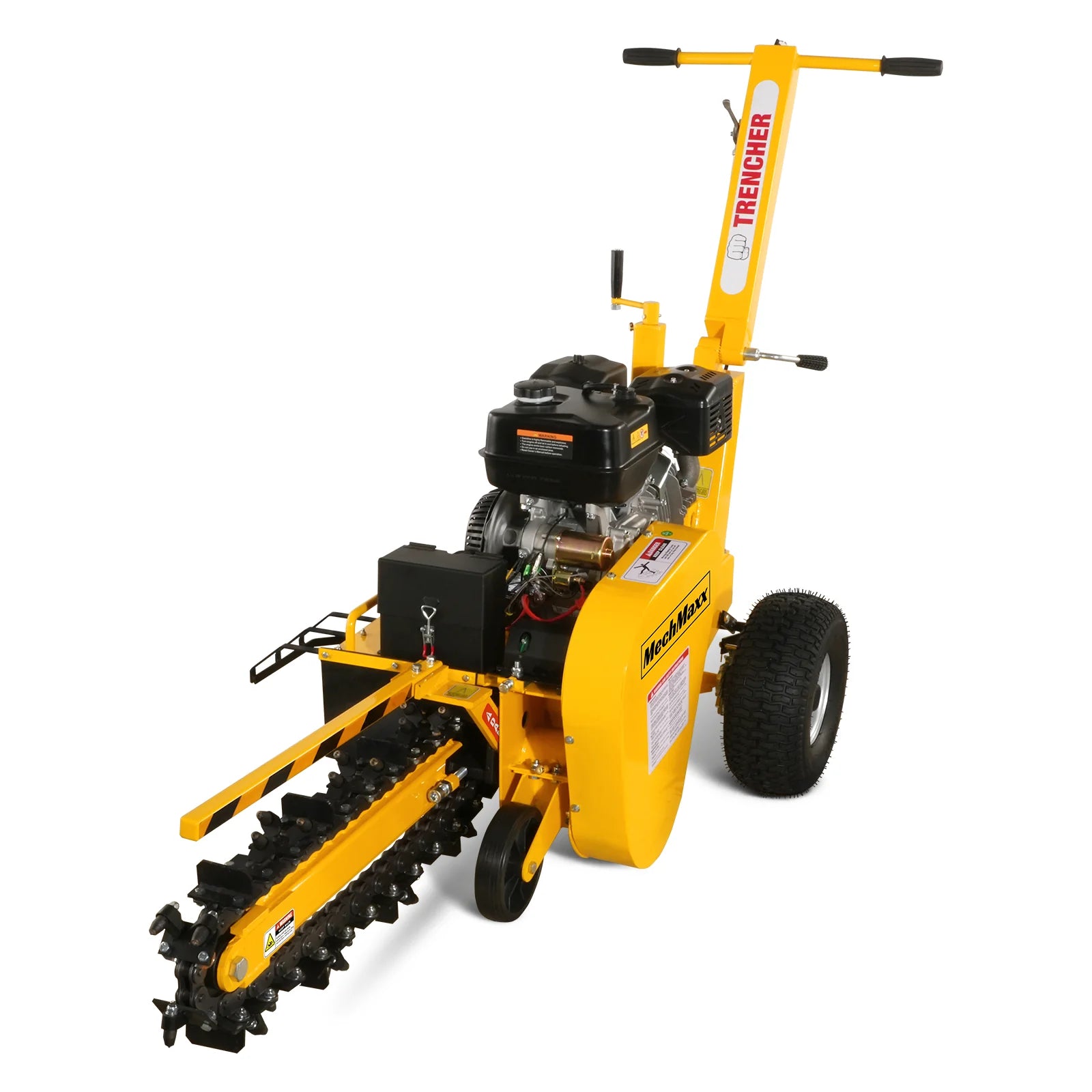

15HP 420cc E-Start Powered 24" Ditching Trencher , TCR1500

SKU: 120200
(0)
$2,699.00
Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Chat Email +1 (844) 969-2952
  • 420cc 15HP DUCAR engine with electric start for reliable, easy starting Trenches up to 24" deep and 4" wide — suitable for utility, irrigation, and drainage lines 27 Carbide Alloy High-Pressure Teeth cut through tough, rocky, and clay-heavy soil Screw spiral lifting structure lets you fine-tune trench depth at any point up to 24" Kevlar-reinforced belt system and centrifugal clutch for durable, repeated use

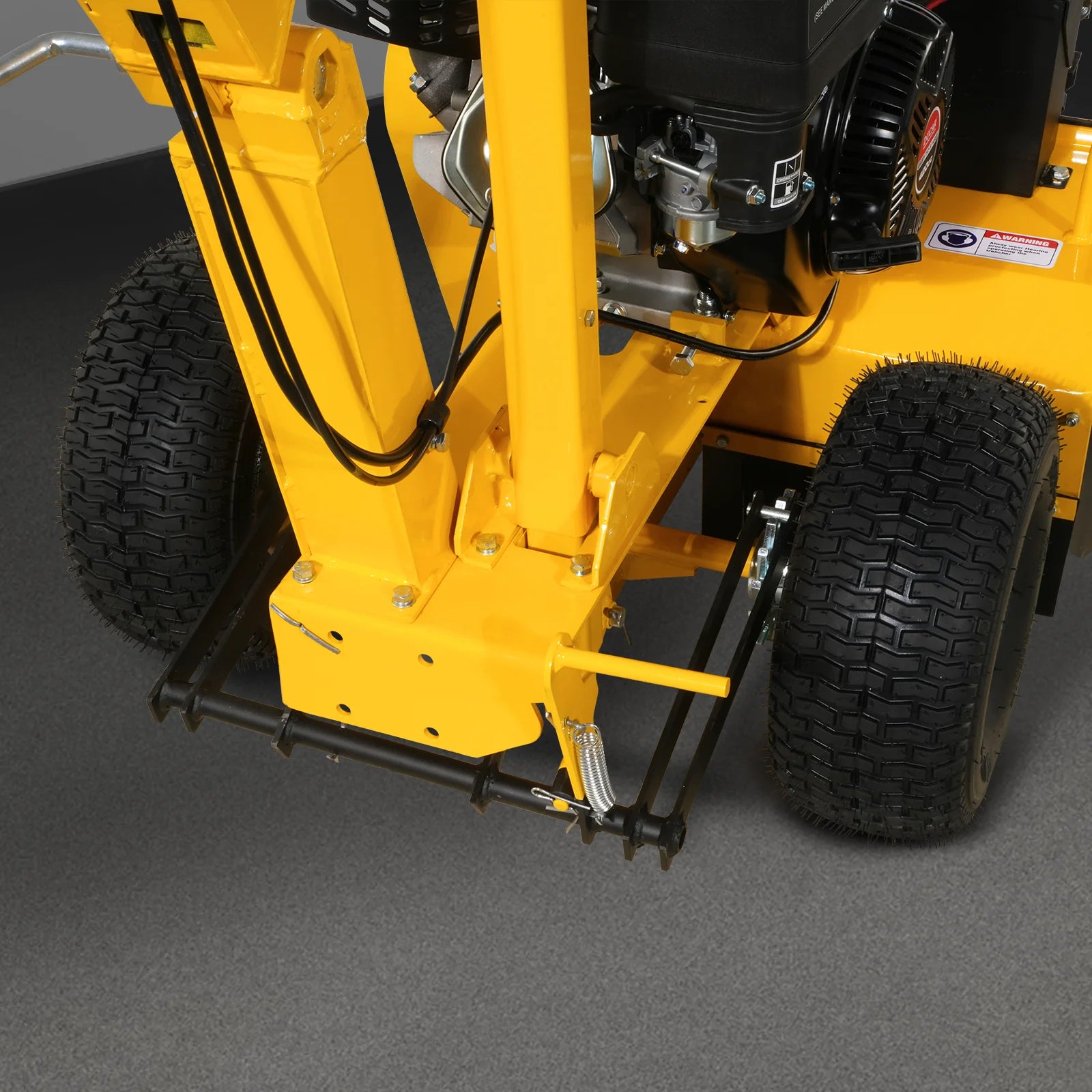

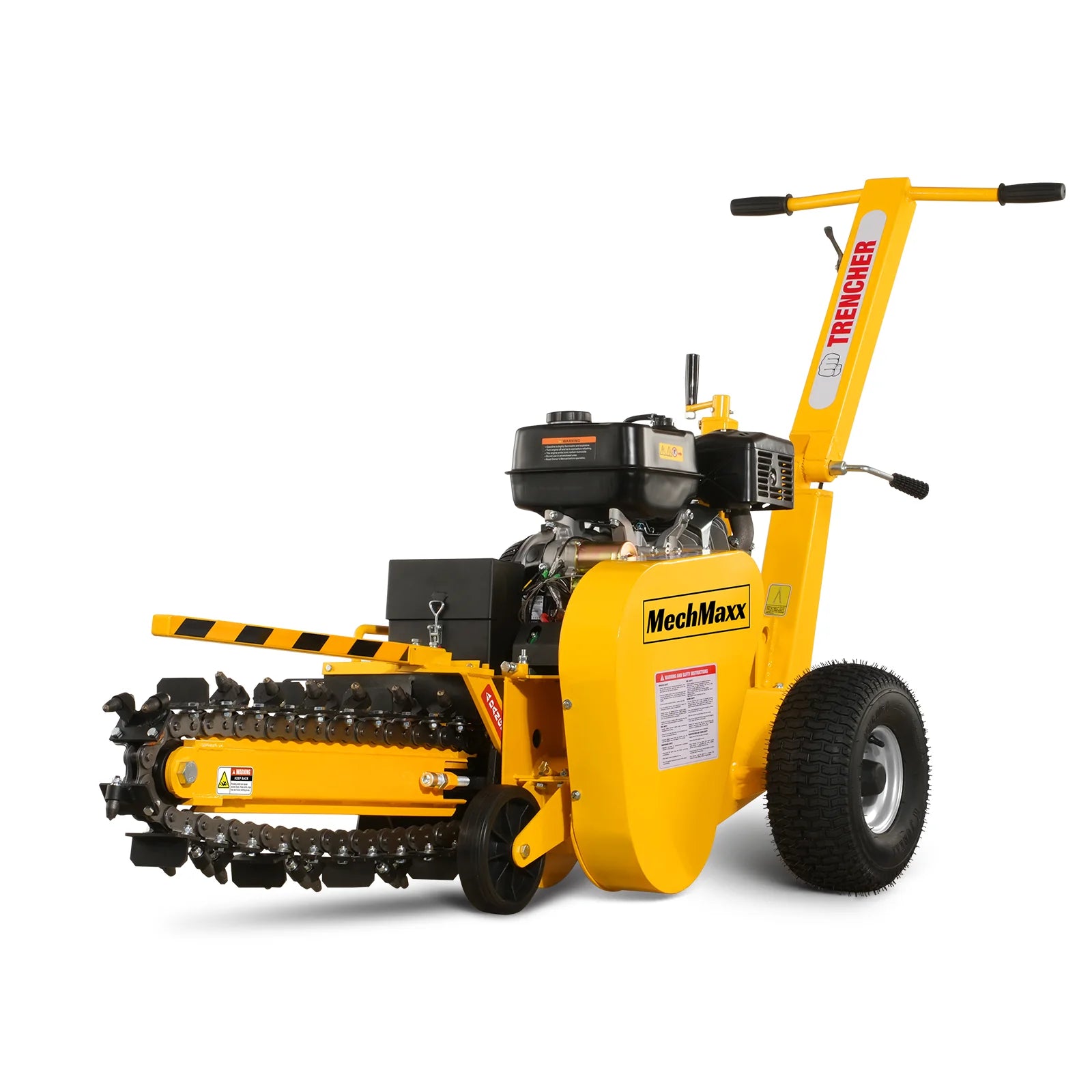

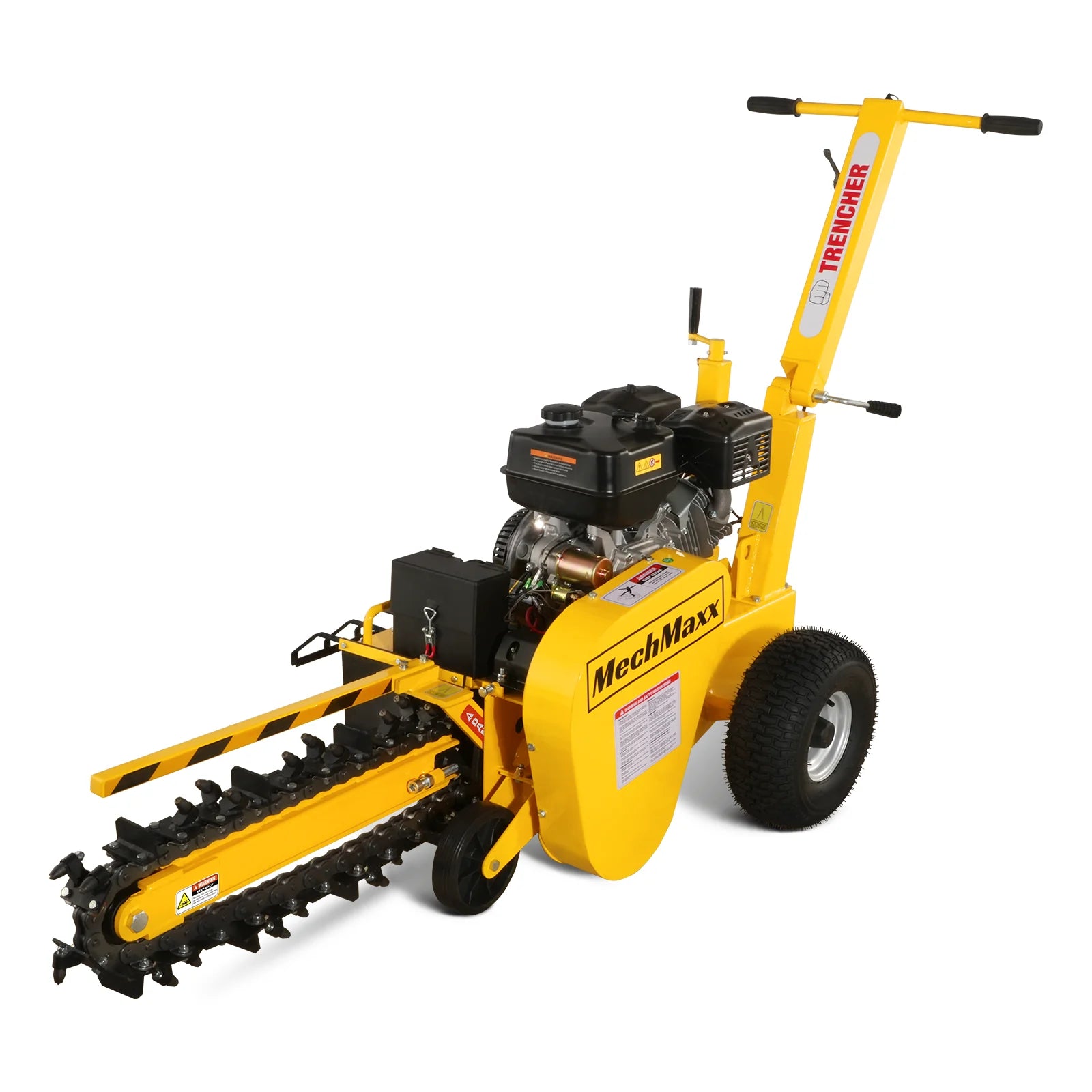

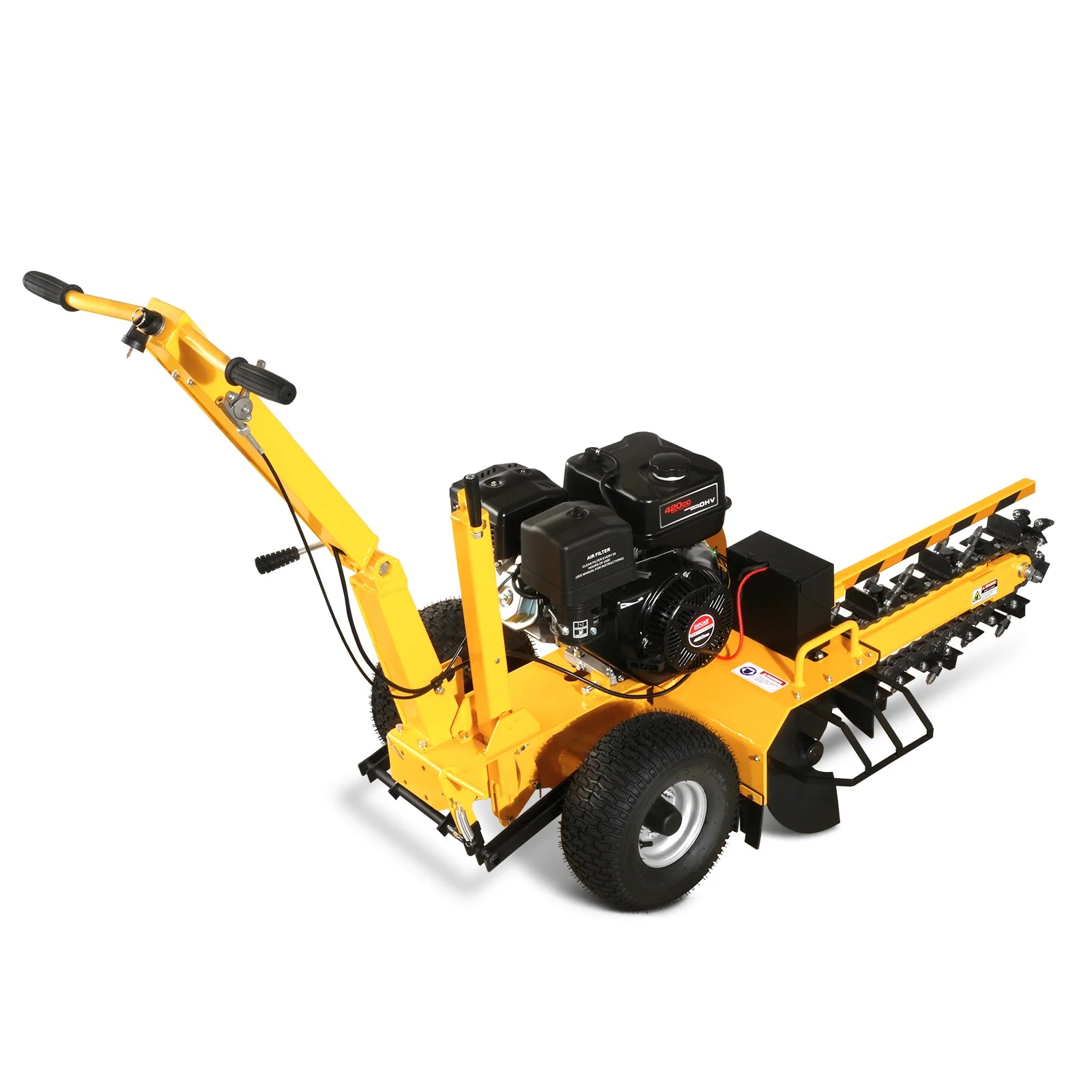

Get precise, powerful trenching with the 15HP 420cc E-Start Ditching Trencher. Built with a reliable DUCAR DH420E engine and electric start, this trencher makes quick work of utility lines, irrigation systems, drainage projects, and cable installation. The 27" Carbide Alloy High-Pressure Teeth cut confidently through tough, rocky, and compacted soil, while the screw spiral lifting structure lets you fine-tune trenching depth anywhere up to 24" for precise control on every job.

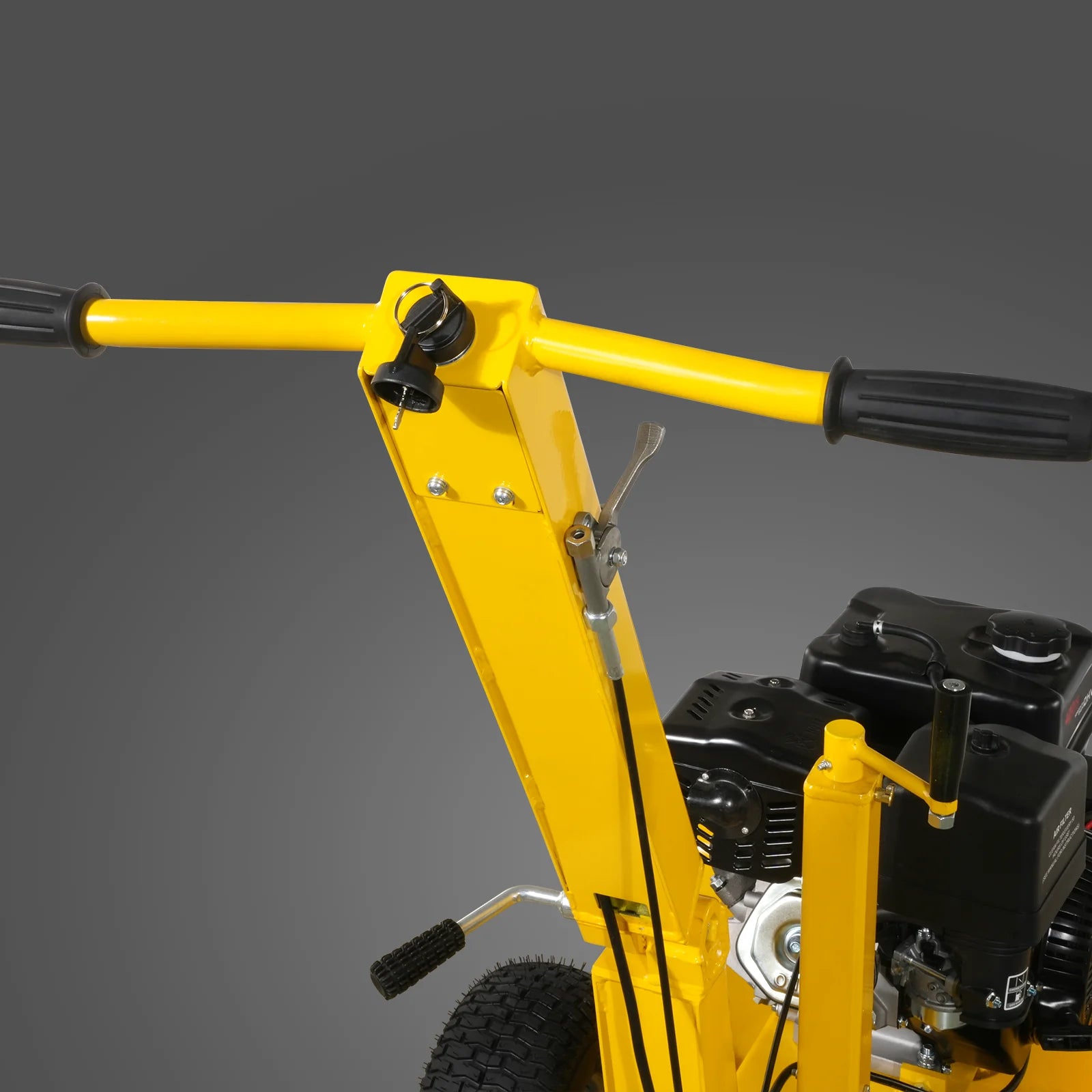

Built for durability, this trencher features a Kevlar-reinforced belt system and centrifugal clutch designed to handle repeated use on both personal properties and commercial job sites. A front wheel makes it easy to maneuver to and around the worksite, and the electric start gets you working faster with less hassle. Backed by a 1-year warranty covering both the engine and the machine, this trencher is built to be a dependable addition to your equipment lineup.

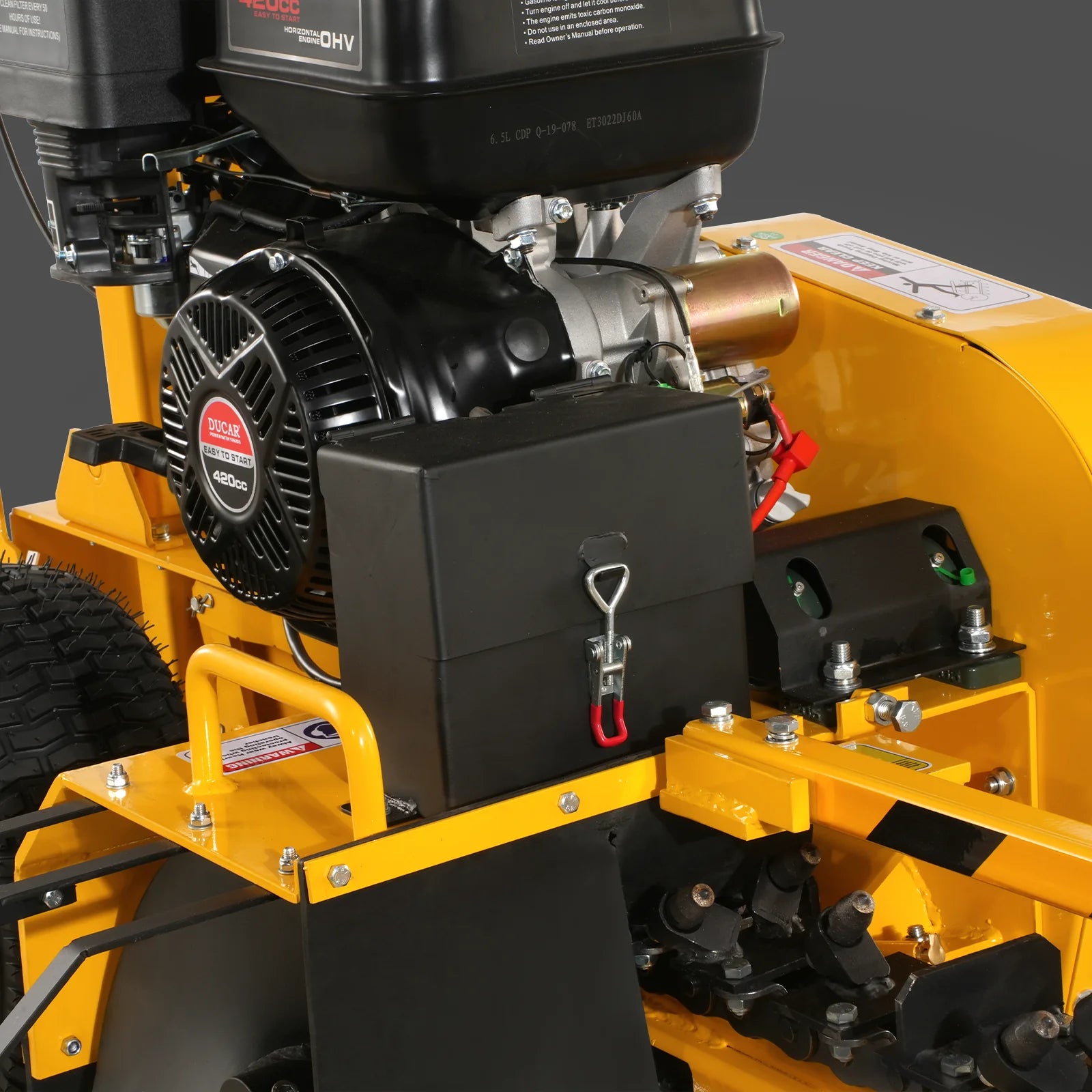

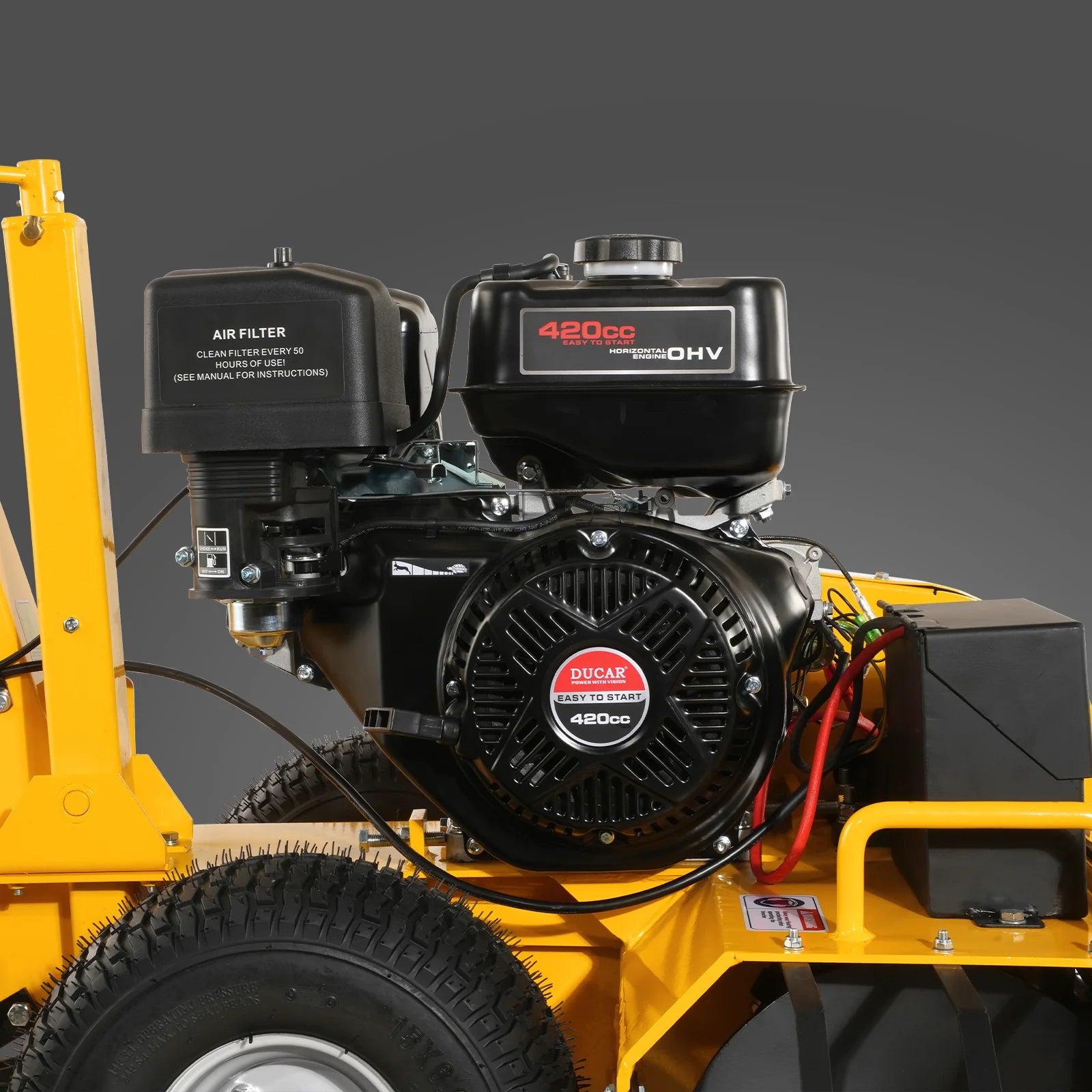

Engine DUCAR DH420E Carbide Tip Material YG11C Alloy
Certification(S) EPA Phase III, CARB Phase III Chain Length 81.5 in
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Chain Speed 574 ft/min
Displacement/HP 420cc; 15 HP Max. Trench Depth 24 in
Start E-Start Max. Trench Width 4 in
Belt 2 x V-Belts Wheelbase 29 in
Belts Material Kevlar Tire 15 x 6-6 Tubeless
Clutch Centrifugal Clutch Assembled Weight 402 lbs
Carbide Tip 27 x Carbide Alloy High-Pressure Teeth Gross Weight 450 lbs
Scraper 9 Pcs Packing Size 46 x 31 x 34 in
Tip Holder Material 42CrMo Warranty 1 Year

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

stands up to extreme testing and come with a one-year warranty for machine.

Frequently Asked Questions

How deep can this trencher dig?

This trencher has a maximum trench depth of 24 inches and a maximum trench width of 4 inches, suitable for utility lines, irrigation, drainage, and cable installation projects.

What size engine does it have?

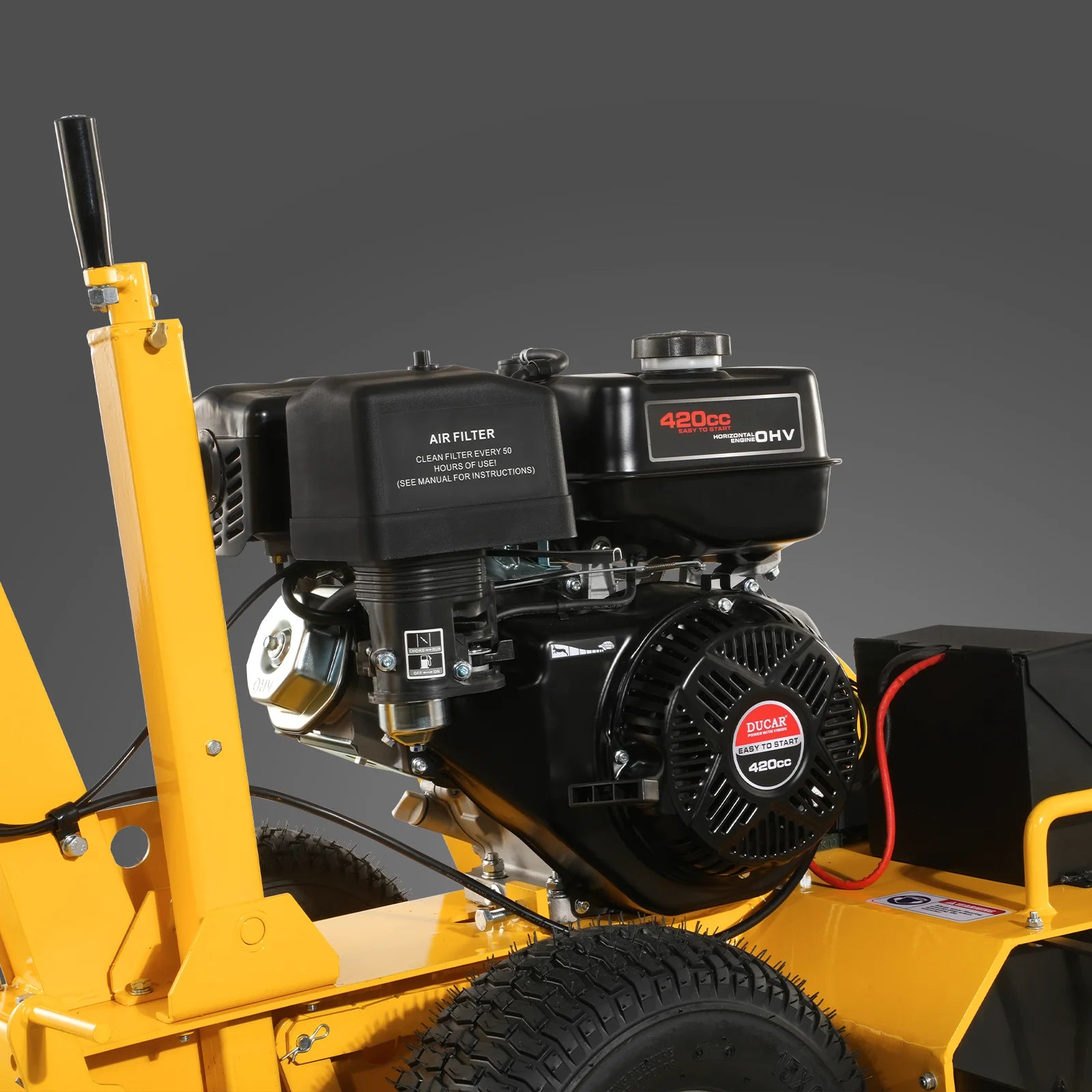

This trencher runs on a 420cc 15HP DUCAR DH420E engine with electric start for easy, reliable starting.

What kind of ground can this trencher handle?

The 27" Carbide Alloy High-Pressure Teeth are designed for tough, rocky, or compacted soil. For extremely rocky terrain, expect slower cutting speed to protect the chain and teeth.

Does this require a license or special training to operate?

No special license is required for personal or commercial use, though we recommend reviewing the included owner's manual and following all safety guidelines before operation.

Is assembly required?

The trencher arrives mostly assembled. Some final setup is required before first use, and instructions are included.

What's the warranty on this trencher?

This trencher includes a 1-year manufacturer's warranty covering both the engine and the machine.

How much does it weigh, and can I transport it myself?

The trencher has an assembled weight of 402 lbs and a gross shipping weight of 450 lbs. It's designed to be walk-behind operated, but you'll need a trailer, truck bed with ramps, or equipment hauler to transport it to a job site.

Can this be used for rental or commercial jobs?

Yes, this trencher is built for both personal property use and commercial/rental applications, backed by a Kevlar-reinforced belt system and centrifugal clutch for reliable repeated use.
