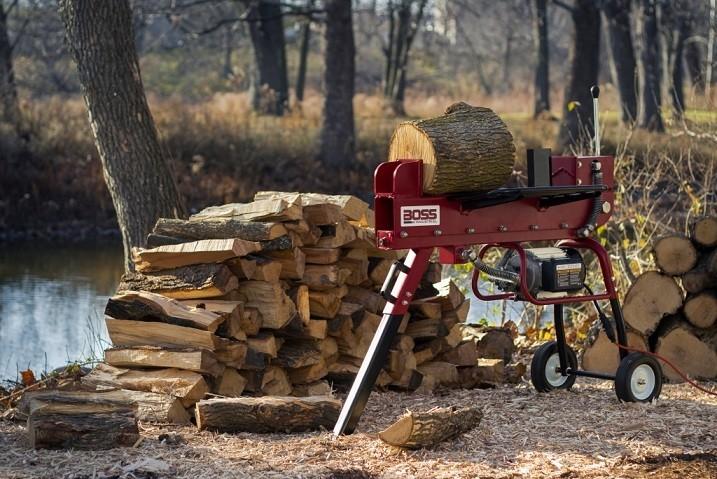

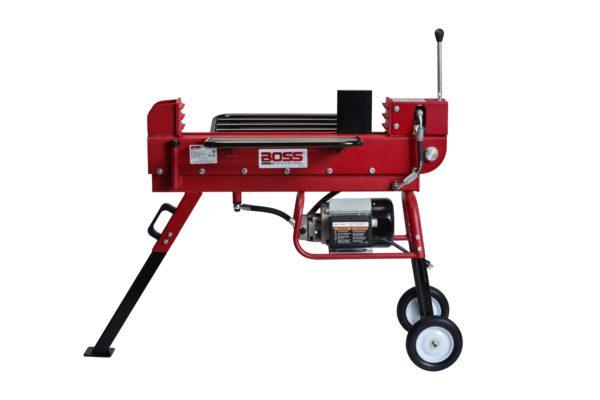

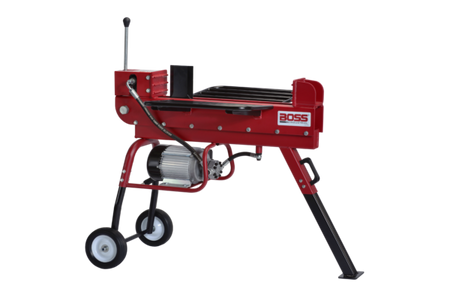

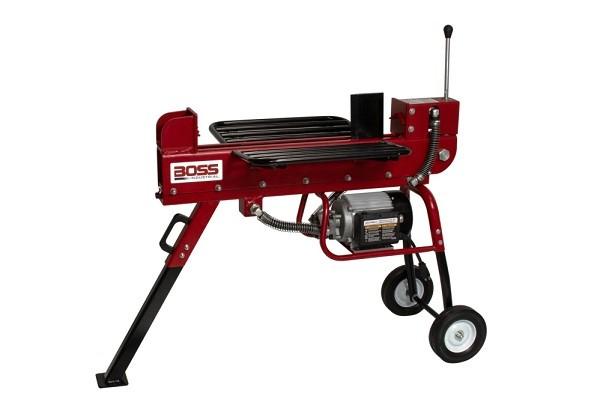

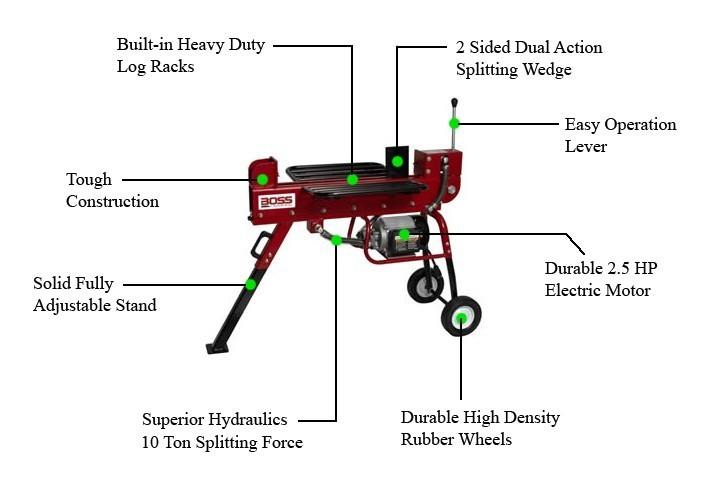

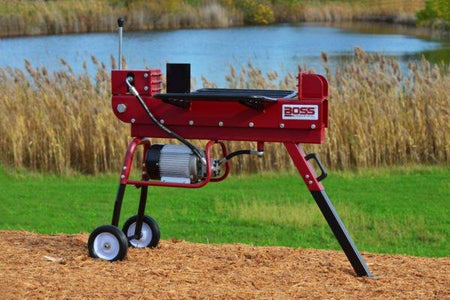

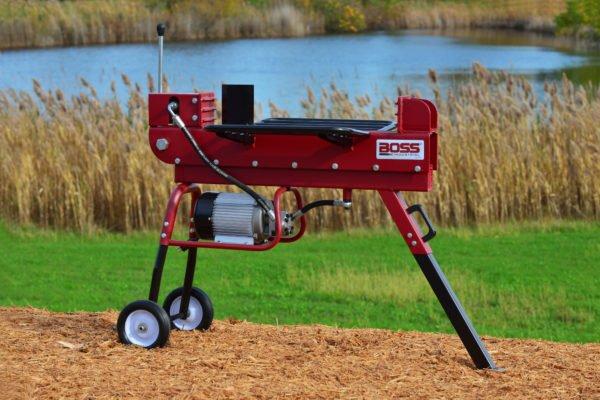

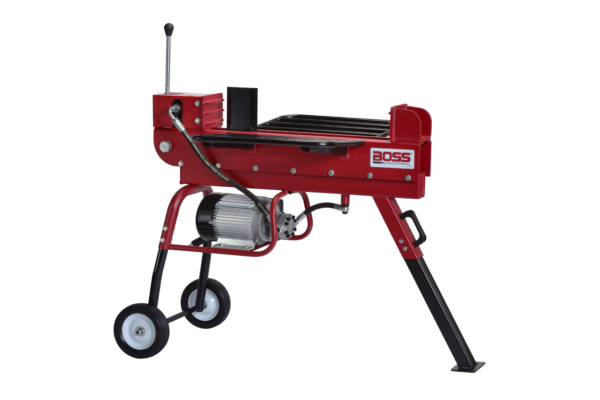

This Boss Industrial 10 ton professional quality compact log splitter is ideal for homeowners to use both indoors and outside. Compact and durable, it's light enough to be moved around by one person and strong enough to deliver 10 tons of splitting force that easily slices through logs up to 20.5 inches long. It boasts a powerful 2.5 HP electric, environmentally friendly motor, allowing owners to use it in the comfort of their homes. The 2.5 HP, 115V, 60Hz, 3400 RPM motor (20-amp circuit breaker required) provides 3400 PSI of hydraulic pressure while being durable enough to outlast the competition using professional-grade components and materials. This 10-ton log splitter includes a 5.25-inch wedge, which combined with the 10-ton hydraulics makes easy work of any log. The patented hydraulic system and one-handed operation make Boss Industrial electric log splitters stand out from the rest of the pack.
Owner's manual: https://cdn.shopify.com/s/files/1/0520/7326/7352/files/ED10T20_manual_2020-01.pdf
| Model # | ED10T20 | ||
| Electric Motor | 2.5 HP, 115V, 60Hz, 3400 RPM, 15A | ||
| Max. Splitting Force | 10 Tons | ||
| Max Splitting Length | 20.5 in. | ||
| Splitting Wedge Height | 6.85 in. | ||
| Hydraulic Pressure | 3400 PSI | ||
| Hydraulic Oil Capacity | 3.2 Gallons | ||
| Wheel | 8 in. w/ Metal Hub | ||

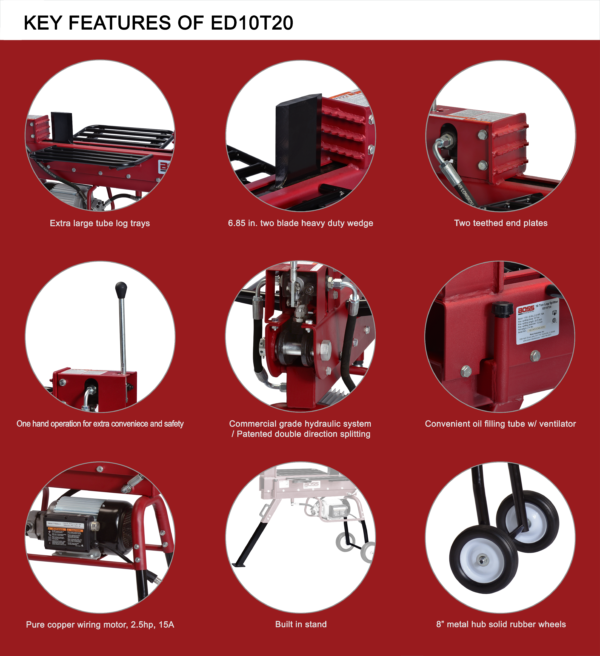

| One-Hand Operation | Yes | ||
| 3-Position Control | Yes | ||
| Double Direction Splitting | Yes | ||
| Built-in Stand | Yes | ||
| Minor Assembly Required | Yes | ||
| Net Weight / Gross Weight | 214 / 246 lbs | ||
| Packing Size (LxWxH) | 43.5 x 13.5 x 27 in. |
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
2-Year Residential Warranty, 180-Day Commercial Warranty
What is the splitting force?
It has 10 tons of hydraulic splitting force.
What powers it?
It's powered by a 2.5 HP, 115V, 60Hz, 3400 RPM electric motor requiring a 20-amp circuit breaker.
Can it be used indoors?
Yes, its no-emission electric motor makes it suitable for indoor use.
What's the maximum log length?
It can handle logs up to 20.5 inches long.
How fast is the splitting cycle?
The patented hydraulic system delivers a 16-second cycle time.
Is assembly required?
Yes, minor assembly is required.
How much does it weigh?
It has a net weight of 214 lbs and a gross weight of 246 lbs.
How is this different from the 16-ton electric model?
This 10-ton model uses a 115V motor at 3400 RPM (vs. 120V/3800 RPM on the 16-ton), and weighs less at 214 lbs vs. 304 lbs.
