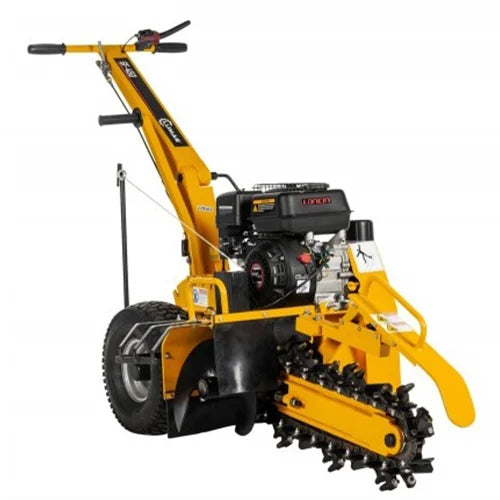

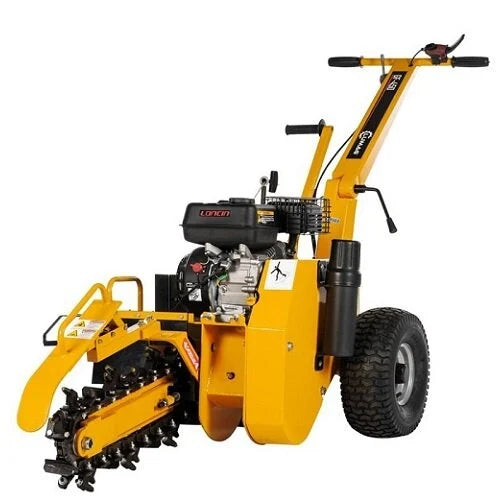

Lumag GF450 petrol trenching machine

With the Lumag GF450 trenching machine, also known as a trench digger, it is possible to mill trenches for various purposes such as laying and relocating cables, installing drainage, creating trenches for irrigation, and even planting hedges.

The machine is very robustly built and equipped with a powerful 6.5 hp petrol engine, making it highly suitable for heavier work. Furthermore, the operation of the machine is simple and user-friendly. A major advantage of this trenching machine is that the ground surface is not excessively damaged during use.

The machine's standard-fitted blade can mill trenches to a maximum depth of 45 cm and a maximum width of 10 cm. The sand raised by the trenching machine's chain is moved to the side by means of a specially developed worm gear. The chain itself is fitted with carbide teeth.

Specifications

• Engine type: Air-cooled 1-cylinder 4-stroke OHV gasoline engine
• Motor manufacturer: Loncin ( 3-year warranty!)
• Max. power: 6.5 hp
• Engine speed: 3,600 rpm
• Cylinder capacity: 196 cm³
• Fuel type: Euro 95 / 98 / Alkylate petrol (Aspen 4)
• Starting system: Pull starter
• Tank capacity: 3.6 L
• Oil tank capacity: 0.6 L
• Milling depth: 15, 25, 34, 45 cm
• Milling width: Max. 10 cm
• Sound level LWA: 107 dB(A)
• LxWxH machine: 196 x 90 x 135 cm
• Weight: 150 kg
